Description And Operation: Description

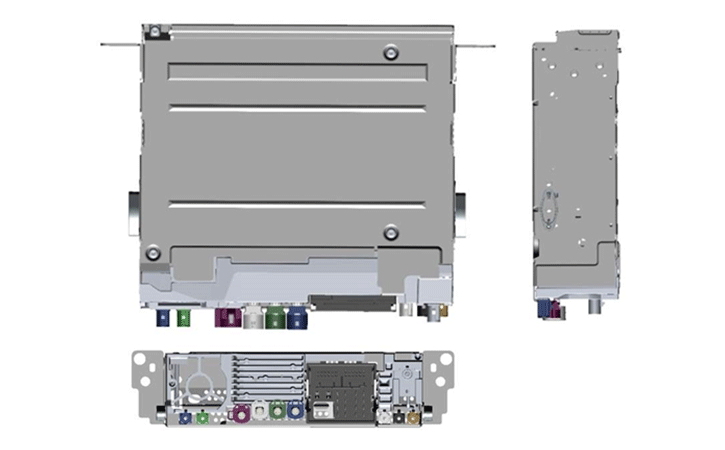

The Radio/Entertainment Telematics Module (ETM) radio-navigator module is located on the left side of the instrument panel carrier.
Hardwired circuitry connects the radio Entertainment Telematics Module (ETM) to the electrical system of the vehicle. These hardwired circuits are integral to several wire harnesses, which routes throughout the vehicle and retained by many different methods. These circuits may be connected to each other and to the vehicle electrical system through the use of a combination of soldered splices, splice block connectors, and many different types of wire harness terminal connectors and insulators. Refer to the appropriate wiring information. The wiring information includes wiring diagrams, details of wire harness routing and retention, connector pin-out information and location views for the various wire harness connectors, splices and grounds. For proper wire repair, and connector repair procedures. Refer to STANDARD PROCEDURE or REMOVAL or INSTALLATION .
The ETM cannot be adjusted or repaired. If the ETM is damaged or ineffective, it must be replaced.
