Description And Operation
The Heating, Ventilation and Air Conditioning (HVAC) module, determines the best combination of A/C compressor operation, mixing flap position, and outlet air direction and speed to control passenger compartment humidity and reach the target temperature.

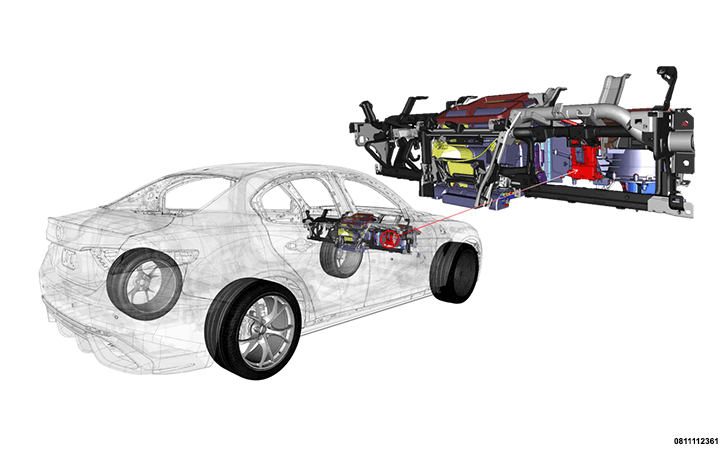

The HVAC module is placed on the HVAC distribution housing behind the instrument panel carrier and more specifically near the blower motor. For additional information about the HVAC module and system operation. Refer to DESCRIPTION AND OPERATION .
