Fuel System Pressure Release

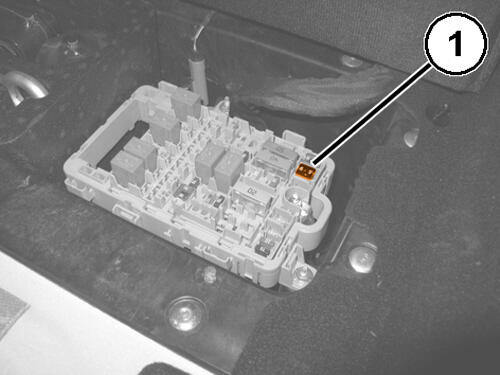

GC0194855Courtesy of CHRYSLER GROUP, LLC
  1. Remove the fusebox lid and fuel pump fuse F83 (1).
  2. Start vehicle several times until all the pressure in the fuel distribution manifolds has discharged.
  3. Put the fuel pump fuse back in its housing, close the fuse box lid and the rear compartment load floor.
