Removal And Installation: Left

WARNING: This page is about a different variant/trim than selected.

REMOVAL

  1. Disconnect and isolate the negative battery cable.
  2. Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .

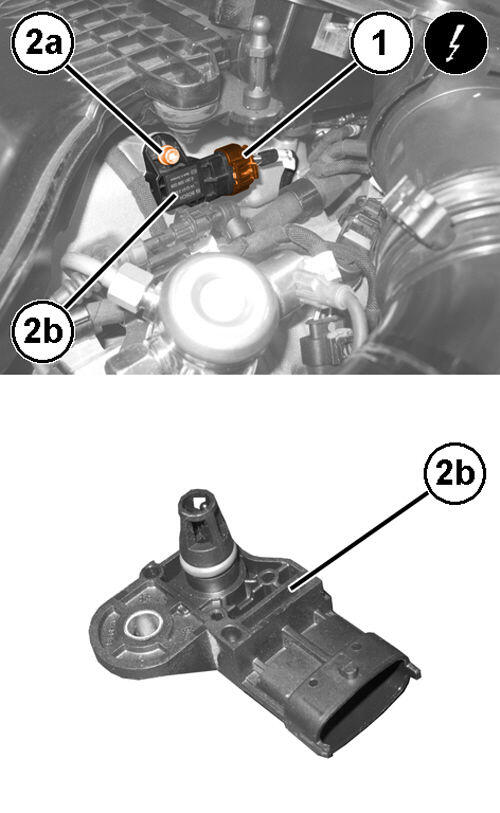

    GC0194958Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the wire harness connection (1) for the left air temperature/pressure sensor.
  4. Remove the screw (2a) and disengage the left air temperature/pressure sensor (2b) from the intake manifold with the O-ring.

INSTALLATION

  1. Place the left air temperature/pressure sensor back in its housing with new O-ring and securely tighten the screw.
  2. Connect the wire harness connection for the left air temperature/pressure detector.
  3. Install the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
  4. Connect the negative battery cable.
