2.9L - Left Side

NOTE:

If the camshaft position sensor is replaced, connect the diagnosis scan tool, select "PCM", select "Miscellaneous functions" menu and then perform the "Reset Adaptive Parameters" routine.

REMOVAL

  1. Disconnect and isolate the negative battery cable.

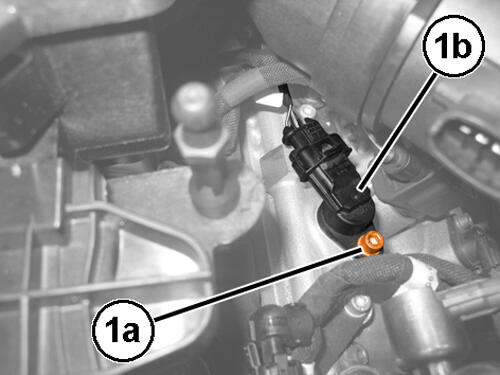

    GC0194421Courtesy of CHRYSLER GROUP, LLC
  2. Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
  3. Remove the camshaft position sensor (1b) retaining screw (1a).

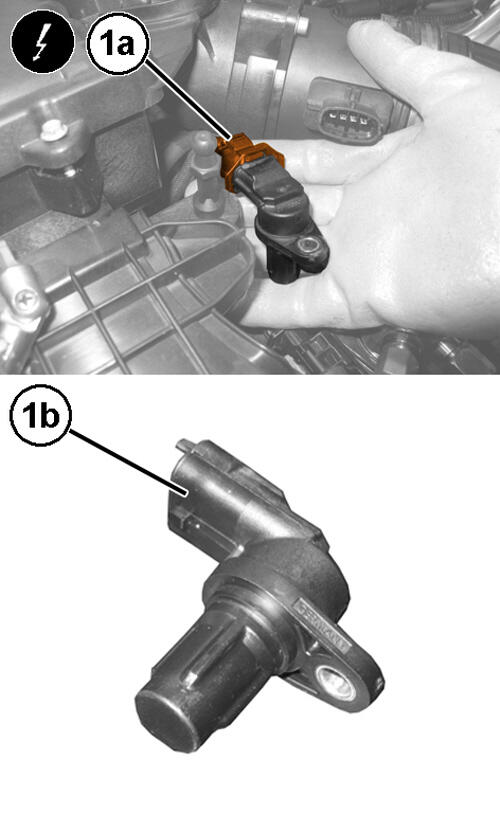

    GC0193137Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect the wiring harness connector (1a).
  5. Remove the camshaft position sensor (1b) with the o-ring.

INSTALLATION

  1. Inspect the camshaft position sensor and the sensor wiring harness.

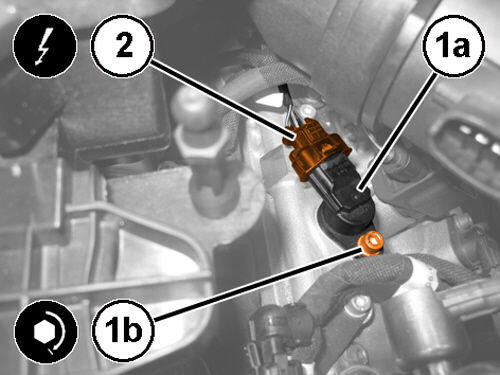

    GC0194444Courtesy of CHRYSLER GROUP, LLC
  2. Place the camshaft position sensor (1a) back in its housing with a new O-ring and tighten the screw (1b) to the proper specification.. Refer to TECHNICAL SPECIFICATIONS .
  3. Connect the wiring harness connector (2) to the camshaft position sensor.
  4. Install the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
  5. Connect the negative battery cable.
  6. If the camshaft position sensor is replaced, connect the diagnosis scan tool, select "PCM", select "Miscellaneous functions" menu and perform the "Reset adaptive parameters" routine.
