Special Tools

GC0195834Courtesy of CHRYSLER GROUP, LLC
 2050600080 - Holding, Camshaft

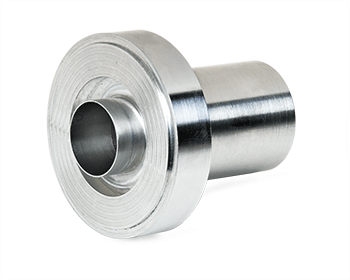

GC0197202Courtesy of CHRYSLER GROUP, LLC
 2045800090 - Installer, Entry Front Differential Oil Seal

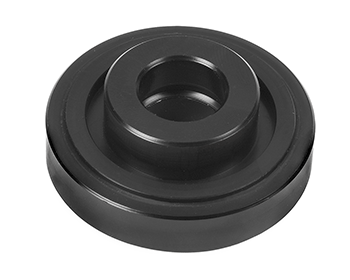

GC0196772Courtesy of CHRYSLER GROUP, LLC
 2045900090 - Installer, Front Differential Oil Seal (RH)

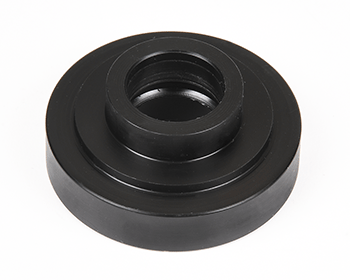

GC0196012Courtesy of CHRYSLER GROUP, LLC
 2046000090 - Installer, Front Differential Oil Seal (LH)
GC0140383Courtesy of CHRYSLER GROUP, LLC
 C-4171 - Driver Handle, Universal
(Originally Shipped In Kit Number(s) 9202, 9202A-CAN, 9202CC, 9299, 9299CC, 9299CC, 9300A-CAN.)
GC0140382Courtesy of CHRYSLER GROUP, LLC
 C-4171-4 - Extension, Drive Handle
