Switch - Rear Door

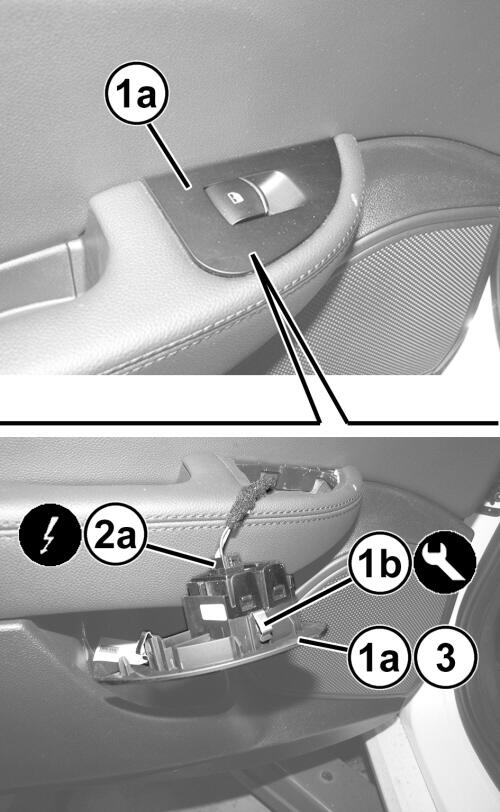

REMOVAL

1. Disconnect and isolate the negative battery cable.

   Courtesy of CHRYSLER GROUP, LLC

2. Using a trim stick or equivalent tool, lift the power lock switch (1a) from the door panel, disengaging the lock switch retainers (1b).
3. Disconnect the wiring harness connector (2a) from the power lock switch.
4. Remove the power lock switch (1a).

INSTALLATION

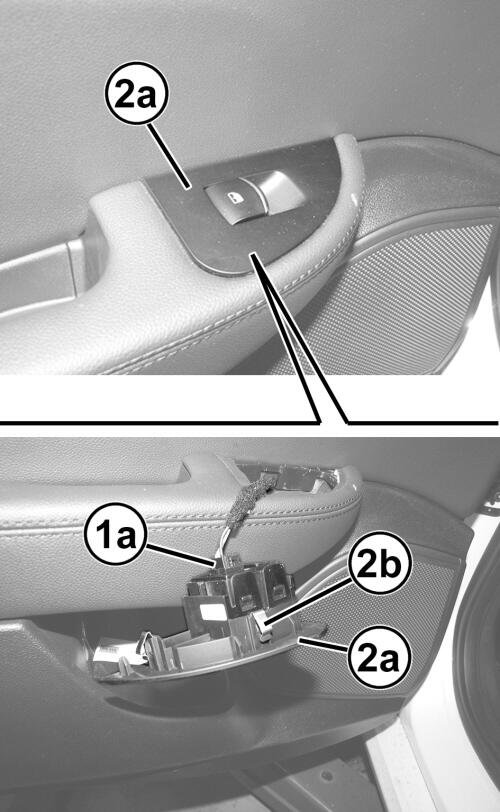

1. Position the power lock switch to the door panel for installation.

   Courtesy of CHRYSLER GROUP, LLC

2. Connect the wiring harness connector (1a) to the switch.
3. Install the power lock switch (2a) and secure the retainers (2b).
4. Connect the negative battery cable.
