Inspection Outline

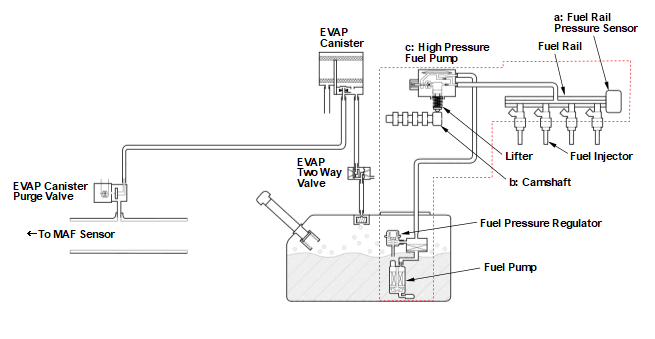

- The components to be tested are indicated by a dotted line.
- The illustration does not show all of the areas to be inspected.
- Troubleshoot any DTCs listed or indicated systems below first.
-
- -
Fuel Rail Pressure Sensor [PGM-FI]: DTC P0192 - Refer to: DTC P0192 (2.0L Engine) (2024 2025) or DTC P0192 (1.5L Engine) , P0193 - Refer to: DTC P0193 (1.5L Engine) or DTC P0193 (2.0L Engine) (2024 2025)
- -
No. 1-No. 4 Cylinder Injector(s) [PGM-FI]: DTC P0201, P0202, P0203, P0204 - Refer to: DTC P0201, P0202, P0203, P0204 (1.5L Engine) or DTC P0201, P0202, P0203, P0204 (2.0L Engine) (2024 2025)
- -
No. 1-No. 4 Cylinder Ignition Coil(s) [PGM-FI]: DTC P030A, P030D, P031A, P031D - Refer to: DTC P030A, P030D, P031A, P031D (2.0L Engine) (2024 2025) or DTC P030A, P030D, P031A, P031D (1.5L Engine)
- -
No. 1 - No. 4 Cylinder A/F Variation [PGM-FI]: DTC P219C - Refer to: DTC P219C, P219D, P219E, P219F (2.0L Engine) (2024 2025) or DTC P219C, P219D, P219E, P219F (1.5L Engine) , P219D - Refer to: DTC P219C, P219D, P219E, P219F (2.0L Engine) (2024 2025) or DTC P219C, P219D, P219E, P219F (1.5L Engine) , P219E - Refer to: DTC P219C, P219D, P219E, P219F (2.0L Engine) (2024 2025) or DTC P219C, P219D, P219E, P219F (1.5L Engine) , P219F - Refer to: DTC P219C, P219D, P219E, P219F (2.0L Engine) (2024 2025) or DTC P219C, P219D, P219E, P219F (1.5L Engine)
- -
High Pressure Fuel Pump [PGM-FI]: DTC P2623 - Refer to: DTC P2623 (1.5L Engine) or DTC P2623 (2.0L Engine) (2024 2025)
- -
| Inspection Items | Work Items | |
|---|---|---|
| - | PGM-FI Main Relay 2 | Do the PGM-FI Main Relay 2 Test |
| - | Fuel Line | Do the Fuel Pressure Test (Low Pressure Side) - Refer to: Fuel Pressure Relieving or Fuel Pressure Test (2.0L Engine) (2024 2025) or Fuel Pressure Test (1.5L Engine) |
| a | Fuel Rail Pressure Sensor | Fuel Rail Pressure Sensor Inspection (1) |
| Fuel Rail Pressure Sensor Inspection (2) | ||
| Inspection Items | Work Items | |
|---|---|---|
| b | Camshaft | High Pressure Fuel Pump Cam Inspection |
| c | High Pressure Fuel Pump | High Pressure Fuel Pump Inspection |
