Paddle Shifter Test (CVT): Test

How to use this service information .

1. Paddle Shifter - Test

   Preconditions

   • Paddle Shifter Removed

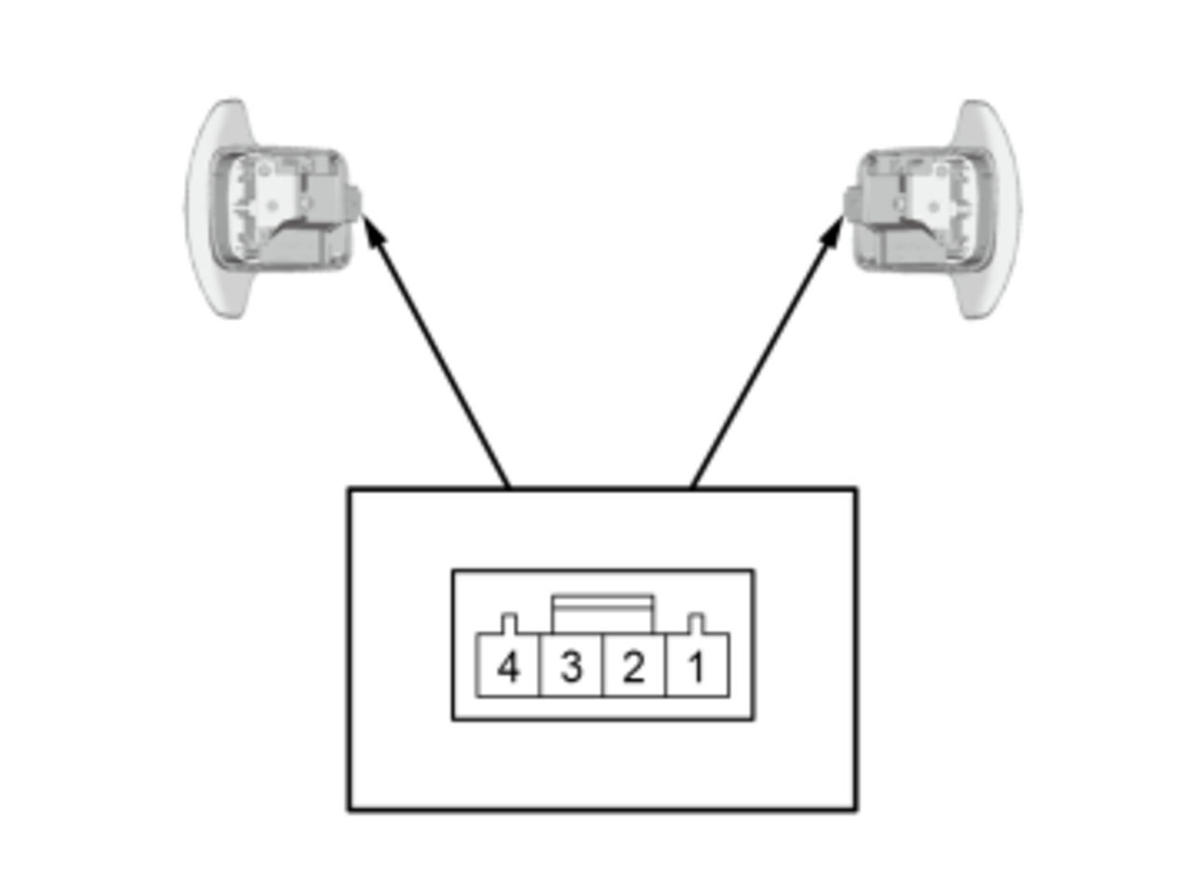

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

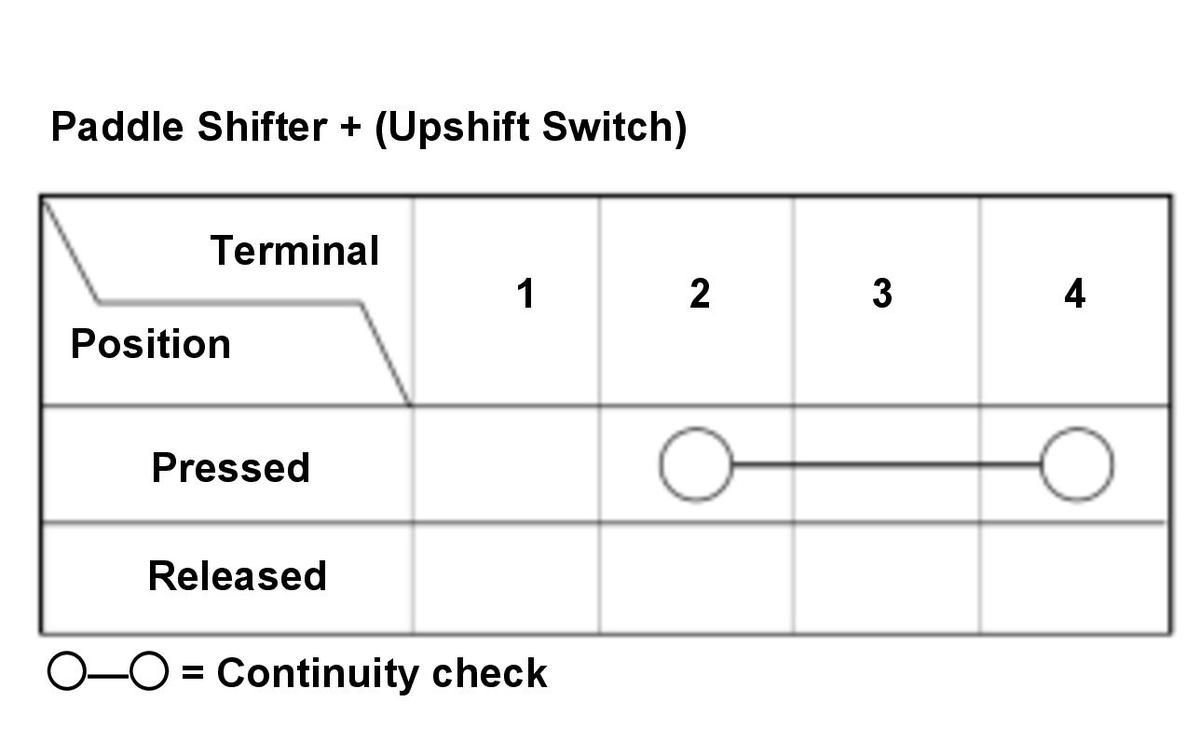

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

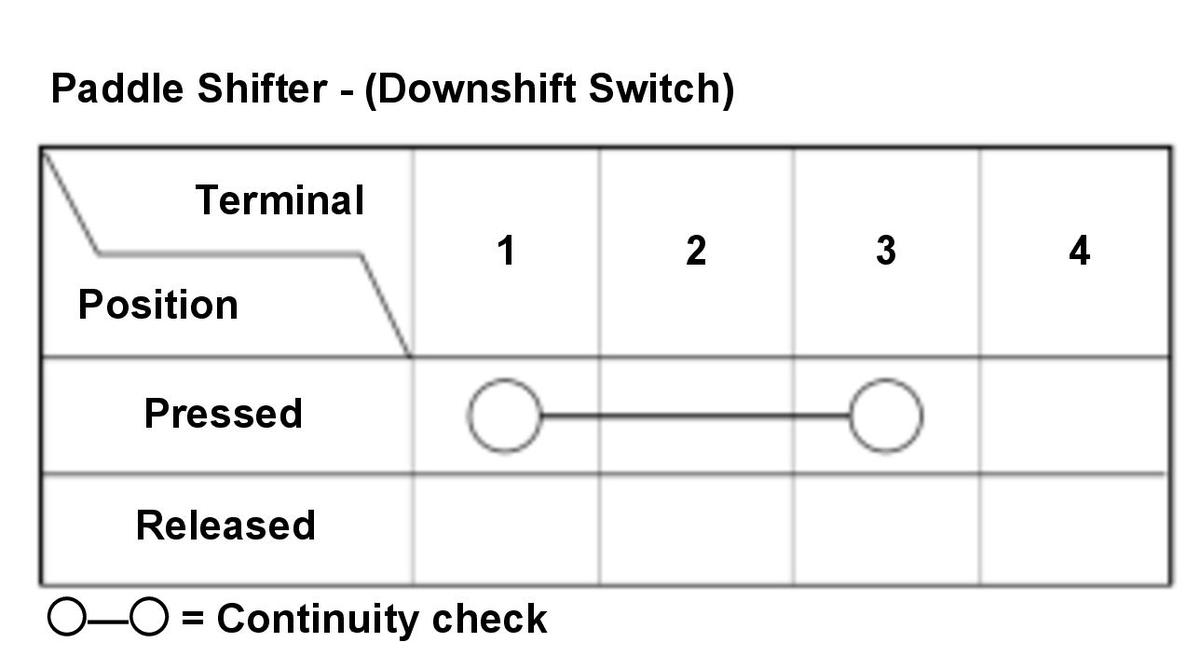

   Figure 3

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

   • Check the paddle shifter according to the table. (Figure 1, 2, and 3)

   Result

   • If it is abnormal, replace the paddle shifter .
