Repair Procedure

WARNING: This page is about a different variant/trim than selected.

How to use this manual .

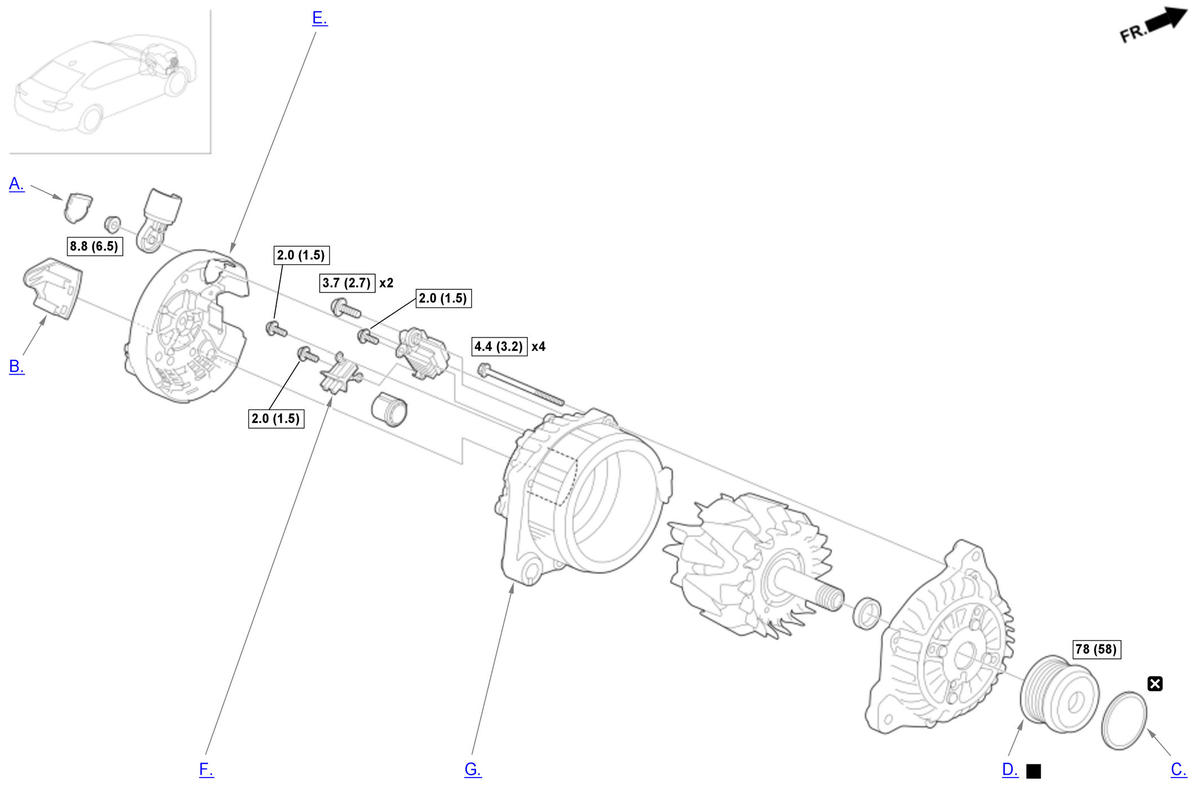

GHH558961Courtesy of HONDA, U.S.A., INC.
: Torque, N.m (lbf.ft) : Replace : Warning/Caution : Inspection/Adjustment *: Learning : SPL Tool : Required Removal

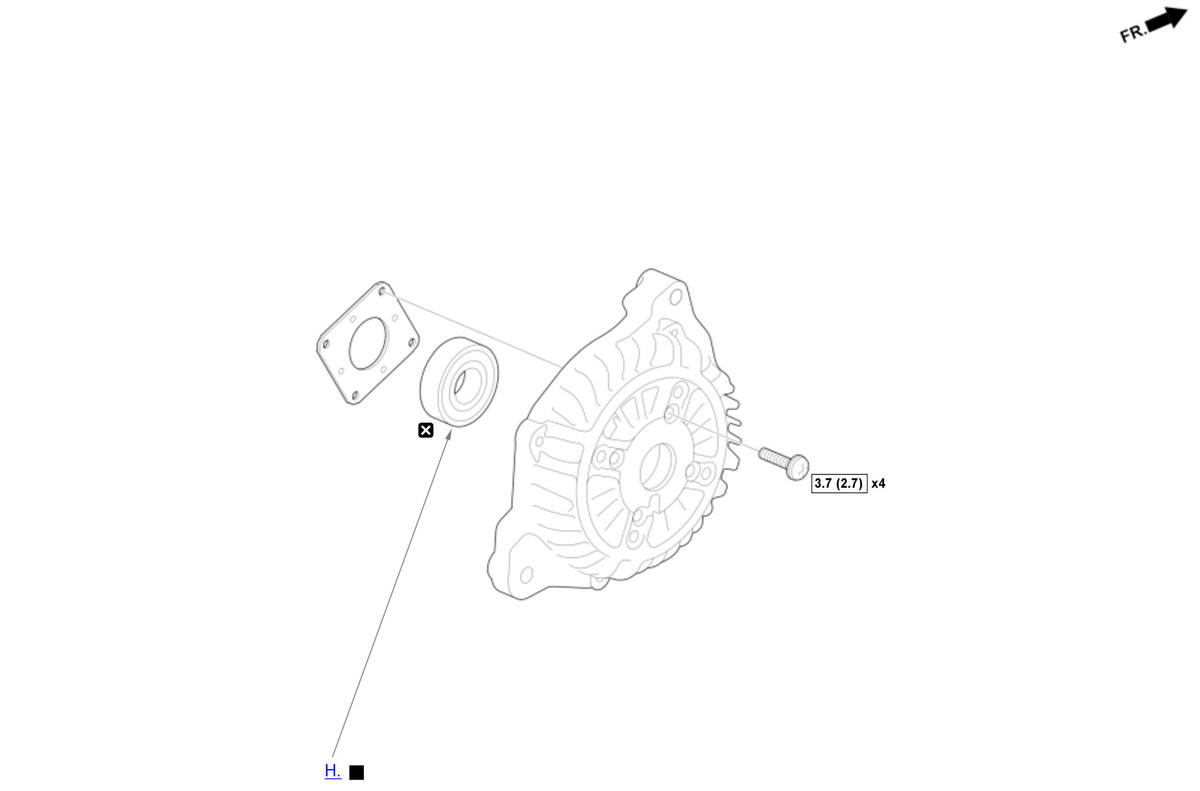

GHH558962Courtesy of HONDA, U.S.A., INC.
: Torque, N.m (lbf.ft) : Replace : Warning/Caution : Inspection/Adjustment *: Learning : SPL Tool : Required Removal
  1. A.-

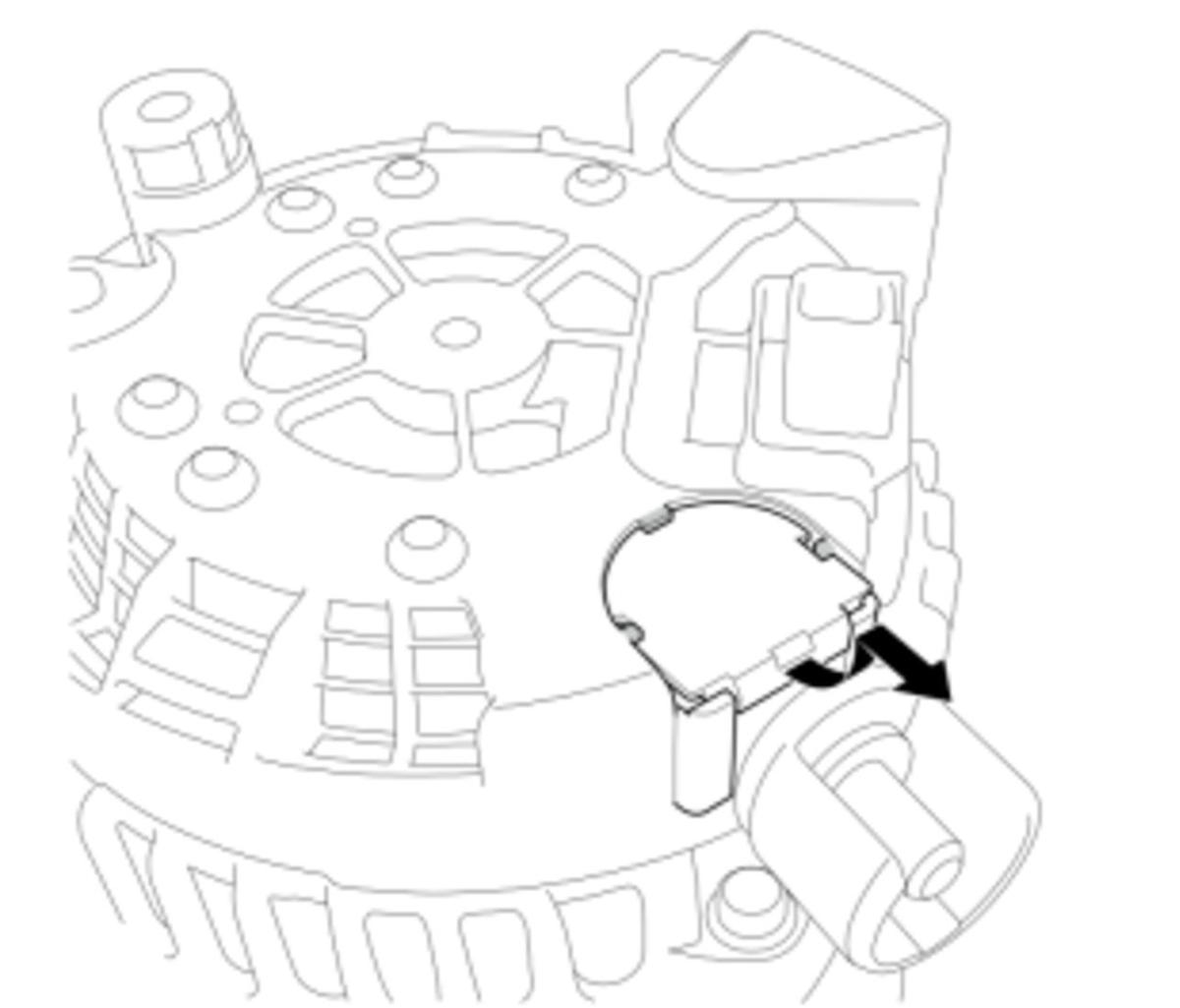

    GHH558963Courtesy of HONDA, U.S.A., INC.

    Sub-Procedure

    Removal

    • Refer to the figure.
  2. B.-

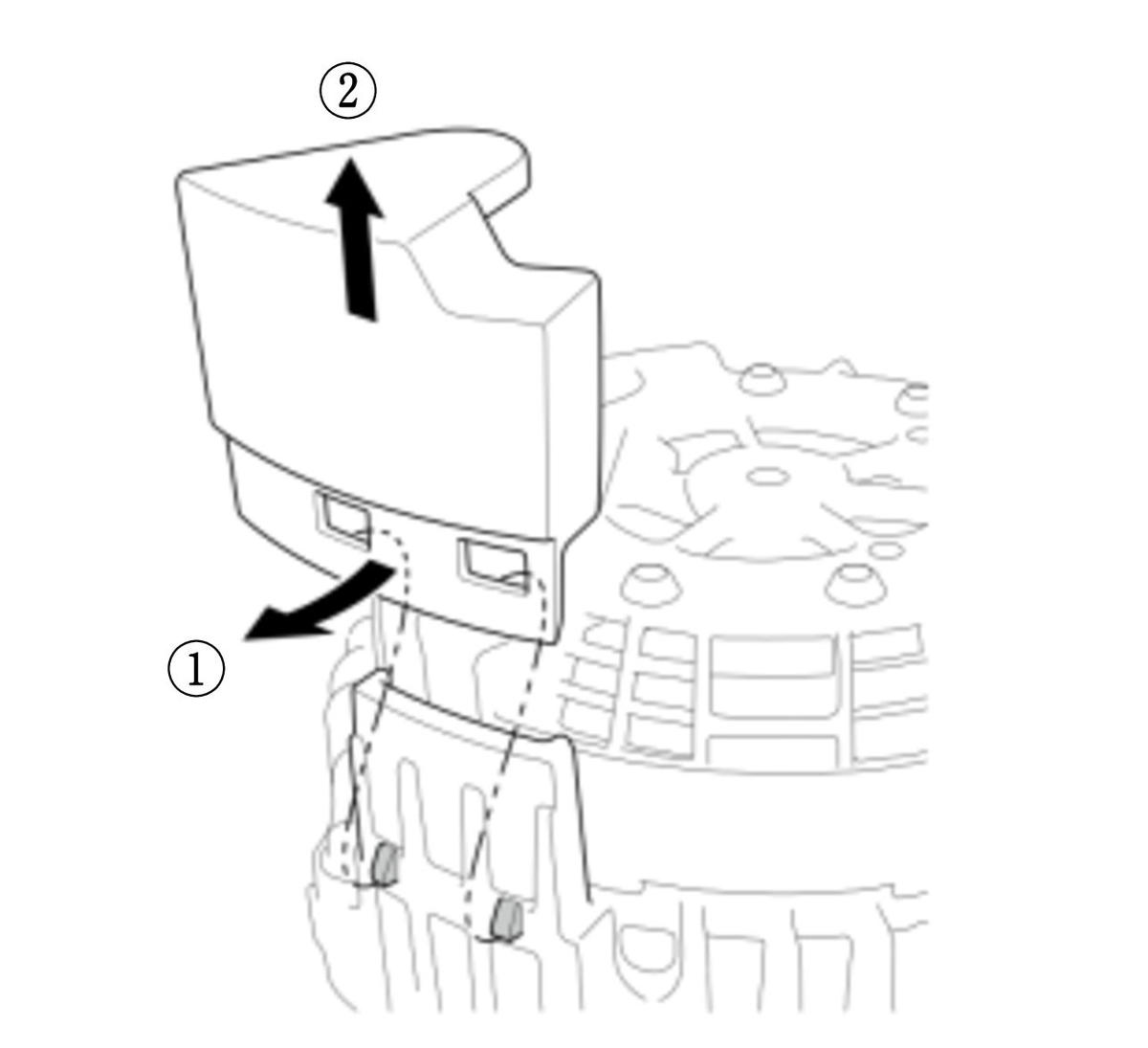

    GHH558964Courtesy of HONDA, U.S.A., INC.

    Sub-Procedure

    Removal

    • Refer to the figure.
  3. C.-

    Sub-Procedure

    NOTICE:

    While the cap is off, the grease inside the OAD pulley is exposed. Do not wipe the grease off, and make sure it does not become contaminated.

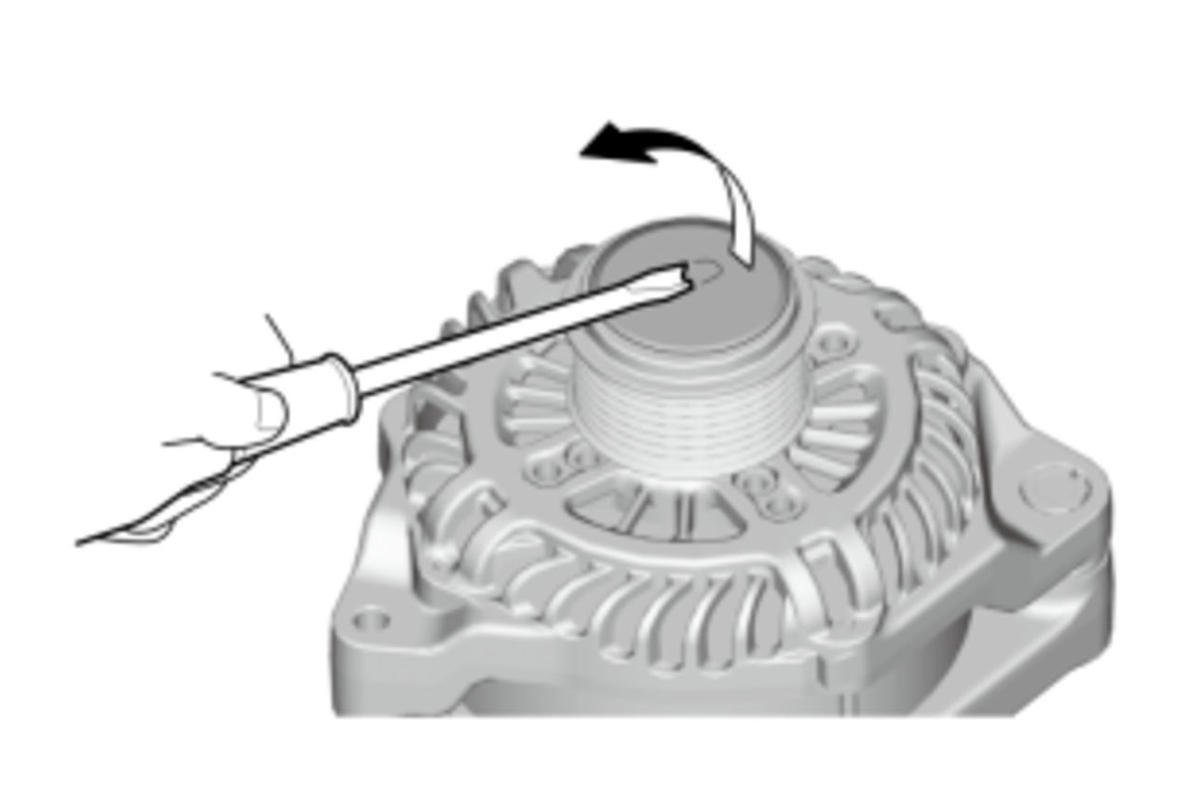

    GHH558965Courtesy of HONDA, U.S.A., INC.

    Removal

    • Remove the OAD pulley seal cap by piercing the center of the rubber cap with a flat screwdriver and prying it loose.

    Installation

    NOTE:
    • Do not distort the OAD pulley seal cap.
    • Make sure that the cap is installed securely.
  4. D.-

    Sub-Procedure

    NOTE:

    While the cap is off, the grease inside the OAD pulley is exposed. Do not wipe the grease off, and make sure it does not become contaminated.

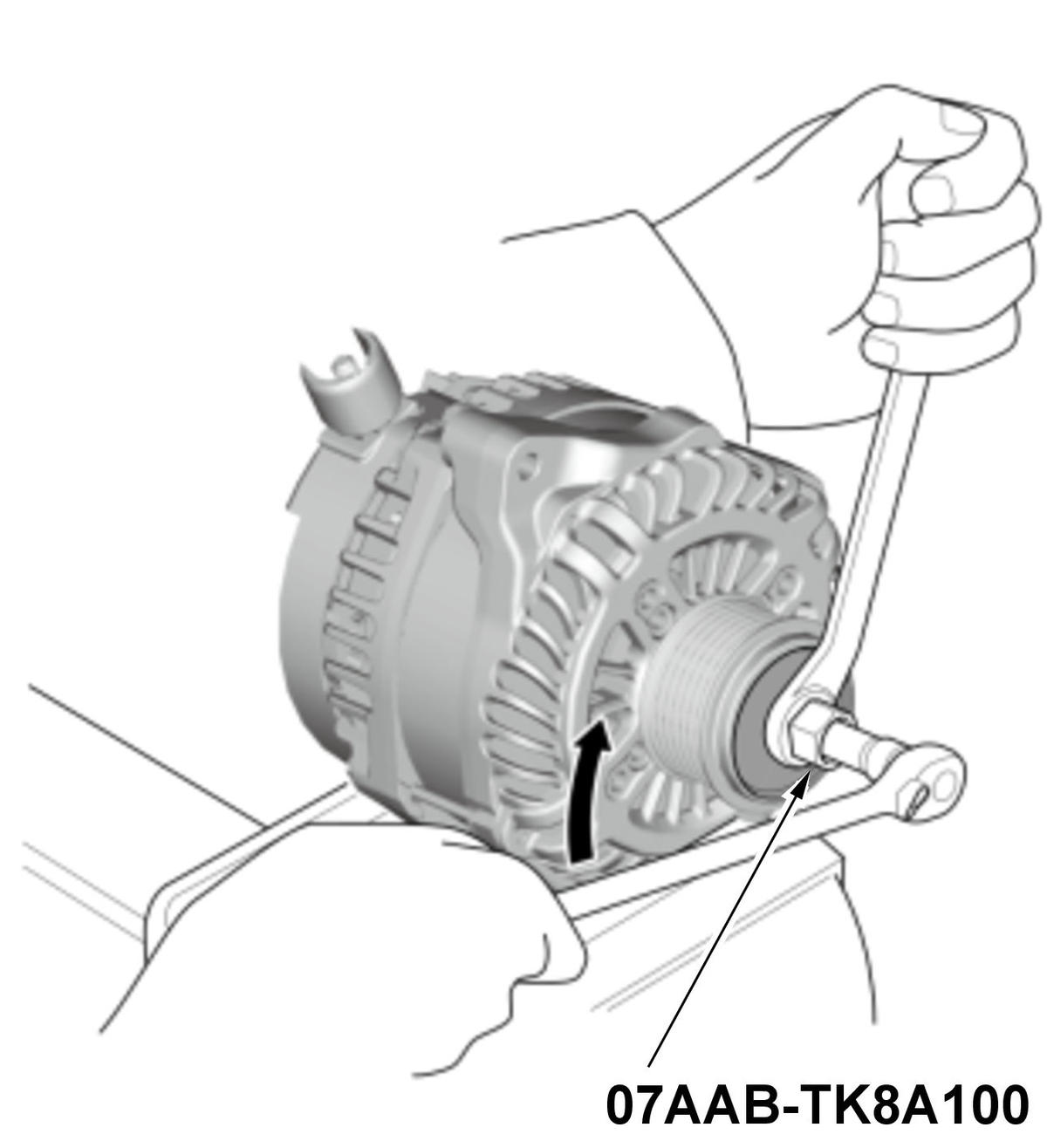

    GHH558966Courtesy of HONDA, U.S.A., INC.

    Removal

    • Turn the alternator shaft clockwise.
  5. E.-

    Sub-Procedure

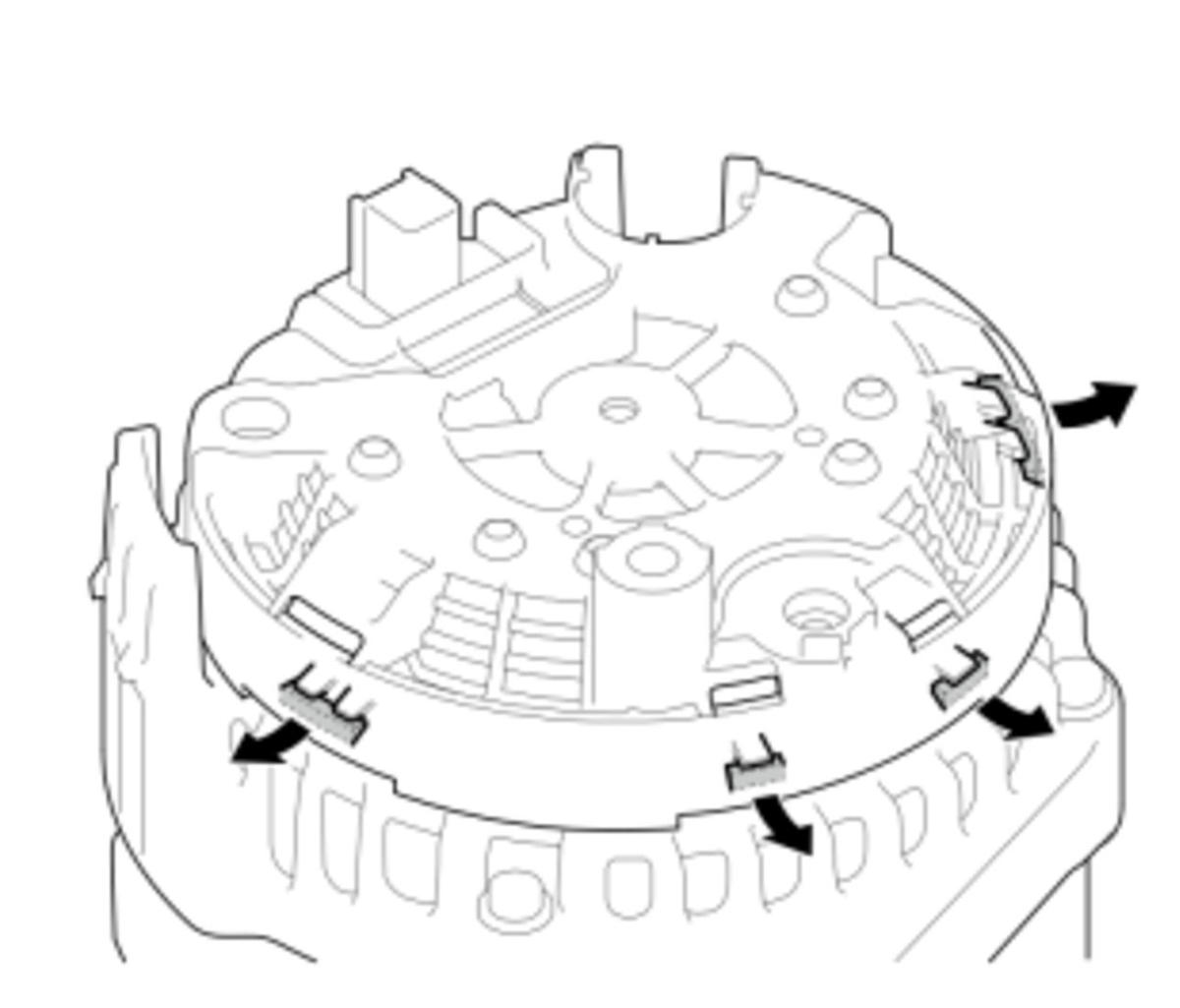

    GHH558967Courtesy of HONDA, U.S.A., INC.

    Removal

    • Refer to the figure.
  6. F.-

    Sub-Procedure

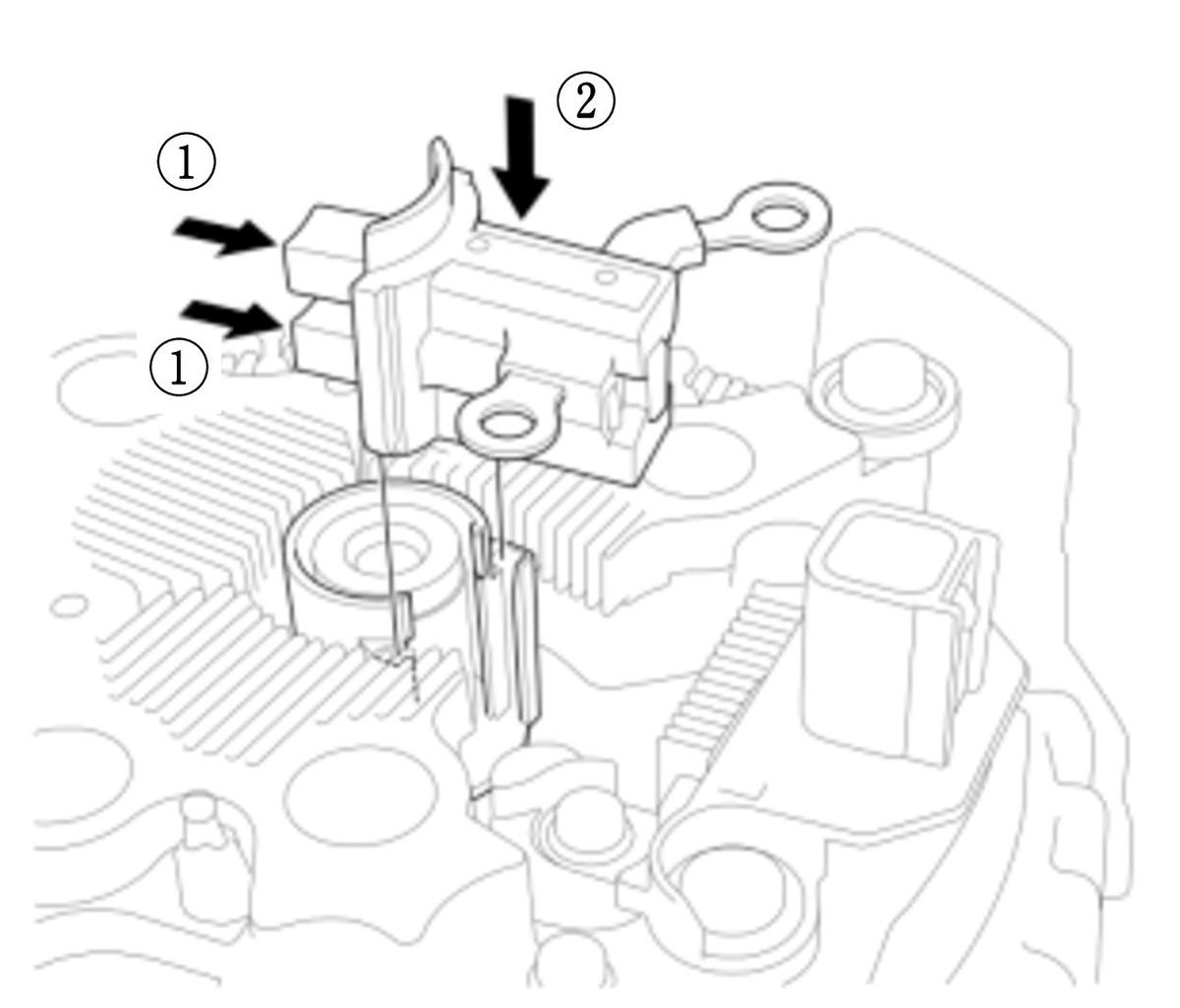

    GHH558968Courtesy of HONDA, U.S.A., INC.

    Installation

    • Refer to the figure.
  7. G.-

    Sub-Procedure

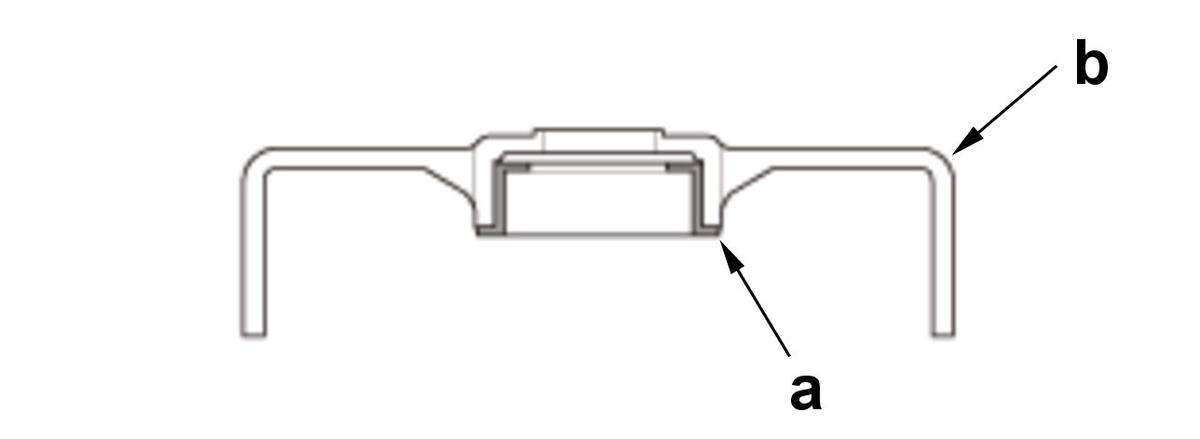

    GHH558969Courtesy of HONDA, U.S.A., INC.

    Removal

    NOTE:  Do not remove the bearing holder (a) from the stator assembly

    (b). If the bearing holder is not installed properly, replace the stator as assembly.

  8. H.-

    Sub-Procedure

    Figure 1

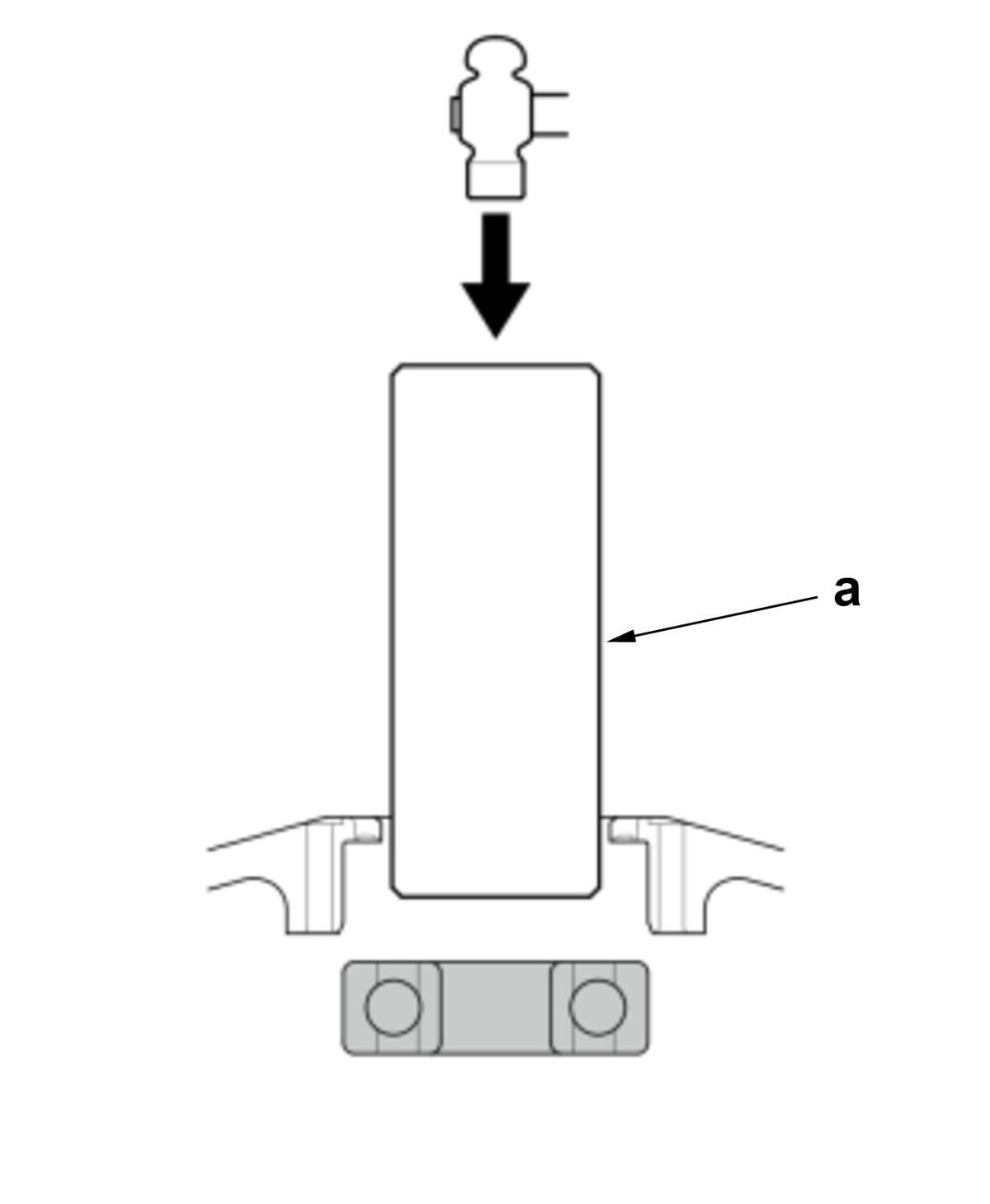

    GHH558970Courtesy of HONDA, U.S.A., INC.

    Removal

    Tool Details (Figure 1)

    Name
    a Brass Drift (Commercially Available)

    Figure 2

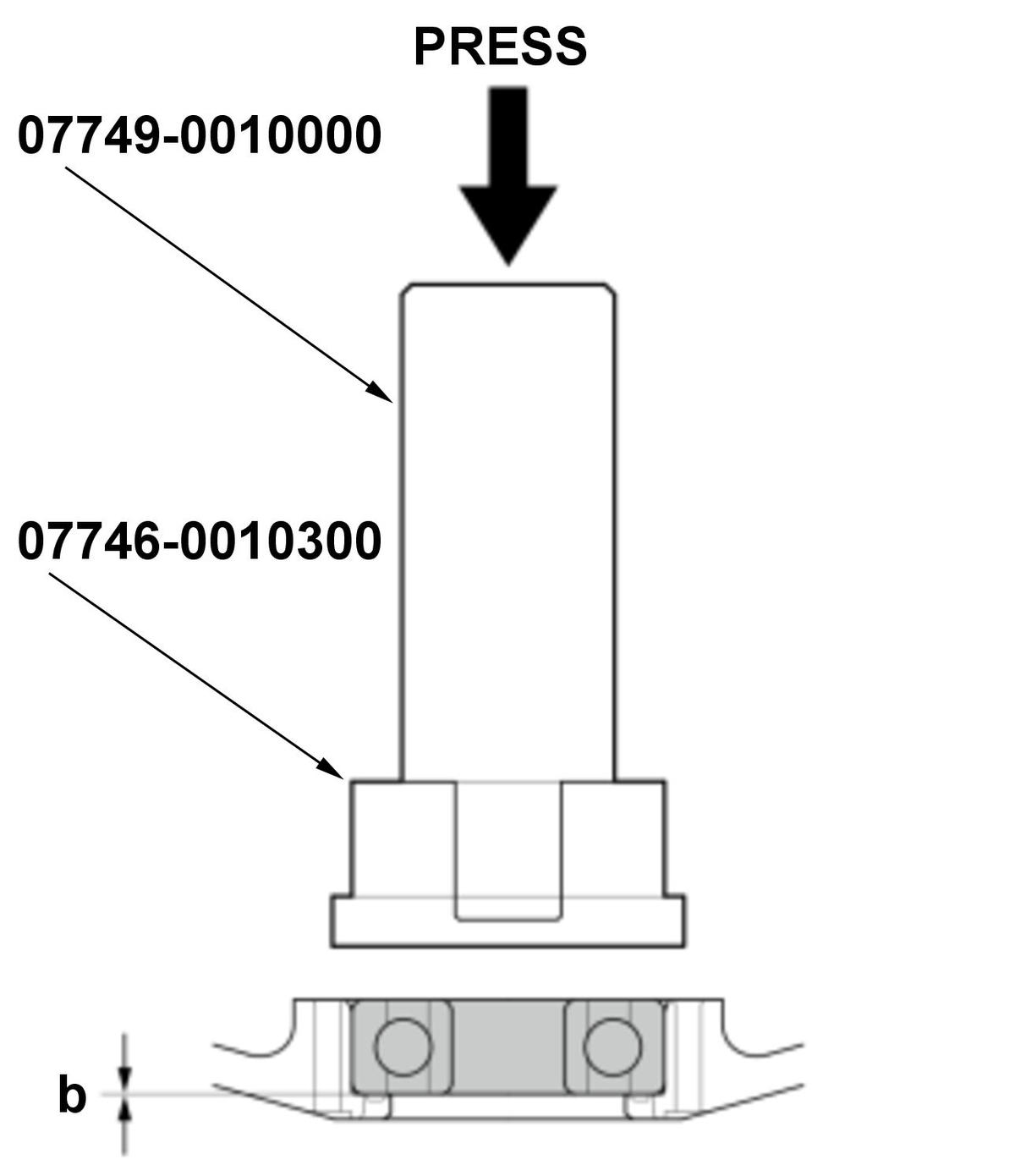

    GHH558971Courtesy of HONDA, U.S.A., INC.

    Installation

    NOTE:

    Be sure to use a press.

    Specifications (Figure 2)

    Specification
    b No Clearance
