DTC Troubleshooting: P24BA (3.0L Engine): Inspection

EVAP Leak Check Module Pressure Sensor Inspection

Test Procedure (Step 1)

• Preparation
• • EVAP leak check module 8P connector: disconnected-

• Procedure
• • Turn the vehicle to the ON mode.
  • Confirm the HDS [Absolute Pressure of ELCM Pressure Sensor].

• Normal Conditions
• • HDS [Absolute Pressure of ELCM Pressure Sensor] value is more than 852.804 mmHg.

Test Procedure (Step 2)

• Preparation
• • EVAP leak check module 8P connector: disconnected
• Procedure
• • Perform the inspection according to the following table.

			(Disconnected)EVAP leak check module 8P connectorfemale terminals

		IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	Unit output voltage inspection	ON		About 5.0 V

Results

• If it is normal, there is a problem with the EVAP leak check module.
• If it is abnormal, there is a problem with other related components.

VCC6, PTANK, SG6 Circuit Inspection

NOTICE:

Before disconnecting the PCM connector, jump the SCS line with the HDS, and wait more than 1 minute.

Test Procedure

• Preparation
• • EVAP leak check module 8P connector: disconnected
  • PCM connector B (72P): disconnected
• Procedure
• • Perform the inspection according to the following table.

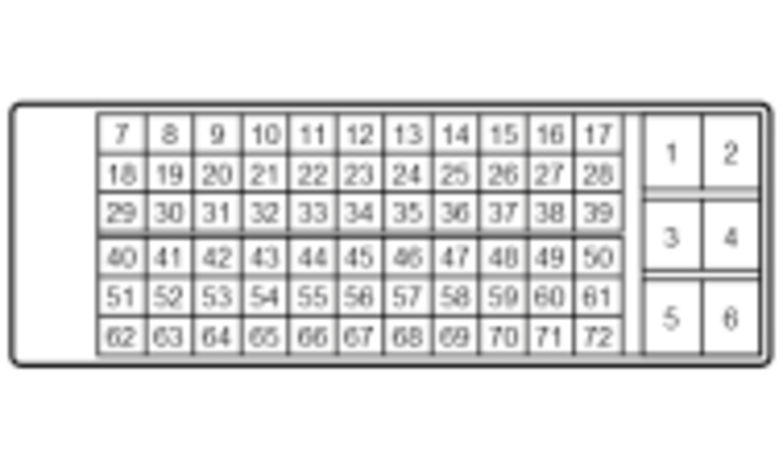

			(Disconnected)EVAP leak check module 8P connectorfemale terminals	(Disconnected) PCM connector B (72P) - Refer to: PCM Connector for Inputs and Outputs (3.0L Engine) or PCM Connector for Inputs and Outputs (2.0L Engine) female terminals

		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	VCC6 open wire inspection	OFF			There is less than 1 Ohm
	VCC6, SG6 shorted wire to wire inspection	OFF			There is more than 1 MOhm
	PTANK, SG6 shorted wire to wire inspection	OFF			There is more than 1 MOhm
	Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
	PTANK shorted to ground inspection	OFF			Not shorted

Results

• If abnormal, there is a problem in the circuit.

VCC6 Shorted Wire Inspection

NOTICE:

Before disconnecting the PCM connector, jump the SCS line with the HDS, and wait more than 1 minute.

Test Procedure

• Preparation
• • EVAP leak check module 8P connector: disconnected
  • PCM connector B (72P): disconnected
  • MAF sensor/IAT sensor 1 4P connector: disconnected
  • /C pressure sensor 3P connector: disconnected

    A

  • Turbocharger boost sensor 3P connector: disconnected
• Procedure
• • Perform the inspection according to the following table.

    Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.

			(Disconnected)EVAP leak check module 8P connectorfemale terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	VCC6 shorted to ground inspection	OFF		Not shorted

Results

• If abnormal, there is a problem in the circuit.

PCM Inspection

Test Procedure

• If the other inspection item (s) indicated a normal condition, then it is determined that the remaining PCM is the cause.

Results

• There is a problem with the PCM.
