DTC Troubleshooting: P0864(3.0L Engine): Inspection

A/T System Communication Inspection

Test Procedure

• Procedure
• • Check for communication to the AT system with the HDS.

• Normal Conditions
• • The HDS communicates with the AT system.
    NOTE: It is shown by the AT System Mode Menu appearance on the HDS.

Results

• If it is abnormal, there is a problem with the power circuit and the ground circuit of the TCM.

PF-CAN C_H, PF-CAN C_L Open Wire Inspection

NOTICE:

Before disconnecting the PCM connector, jump the SCS line with the HDS, and wait more than 1 minute.

Test Procedure

• Preparation
• • TCM connector A (23P): disconnected
  • PCM connector B (72P): disconnected
• Procedure
• • Perform the inspection according to the following table.

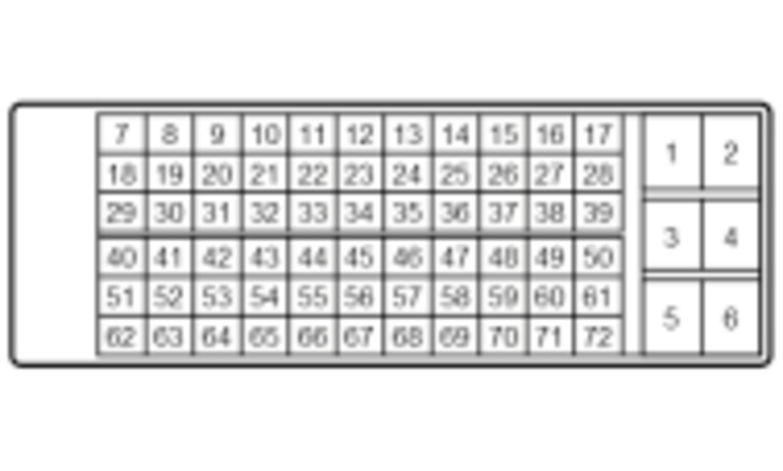

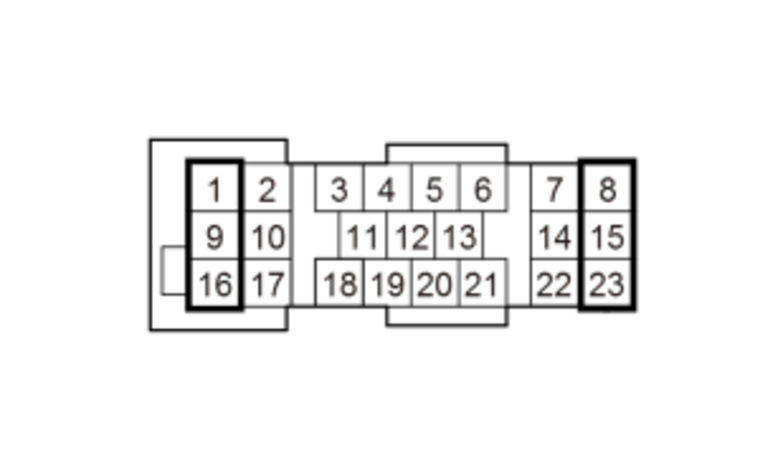

			(Disconnected)TCM connector A (23P) female terminals	(Disconnected) PCM connector B (72P) - Refer to: PCM Connector for Inputs and Outputs(3.0L Engine) or PCM Connector for Inputs and Outputs(2.0L Engine) female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	PF-CAN C_H open wire inspection	OFF			There is less than 1 Ohm
	PF-CAN C_L open wire inspection	OFF			There is less than 1 Ohm

Results

• If abnormal, there is a problem in the circuit.

PCM Inspection

Test Procedure

• If the other inspection item(s) indicated a normal condition, then it is determined that the remaining PCM is the cause.

Results

• There is a problem with the PCM.
