DTC Troubleshooting: P06E4(3.0L Engine): Inspection

+B_VBS/VBU, IG1_VBSOL2, +B_IGP, FI_MAIN_RLY_CL- Circuit Inspection

Test Procedure

NOTICE:

Before disconnecting the PCM connector, jump the SCS line with the HDS, and wait more than 1 minute.

• Preparation
• • PGM-FI main relay 1: disconnected
  • PCM connector B (72P): disconnected
• Procedure
• • Perform the inspection according to the following table.

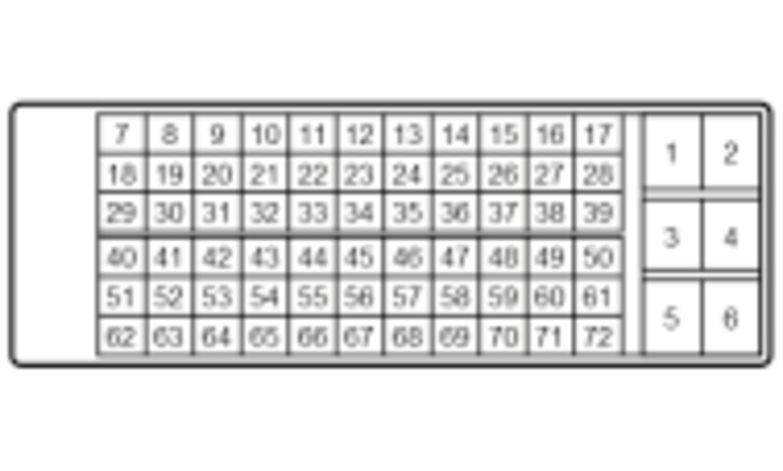

			(Disconnected)PGM-FI main relay 1 4P socketfemale terminals	(Disconnected) PCM connector B (72P) - Refer to: PCM Connector for Inputs and Outputs(3.0L Engine) or PCM Connector for Inputs and Outputs(2.0L Engine) female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	+B_VBS/VBU circuit inspection	OFF			12 V battery voltage [circuit type 1]
	IG1_VBSOL2 circuit inspection	ON			12 V battery voltage [circuit type 1]
	+B_IGP circuit inspection 1	OFF			12 V battery voltage[circuit type 1]
	+B_IGP circuit inspection 2	OFF			12 V battery voltage[circuit type 1]
	FI_MAIN_RLY_CL- open wire inspection	OFF			There is less than 1 Ohm

Results

• If abnormal, there is a problem in the circuit.

  If the power supply inspection of the above table showed abnormally, do the additional Power Supply Inspection , to locate the failure.

PCM Inspection

Test Procedure

• If the other inspection item(s) indicated a normal condition, then it is determined that the remaining PCM is the cause.

Results

• There is a problem with the PCM.
