DTC Troubleshooting: P0560(3.0L Engine): Inspection
+B_VBS/VBU Circuit Inspection
NOTICE:
Before disconnecting the PCM connector, jump the SCS line with the HDS, and wait more than 1 minute.
Test Procedure
- Preparation
-
- PCM connector B (72P): disconnected
- Procedure
-
- Perform the inspection according to the following table.

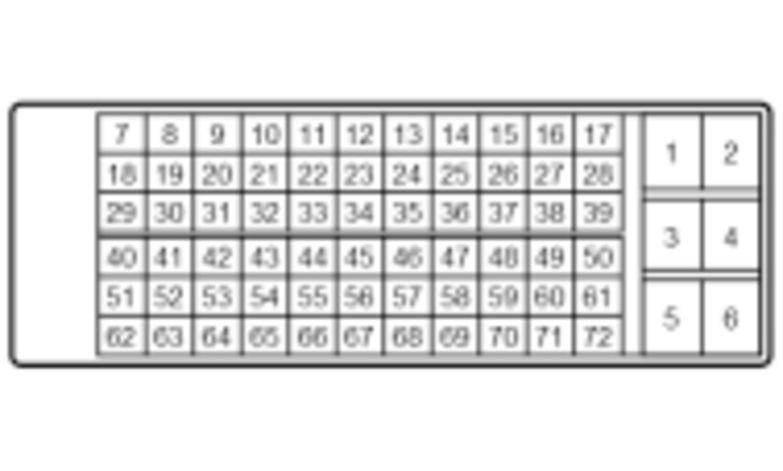

| (Disconnected) PCM connector B (72P) - Refer to: PCM Connector for Inputs and Outputs(3.0L Engine) or PCM Connector for Inputs and Outputs(2.0L Engine) female terminals | ||||
| IG Mode |
|
Normal Conditions | ||
| +B_VBS/VBU circuit inspection | OFF | 12 V battery voltage [circuit type 1] | ||
Results
- If it is abnormal, there is a problem in the circuit.
If the power supply inspection of the above table showed abnormally, do the additional Power Supply Inspection , to locate the failure.
- If it is normal, there is a problem with the PCM.
