DTC Troubleshooting: P0533(3.0L Engine): Inspection

A/C Pressure Sensor Inspection

Test Procedure

Unit output voltage inspection

• Preparation
• • A/C pressure sensor 3P connector: disconnected

• Procedure
• • Jump the A/C pressure sensor 3P connector terminals No. 1 and No. 2 with a jumper wire.
  • Turn the vehicle to the ON mode.
  • Confirm the HDS [A/C Pressure Sensor Voltage].

	(Disconnected)A/C pressure sensor 3P connectorfemale terminals
	Courtesy of HONDA, U.S.A., INC.

• Normal Conditions
• • HDS [A/C Pressure Sensor Voltage] value is less than 4.77 V  .

Results

• If it is normal, there is a problem with the A/C pressure sensor.
• If it is abnormal, there is a problem with other related components.

PD_SNSR, SG6 Open Wire Inspection

NOTICE:

Before disconnecting the PCM connector, jump the SCS line with the HDS, and wait more than 1 minute.

Test Procedure

• Preparation
• • A/C pressure sensor 3P connector: disconnected
  • PCM connector B (72P): disconnected
• Procedure
• • Perform the inspection according to the following table.

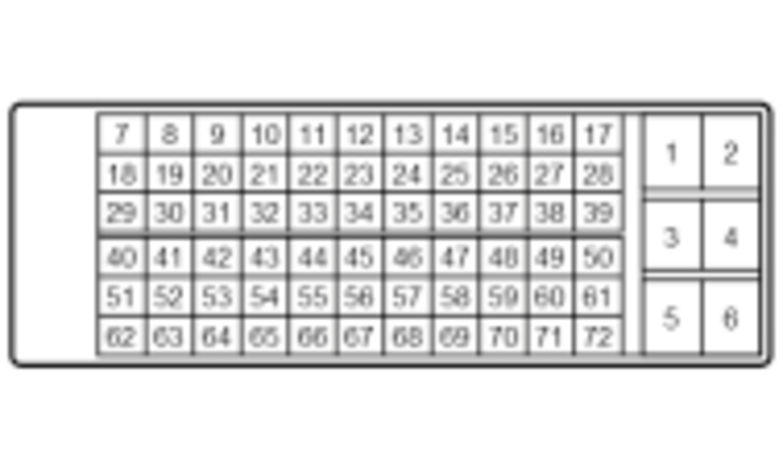

			(Disconnected)A/C pressure sensor 3P connectorfemale terminals	(Disconnected) PCM connector B (72P) - Refer to: PCM Connector for Inputs and Outputs(3.0L Engine) or PCM Connector for Inputs and Outputs(2.0L Engine) female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	PD_SNSR open wire inspection	OFF			There is less than 1 Ohm
	SG6 open wire inspection	OFF			There is less than 1 Ohm

Results

• If abnormal, there is a problem in the circuit.

PCM Inspection

Test Procedure

• If the other inspection item(s) indicated a normal condition, then it is determined that the remaining PCM is the cause.

Results

• There is a problem with the PCM.
