Inspection Outline

The components to be tested are indicated by a dotted line.

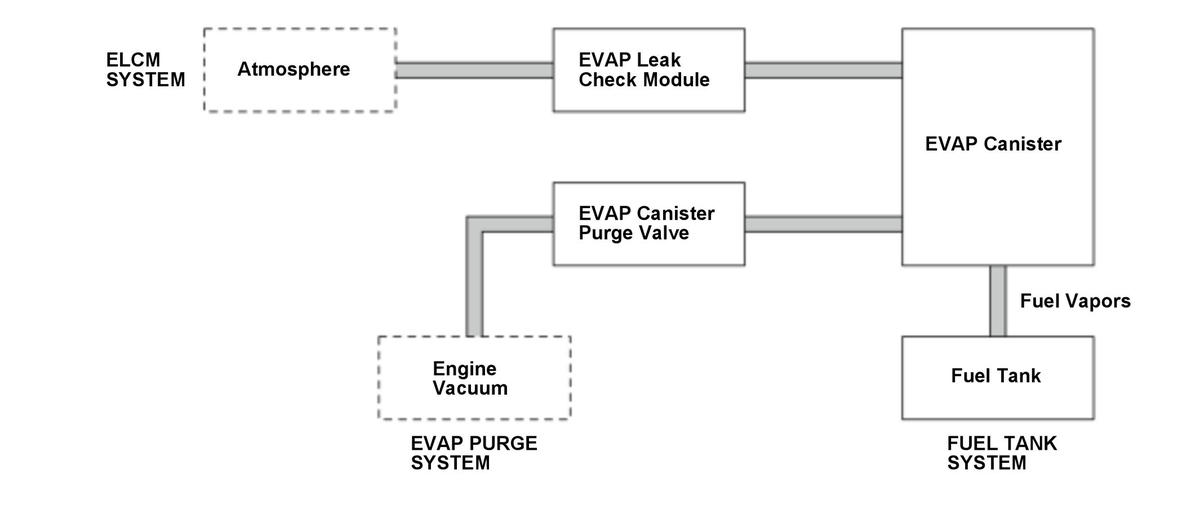

GHH560187

Courtesy of HONDA, U.S.A., INC.

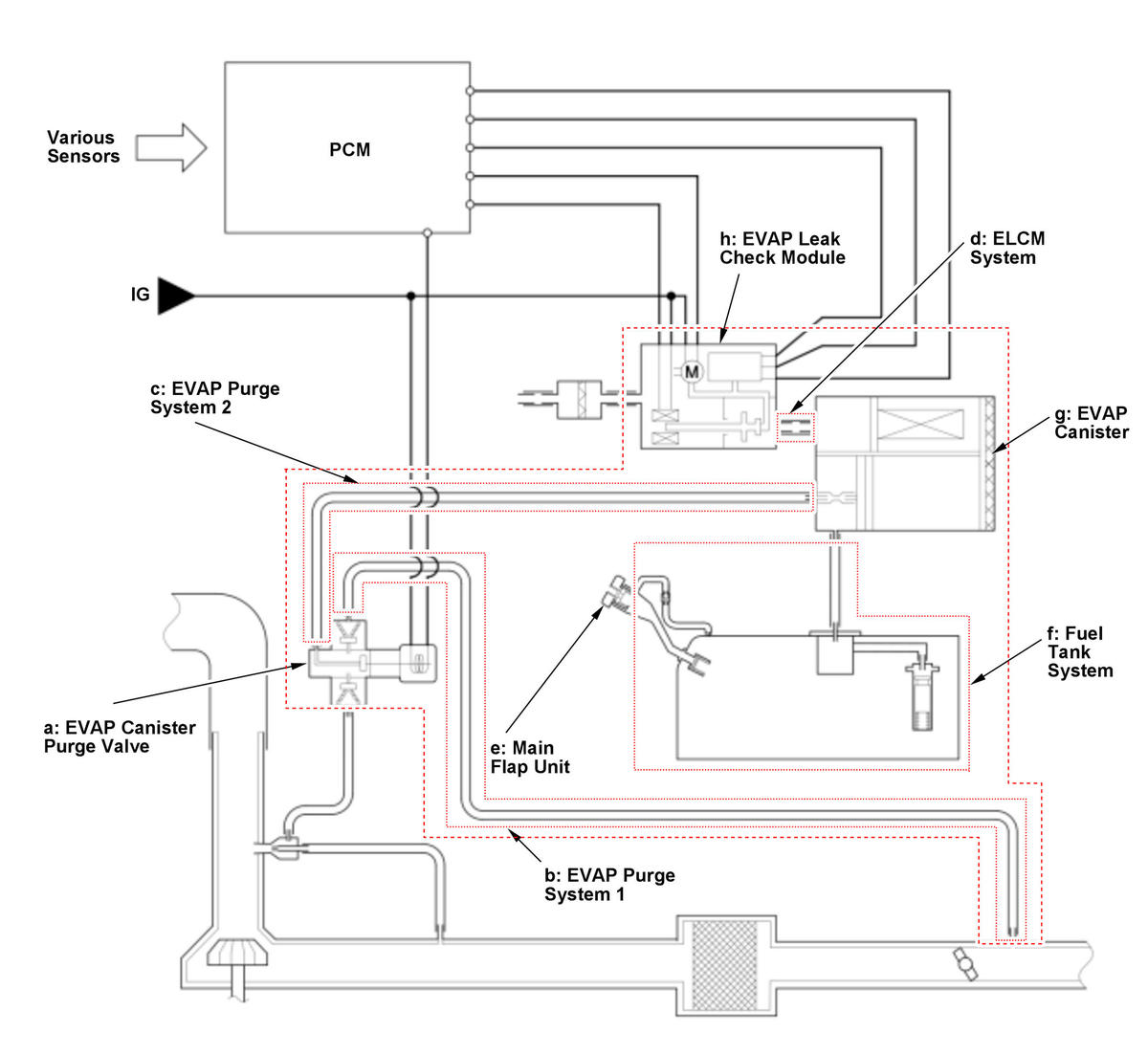

GHH560188

Courtesy of HONDA, U.S.A., INC.

Troubleshoot any DTCs listed or indicated systems below first.
- EVAP Canister Purge Valve [PGM-FI]: P0458 , P0459
- Canister Change Over Valve [PGM-FI]: P24BD , P24BE , P24BF

Inspection Items		Work Items
a	EVAP Canister Purge Valve	Do the EVAP Canister Purge Valve Inspection - Refer to: EVAP Canister Purge Valve Inspection(3.0L Engine) or EVAP Canister Purge Valve Inspection(2.0L Engine) Inspect the following items: - EVAP Canister Purge Valve Close Stuck - Non-Return Valve A Close Stuck (Intake Manifold Side)
b	EVAP Purge System 1	EVAP Purge System 1 Inspection (Blockage/Leakage)
c	EVAP Purge System 2	EVAP Purge System 2 Inspection (Blockage)
c	EVAP Purge System 2	EVAP Purge System 2 Inspection (Leakage)
d	ELCM System	ELCM System Inspection (Blockage/Leakage)
e	Main Flap Unit	Main Flap Unit Inspection
f	Fuel Tank System	Fuel Tank System Inspection (Leakage)
g	EVAP Canister	EVAP Canister Inspection (Leakage)
g	EVAP Canister	EVAP Canister Inspection (Blockage)

Inspection Items		Work Items
h	EVAP Leak Check Module	EVAP Leak Check Module Inspection
