Inspection Outline

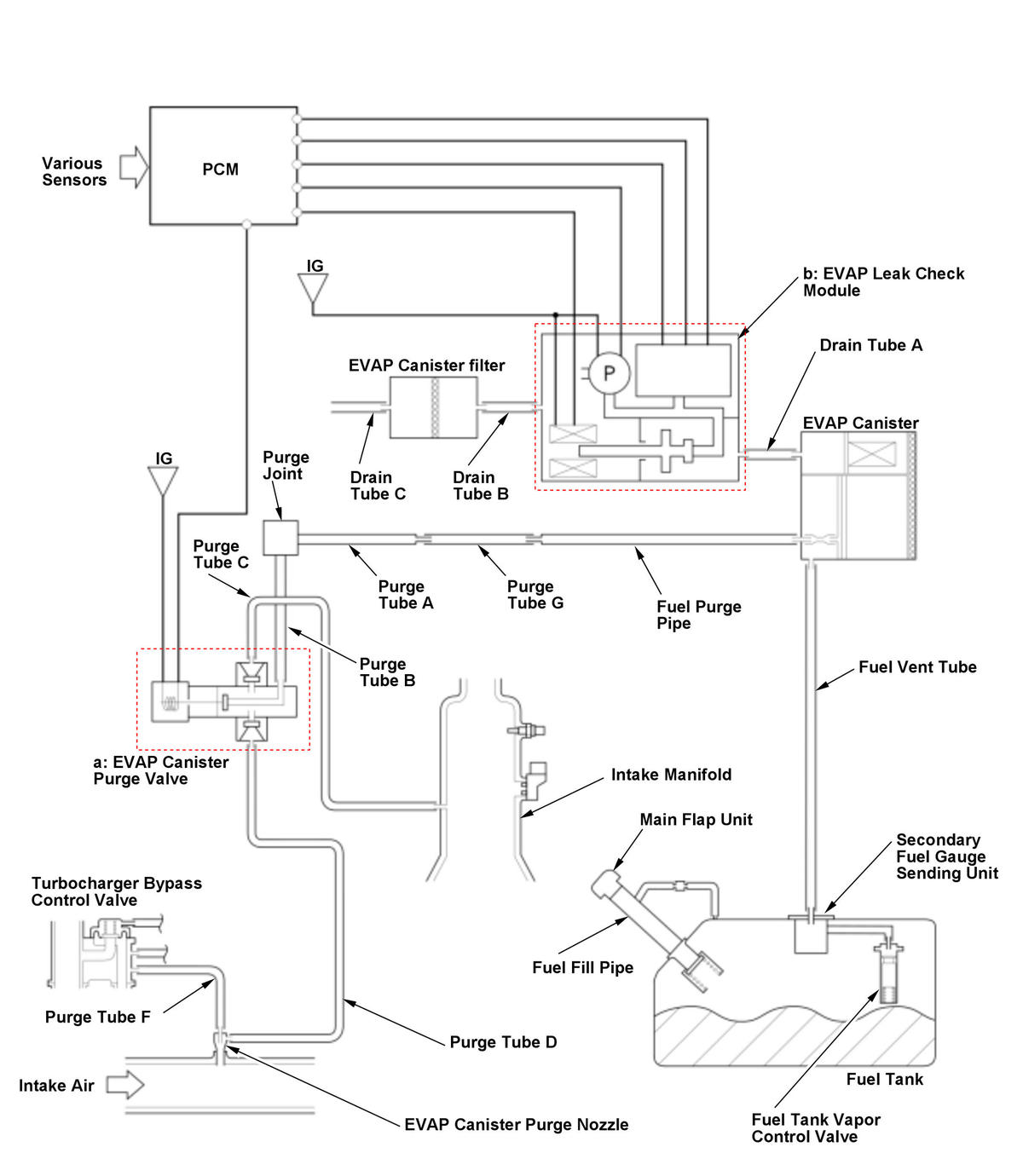

- The components to be tested are indicated by a dotted line.
- Troubleshoot any DTCs listed or indicated systems below first.
| Inspection Items | Work Items | |
|---|---|---|
| a | EVAP Canister Purge Valve | Do the EVAP Canister Purge Valve Inspection - Refer to: EVAP Canister Purge Valve Inspection(3.0L Engine)
or EVAP Canister Purge Valve Inspection(2.0L Engine) Inspect the following items:
|
| b | EVAP Leak Check Module | EVAP Leak Check Module Inspection |
