Inspection Outline

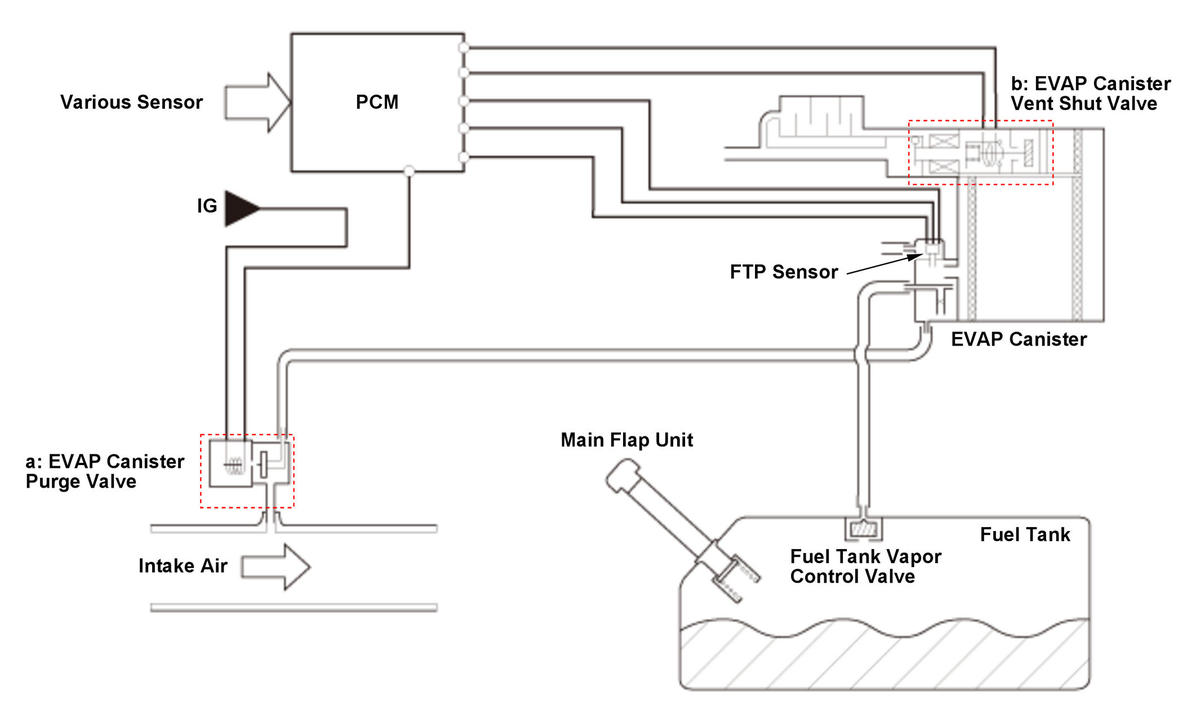

- The components to be tested are indicated by a dotted line.
| Inspection Items | Work Items | |
|---|---|---|
| a | EVAP Canister Purge Valve | Do the Non-Return Valve Inspection - Refer to: EVAP Canister Purge Valve Inspection(3.0L Engine) or EVAP Canister Purge Valve Inspection(2.0L Engine) |
| EVAP Canister Purge Valve Functional Inspection (Open Stuck) | ||
| b | EVAP Canister Vent Shut Valve | EVAP Canister Vent Shut Valve Inspection |
