DTC Troubleshooting: P0340(2.0L Engine): Inspection

CMP Sensor A Inspection

Test Procedure

• Preparation
• • -

    CMP sensor A 3P connector: disconnected

• Procedure
• • -

    Perform the inspection according to the following table.

			(Disconnected)CMP sensor A 3P connectorfemale terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	Unit output voltage inspection	ON		About 5.0 V
		ON		About 5.0 V

Results

• If it is normal, there is a problem in CMP sensor A.
• If it is abnormal, there is a problem with other related components.

VCC2, TD_CAM, SG2 Circuit Inspection

NOTICE:

Before disconnecting the PCM connector, jump the SCS line with the HDS, and wait more than 1 minute.

Test Procedure

• Preparation
• • -

    CMP sensor A 3P connector: disconnected

  • -

    PCM connector E (80P): disconnected

• Procedure
• • -

    Perform the inspection according to the following table.

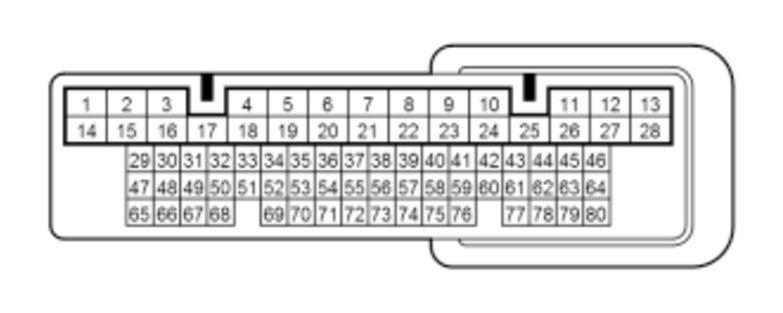

			(Disconnected)CMP sensor A 3P connectorfemale terminals	(Disconnected) PCM connector E (80P) - Refer to: PCM Connector for Inputs and Outputs(3.0L Engine) or PCM Connector for Inputs and Outputs(2.0L Engine) female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	VCC2 open wire inspection	OFF			There is less than 1 Ohm
	TD_CAM open wire inspection	OFF			There is less than 1 Ohm
	SG2 open wire inspection	OFF			There is less than 1 Ohm
	NOTE: Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
	TD_CAM shorted to ground inspection	OFF			Not shorted

Results

• If abnormal, there is a problem in the circuit.

PCM Inspection

Test Procedure

• If the other inspection item(s) indicated a normal condition, then it is determined that the remaining PCM is the cause.

Results

• There is a problem with the PCM.
