DTC Troubleshooting: P0335(3.0L Engine): Inspection

CKP Sensor Inspection

Test Procedure

• Preparation
• • -

    CKP sensor 3P connector: disconnected

• Procedure
• • -

    Perform the inspection according to the following table.

			(Disconnected)CKP sensor 3P connectorfemale terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	Unit output voltage inspection	ON		About 5.0 V
		ON		About 5.0 V

Results

• If it is normal, there is a problem with the CKP sensor.
• If it is abnormal, there is a problem with other related components.

VCC1, CRKP, SG1 Circuit Inspection

NOTICE:

Before disconnecting the PCM connector, jump the SCS line with the HDS, and wait more than 1 minute.

Test Procedure

• Preparation
• • -

    CKP sensor 3P connector: disconnected

  • -

    PCM connector E (114P): disconnected

• Procedure
• • -

    Perform the inspection according to the following table.

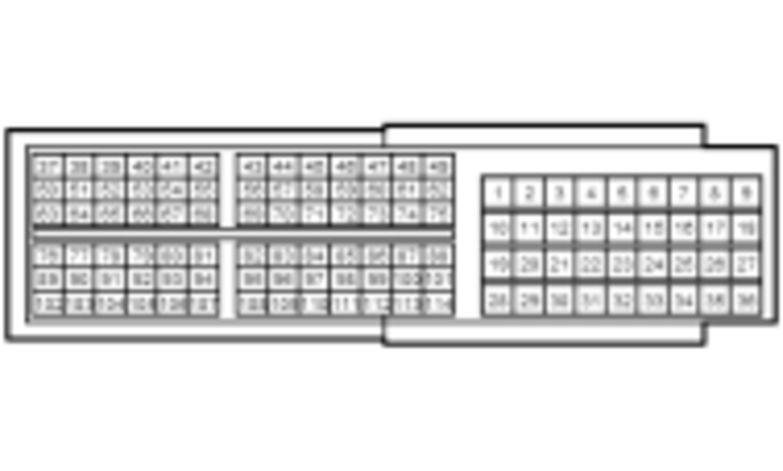

			(Disconnected)CKP sensor 3P connectorfemale terminals	(Disconnected) PCM connector E (114P) - Refer to: PCM Connector for Inputs and Outputs(3.0L Engine) or PCM Connector for Inputs and Outputs(2.0L Engine) female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	VCC1 open wire inspection	OFF			There is less than 1 Ohm
	SG1 open wire inspection	OFF			There is less than 1 Ohm
	CRKP open wire inspection	OFF			There is less than 1 Ohm
	Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
	CRKP shorted to ground inspection	OFF			Not shorted

Results

• If it is abnormal, there is a problem in the circuit.

PCM Inspection

Test Procedure

• If the other inspection item(s) indicated a normal condition, then it is determined that the remaining PCM is the cause.

Results

• There is a problem with the PCM.
