DTC Troubleshooting: P0328(2.0L Engine): Inspection

Knock Sensor Inspection

Test Procedure

• Preparation
• • -

    Knock sensor 2P connector: disconnected

• Procedure
• • -

    Perform the inspection according to the following table.

			(Disconnected)Knock sensor 2P connectorfemale terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	Unit output voltage inspection	ON		About 5.0 V

Results

• If it is normal, there is a problem with the knock sensor.
• If it is abnormal, there is a problem with other related components.

KS, KSGND Open Wire Inspection

NOTICE:

Before disconnecting the PCM connector, jump the SCS line with the HDS, and wait more than 1 minute.

Test Procedure

• Preparation
• • -

    Knock sensor 2P connector: disconnected

  • -

    PCM connector E (80P): disconnected

• Procedure
• • -

    Perform the inspection according to the following table.

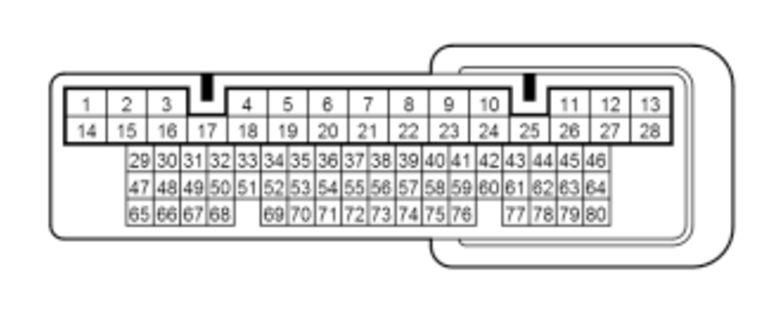

			(Disconnected)Knock sensor 2P connectorfemale terminals	(Disconnected) PCM connector E (80P) - Refer to: PCM Connector for Inputs and Outputs(3.0L Engine) or PCM Connector for Inputs and Outputs(2.0L Engine) female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	KS open wire inspection	OFF			There is less than 1 Ohm
	KSGND open wire inspection	OFF			There is less than 1 Ohm

Results

• If abnormal, there is a problem in the circuit.

PCM Inspection

Test Procedure

• If the other inspection item(s) indicated a normal condition, then it is determined that the remaining PCM is the cause.

Results

• There is a problem with the PCM.
