Inspection Outline

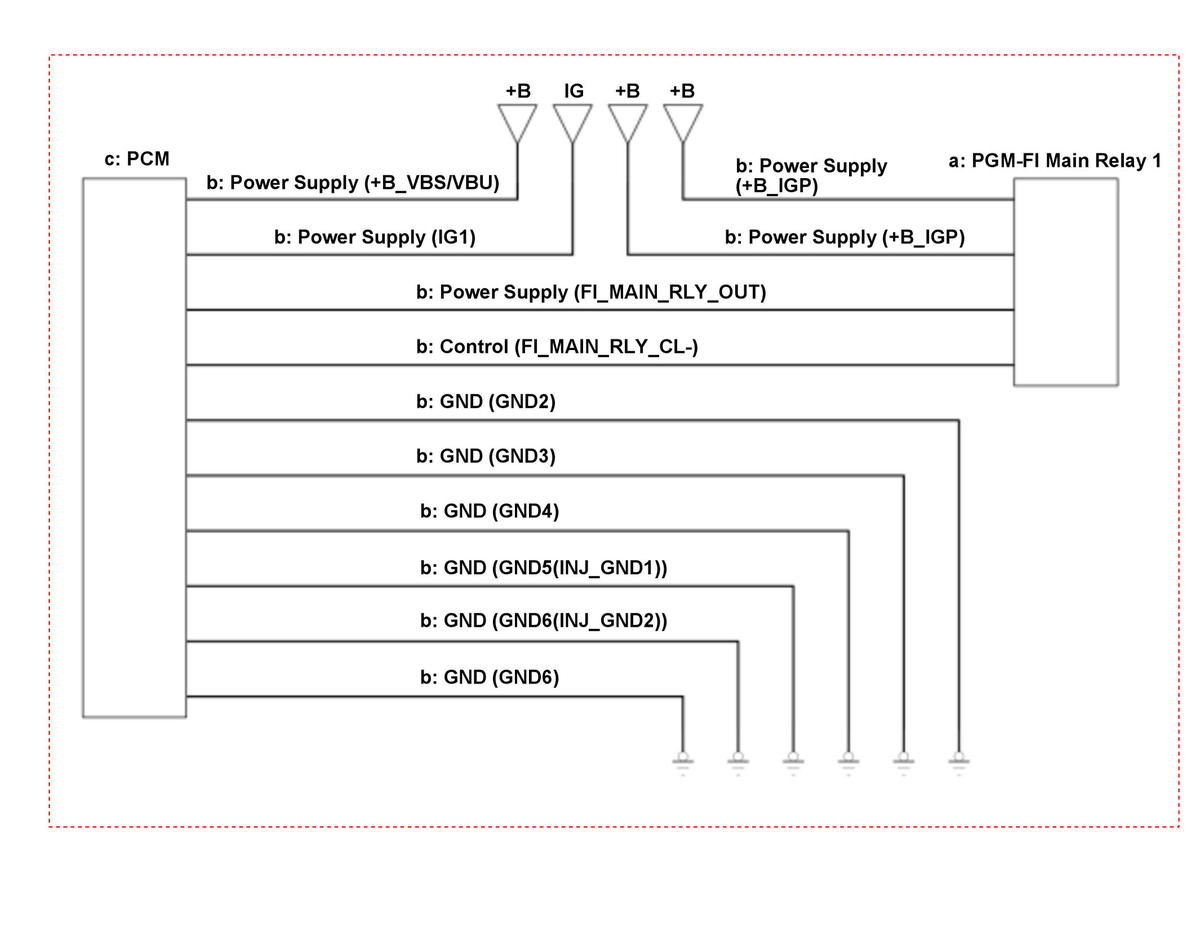

- The components to be tested are indicated by a dotted line.
- The illustration does not show all of the areas to be inspected.
- Troubleshoot any DTCs listed or indicated systems below first.
-
- Fuel Pump [PGM-FI]: DTC P0627 - Refer to: DTC Troubleshooting: P0627(2.0L Engine) or DTC Troubleshooting: P0627(3.0L Engine)
- CAN Gateway System [CAN GATEWAY]: Go to the indicated DTC's troubleshooting .
| Inspection Items | Work Items | |
|---|---|---|
| a | PGM-FI Main Relay 1 | Do the PGM-FI Main Relay 1 Test |
| b | External Circuit | +B_VBS/VBU, GND Circuit Inspection |
| +B_IGP Circuit Inspection | ||
| FI_MAIN_RLY_OUT, FI_MAIN_RLY_CL- Circuit Inspection | ||
| IG1, GND5(INJ_GND1), GND6(INJ_GND2), GND2, GND3, GND4 Circuit Inspection | ||
| c | PCM | PCM Inspection |
