Block and Piston Inspection (3.0L Engine): Inspection

How to use this manual .

1. Engine Block Warpage - Inspect

   Preconditions

   • Engine Block Removed - Refer to: Engine Block/Crankshaft Area(3.0L Engine) or Engine Block/Crankshaft Area(2.0L Engine)

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

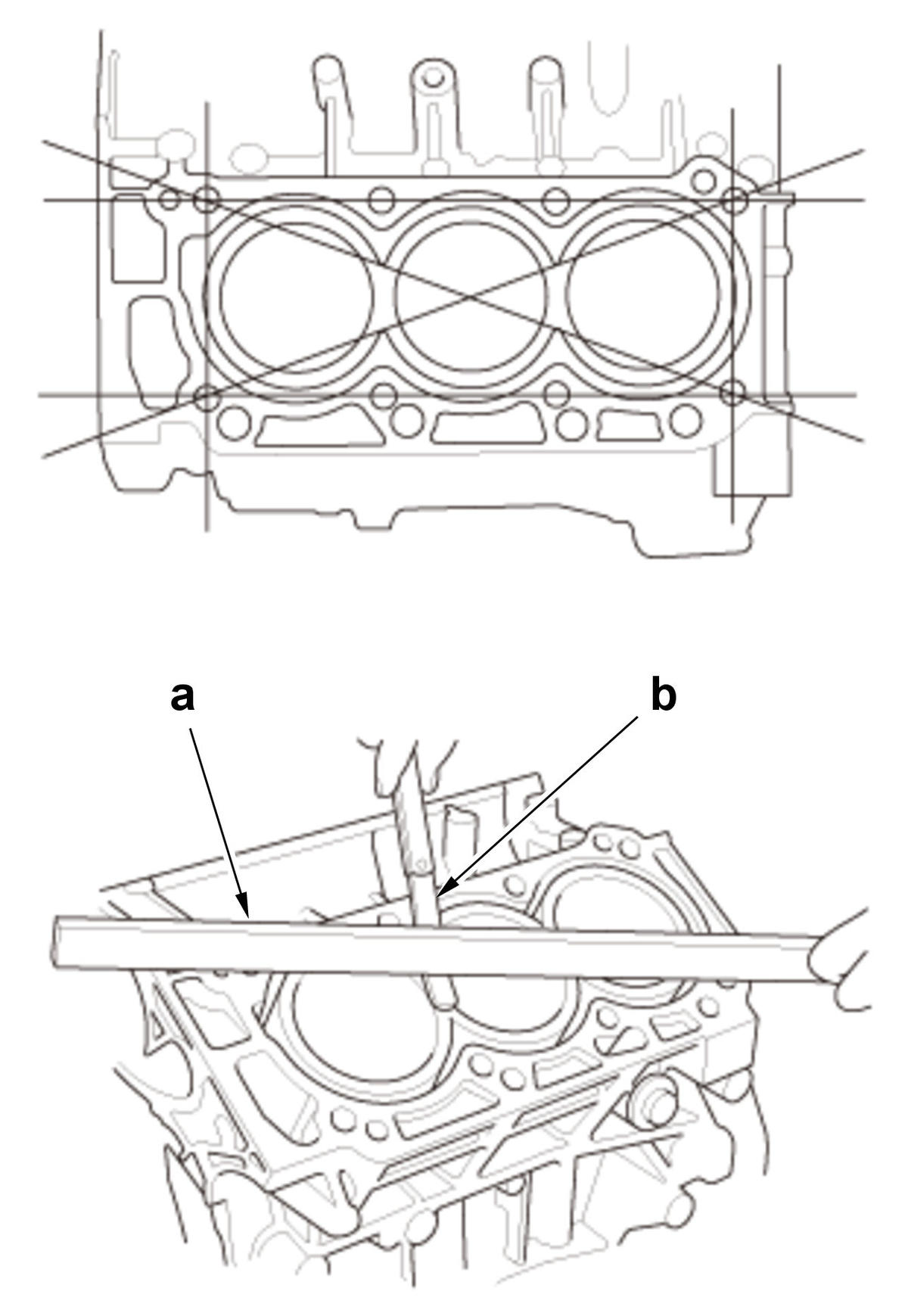

   • Check the top of the block for warpage. Measure along the edges and across the center as shown.

   Tool Details

   Name
   a	Precision Straight Edge (Commercially Available)
   b	Feeler Gauge

   Specifications

   Standard Value (New)
   0.07 mm (0.002 in) max.

   Result

   • If the measurement is not within specifications, replace the engine block - Refer to: Engine Block/Crankshaft Area(3.0L Engine) or Engine Block/Crankshaft Area(2.0L Engine) .
2. Cylinder Bore - Inspect

   Preconditions

   • Engine Block Removed - Refer to: Engine Block/Crankshaft Area(3.0L Engine) or Engine Block/Crankshaft Area(2.0L Engine)

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

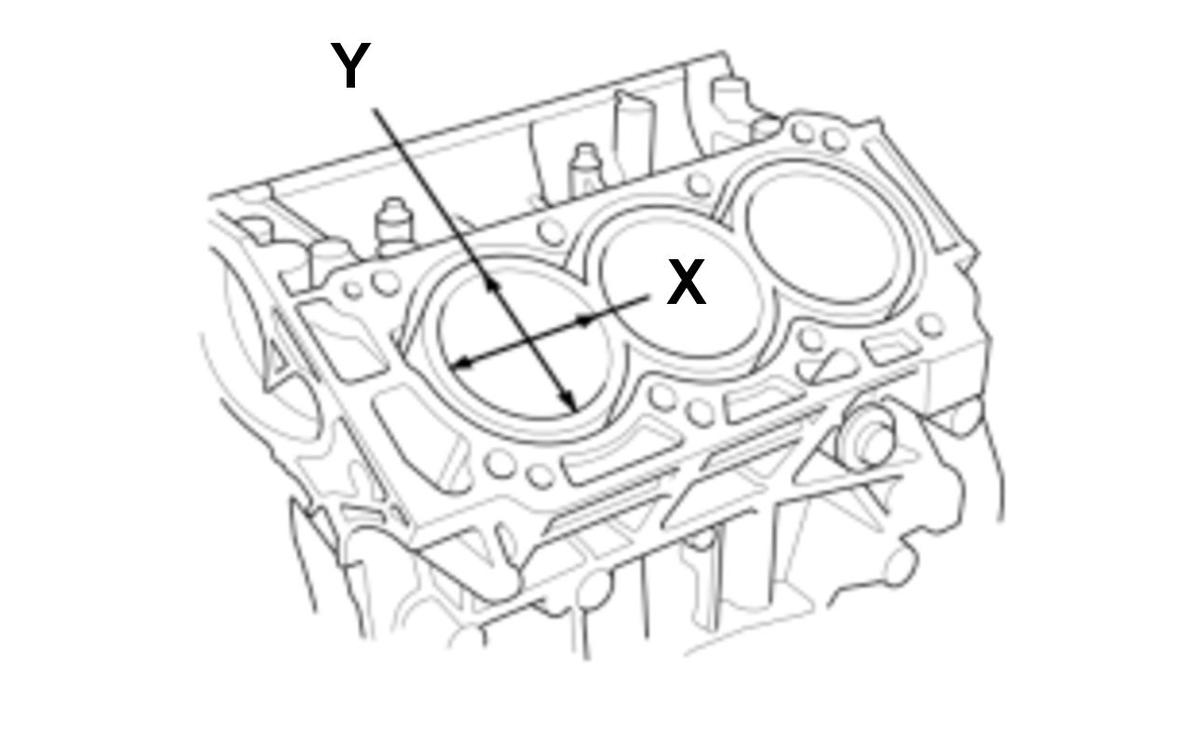

   1. Measure the wear and taper in direction Y and X at three levels inside each cylinder as shown. (Figure 1 and 2)

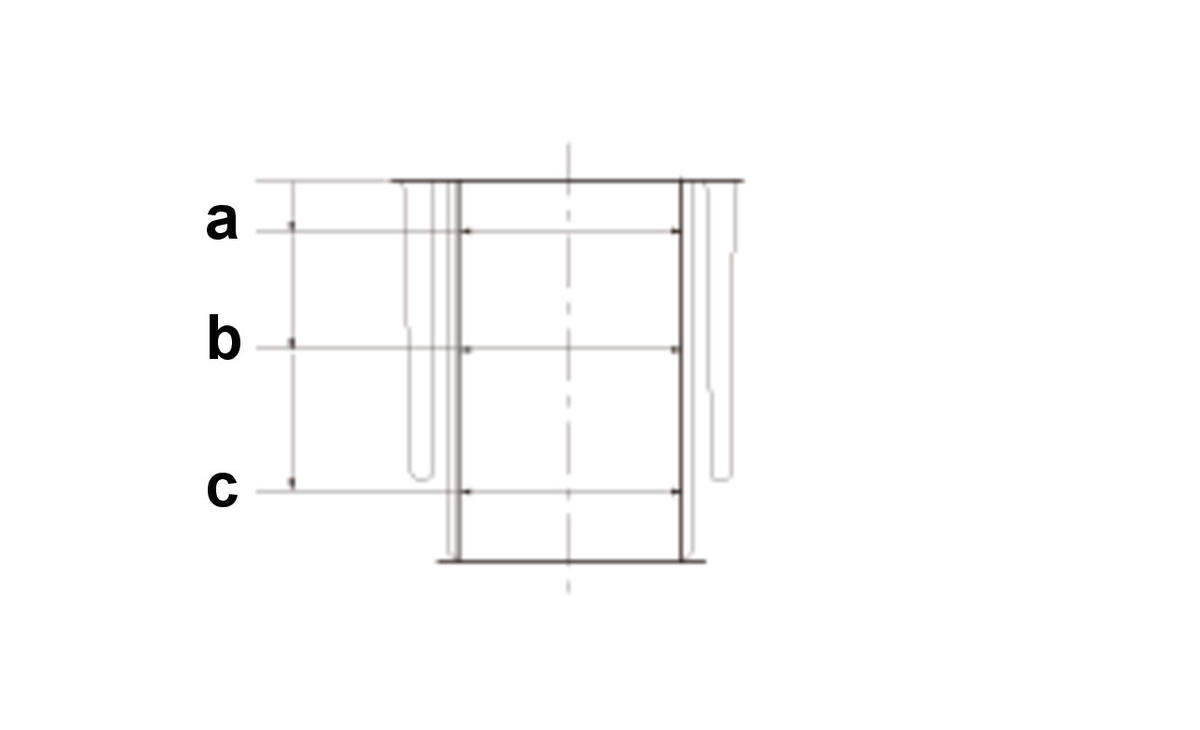

   Measurement Position (Figure 1)

   Standard Value
   a	First Measurement	10 mm (0.39 in)
   b	Second Measurement	50 mm (1.97 in)
   c	Third Measurement	130 mm (5.12 in)

   Specifications (Cylinder Bore Size)

   Standard Value (New)		Service Limit
   X	86.000-86.020 mm (3.38582-3.38661 in)	86.065 mm (3.38838 in)
   Y	86.000-86.015 mm (3.38582-3.38641 in)

   Oversize Bore

   Standard Value
   0.25	86.250-86.265 mm (3.39566-3.39625 in)

   Specifications (Bore Taper)

   Service Limit
   (Difference between first and third measurement) 0.025 mm (0.00098 in)

   2. Hone any cored or scratched cylinder bores - Refer to: Block and Piston Inspection(3.0L Engine)  or Cylinder Bore Honing or Block and Piston Inspection(2.0L Engine)  if needed. If the engine block is being rebored, check the piston-to- cylinder bore clearance.

   Reboring Limit

   Standard Value
   0.25 mm (0.0098 in) max.

   Result

   • If measurements in any cylinder are beyond the oversize bore service limit, replace the engine block - Refer to: Engine Block/Crankshaft Area(3.0L Engine) or Engine Block/Crankshaft Area(2.0L Engine) .
3. Piston Skirt Diameter - Inspect

   Preconditions

   • Piston Removed - Refer to: Engine Block/Crankshaft Area(3.0L Engine) or Engine Block/Crankshaft Area(2.0L Engine)

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

   1. Check the pistons for distortion or cracks.

   Specifications

   Object	Specification
   Piston	No distortion or cracks

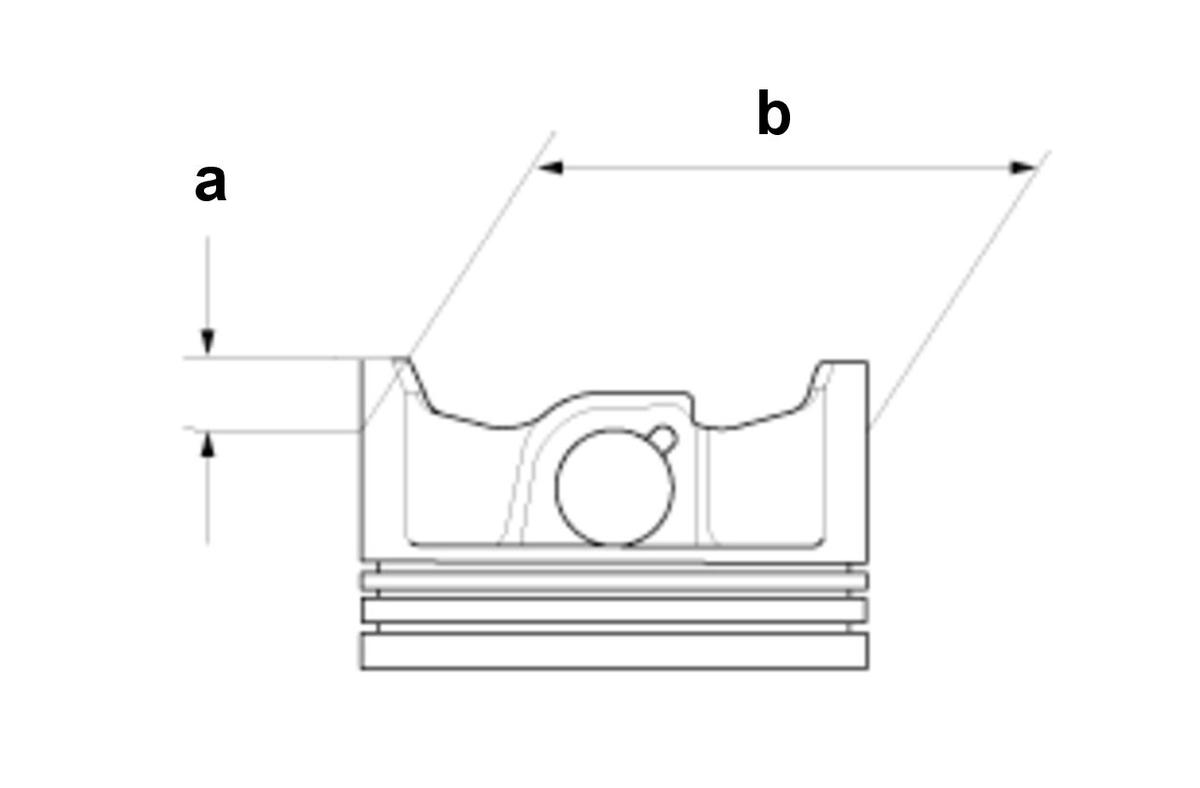

   2. Measure the piston skirt diameter at a point (a) from the bottom of the skirt. (Figure 1)

   Measurement Position (Figure 1)

   Standard Value
   a	12 mm (0.47 in)

   Specifications (Figure 1)

   Service Limit
   b	85.950 mm (3.38385 in)

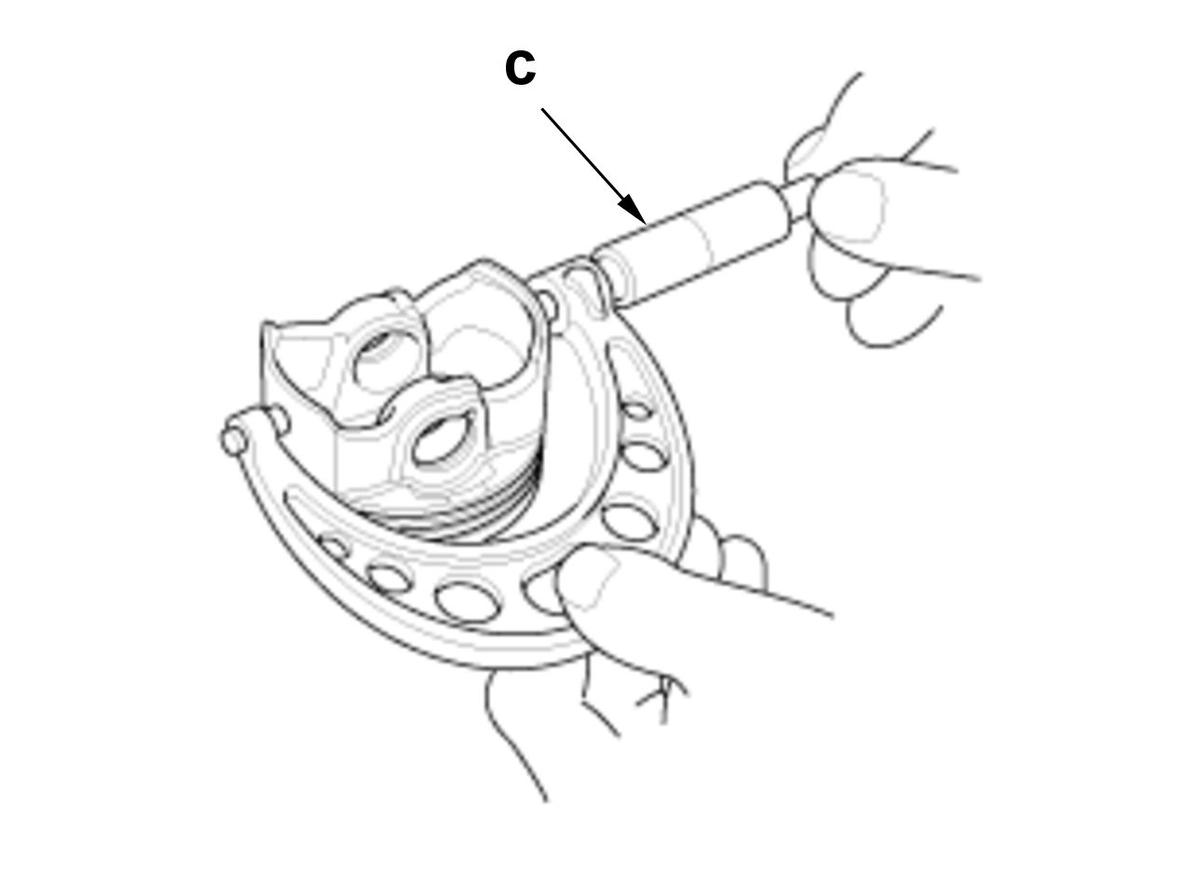

   Tool Details (Figure 2)

   Name
   c	Micrometer

   Result

   • If the measurement is not within specifications, replace the piston.
4. Piston-to-Cylinder Bore Clearance - Inspect

   Preconditions

   • Piston Removed - Refer to: Engine Block/Crankshaft Area(3.0L Engine) or Engine Block/Crankshaft Area(2.0L Engine)

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

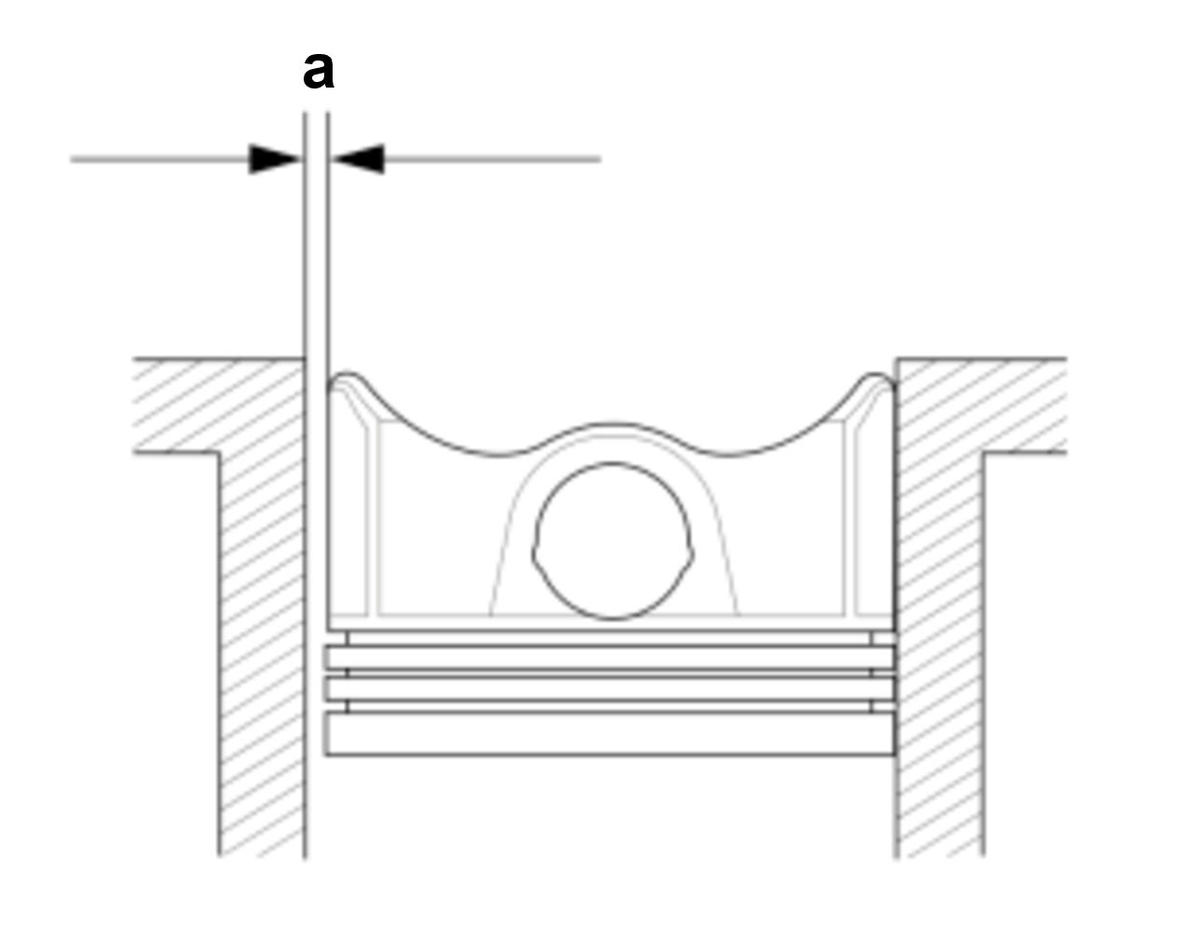

   • Calculate the difference between the cylinder bore diameter and the piston diameter.

   Specifications

   Service Limit
   a	0.08 mm (0.0031 in)

   Result

   • If the measurement is not within specifications, the clearance is near, or exceeds the service limit, inspect the piston and the cylinder bore for excessive wear.
