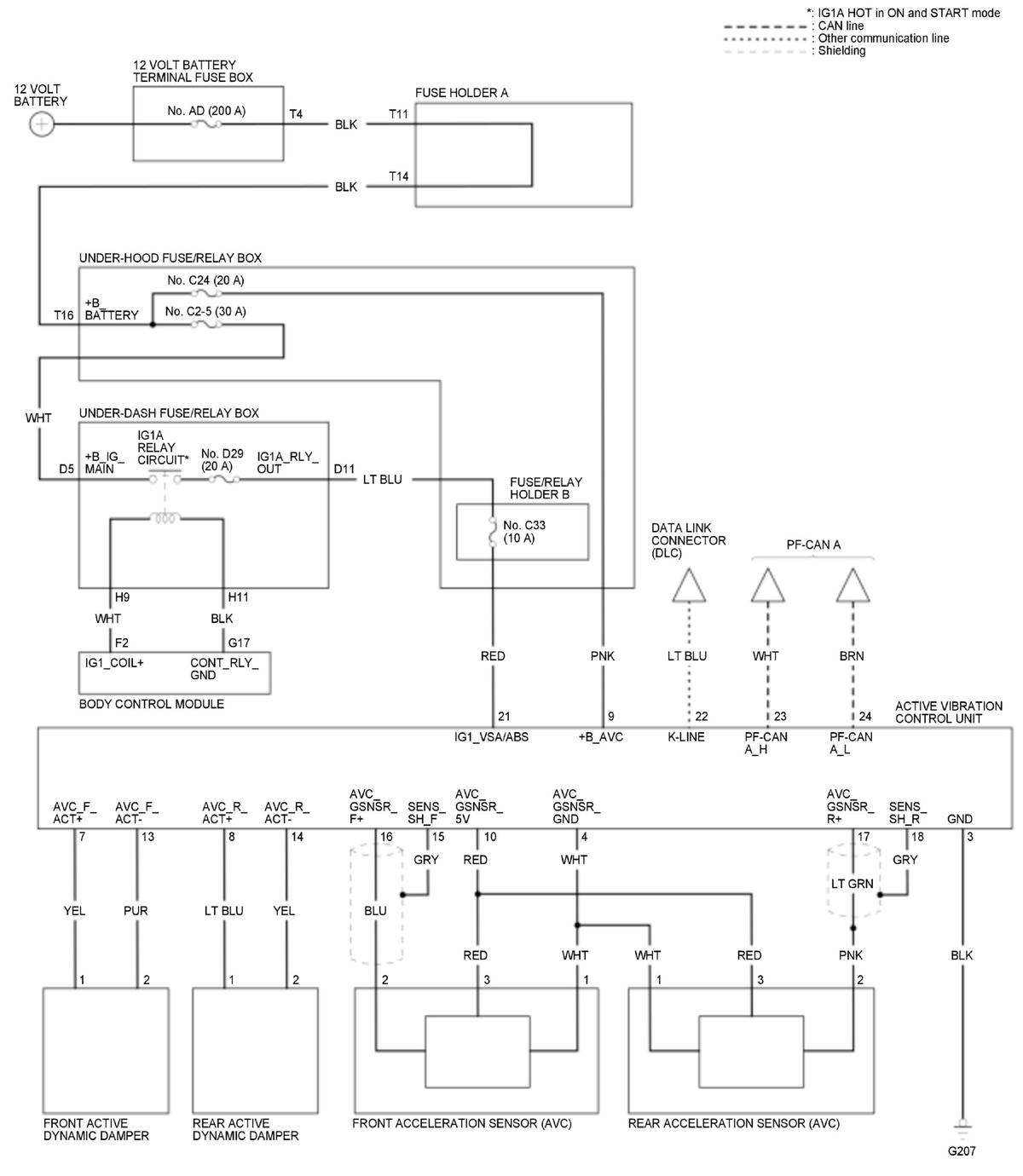

Active Vibration Control System Circuit Diagram

NOTE: For details of the CAN circuit, refer to the Network Communications Circuit Diagram.

GHH482815

Courtesy of HONDA, U.S.A., INC.
