Inspection Outline

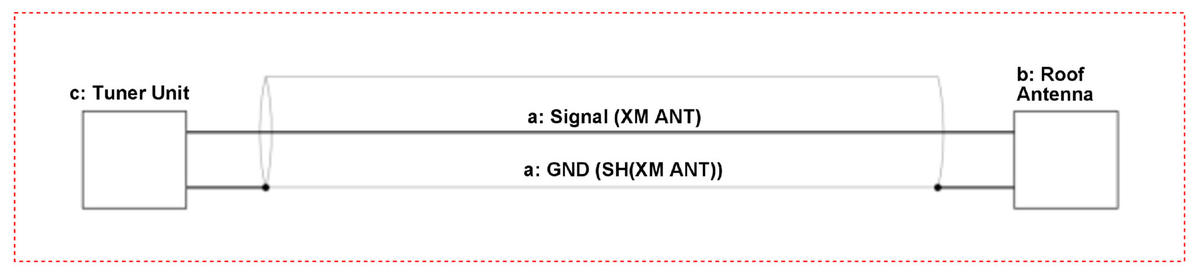

- The components to be tested are indicated by a dotted line.
NOTE:
For more efficient troubleshooting, you may be able to eliminate some inspection items as potential failures based on the conditions of the failure and vehicle.
- Go into the System Diagnostic Mode, and use the System Links to check the XM TUNER status .
-
- XM TUNER icon is green:
- XM TUNER icon is red:
- XM TUNER icon is green:
| Inspection Items | Work Items | |||
|---|---|---|---|---|
| a | External Circuit | SH(XM ANT), XM ANT Circuit Inspection | o | |
| b | Roof Antenna | Roof Antenna Inspection | o | |
| c | Tuner Unit | Tuner Unit Inspection | o | o |
