Audio and Visual System Component Location Index

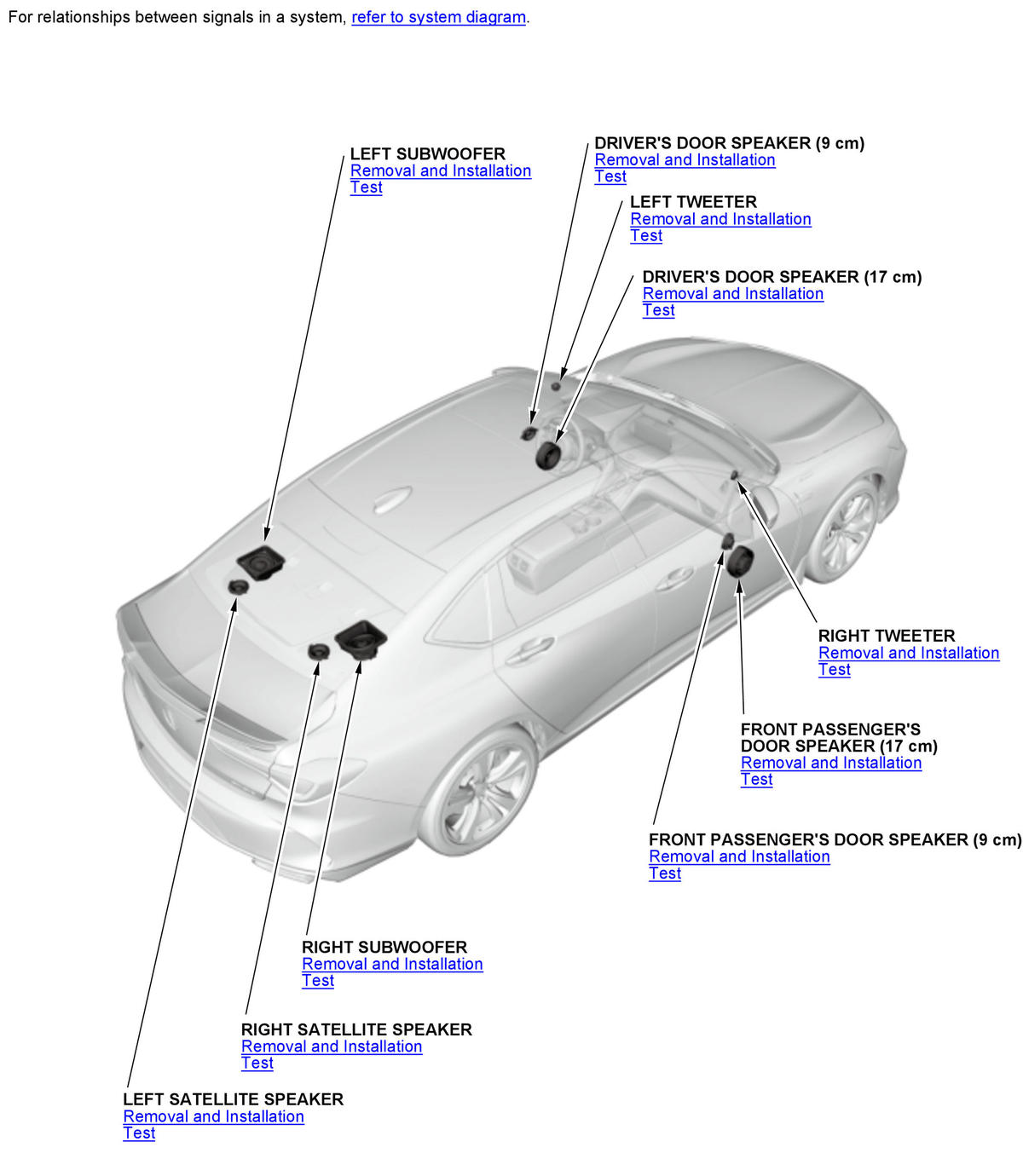

GHH558995Courtesy of HONDA, U.S.A., INC.

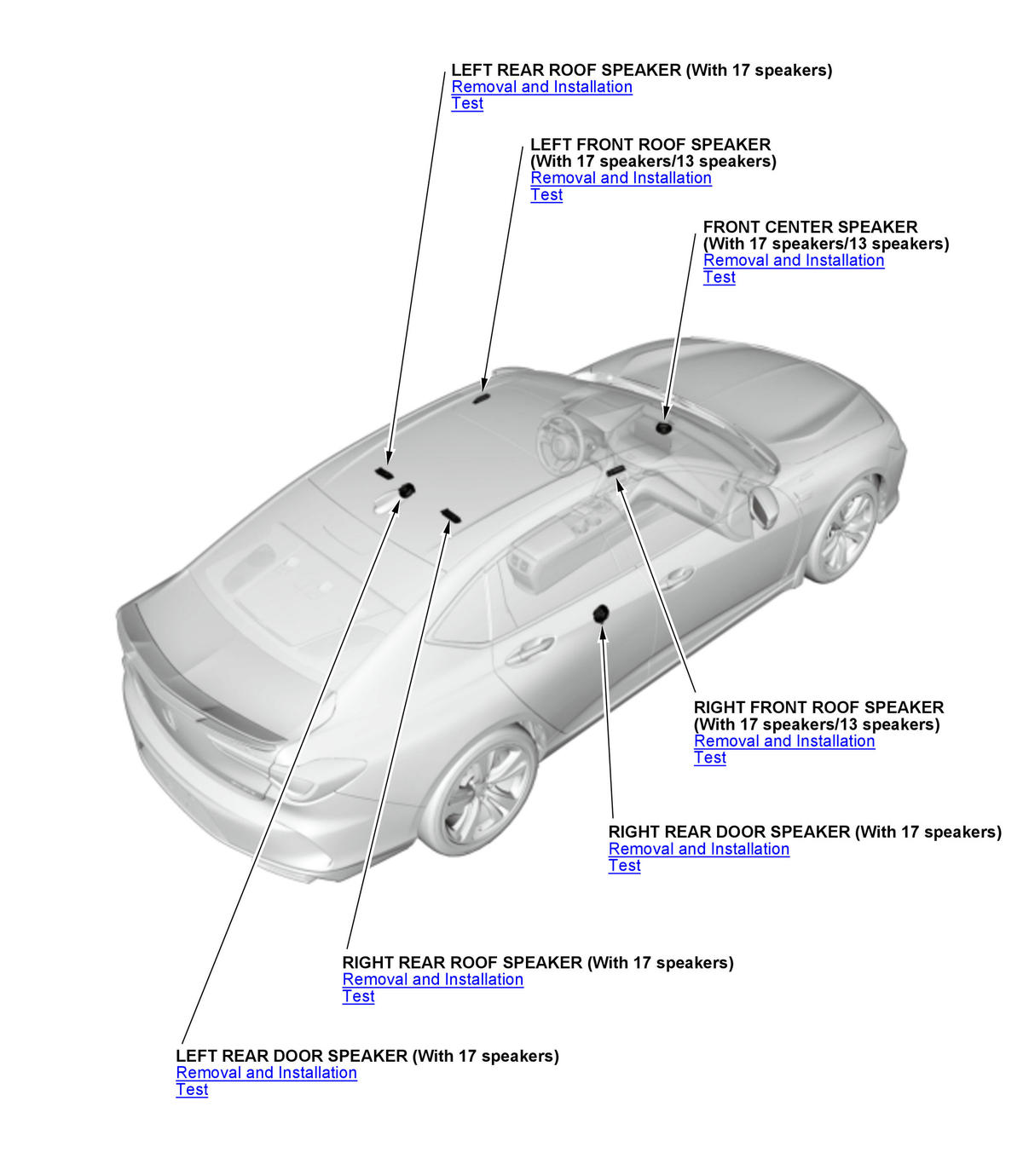

GHH558996Courtesy of HONDA, U.S.A., INC.

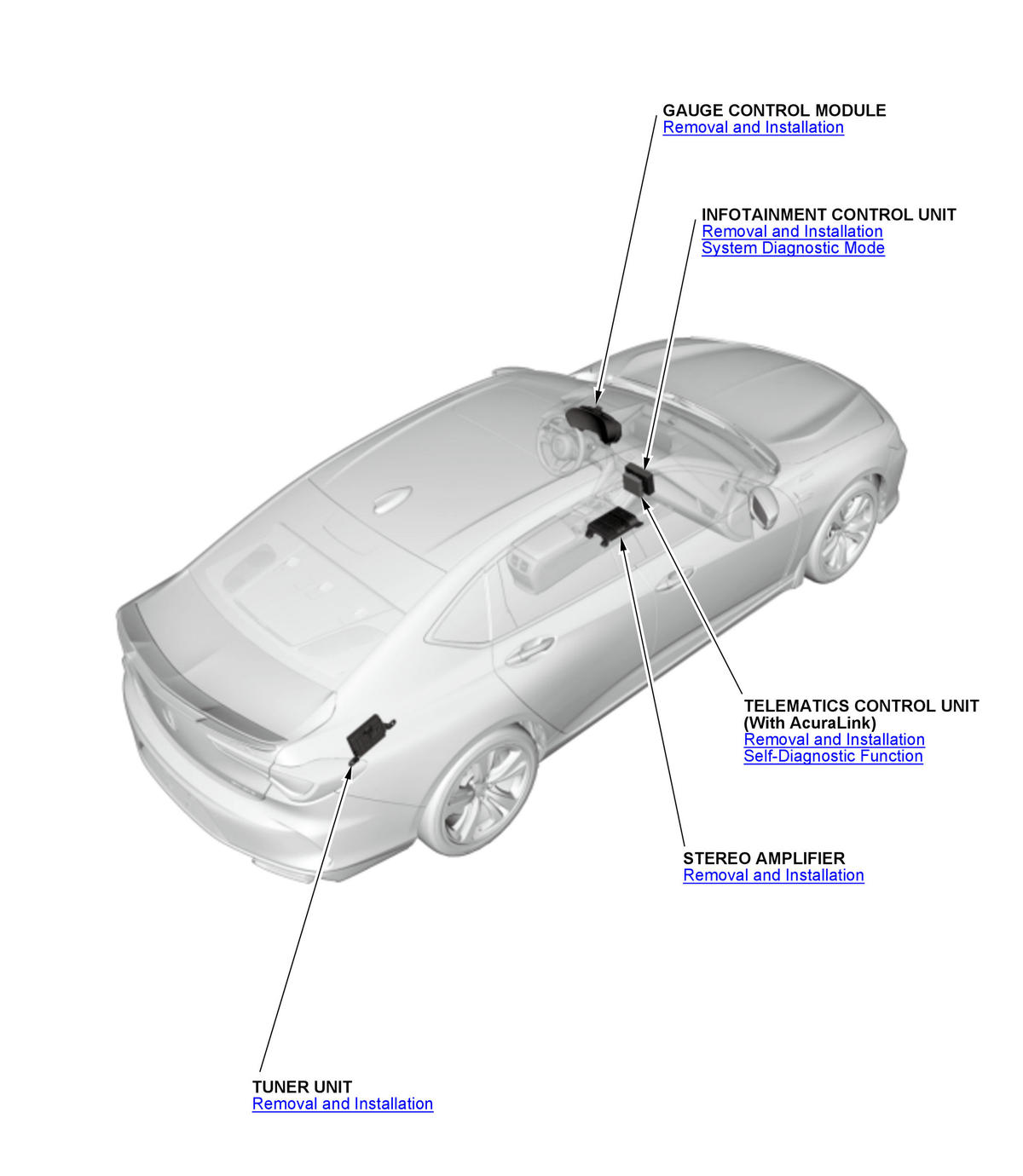

GHH558997Courtesy of HONDA, U.S.A., INC.

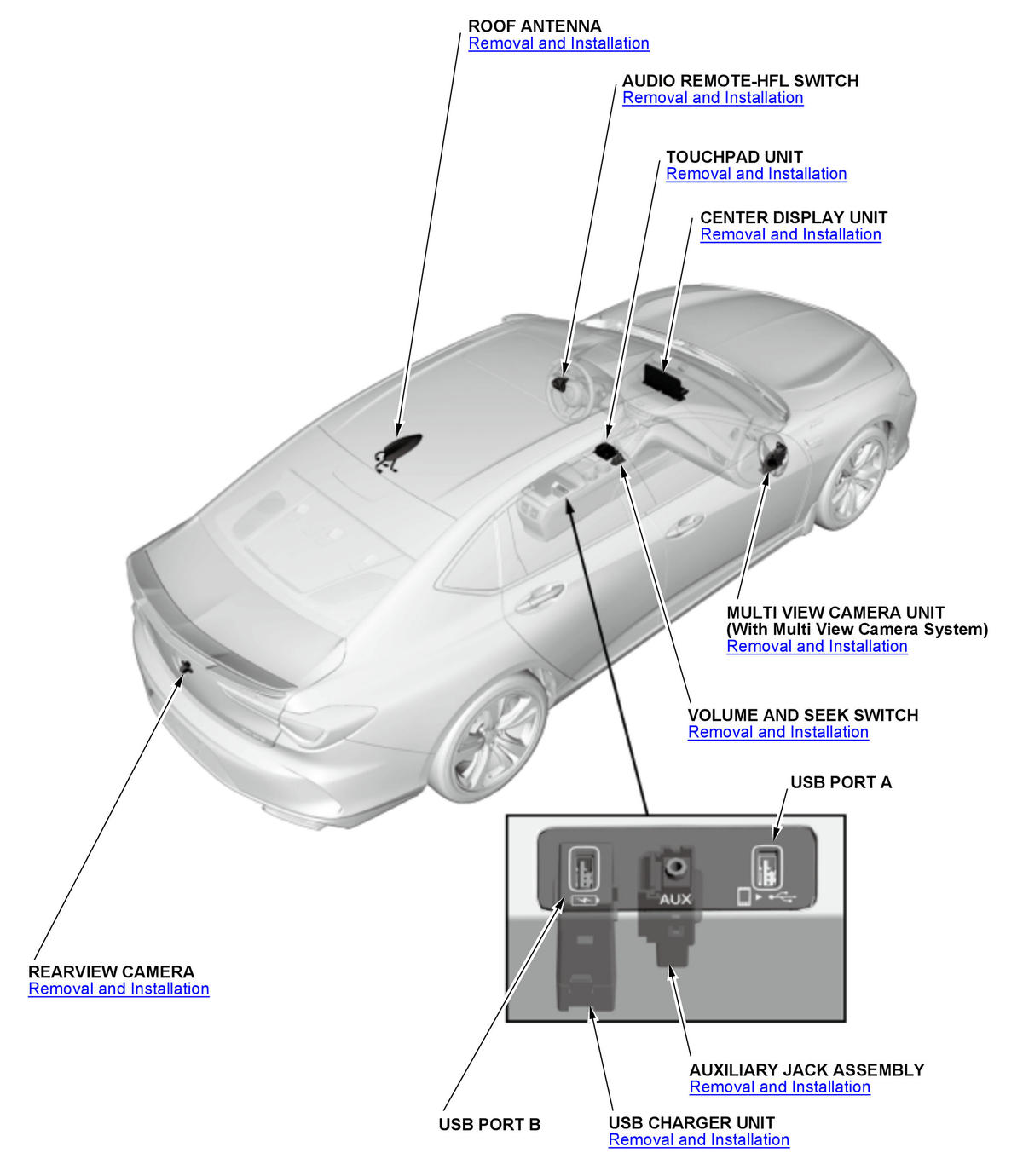

GHH558998Courtesy of HONDA, U.S.A., INC.

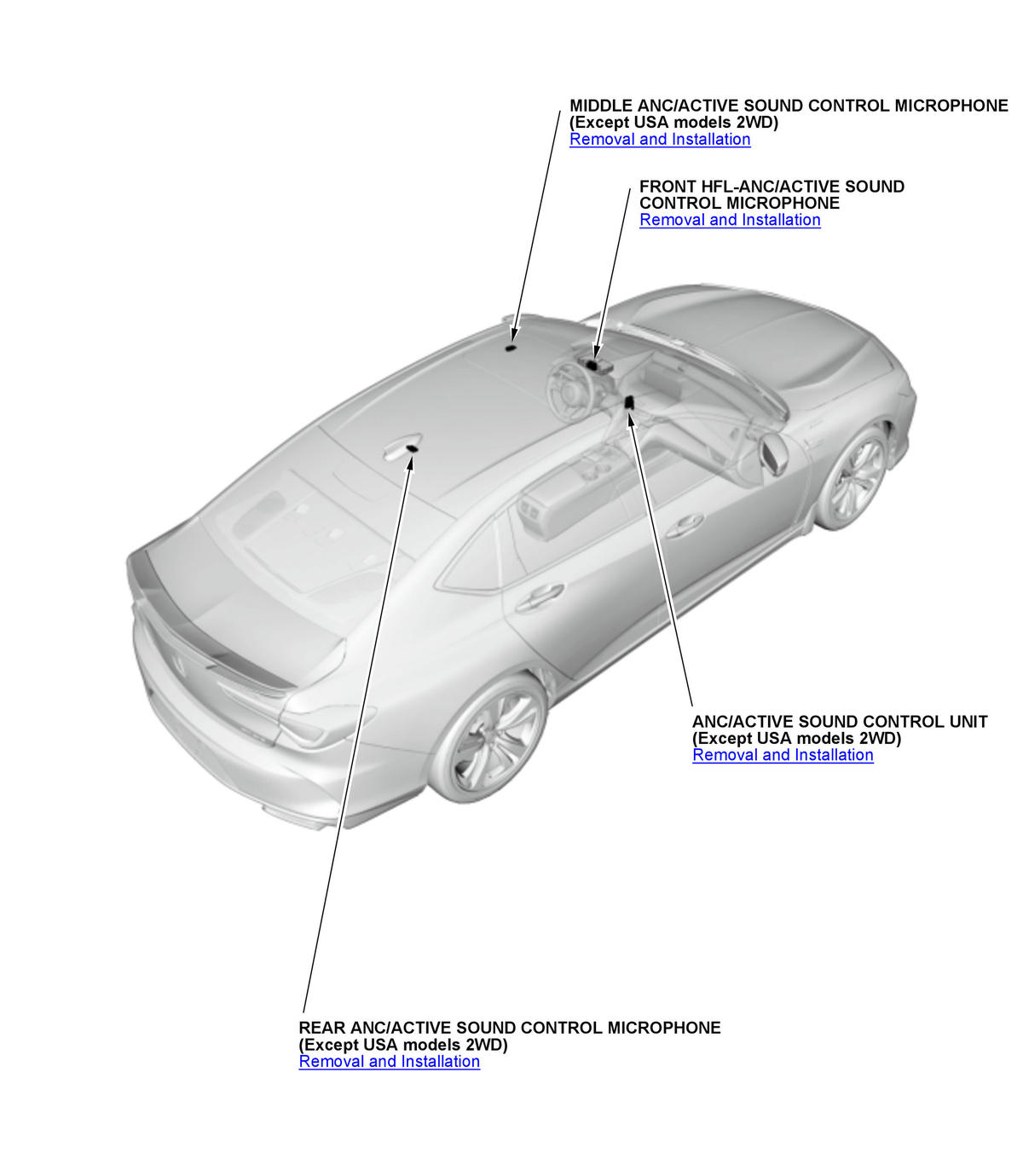

GHH558999Courtesy of HONDA, U.S.A., INC.
