Control (DBW_RLY_CL-) Circuit Inspection

NOTE: Before disconnecting the PCM connector, jump the SCS line with the HDS, and wait more than 1 minute.

Test Procedure

Procedure

Perform the inspection according to the following table.

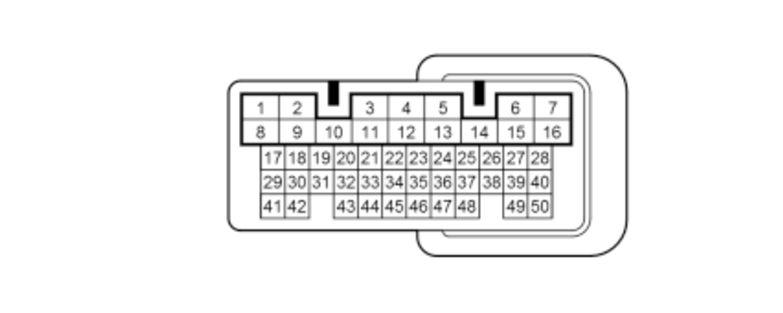

		(Disconnected) PCM connector A (50P) female terminals
	IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
DBW_RLY_CL- circuit inspection	OFF		12 V battery voltage

Results

If abnormal, there is a problem in the circuit.
NOTE: If the result is not in the normal condition while in the power supply inspection, refer to the Power Supply Inspection , then specify the failure part.
