Control (ABV) Open Wire Inspection

Before disconnecting the PCM connector, jump the SCS line with the HDS, and wait more than 1 minute.

Test Procedure

• Preparation
  • Turbocharger bypass control solenoid valve connector (2P): disconnected
  • PCM connector E (80P) : disconnected
• Procedure
  • Perform the inspection according to the following table.

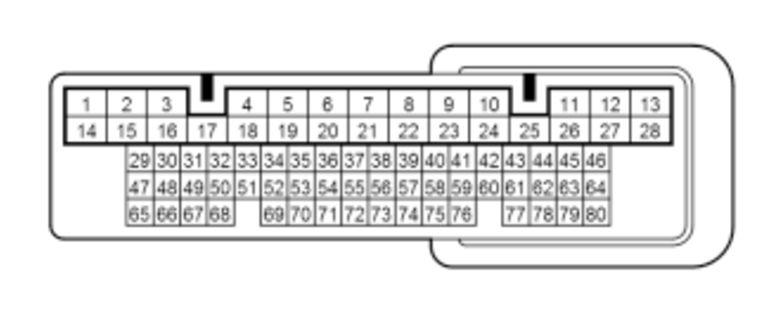

    			(Disconnected) Turbocharger bypass control solenoid valve connector 2P female terminals	(Disconnected) PCM connector E (80P) female terminals
    		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
    	ABV open wire inspection	OFF			There is less than 1 Ω

Results

• If abnormal, there is a problem in the circuit.
• If normal, there is a problem with the PCM.
