Repair Procedure: Procedure

  1. A.

    ■ Preconditions

    ■ Key Information

    Do the following before starting your work.

    Remove:

    Procedure:

    Figure 1

    GHH555330Courtesy of HONDA, U.S.A., INC.

    ■ Sub-Procedure

    NOTE:

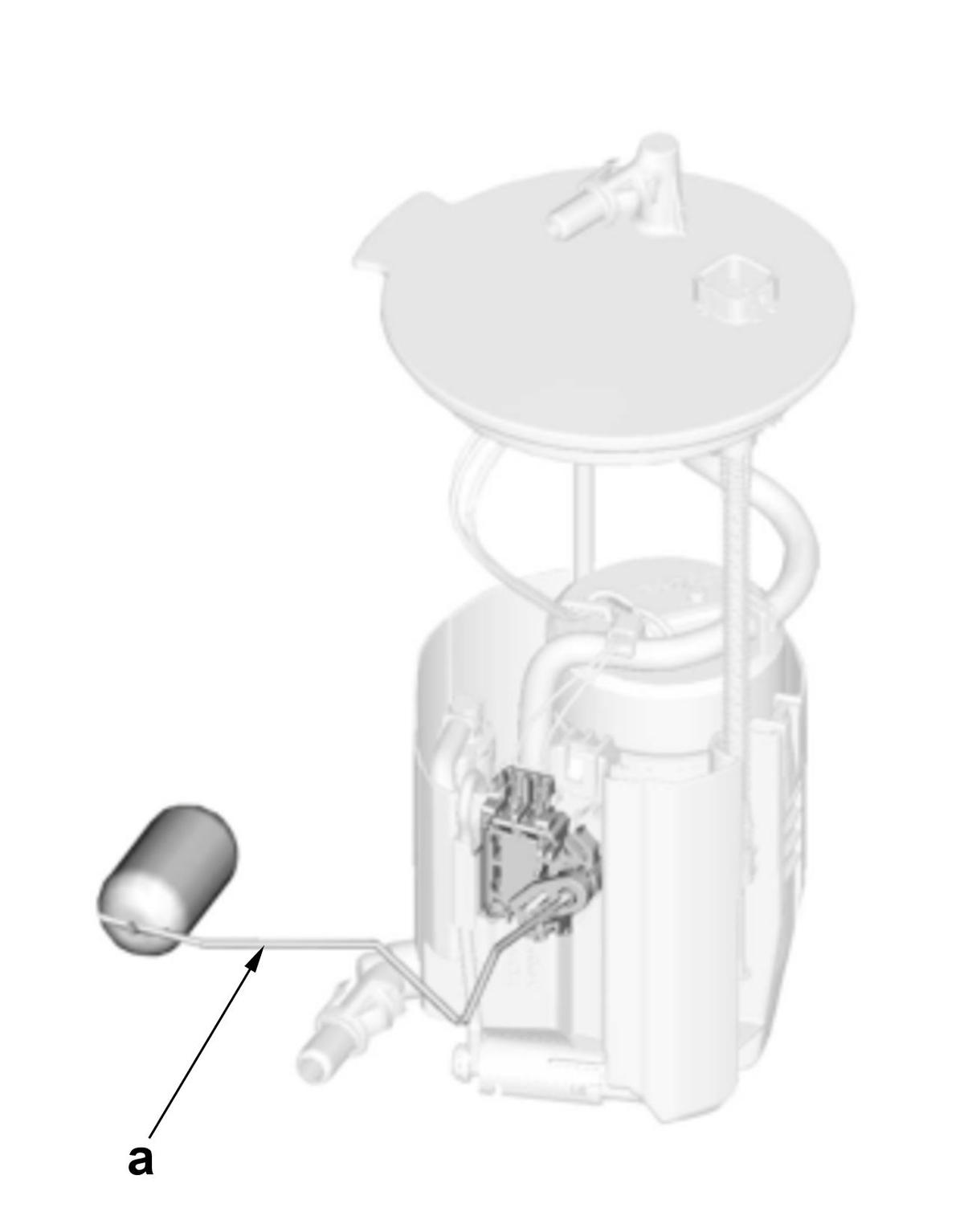

    • Be careful not to bend or twist the fuel gauge sending unit arm (a) excessively. (Figure 1)

    Figure 2

    GHH555331Courtesy of HONDA, U.S.A., INC.

    • Removal

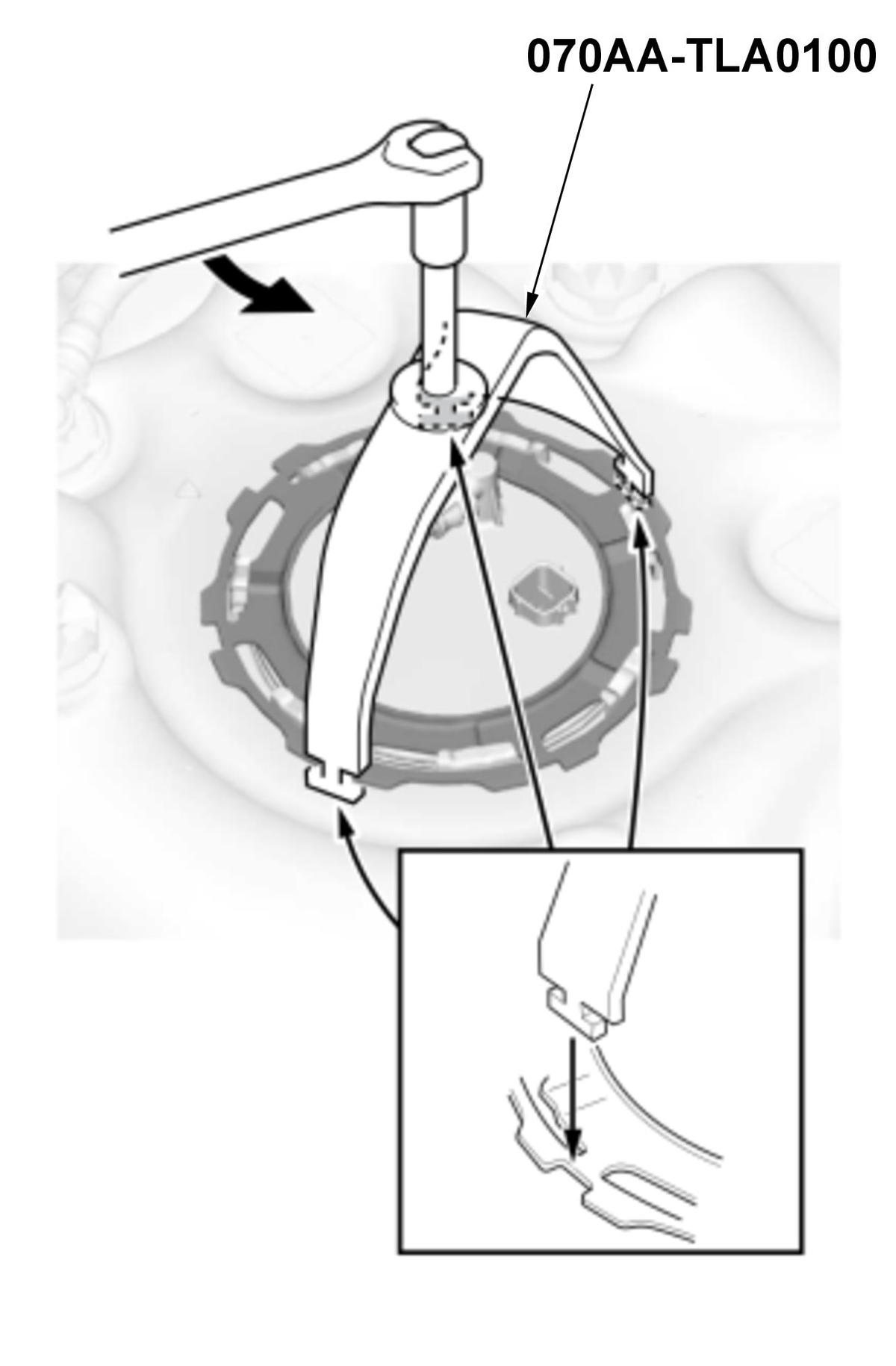

    • Make sure the fuel sender wrench engages fully with the fuel tank unit cam lock ring. (Figure 2)

    Figure 3

    GHH555332Courtesy of HONDA, U.S.A., INC.

    • Installation

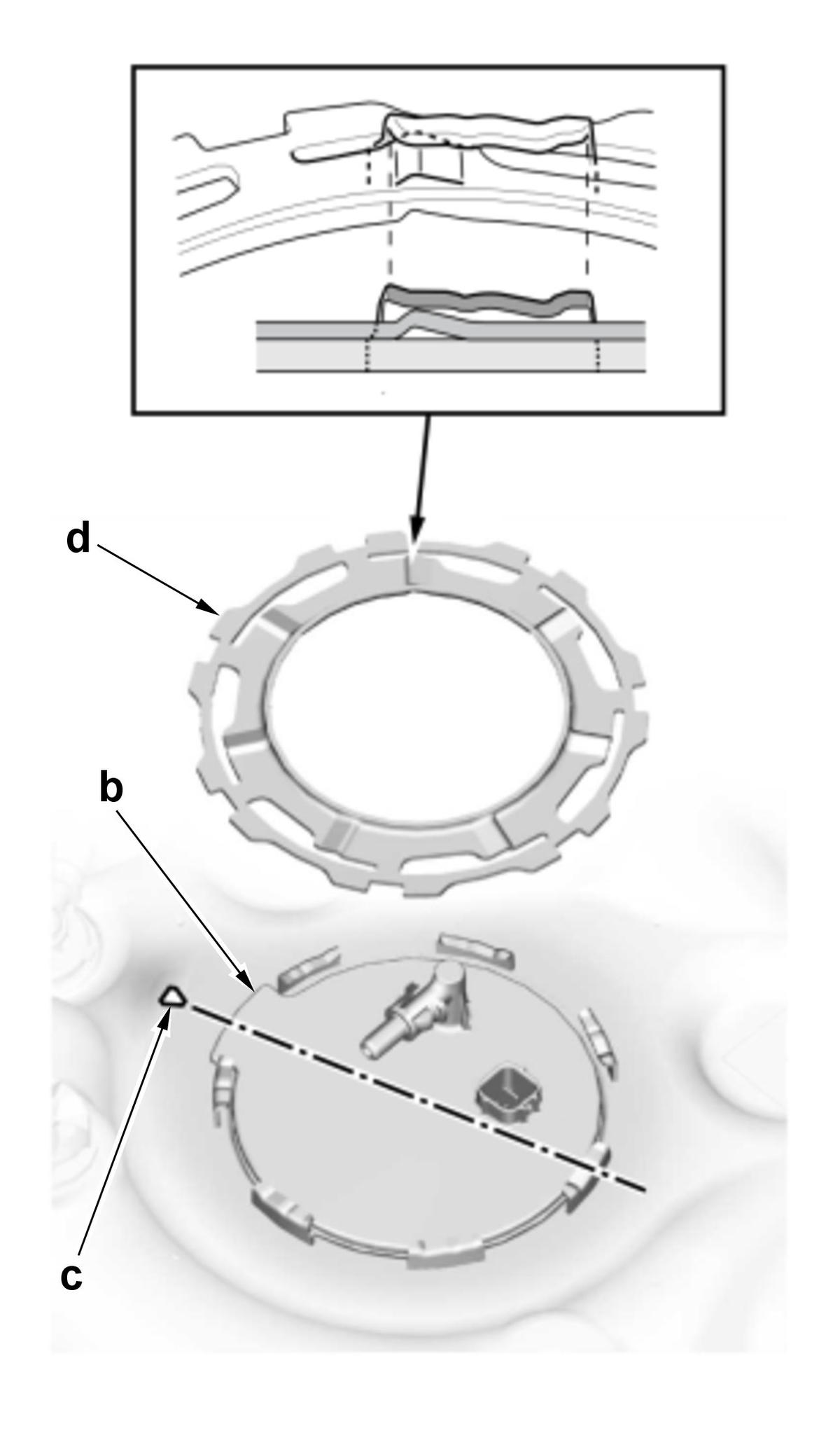

    1. Align the tab (b) and the mark (c), and temporarily insert the fuel tank unit cam lock ring (d). (Figure 3)

    NOTE:
    • Make sure the fuel tank unit cam lock ring is seated correctly on the fuel tank unit with all tabs fully engaged.

    Figure 4

    GHH555333Courtesy of HONDA, U.S.A., INC.

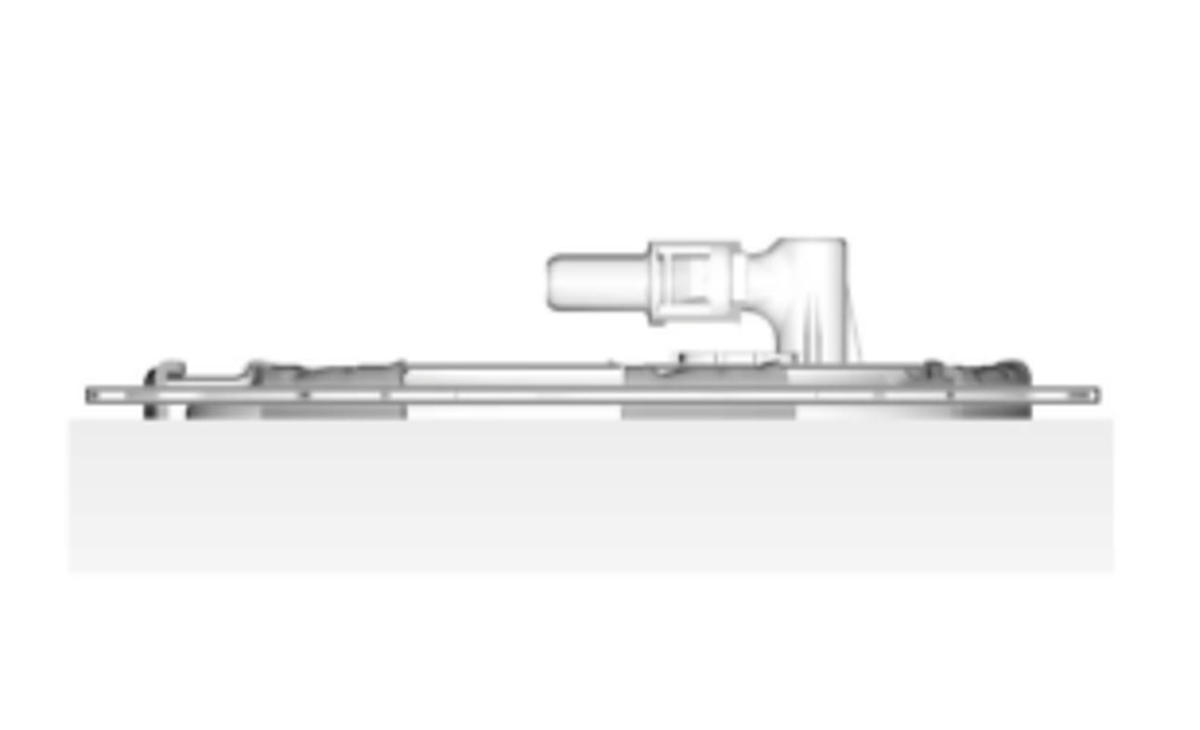

    Figure 5

    GHH555334Courtesy of HONDA, U.S.A., INC.

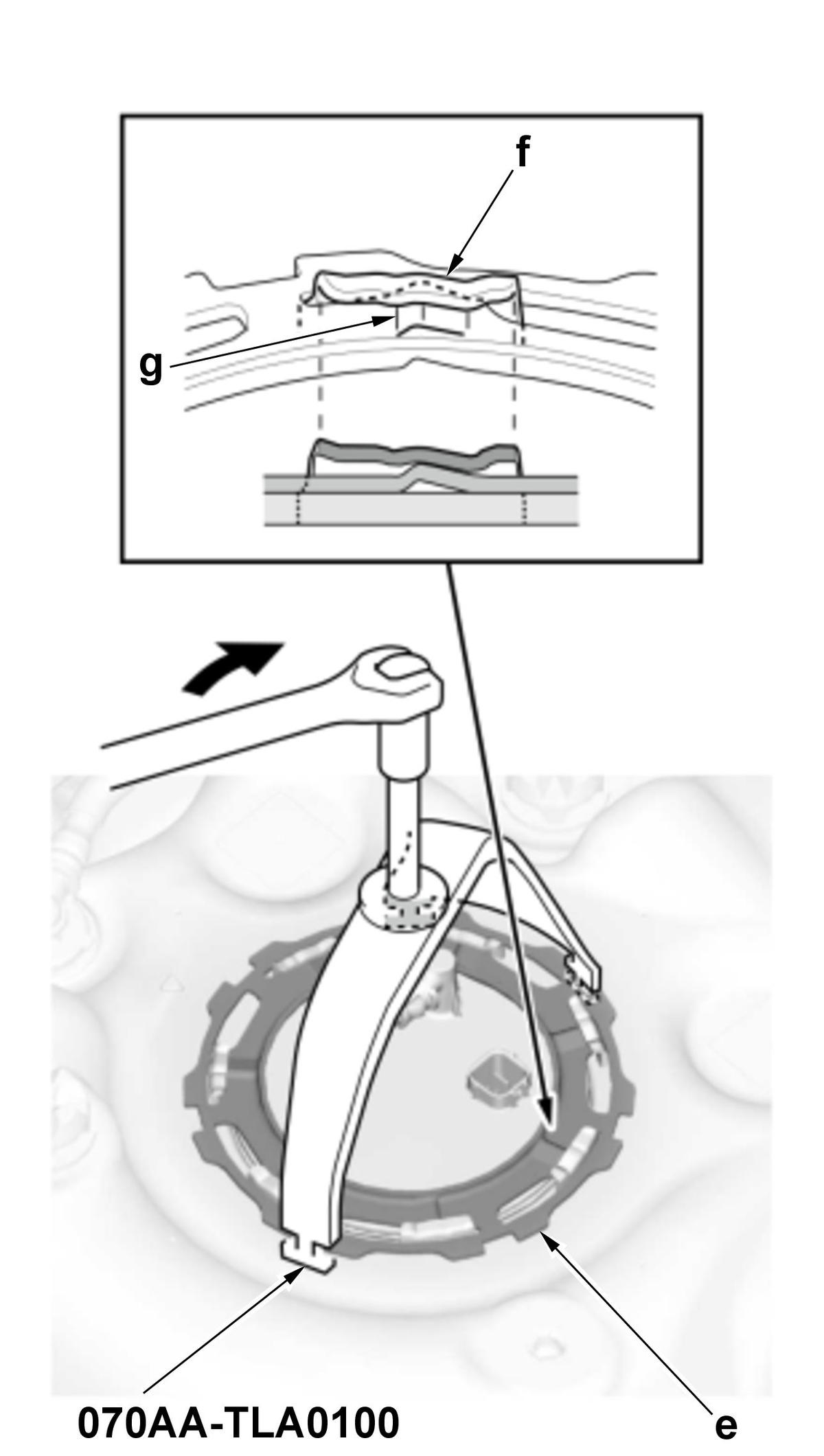

    2. Using the fuel sender wrench, turn the fuel tank unit cam lock ring (e) clockwise. (Figure 4)

    NOTE:
    • Make sure the fuel sender wrench engages fully with the fuel tank unit cam lock ring. (Figure 4)
    • Securely set the positioning edge (f) of the fuel tank at the tab (g) on the fuel tank unit cam lock ring. (Figure 4)
    • Make sure the fuel tank unit cam lock ring is seated correctly on the fuel tank unit with all tabs fully engaged. (Figure 5)

    ■ After Installation

  2. B.

    ■ Preconditions

    ■ Key Information

    Do the following before starting your work.

    Remove:

    Procedure:

    Figure 1

    GHH555335Courtesy of HONDA, U.S.A., INC.

    ■ Sub-Procedure

    NOTE:

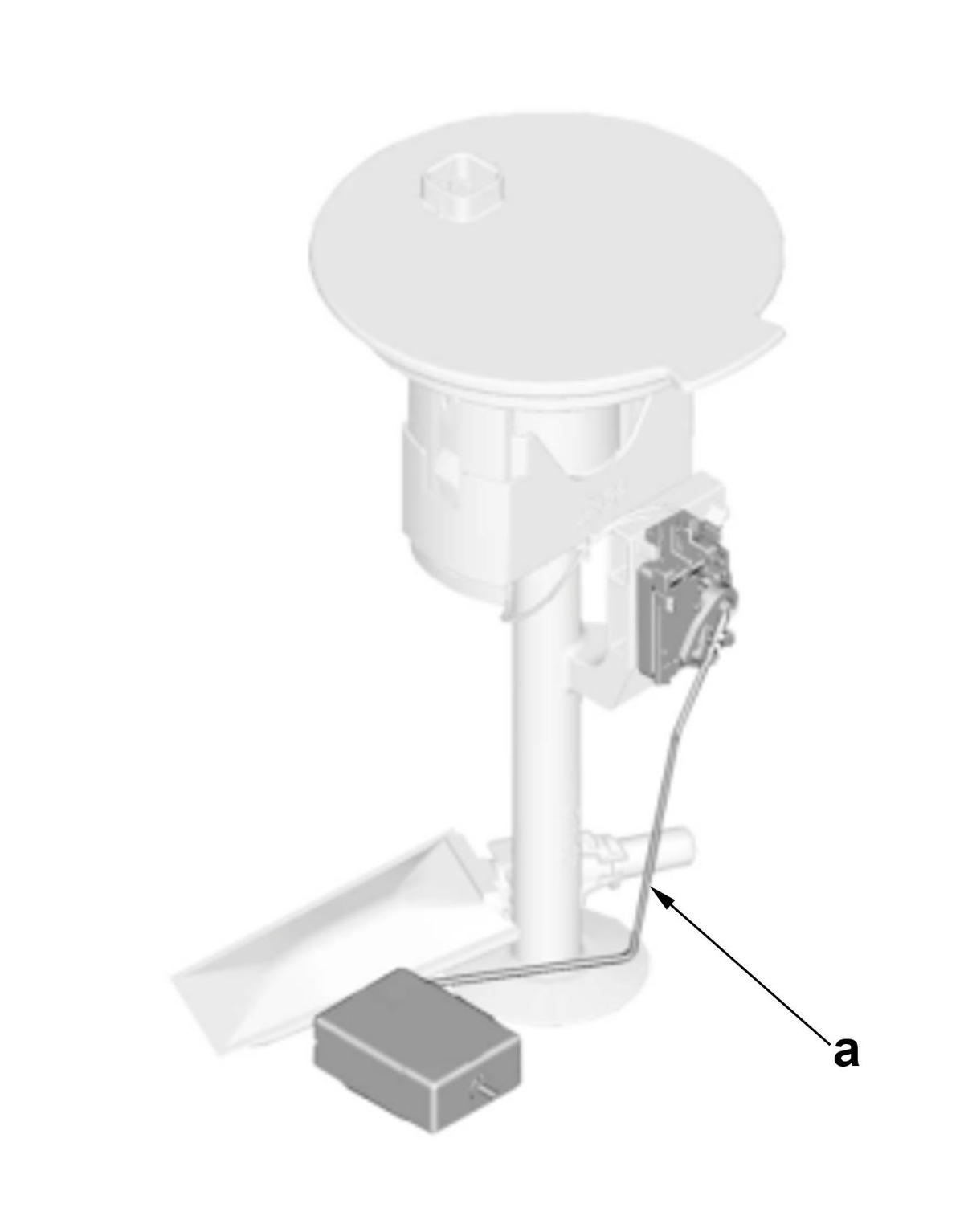

    • Be careful not to bend or twist the secondary fuel gauge sending unit arm (a) excessively. (Figure 1)

    Figure 2

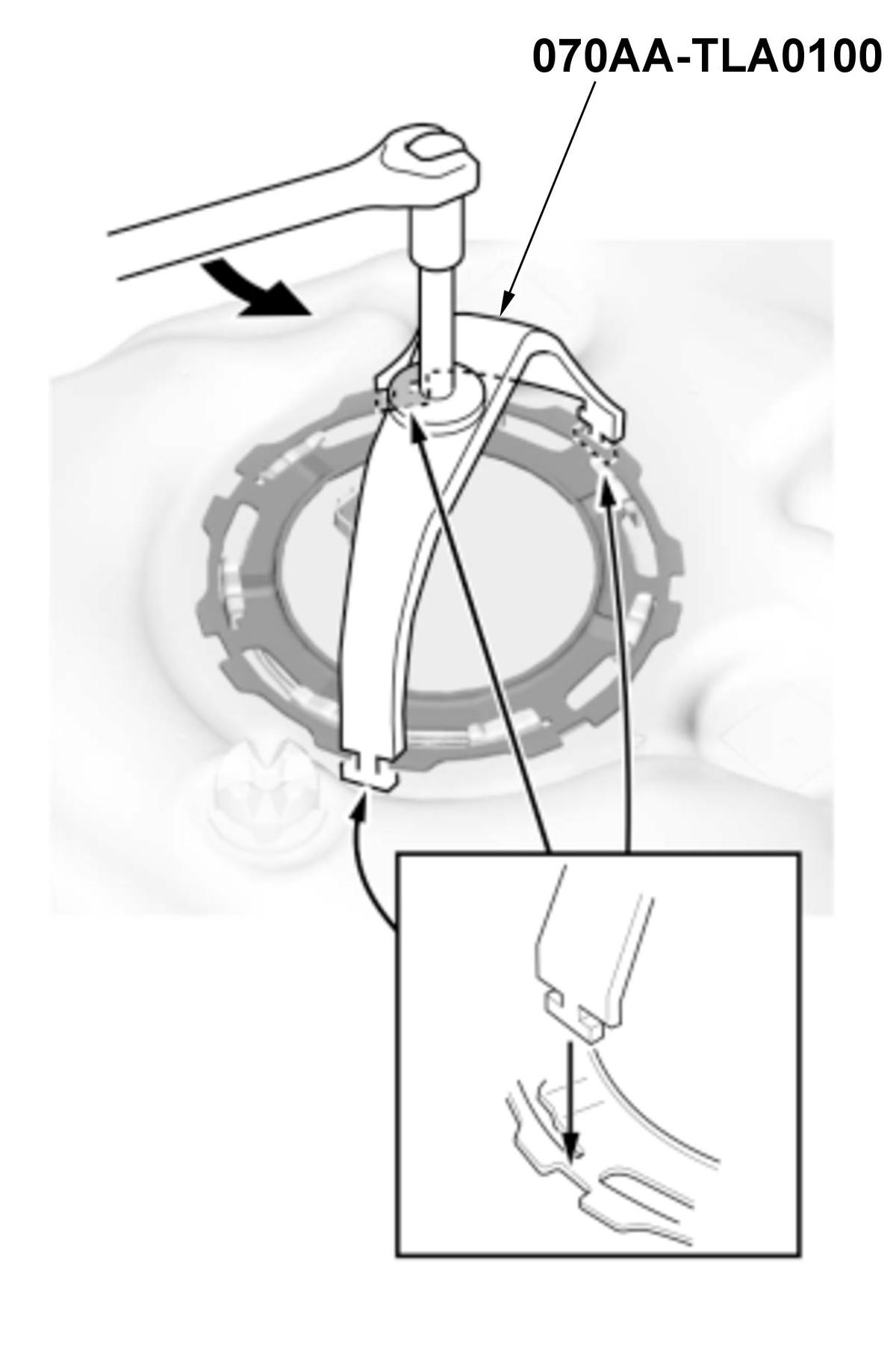

    GHH555336Courtesy of HONDA, U.S.A., INC.

    • Removal

    • Make sure the fuel sender wrench engages fully with the fuel tank unit cam lock ring. (Figure 2)

    Figure 3

    GHH555337Courtesy of HONDA, U.S.A., INC.

    • Installation

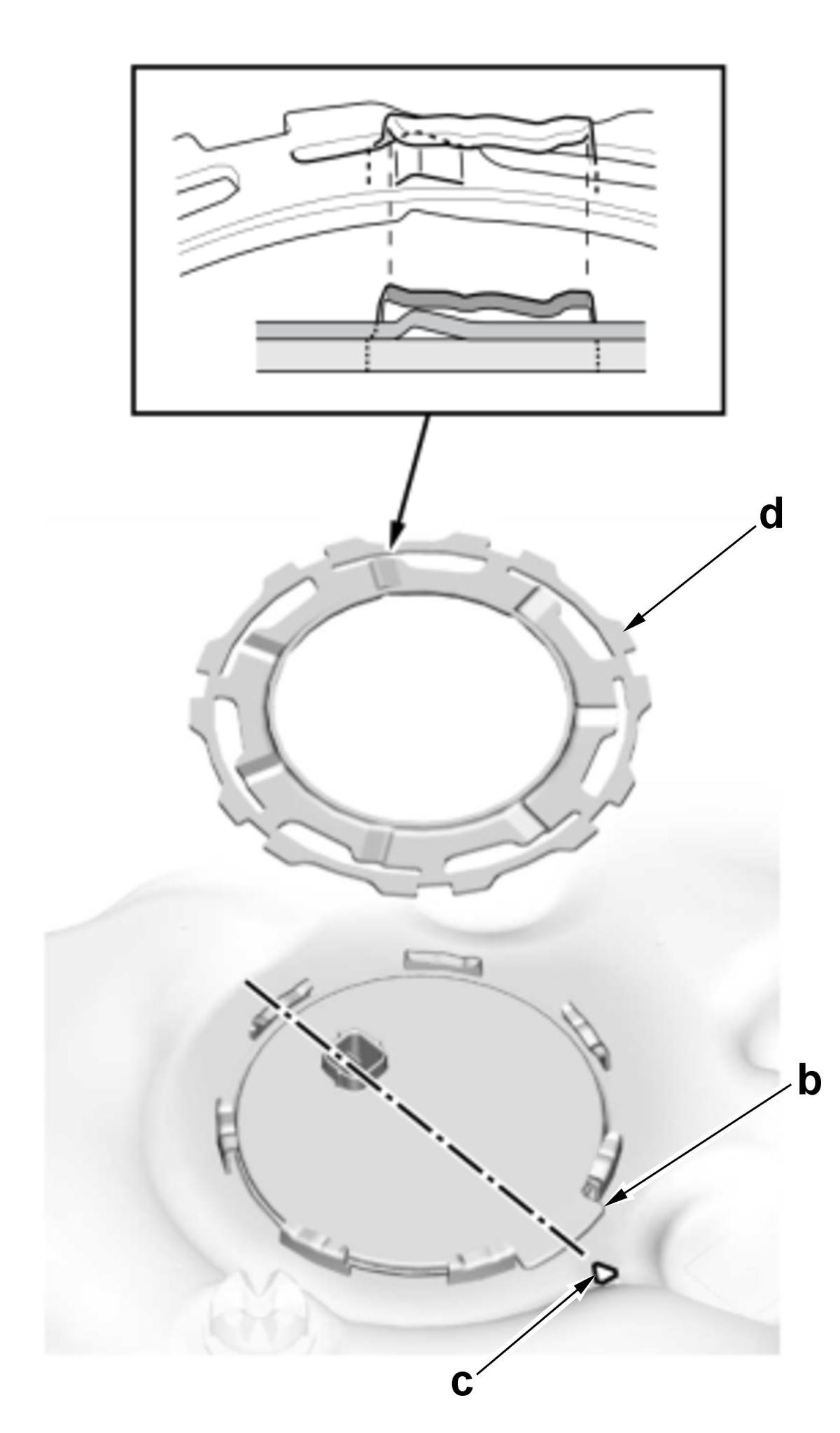

    NOTE: 1. Align the tab (b) and the mark (c), and temporarily insert the fuel tank unit cam lock ring (d). (Figure 3)
    • Make sure the fuel tank unit cam lock ring is seated correctly on the secondary fuel gauge sending unit with all tabs fully engaged.

    Figure 4

    GHH555338Courtesy of HONDA, U.S.A., INC.

    Figure 5

    GHH555339Courtesy of HONDA, U.S.A., INC.
    NOTE:

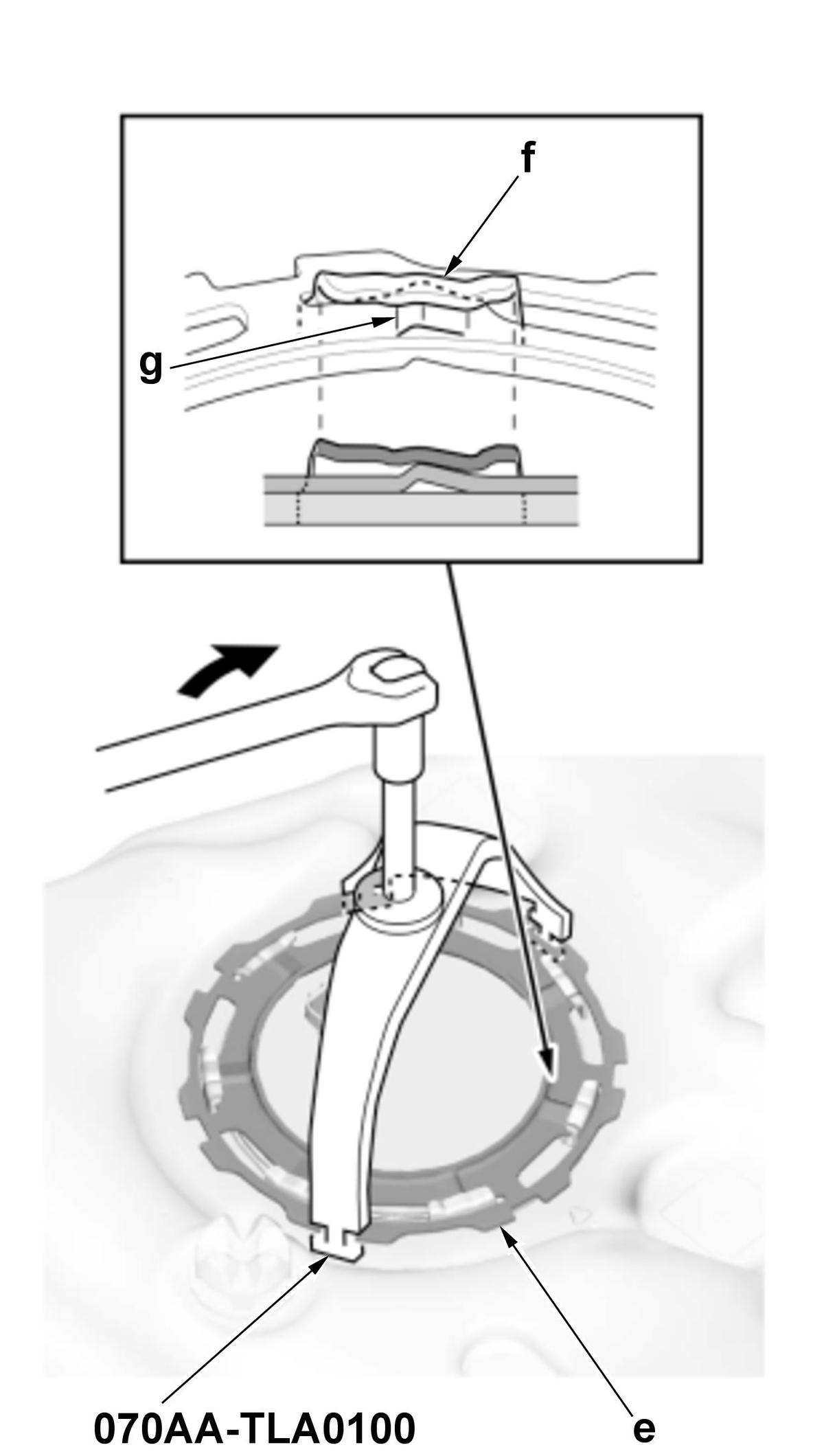

    2. Using the fuel sender wrench, turn the fuel tank unit cam lock ring (e) clockwise. (Figure 4)

    • Make sure the fuel sender wrench engages fully with the fuel tank unit cam lock ring. (Figure 4)
    • Securely set the positioning edge (f) of the fuel tank at the tab (g) on the fuel tank unit cam lock ring. (Figure 4)
    • Make sure the fuel tank unit cam lock ring is seated correctly on the secondary fuel gauge sending unit with all tabs fully engaged. (Figure 5)

    ■ After Installation

  3. C.

    ■ Key Information

    Do the following before starting your work.

    Remove:

    ■ Sub-Procedure

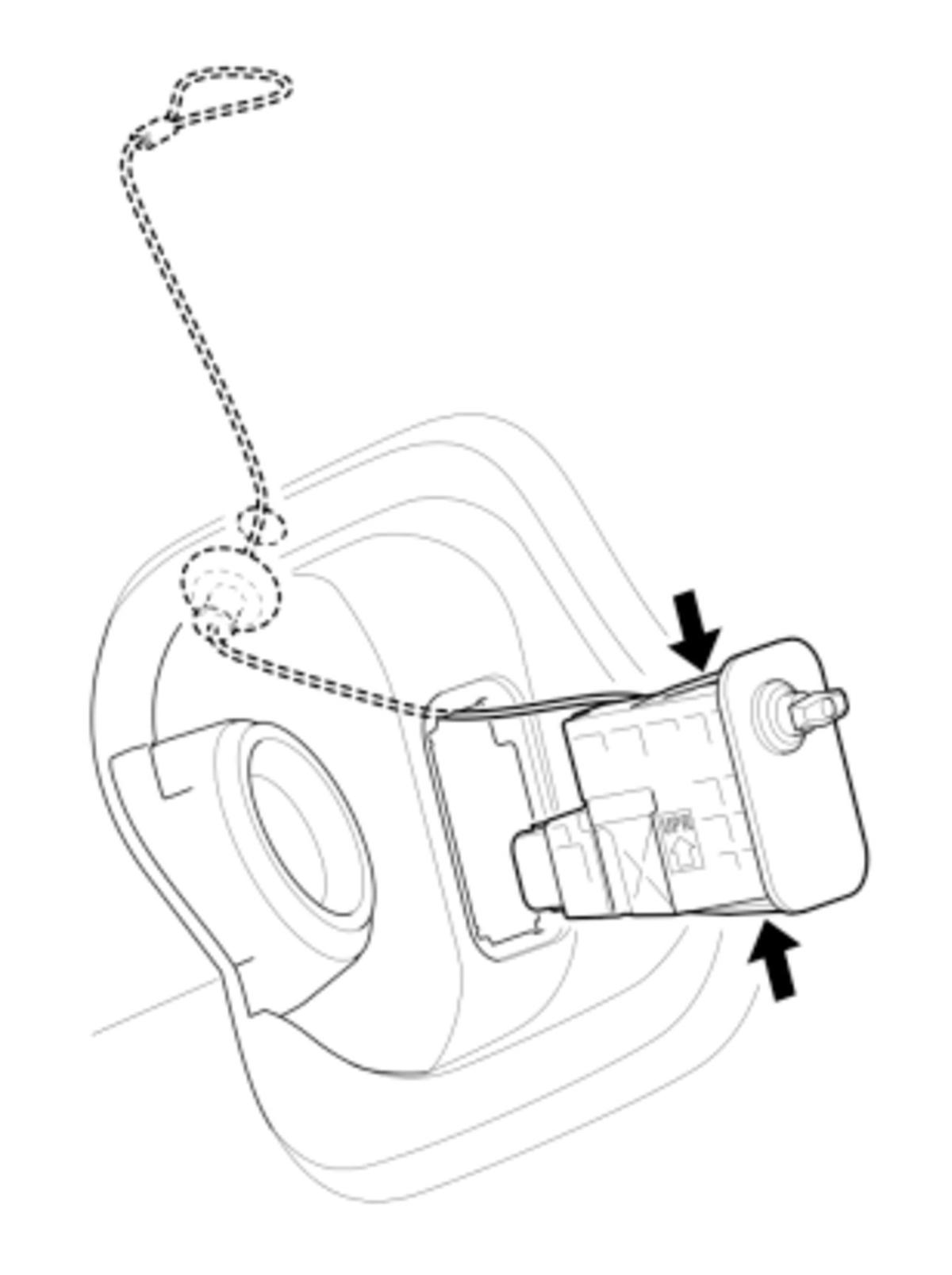

    GHH555340Courtesy of HONDA, U.S.A., INC.

    • Removal

    • While pressing the lock tabs, pull out the fuel fill door lock actuator.
  4. D.

    ■ Key Information

    Do the following before starting your work.

    Remove:

    ■ Sub-Procedure

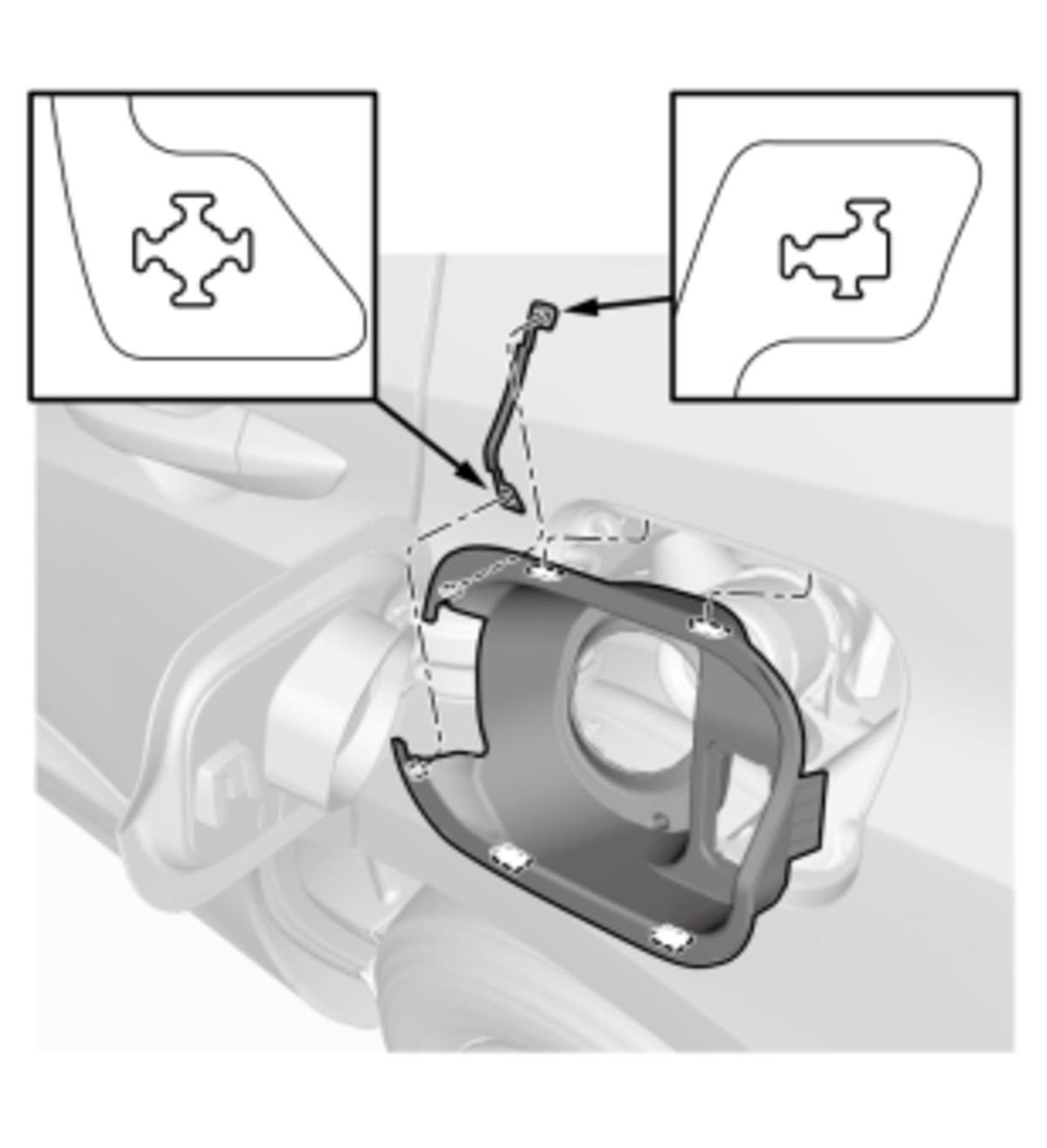

    GHH555341Courtesy of HONDA, U.S.A., INC.

    • Removal

    • Refer to the figure.
  5. E.

    ■ Sub-Procedure

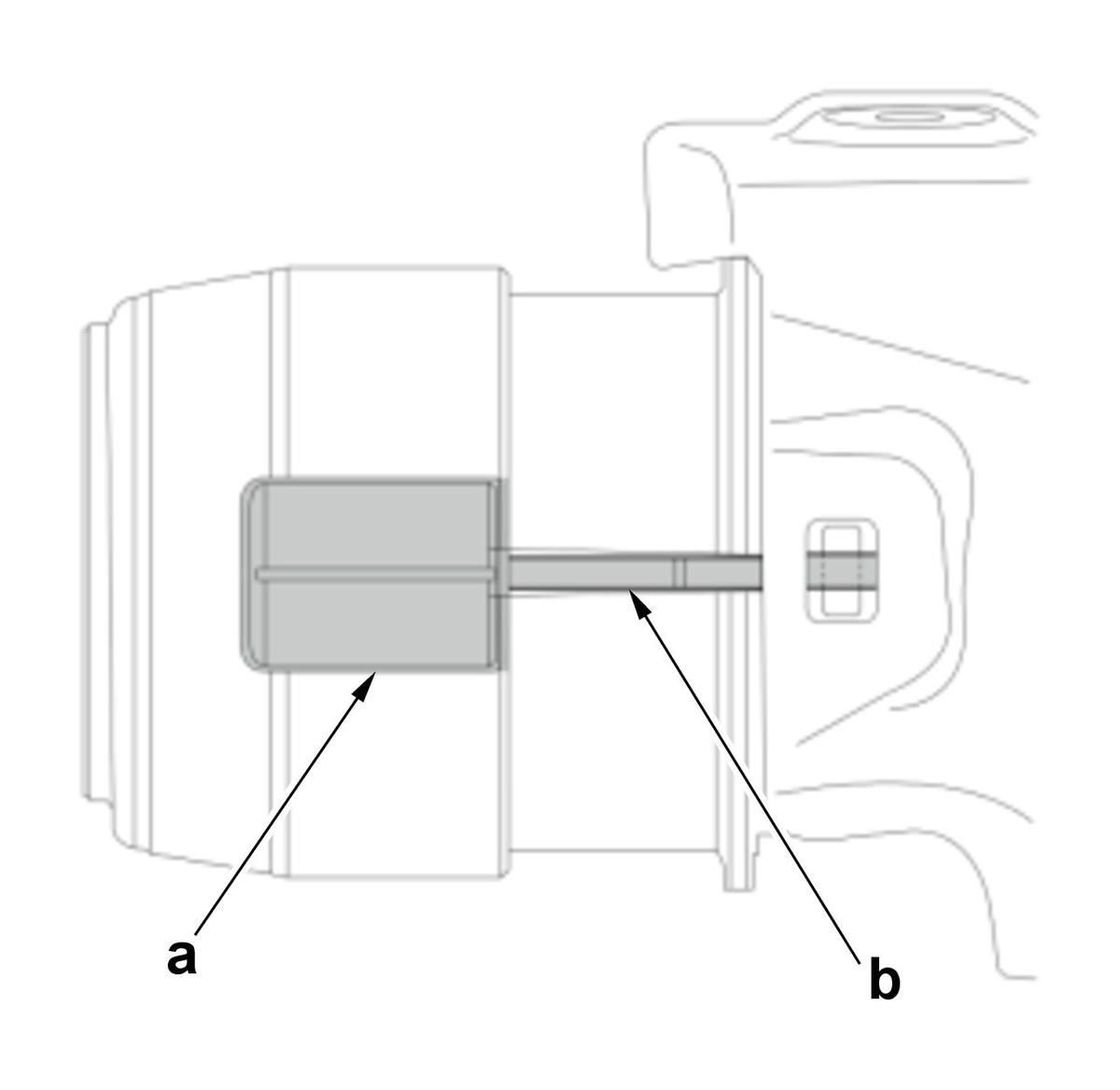

    GHH555342Courtesy of HONDA, U.S.A., INC.

    • Removal

    Alignment Specifications

    Positions Name
    a Rubber Cover Bulge
    b Retainer
  6. F.

    ■ Sub-Procedure

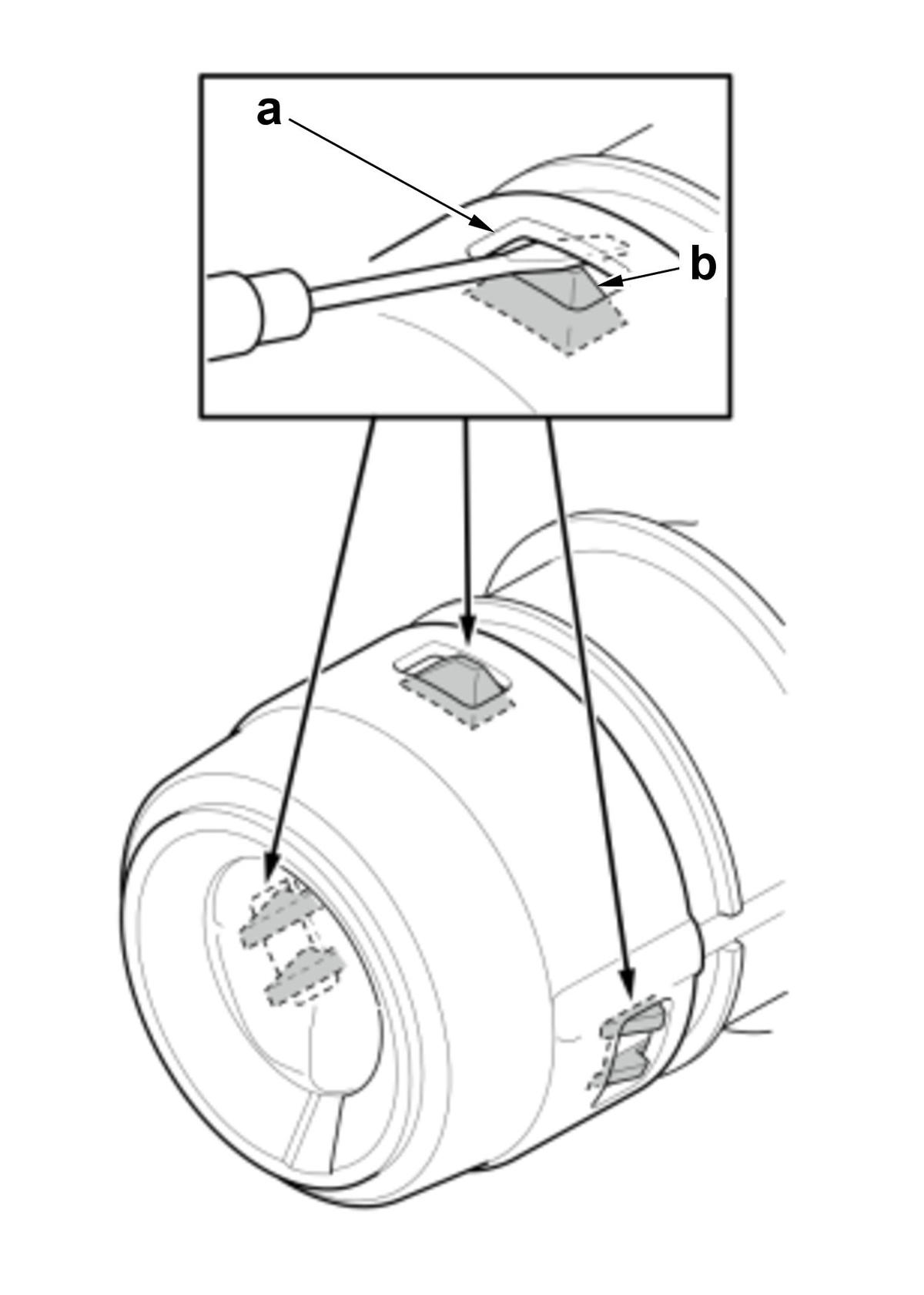

    GHH555343Courtesy of HONDA, U.S.A., INC.

    • Removal

    • Lift up the holes (a) and release the lock tabs (b).
  7. G.

    ■ Sub-Procedure

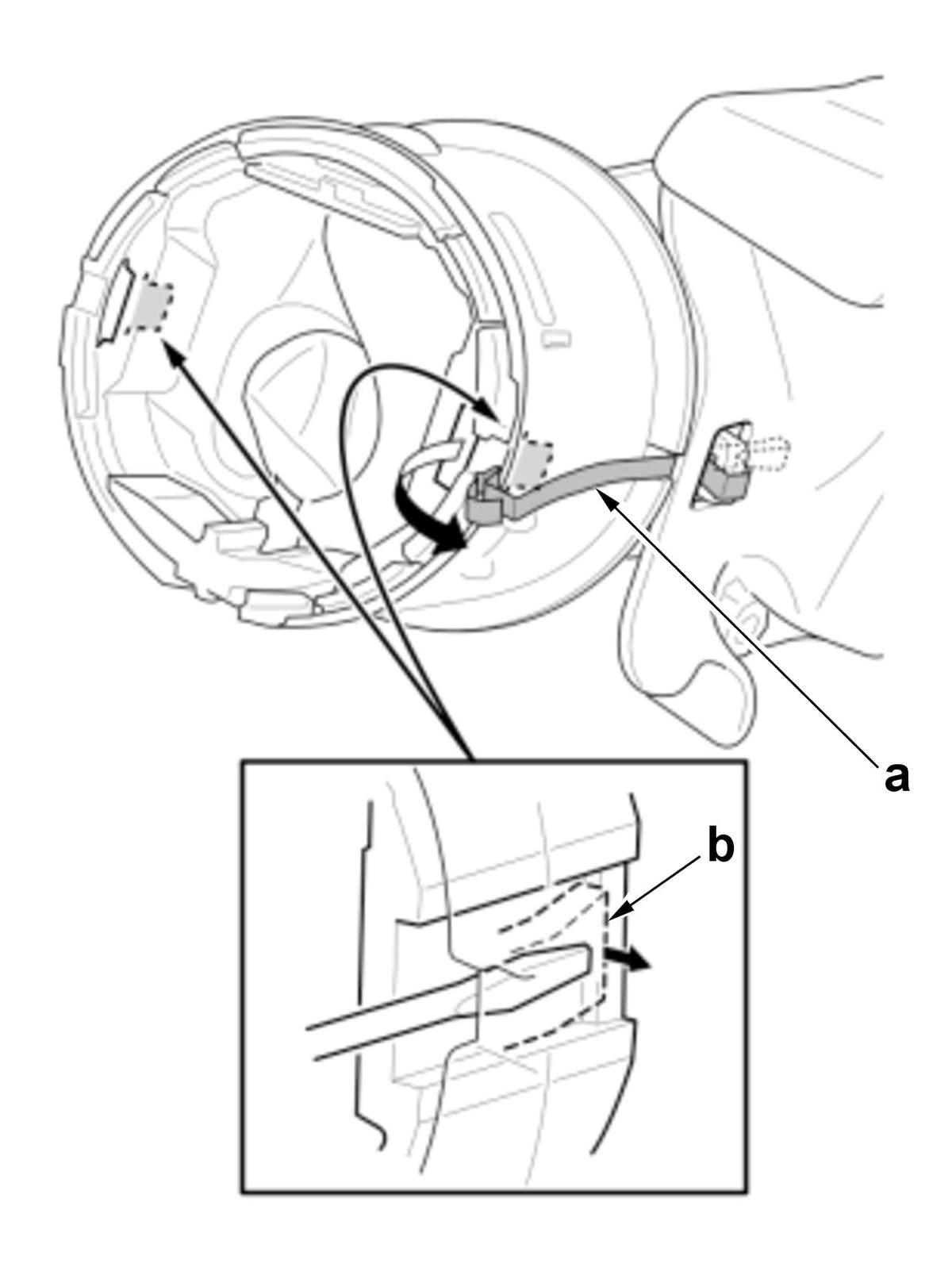

    GHH555344Courtesy of HONDA, U.S.A., INC.

    • Removal

    1. Disengage the retainer (a).

    2. Disengage the lock tabs (b).

  8. H.

    ■ Sub-Procedure

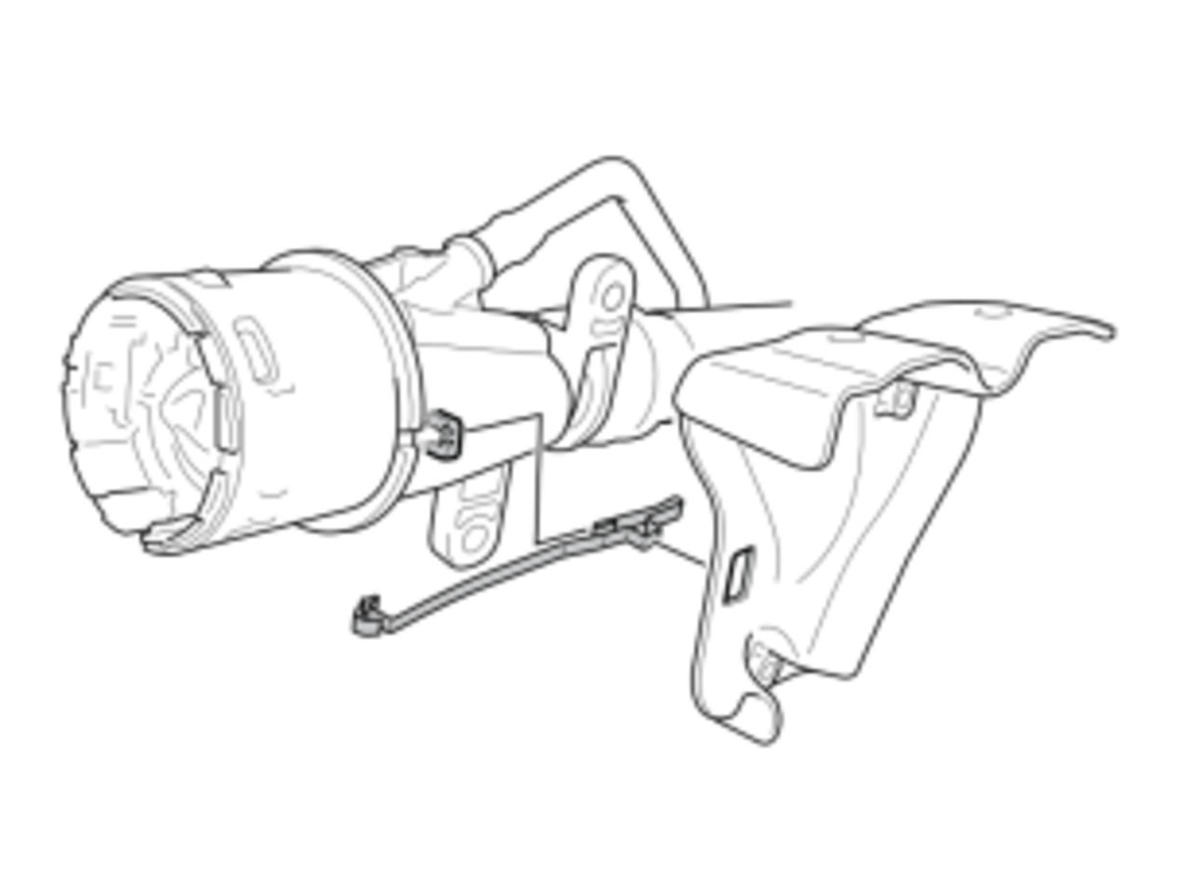

    GHH555345Courtesy of HONDA, U.S.A., INC.

    • Removal

    • Refer to the figure.
  9. I.

    ■ Sub-Procedure

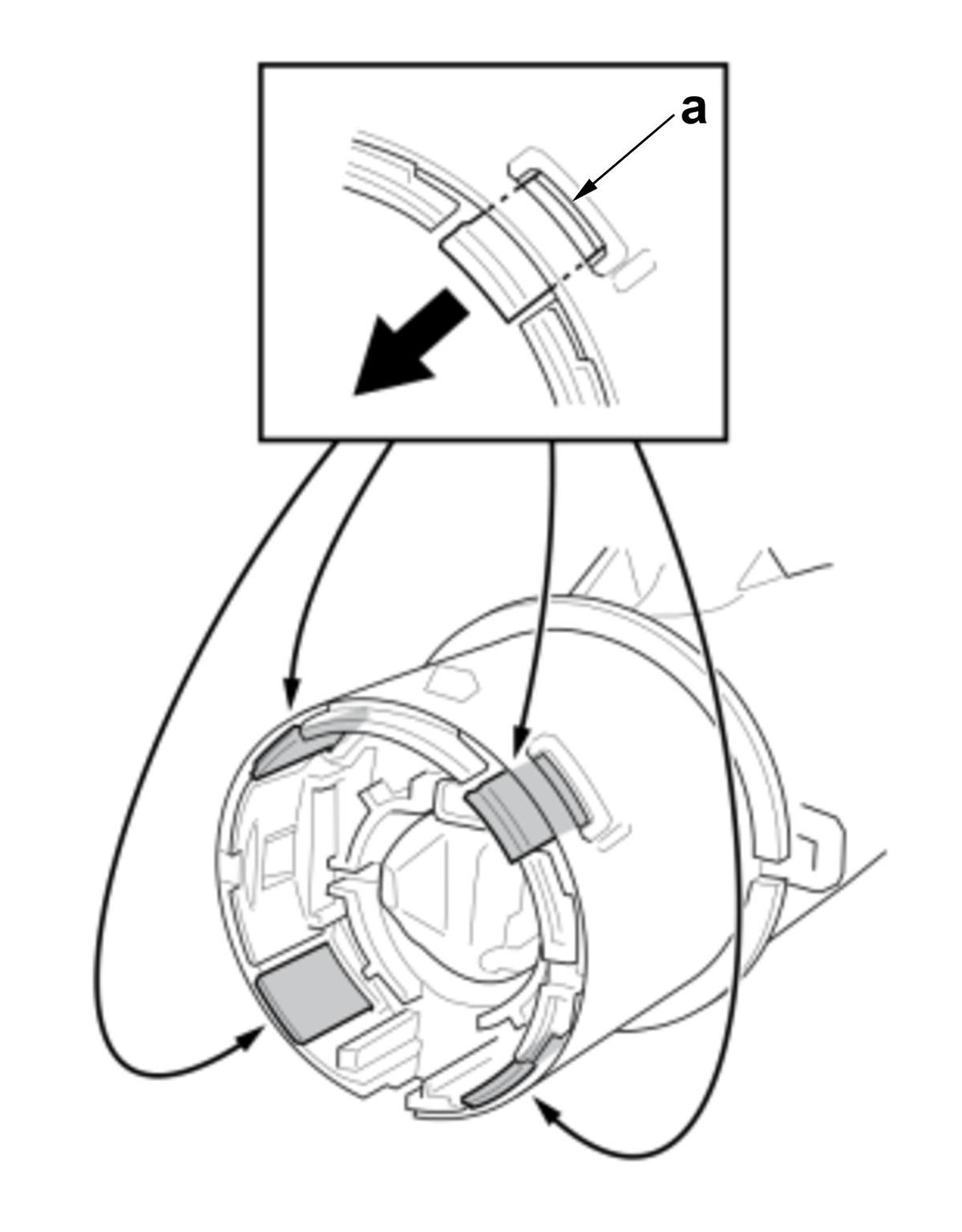

    GHH555346Courtesy of HONDA, U.S.A., INC.

    • Removal

    • Disengage the lock tabs (a).
  10. J.

    ■ Sub-Procedure

    GHH555347Courtesy of HONDA, U.S.A., INC.

    • Removal

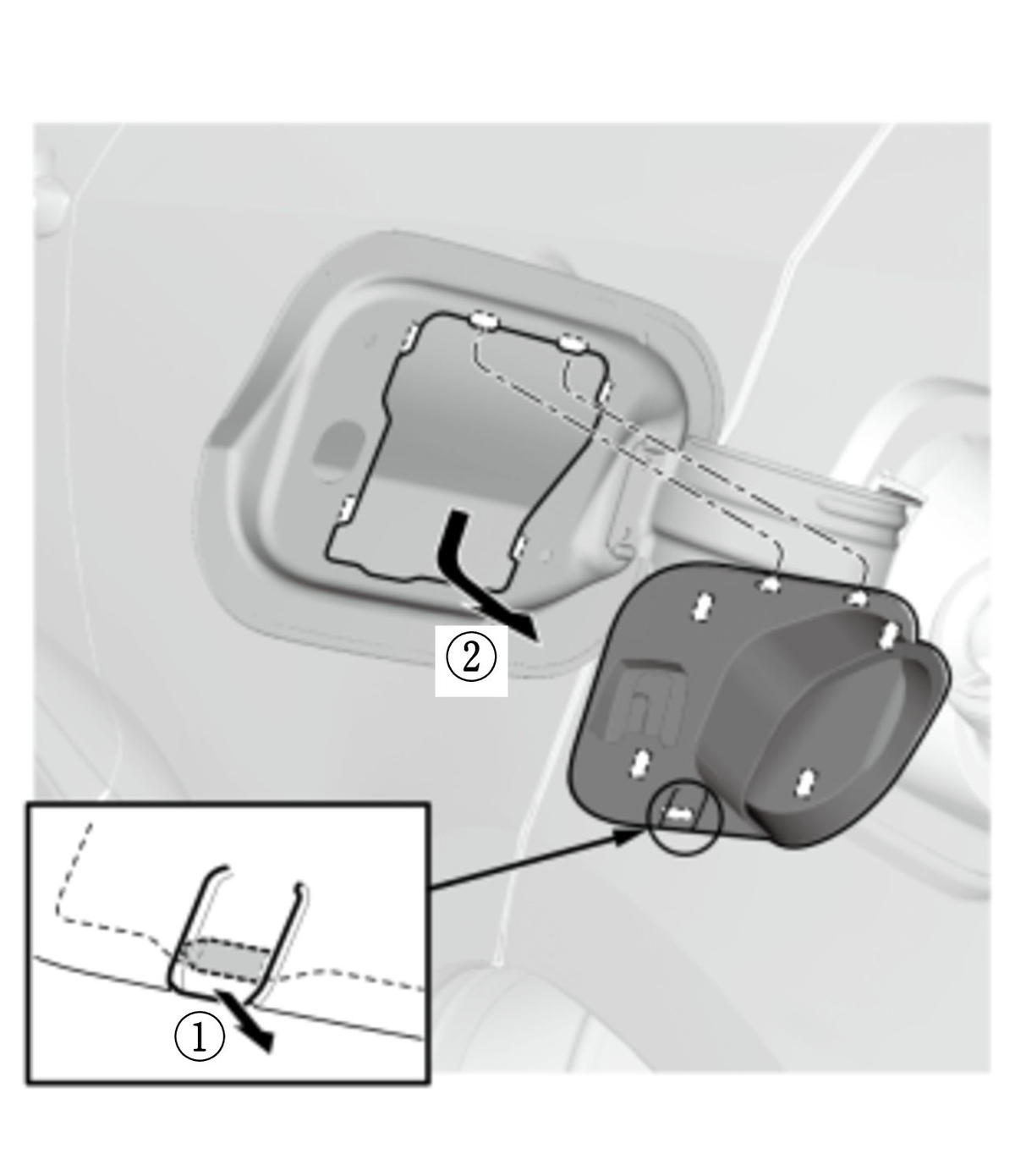

    • While releasing the lock tab , slide the cover down .
  11. K.

    ■ Preconditions

    ■ Key Information

    NOTE:

    For the removal and installation procedure, refer to Fuel Tank Removal and Installation - Refer to: Fuel Tank Draining or Fuel Tank Removal and Installation and the sub-procedure below.

    ■ Sub-Procedure

    NOTE:
    • Be careful not to interfere with the surrounding parts when removing/installing the pipe.
    • To support the fuel tank, use a jack or other support.

    • Removal

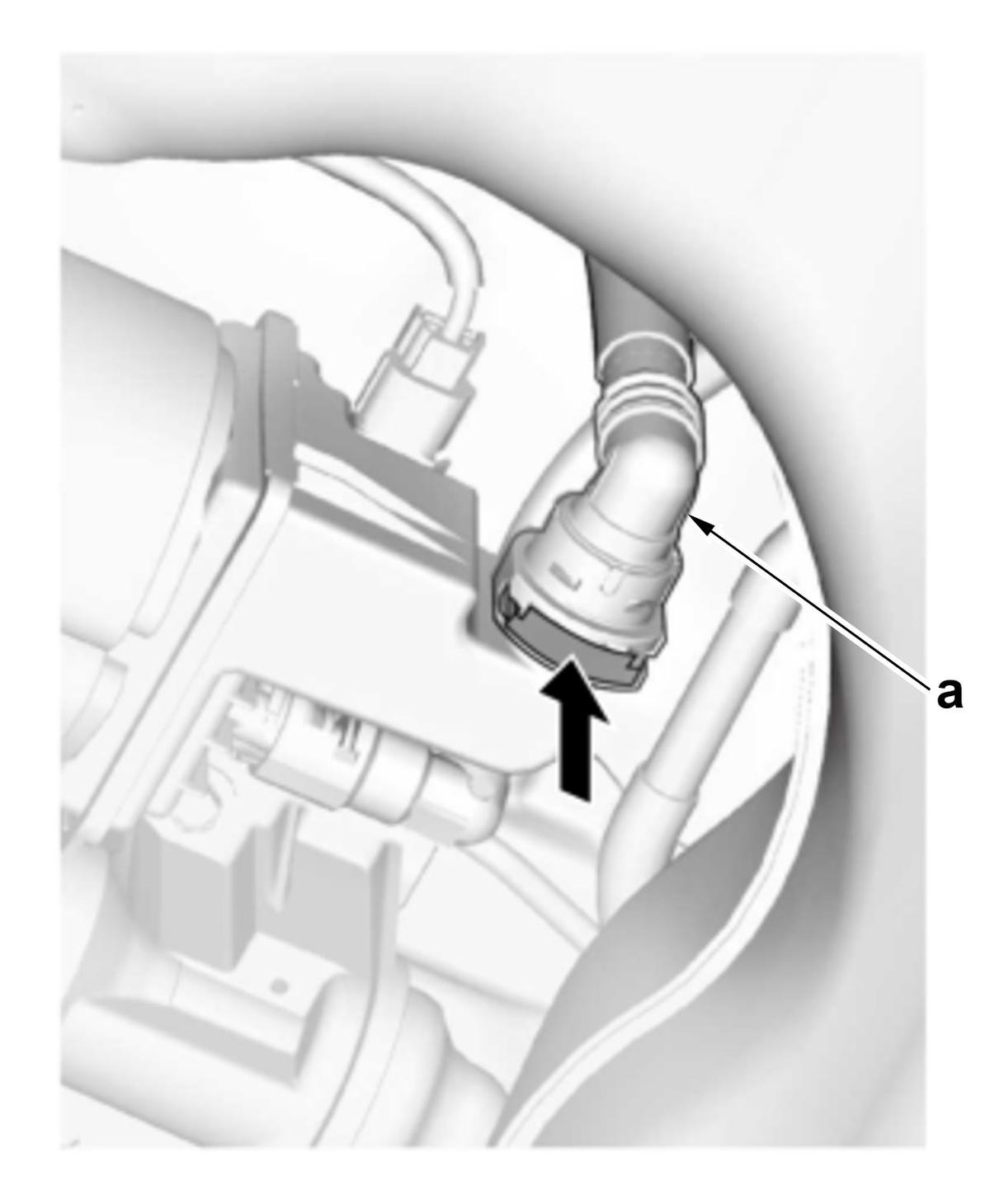

    1. Disconnect the fuel vent tube (a). (Figure 1)

    Figure 1

    GHH555348Courtesy of HONDA, U.S.A., INC.

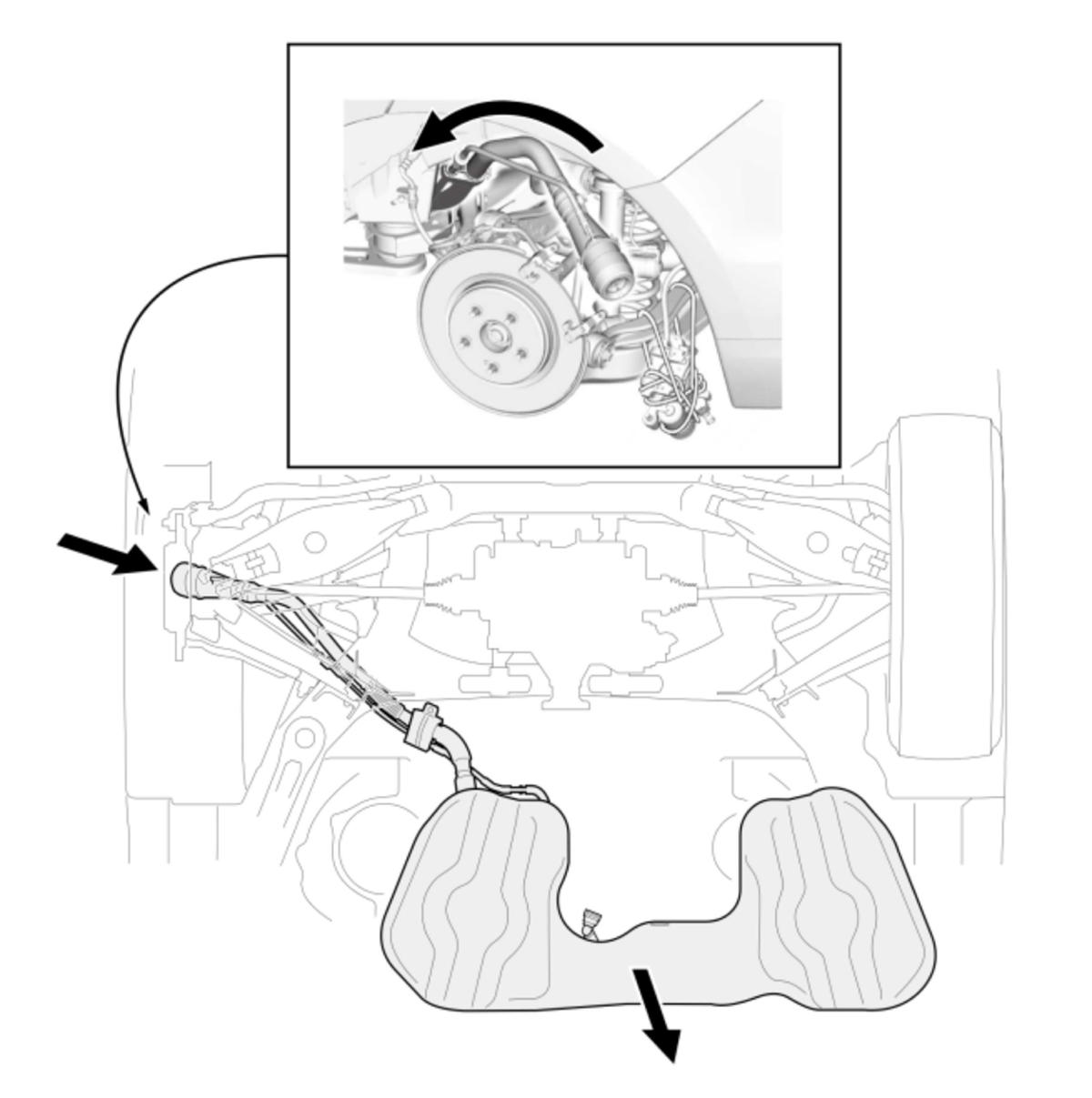

    2. Move the fuel tank towards the right-front side of the vehicle. (Figure 2)

    Figure 2

    GHH555349Courtesy of HONDA, U.S.A., INC.
  12. L.

    ■ Key Information

    Do the following before starting your work.

    Remove:

    ■ Sub-Procedure

    GHH555350Courtesy of HONDA, U.S.A., INC.

    • Removal

    • Disconnect the fuel vent tube (a).
  13. M.

    ■ Sub-Procedure

    • Installation

  14. N.

    ■ Sub-Procedure

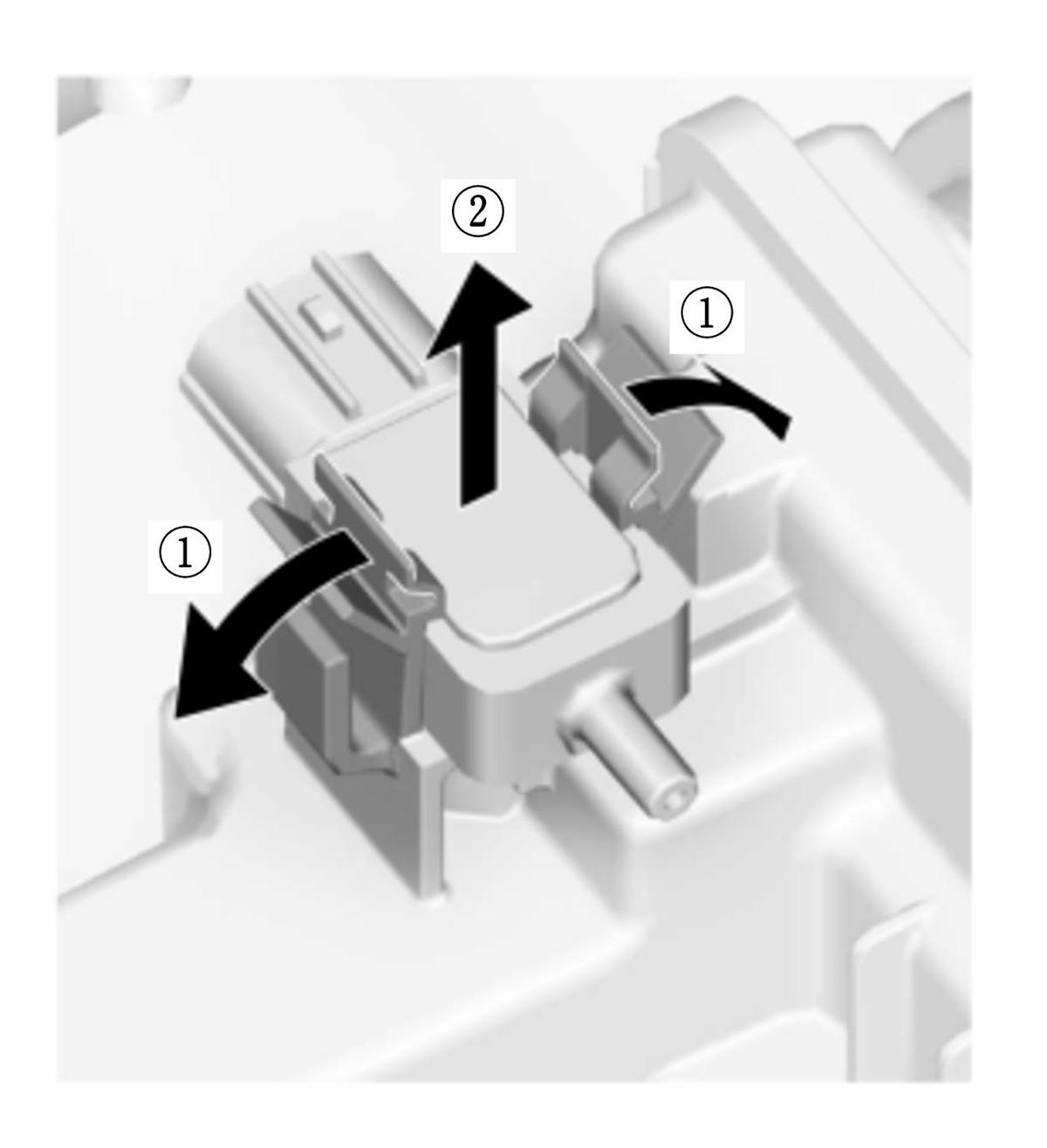

    GHH555351Courtesy of HONDA, U.S.A., INC.

    • Removal

    • Refer to the figure.
  15. O.

    ■ Sub-Procedure

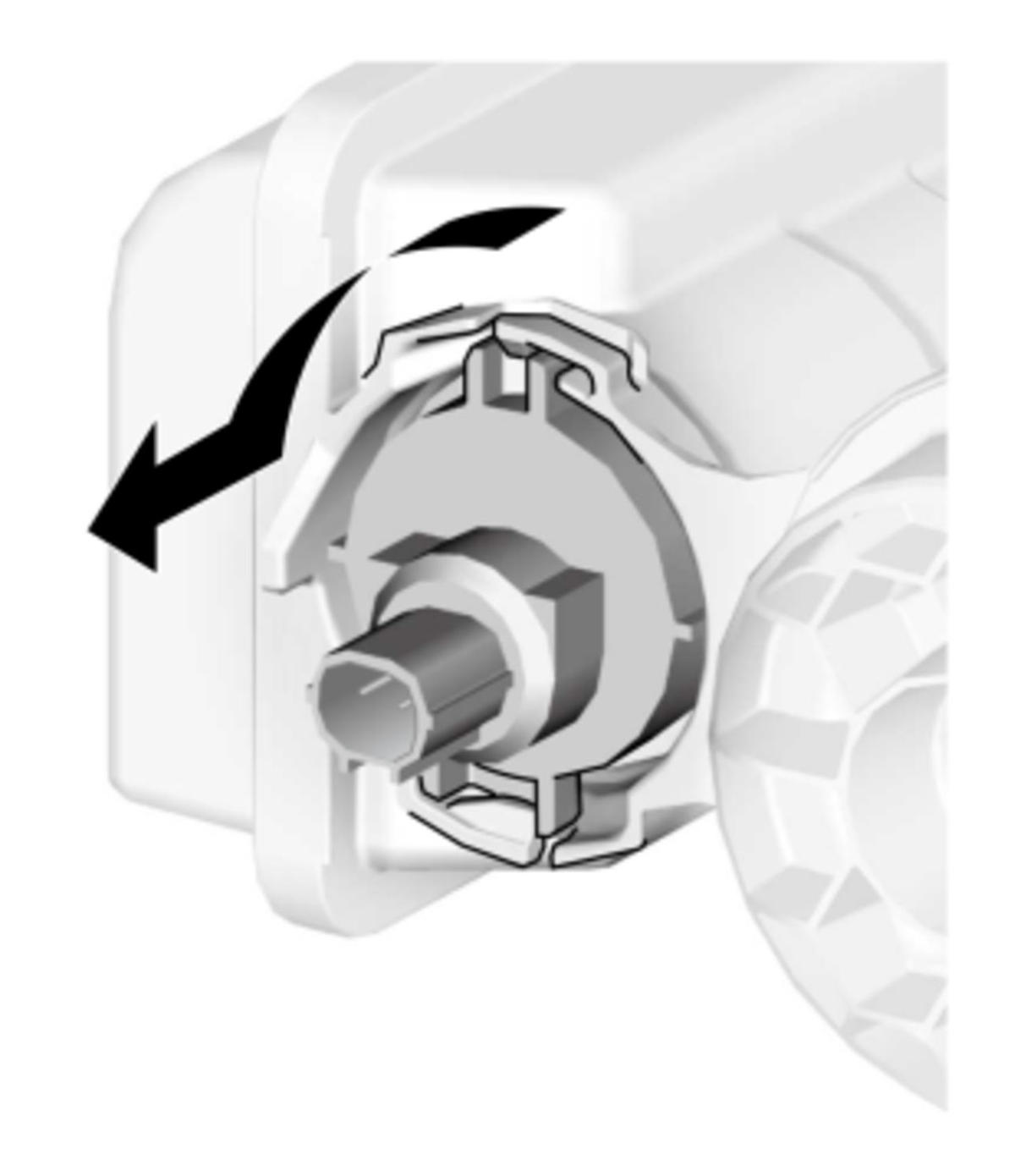

    GHH555352Courtesy of HONDA, U.S.A., INC.

    • Removal

    • Refer to the figure.
