Door Lock Knob Switch Test: Rear

Preconditions

• Rear Door Panel Removed

Procedure/Specifications

• Check the switch according to the table. (Figure 1 and 2)

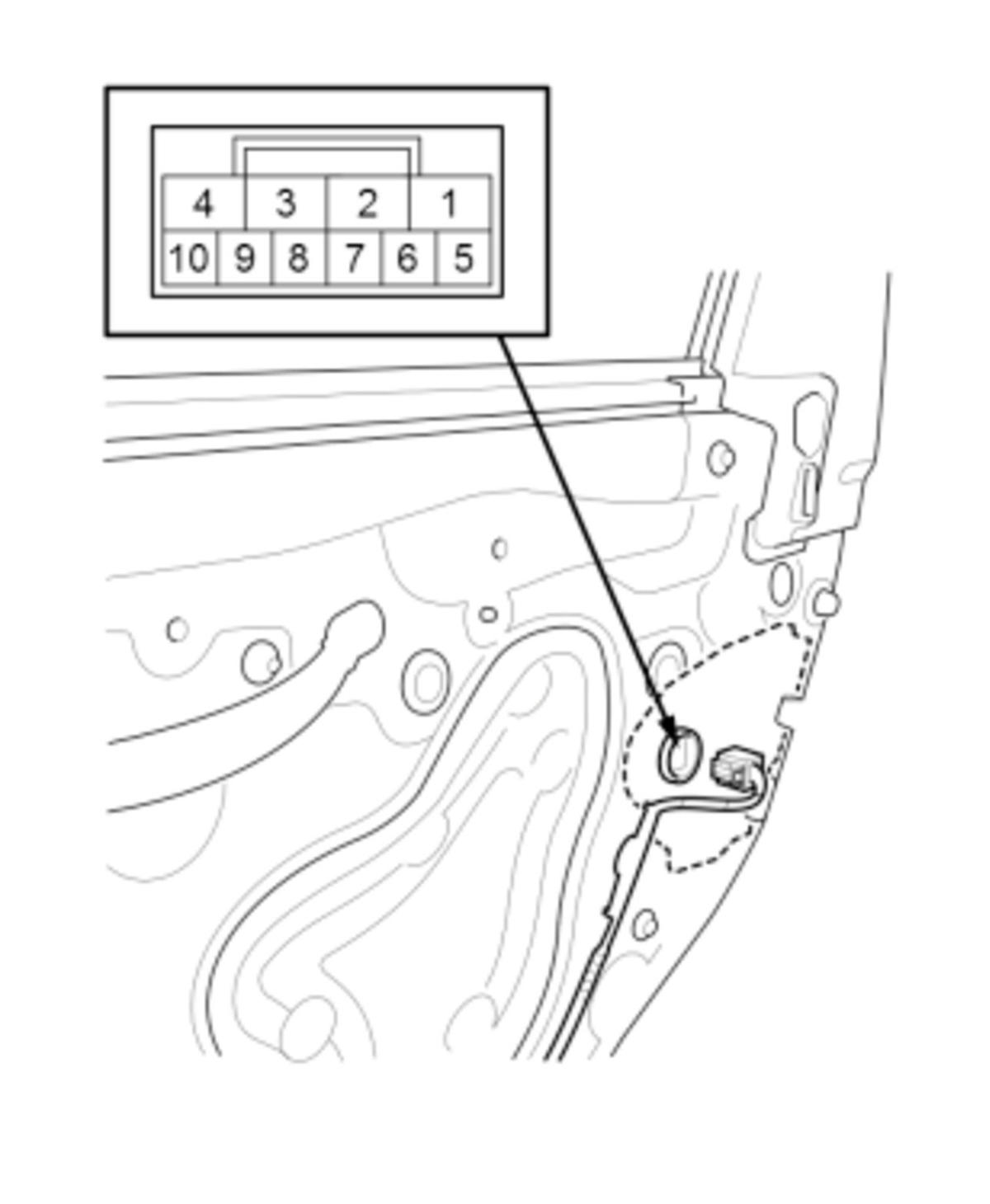

  Rear (Figure 1)

  Courtesy of HONDA, U.S.A., INC.

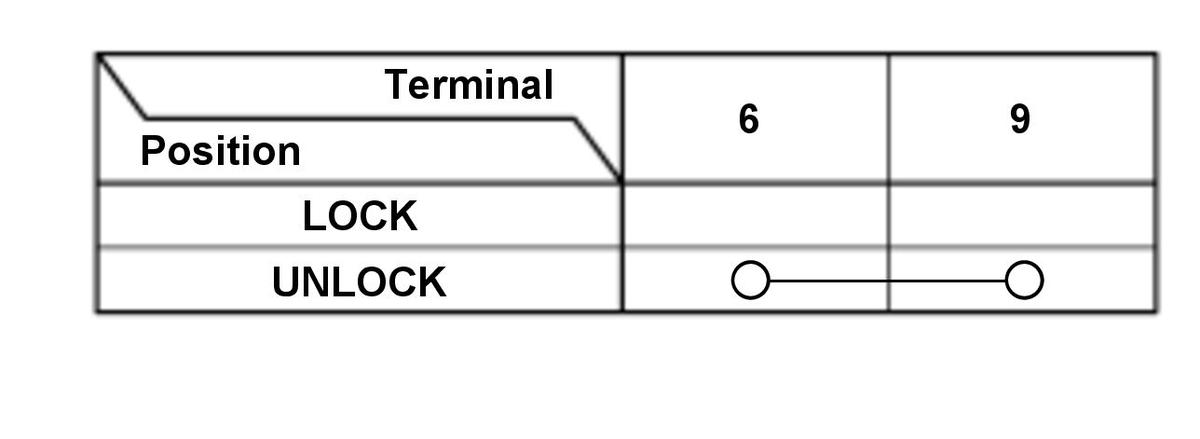

  Rear (Figure 2)

  Courtesy of HONDA, U.S.A., INC.

Result

• If the result is not as specified, replace the rear door latch .
