Keyless/Power Door Locks/Security System Circuit Diagram

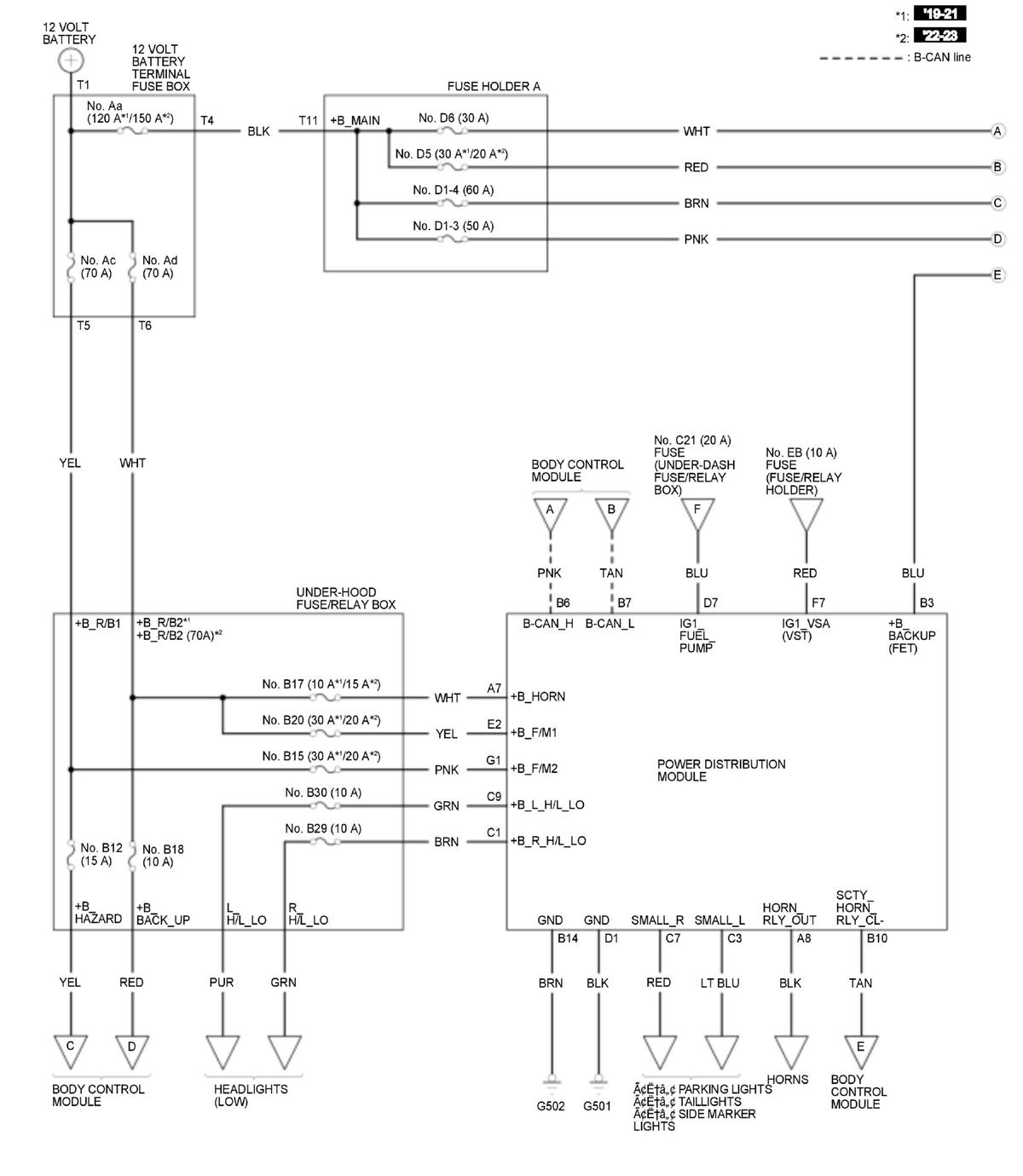

GHH556505

Courtesy of HONDA, U.S.A., INC.

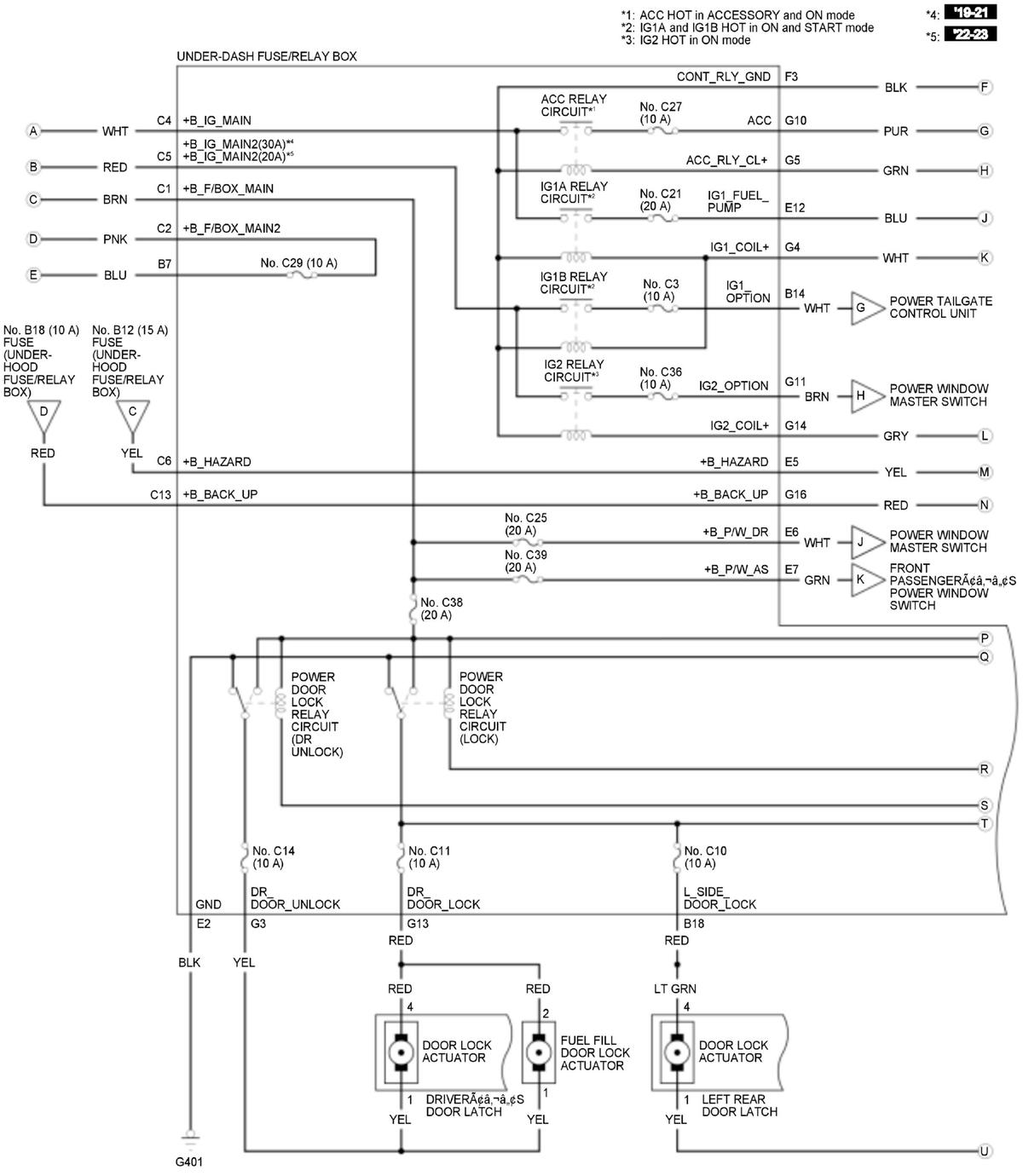

GHH556506

Courtesy of HONDA, U.S.A., INC.

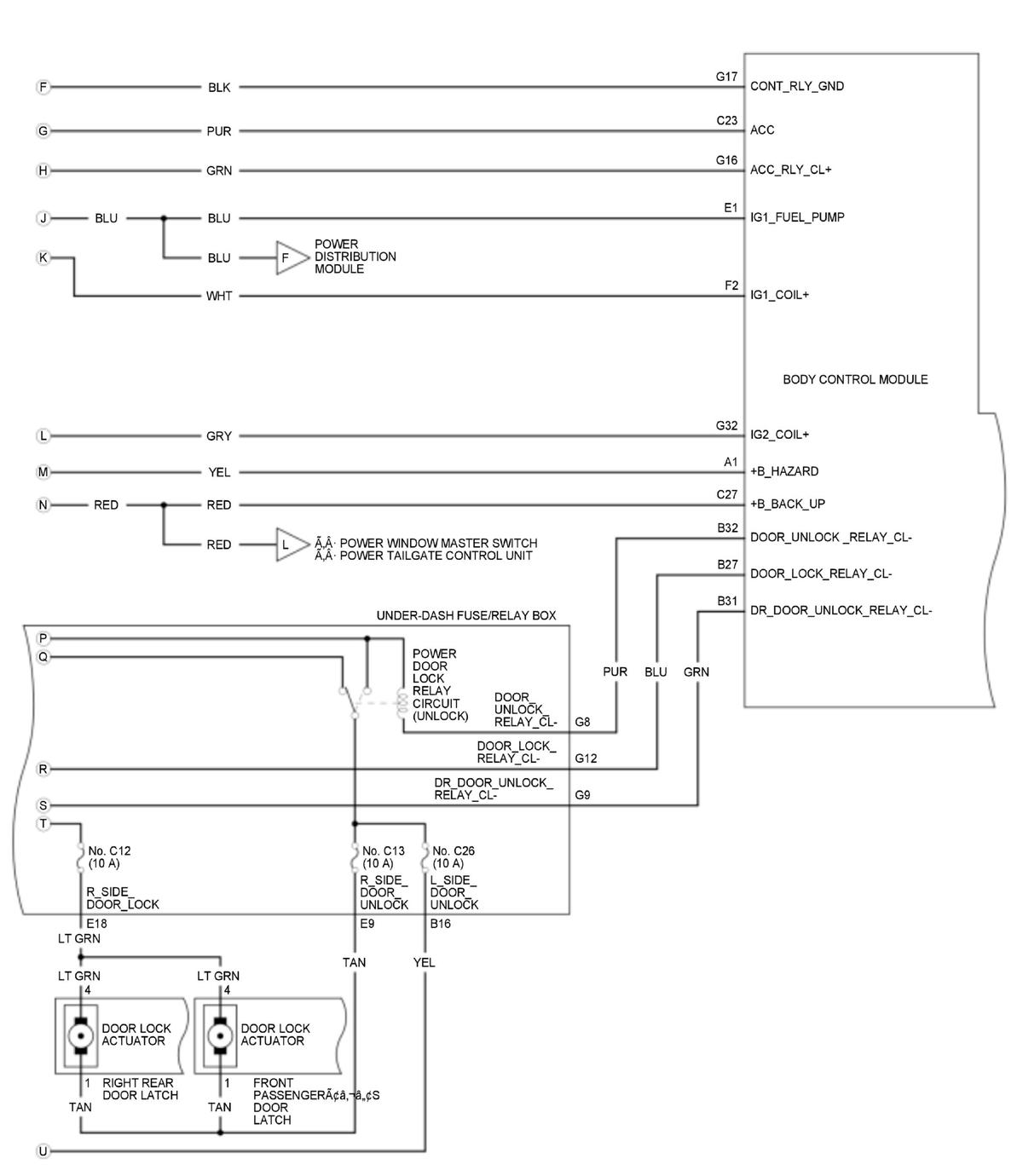

GHH556507

Courtesy of HONDA, U.S.A., INC.

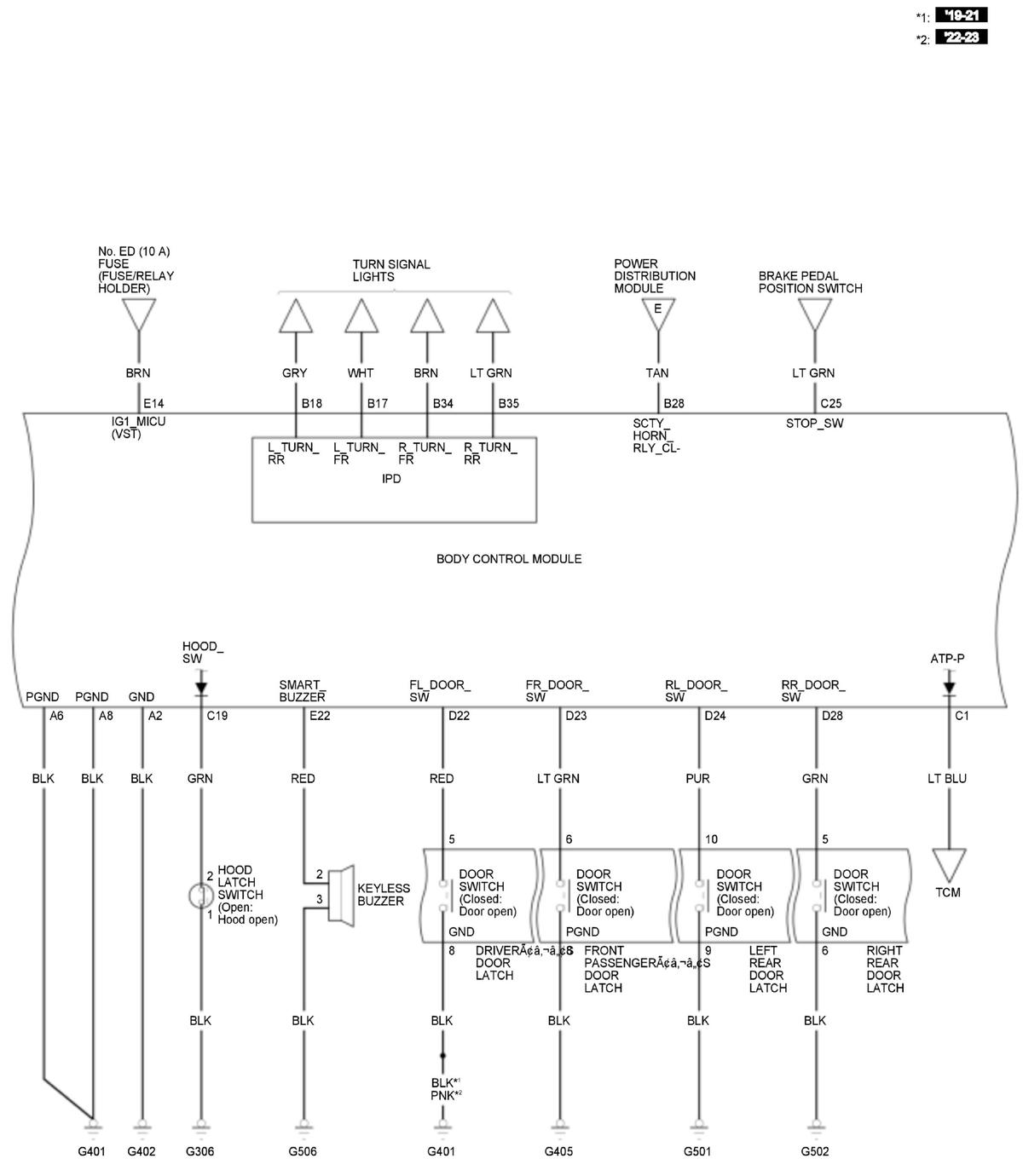

GHH556508

Courtesy of HONDA, U.S.A., INC.

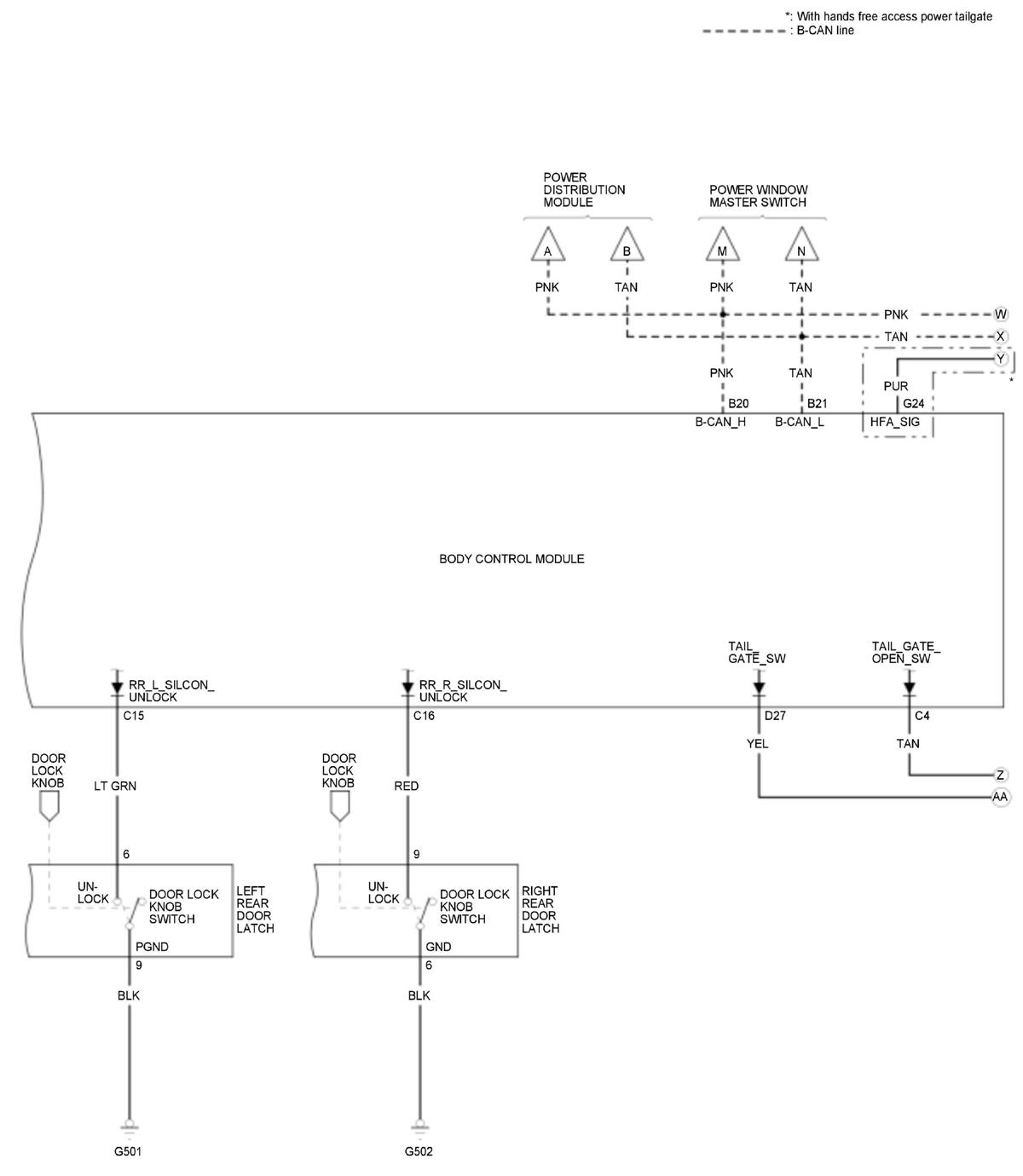

GHH556509

Courtesy of HONDA, U.S.A., INC.

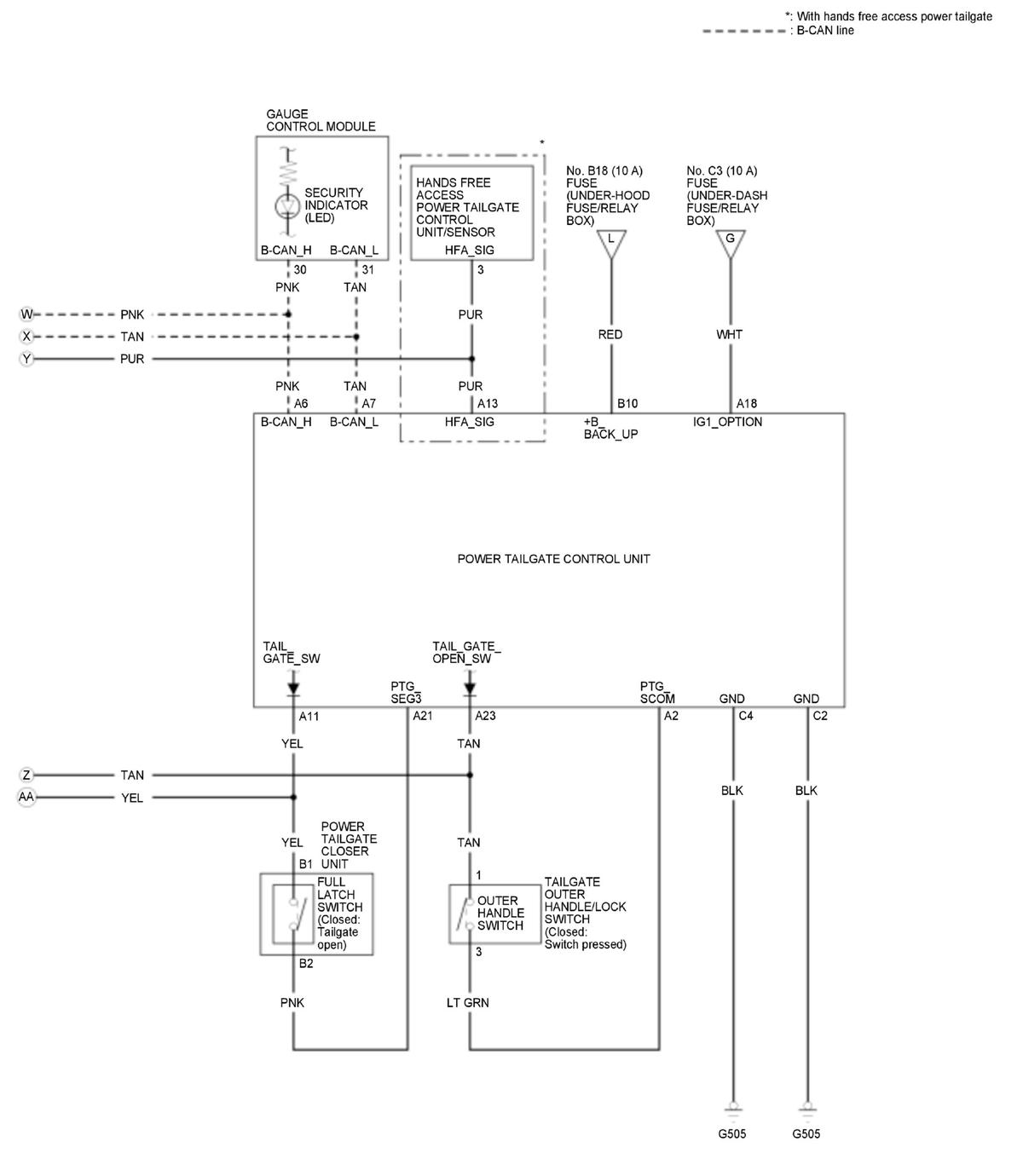

GHH556510

Courtesy of HONDA, U.S.A., INC.

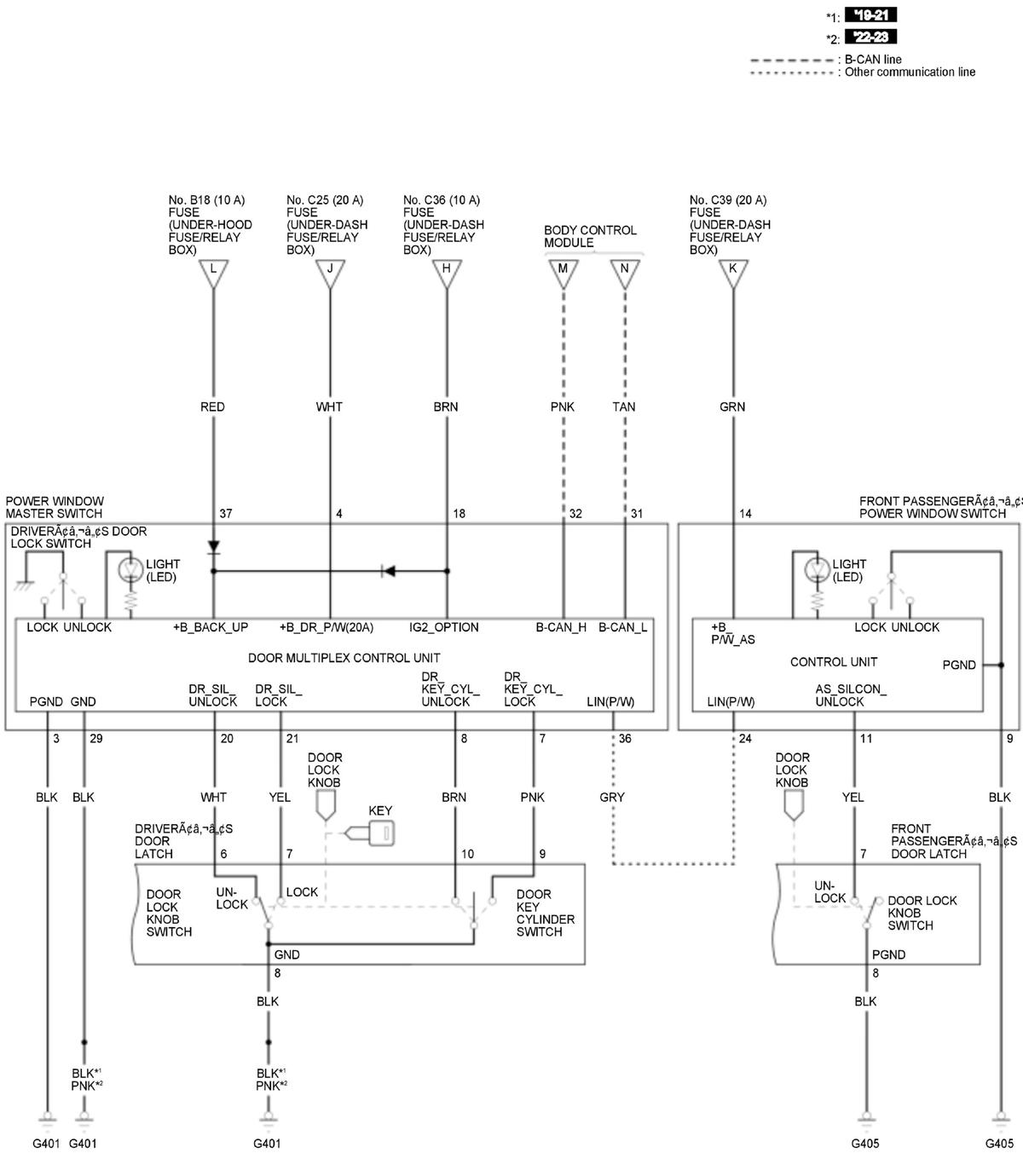

GHH556511

Courtesy of HONDA, U.S.A., INC.
