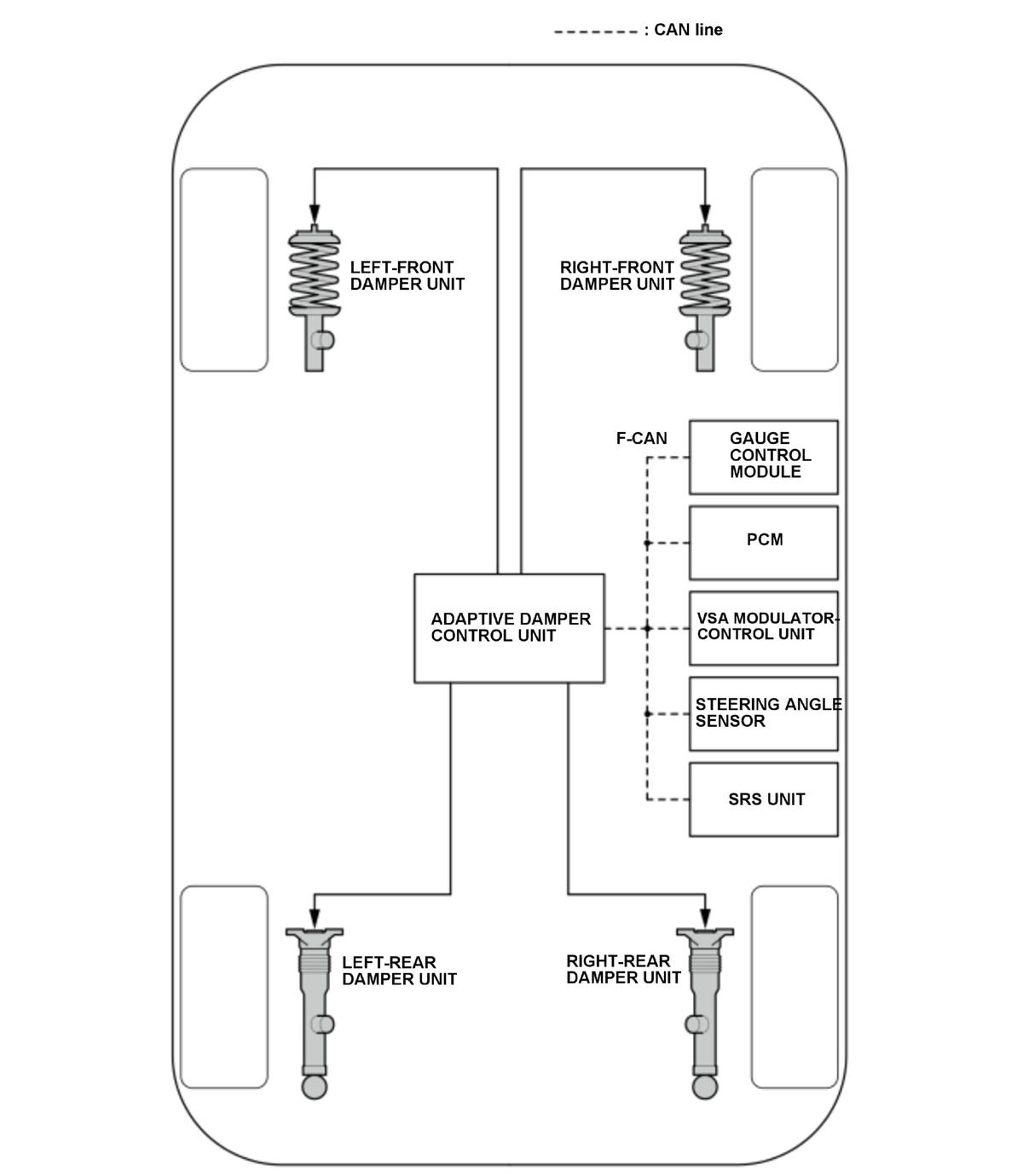

Adaptive Damper System Description - System Diagram

The adaptive damper system controller uses information from the PCM, the VSA modulator-control unit, the steering angle sensor, and the SRS unit. When a malfunction is detected, the multi-information display will show a warning to inform the driver about the malfunction in the system.

For locations of each component on vehicle, refer to Component Location Index:

Courtesy of HONDA, U.S.A., INC.

F-CAN Communication Data

Adaptive Damper Control Unit Receiving Signal

Transmitting Unit	Signal Name
PCM	Engine torque signal Integrated dynamics system mode signal
VSA modulator-control unit	Master cylinder pressure signal Wheel speed signal ABS/TCS/VSA operating status
Steering angle sensor	Steering angle signal
SRS unit	Yaw rate signal Lateral acceleration signal Longitudinal acceleration signal

Adaptive Damper Control Unit Transmitting Signal

Transmitting Unit	Signal Name
Adaptive damper control unit	System warning indication signal Fail safe action status
