With Existing Retainer
1. Connect the quick-connect fittings (X) to the fuel line (Y) until a click sound is heard. (Figure 14)
NOTE:
Make sure the locking tabs (Z) are firmly installed in the connector grooves. (Figure 14)

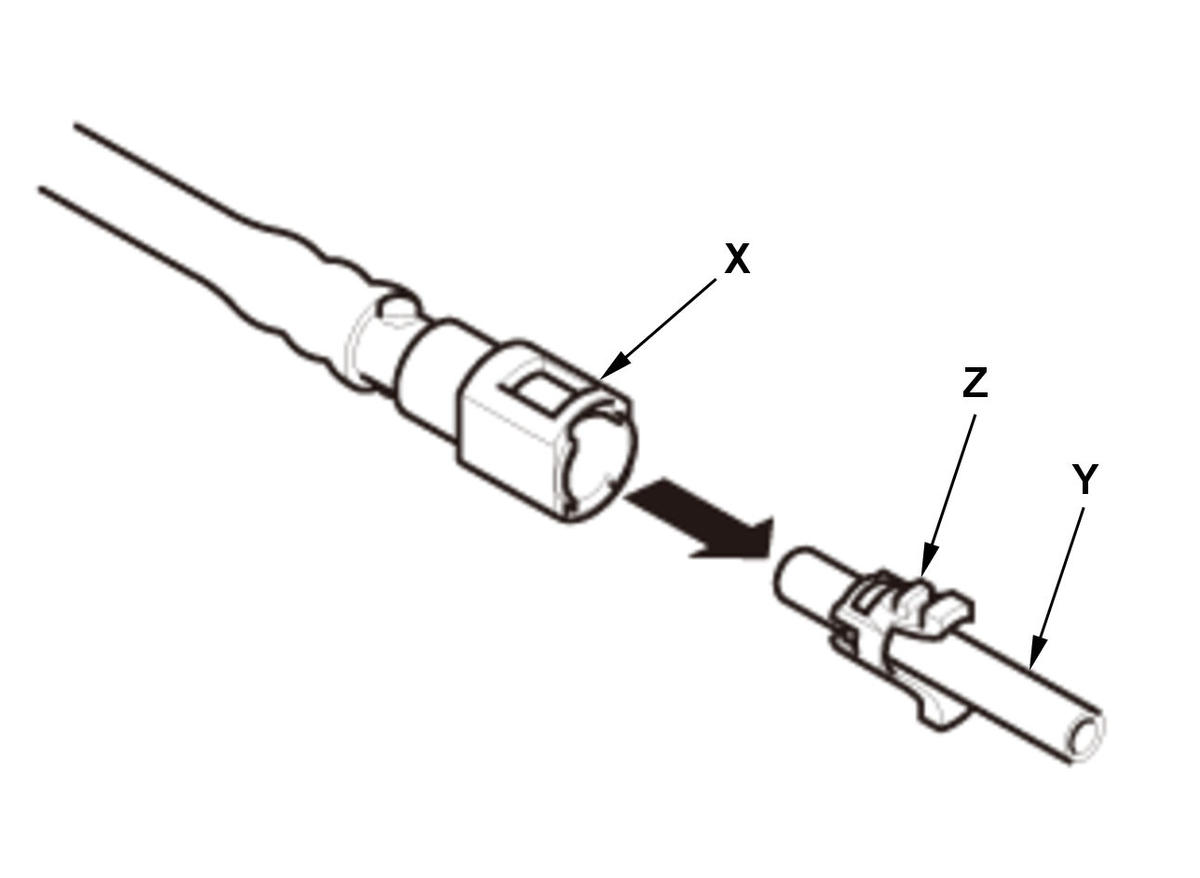

Figure 14
 Courtesy of HONDA, U.S.A., INC.
|
