AcuraLink Button Test: Test

How To Use This Service Information .

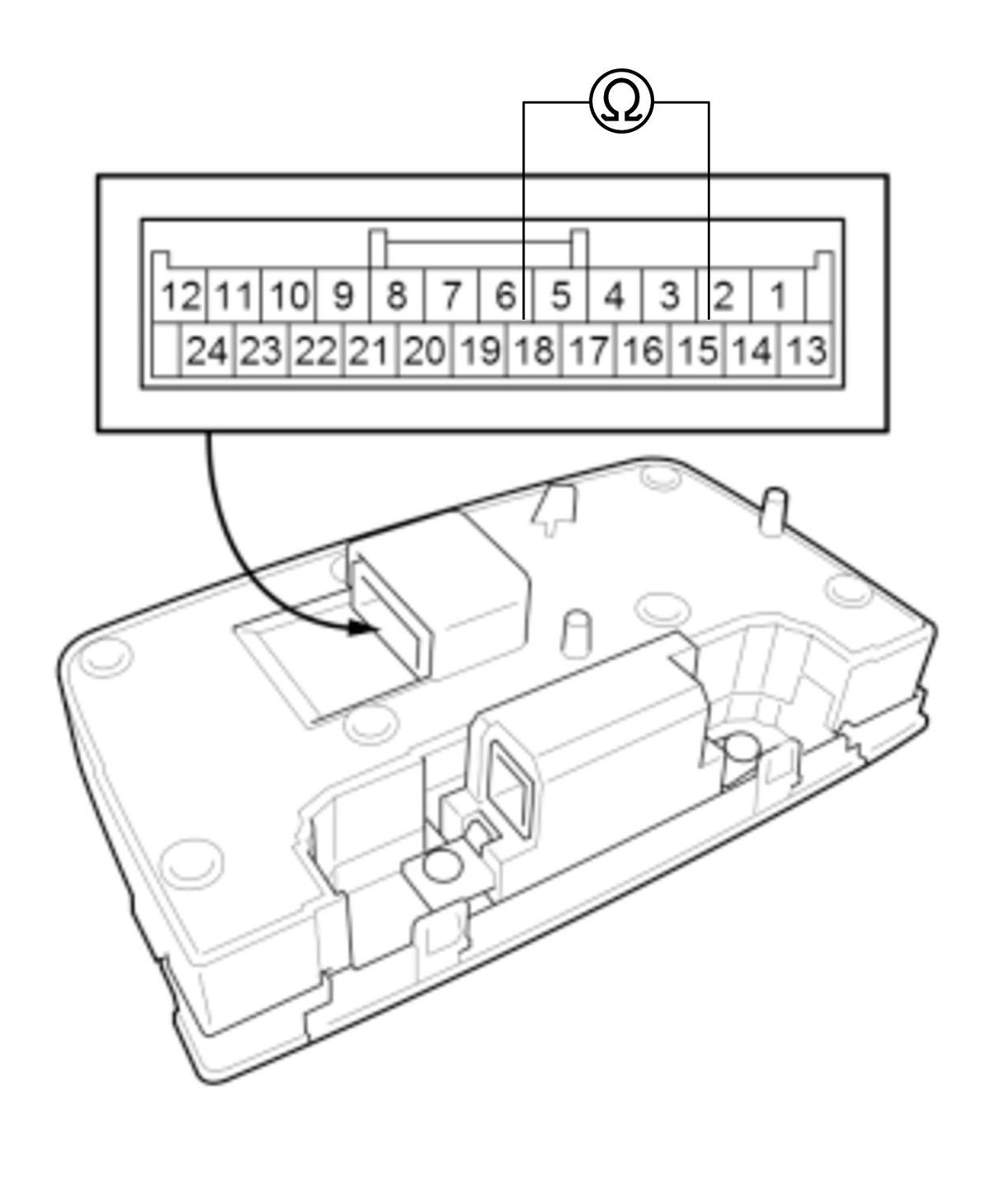

1. AcuraLink Button - Test

   Preconditions

   • Roof Module Removed

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

   Normal Conditions (Resistance)

   Button Position	Specifications
   No button pressed	About 3.1 kΩ
   LINK button pressed	About 400 Ω
   ASSIST button pressed	About 100 Ω

   Result

   If the measurement is not within specifications, replace the roof module.
