Audio and Visual System Symptom Troubleshooting
>>
Rearview Camera Image Does Not Change When Selecting Different Views
>>

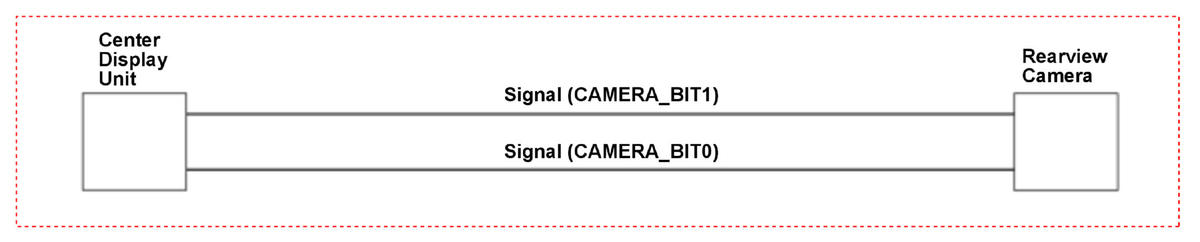

Inspection Area
Inspection Area
The components to be tested are indicated by a dotted line.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
