Control (MTR1), Control (MTR2) Open Wire Inspection

NOTE: Before disconnecting the PCM connector, jump the SCS line with the HDS, and wait more than 1 minute.

Test Procedure

Preparation
- Throttle body 6P connector: disconnected
- PCM connector E (80P) : disconnected

Procedure

Perform the inspection according to the following table.

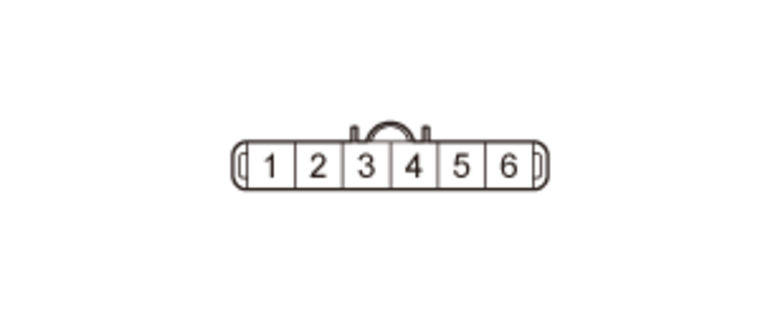

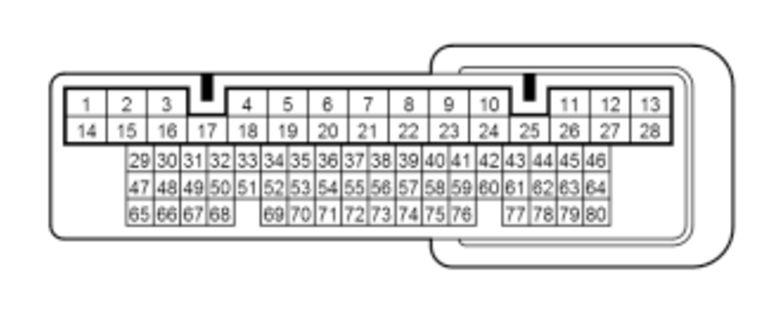

		(Disconnected) Throttle body 6P connector female terminals	(Disconnected) PCM connector E (80P) female terminals
	IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
MTR1 open wire inspection	OFF			There is less than 1 Ω
MTR2 open wire inspection	OFF			There is less than 1 Ω

Results
