AM/FM/HD Radio

NOTE: For factory use only. Do not alter any settings unless directed.

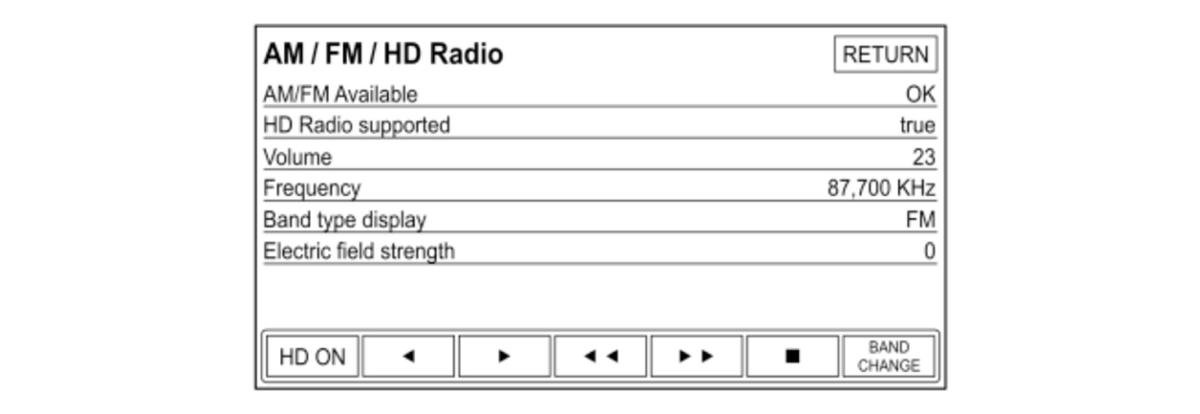

This diagnosis displays the tuner unit status and check the function. If the AM/FM Available shows NOK (not OK), substitute a known-good tuner unit, and recheck - Refer to: Audio and Visual System Component Location Index or Audio and Visual System Component Location Index (2022 2023) .

GHH553942Courtesy of HONDA, U.S.A., INC.
