DTC P0455

DTC P0455  : EVAP System Large Leak Detected

Special Tools Required

Vacuum Pump/Gauge, 0-30 inHg Snap-on YA4000A or equivalent, commercially available

Vacuum/Pressure Gauge, 0-4 inHg 07JAZ-001000B

The fuel system is designed to allow specified maximum vacuum and pressure conditions. Do not deviate from the vacuum and pressure tests as indicated in these procedures. Excessive pressure/vacuum would damage the EVAP components or cause eventual fuel tank failure.

NOTE:
  • Before you troubleshoot, record all freeze data and any on-board snapshot, and review the general troubleshooting information .
  • Fresh fuel has a higher volatility that will create greater pressure/vacuum. The best condition for testing is less than a full tank of fresh fuel. If possible, to assist in leak detection, add 1 gallon of fresh fuel to the tank (as long as it will not fill the tank), just before starting these procedures.
DTC Description Confirmed DTC Pending DTC Freeze Frame
P0455 EVAP System Large Leak Detected

DTC (PGM-FI)

  1. Primary shut-off valve check

    -1. Remove the mis-fuel inhibit device .

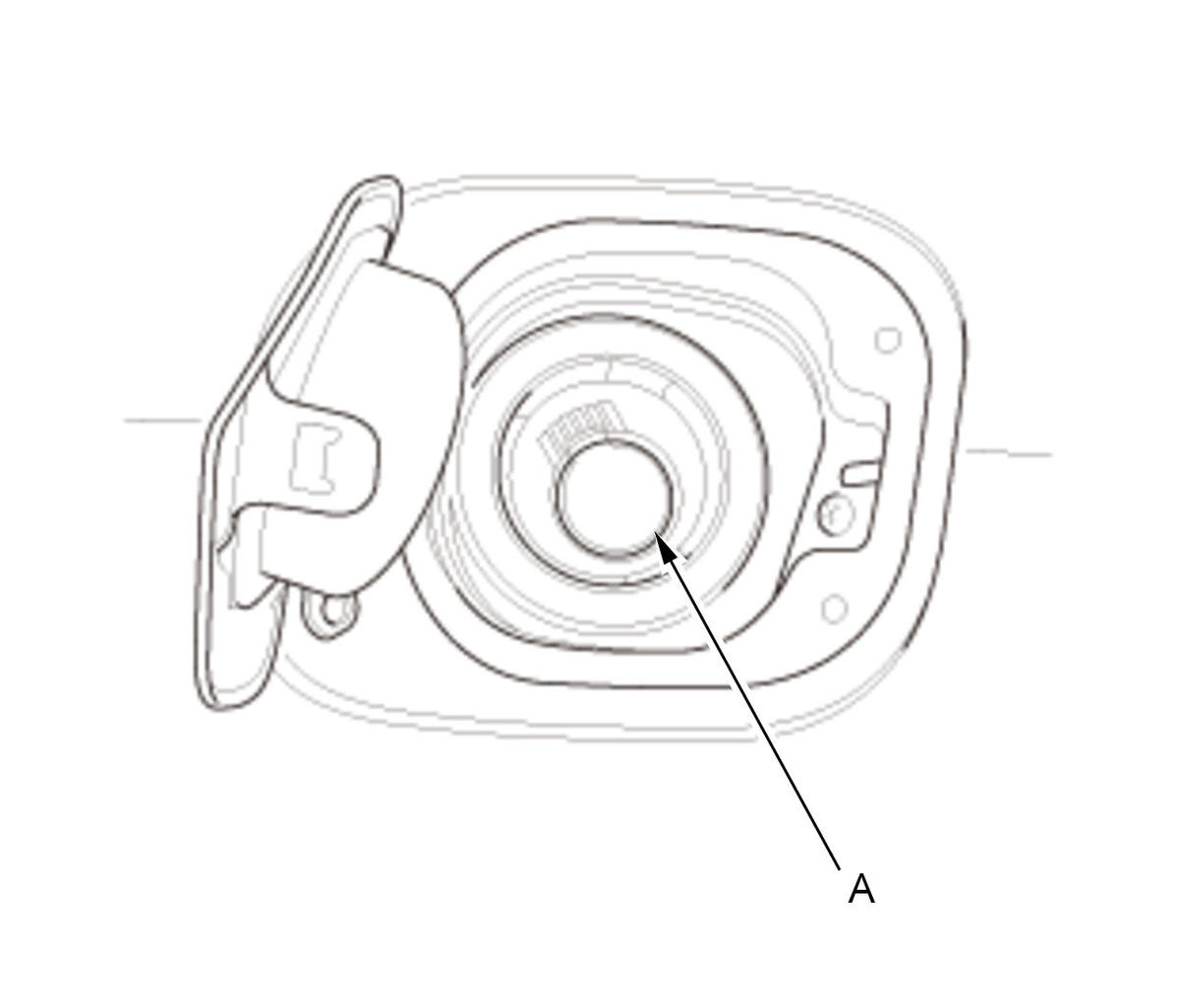

    -2. Check the flap of the primary shut-off valve (A).

    GHH344853Courtesy of HONDA, U.S.A., INC.

    Is the flap closed?

    YES

    Go to step 2.

    NO

    Replace the fuel fill pipe (primary shut-off valve) , then do the repair verification.

  2. Primary shut-off valve seal check

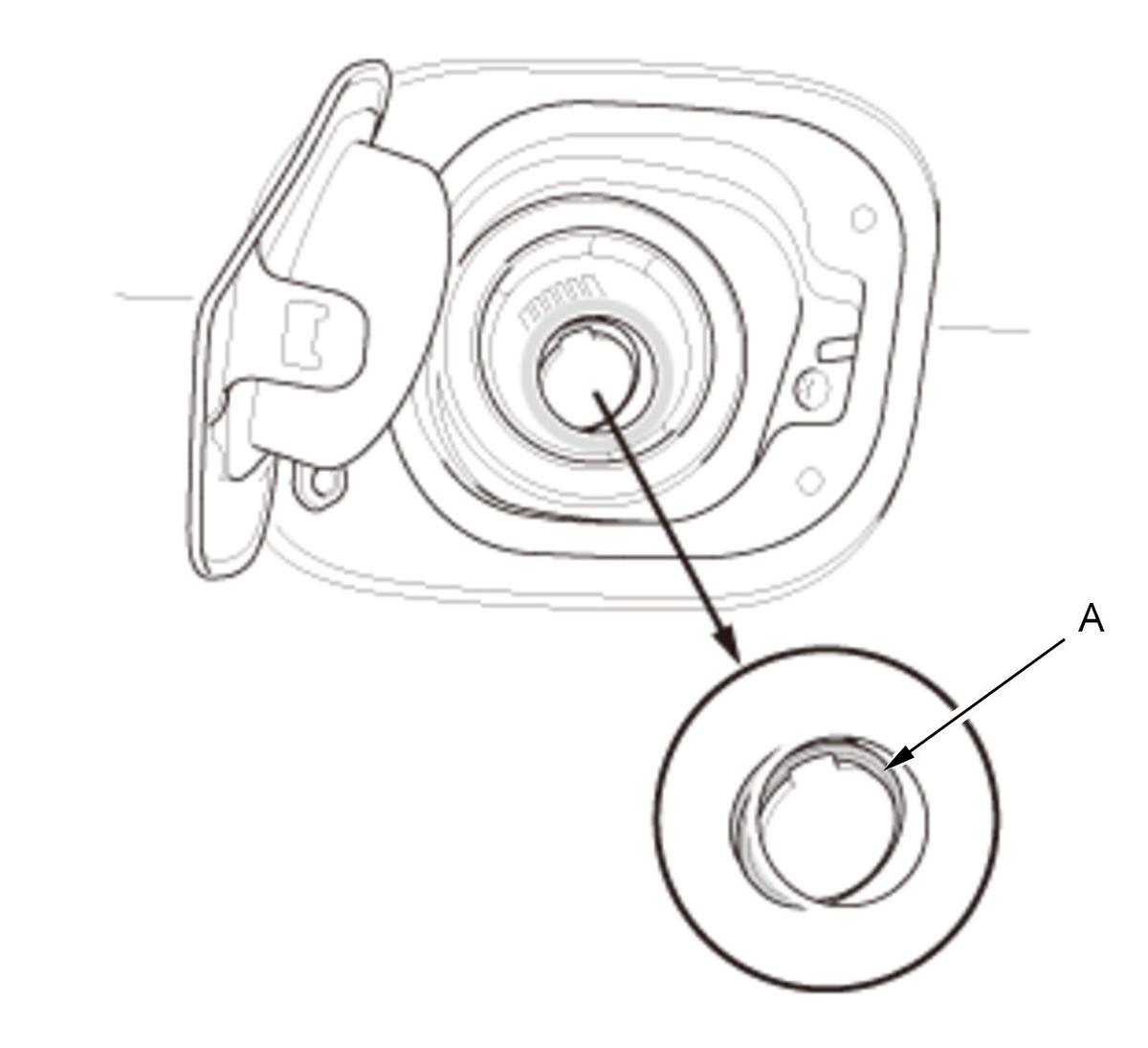

    -1. Check the flap seal of the primary shut-off valve (A) and the mating surface on the primary shut-off valve.

    GHH344854Courtesy of HONDA, U.S.A., INC.

    Is the flap seal missing or damaged, is the primary shut-off valve mating surface damaged?

    YES

    Replace the fuel fill pipe (primary shut-off valve) , then do the repair verification.

    NO

    Go to step 3.

  3. EVAP canister vent hose check

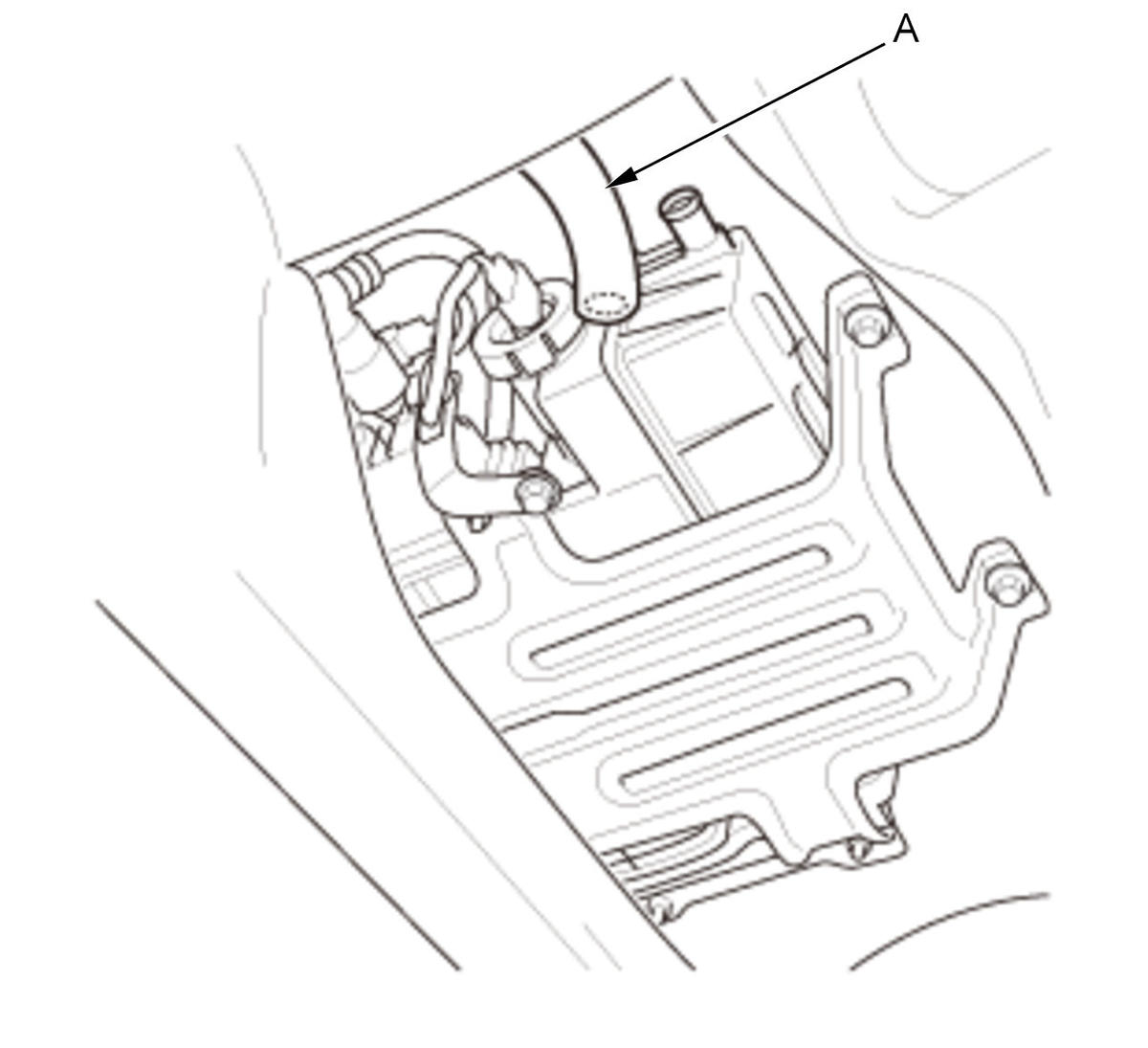

    -1. Check the EVAP canister vent hose (A) for a blockage or a restriction.

    GHH344855Courtesy of HONDA, U.S.A., INC.

    Is there a blockage or a restriction in the hose?

    YES

    Remove a blockage or a restriction, if needed, replace the EVAP canister vent hose, then do the repair verification.

    NO

    Go to step 4.

  4. Fuel tank vapor recirculation tube visual check

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Check for a poor connection or damage at the fuel tank vapor recirculation tube.

    Is the tube OK?

    YES

    The tube is OK. Go to step 5.

    NO

    Replace the fuel tank vapor recirculation tube, or replace the fuel tank if needed, then do the repair verification.

  5. EVAP canister purge valve leak check

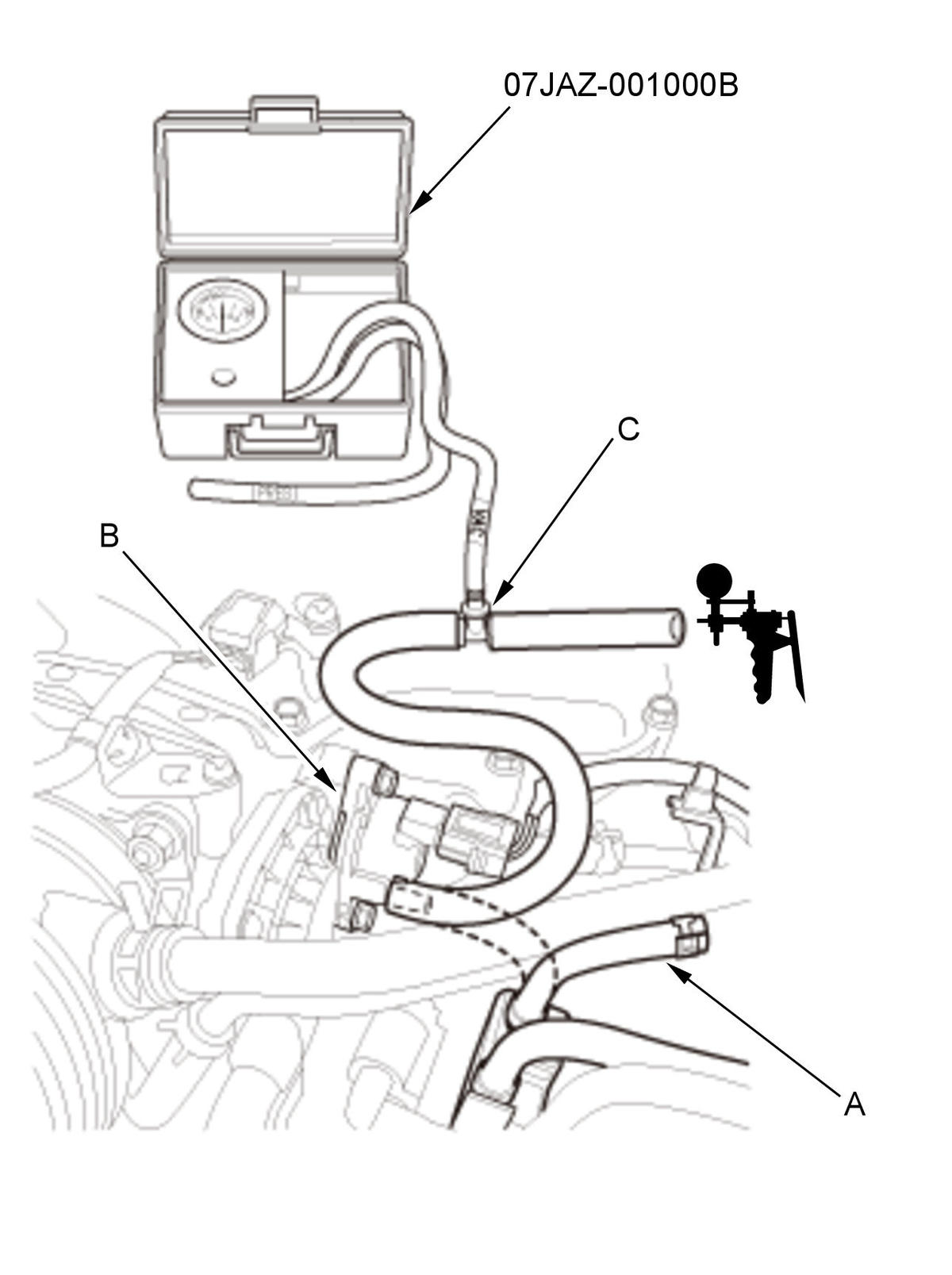

    -1. Disconnect the vacuum hose (purge line) (A) from the EVAP canister purge valve (B) in the engine compartment, then connect a T-fitting (C), a vacuum gauge, and a vacuum pump/gauge, 0-30 inHg, to the vacuum hose as shown.

    GHH344856Courtesy of HONDA, U.S.A., INC.

    -2. Slowly apply about 2 kPa (0.6 inHg, 15 mmHg) of vacuum to the hose.

    Does it hold vacuum for 1 minute?

    YES

    Leak not detected at the EVAP canister purge valve. Go to step 6.

    NO

    Replace the EVAP canister purge valve , then do the repair verification.

  6. Problem verification

    -1. Turn the vehicle to the ON mode.

    -2. Clear the DTC with the HDS.

    -3. Select the EVAP TEST in the INSPECTION MENU, then select the FUNCTION TEST with the HDS.

    FUNCTION TEST

    Is the result OK?

    YES

    Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the FTP sensor, the EVAP canister purge valve, the EVAP canister vent shut valve, and the PCM. If the vehicle returns with the same DTC, continue with step 7.

    NO

    The failure is duplicated. Go to step 7.

  7. Determine possible failure area (EVAP canister vent shut valve, others)

    -1. Turn the vehicle to the OFF (LOCK) mode.

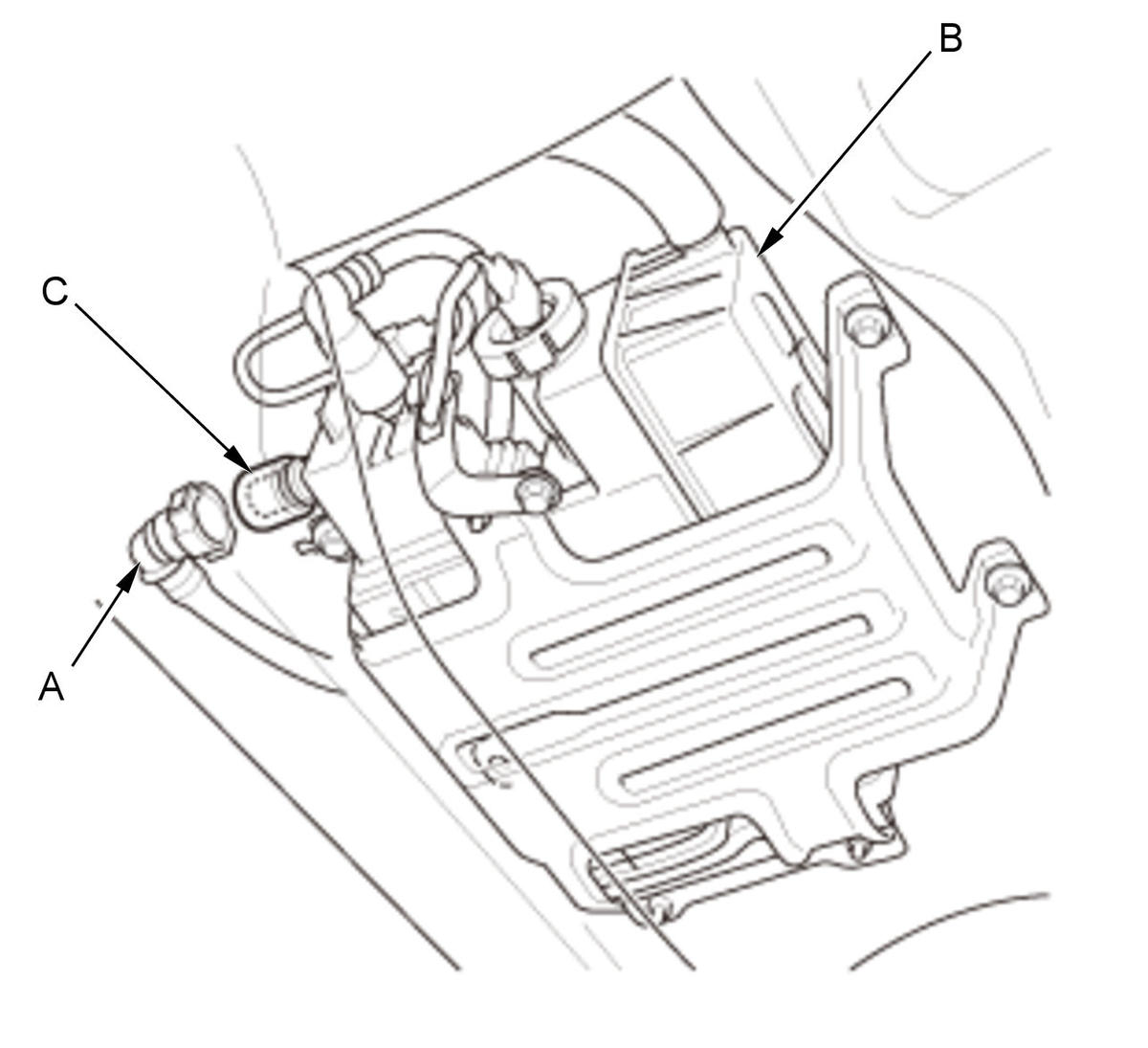

    -2. Disconnect the fuel tank vapor recirculation tube (A) from the EVAP canister (B), and plug the EVAP canister port (C).

    GHH344857Courtesy of HONDA, U.S.A., INC.

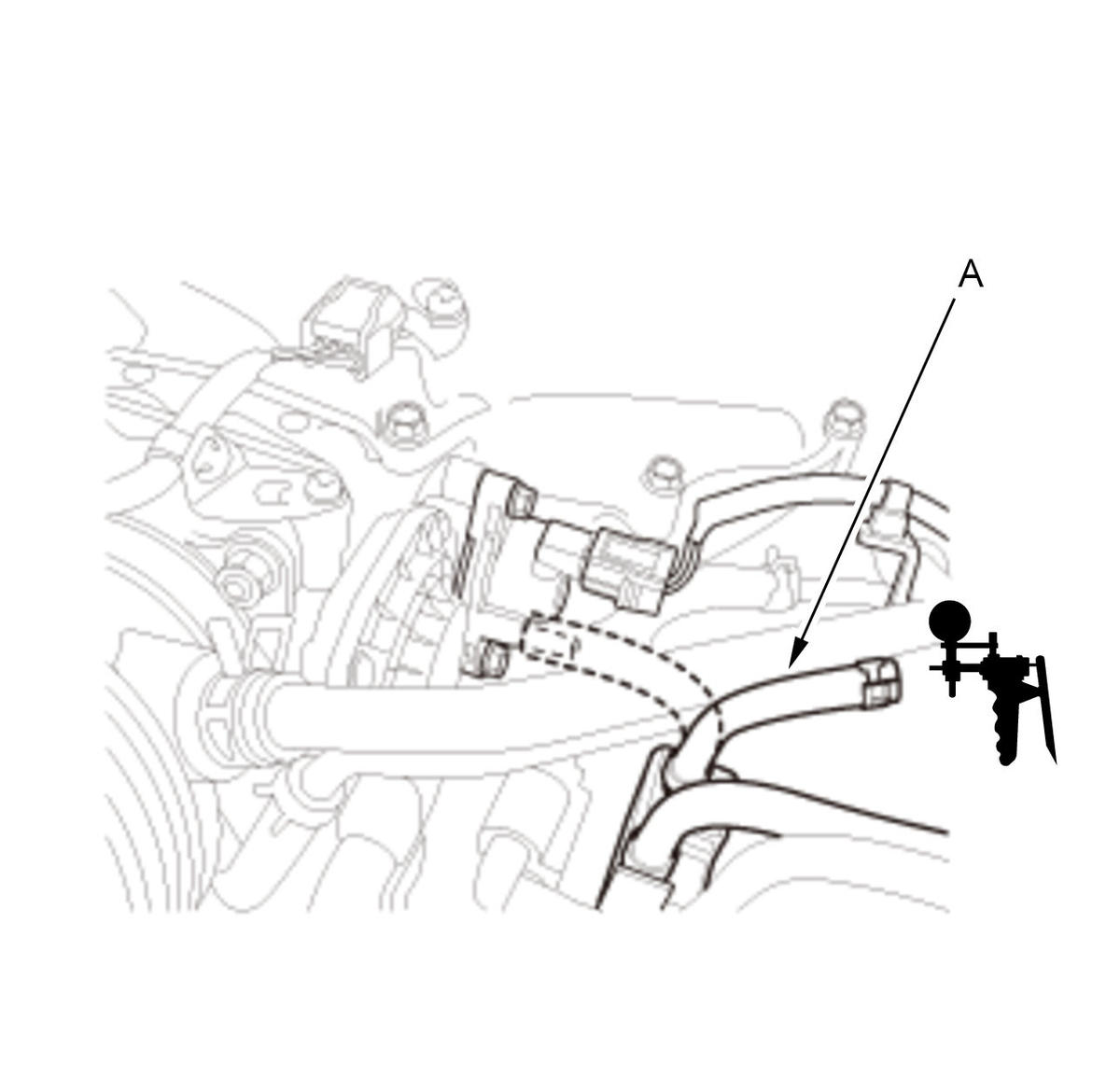

    -3. Remove the T-fitting and vacuum pump/gauge, and connect the vacuum pump/gauge to the vacuum hose (A) as shown.

    GHH344858Courtesy of HONDA, U.S.A., INC.

    -4. Turn the vehicle to the ON mode.

    -5. Select the EVAP TEST in the INSPECTION MENU, then select EVAP CVS ON in the SINGLE SOLENOID with the HDS.

    SINGLE SOLENOID

    Apply vacuum to the hose until the FTP reads 1.90 V (-0.59 inHg, -15.1 mmHg).

    NOTE: Be careful not to exceed the vacuum. If you do, the FTP sensor can be damaged.
    Signal Current conditions
    Values Unit
    FTP SENSOR

    -7. Check the parameter(s) below with the HDS for 1 minute.

    Signal Current conditions
    Values Unit
    FTP SENSOR

    Does the voltage increase more than 0.2 V (0.1 inHg, 2.5 mmHg)?

    YES

    Go to step 8.

    NO

    Go to step 10.

  8. EVAP canister vent shut valve operation check

    -1. Select the EVAP TEST in the INSPECTION MENU, then select EVAP CVS OFF in the SINGLE SOLENOID with the HDS.

    SINGLE SOLENOID

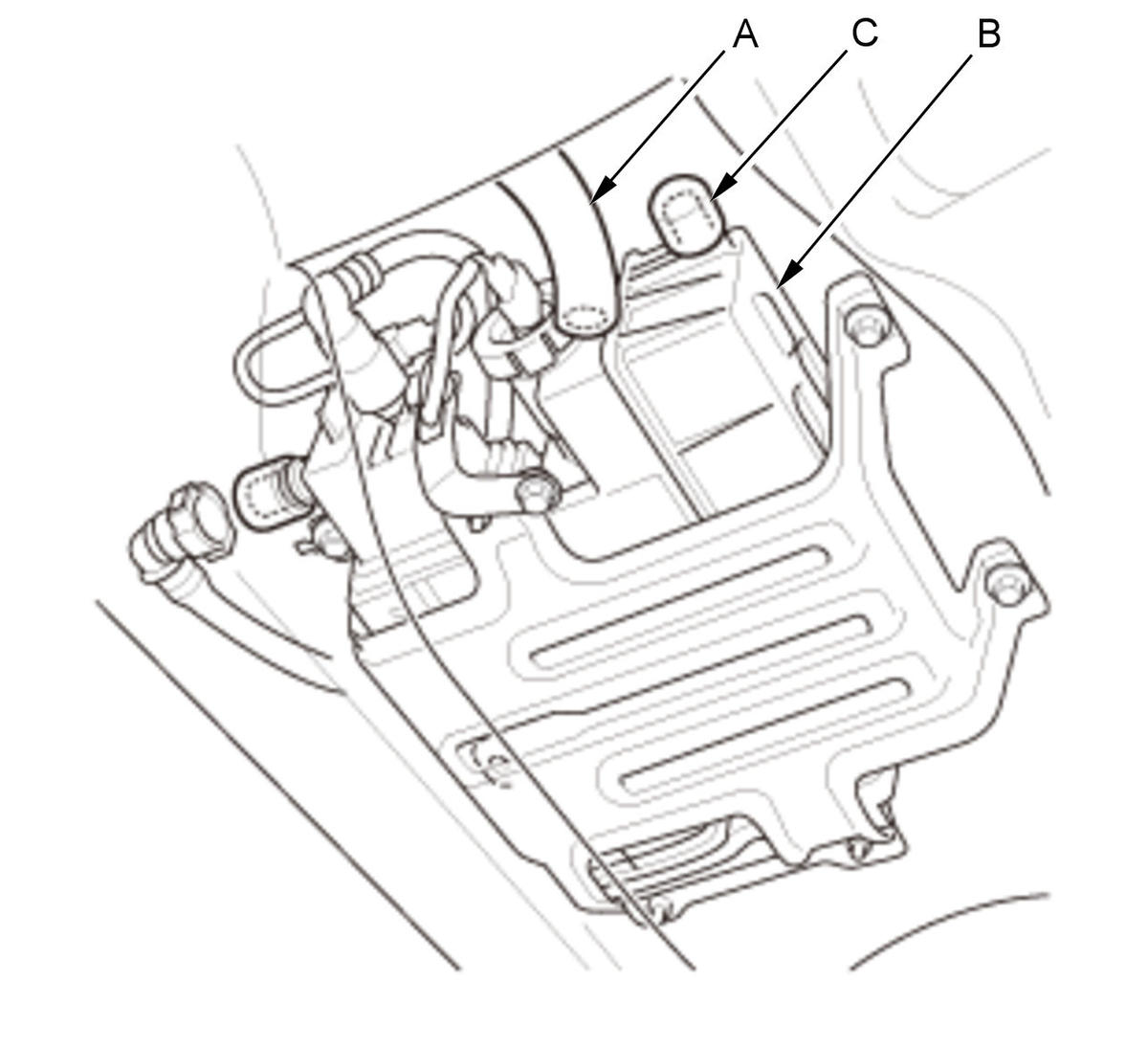

    Disconnect the fresh air hose (A) from the EVAP canister (B), and plug the EVAP canister vent shut valve port (C).

    GHH344859Courtesy of HONDA, U.S.A., INC.

    -3. Apply vacuum to the hose until the FTP reads 1.90 V (-0.59 inHg, -15.1 mmHg).

    NOTE: Be careful not to exceed the vacuum. If you do, the FTP sensor can be damaged.
    Signal Current conditions
    Values Unit
    FTP SENSOR

    -4. Check the parameter(s) below with the HDS for 1 minute.

    Signal Current conditions
    Values Unit
    FTP SENSOR

    Does the voltage increase more than 0.2 V (0.1 inHg, 2.5 mmHg)?

    YES

    The EVAP canister vent shut valve is OK. Go to step 9.

    NO

    Replace the EVAP canister vent shut valve , then do the repair verification.

  9. EVAP canister purge line visual check

    -1. Check for a poor connection or damaged EVAP canister purge line between the EVAP canister and the EVAP canister purge valve. Also check for damage to the EVAP canister.

    Are the line and the EVAP canister OK?

    1. YES

      Replace these parts, then do the repair verification.

      • FTP sensor O-ring
      • EVAP canister vent shut valve case and O-ring
      • EVAP canister

      NO

      Replace or repair the EVAP canister purge line or the canister, then do the repair verification.

  10. Fuel fill pipe and fuel vapor return pipe visual check

    -1. Select EVAP CVS OFF in the SINGLE SOLENOID with the HDS.

    SINGLE SOLENOID

    Check for a poor connection or damage to the fuel fill pipe and the fuel vapor return pipe.

    Are the parts OK?

    YES

    The fuel fill pipe and the fuel vapor return pipe are OK. Check the fuel tank unit base gasket and the fuel tank, then do the repair verification.

    NO

    Repair or replace the damaged parts, then do the repair verification.

  11. Repair verification

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Install the parts in the reverse order of removal.

    -3. Turn the vehicle to the ON mode.

    -4. Reset the PCM with the HDS .

    Reset PCM

    -5. Do the PCM idle learn procedure .

    -6. Select the EVAP TEST in the INSPECTION MENU, then select the FUNCTION TEST with the HDS.

    FUNCTION TEST

    Is the result OK?

    YES

    Troubleshooting is complete.

    NO

    Check for poor connections or loose terminals at the FTP sensor, the EVAP canister purge valve, the EVAP canister vent shut valve, and the PCM, then go to step 1.
