DTC P0332

DTC P0332  : Knock Sensor 2 (Bank 2) Circuit Low Voltage

DTC (PGM-FI)

1. Problem verification

   -1. Turn the vehicle to the ON mode.

   -2. Clear the DTC with the HDS.

   -3. Turn the vehicle to the OFF (LOCK) mode.

   -4. Turn the vehicle to the ON mode.

   -5. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC	Freeze Frame
   P0332 Knock Sensor 2 (Bank 2) Circuit Low Voltage

   Is DTC P0332 indicated?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the knock sensor 2 (Bank 2) and the PCM.

2. Determine possible failure area (knock sensor 2 (Bank 2), others)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Knock sensor 2 (Bank 2) 2P connector

   -3. Turn the vehicle to the ON mode.

   -4. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC	Freeze Frame
   P0333 Knock Sensor 2 (Bank 2) Circuit Low Voltage

   Is DTC P0333 indicated?

   YES

   Replace knock sensor 2 (Bank 2) , then do the repair verification.

   NO

   Go to step 3.

3. Shorted wire check (KSB2/KS B2 line, KSSGB2 line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Jump the SCS line with the HDS.

   -3. Disconnect the following connector.

   PCM connector C (51P)

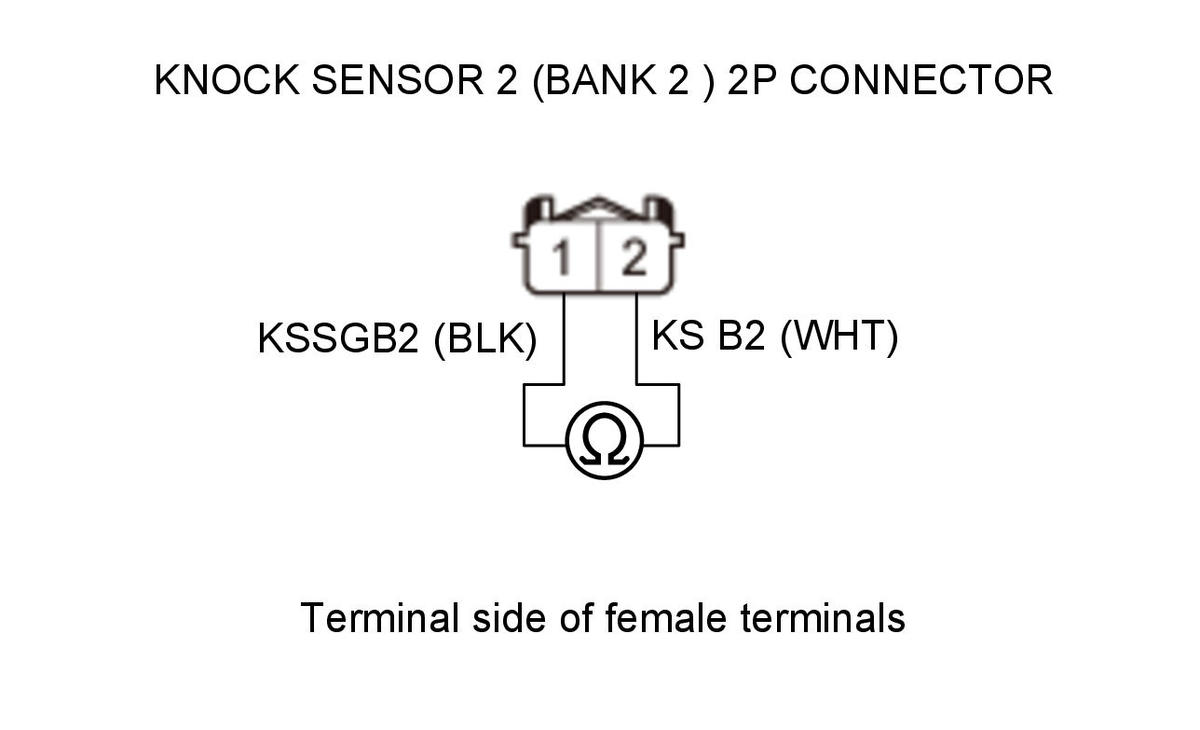

   -4. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	PCM connector C (51P) disconnected
   	Knock sensor 2 (Bank 2) 2P connector: disconnected
   Test circuit	KS B2, KSSGB2
   Test point 1	Knock sensor 2 (Bank 2) 2P connector No. 1 (BLK)
   Test point 2	Knock sensor 2 (Bank 2) 2P connector No. 2 (WHT)

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair a short between the KSB2/KS B2 and the KSSGB2 wires, then do the repair verification.

   NO

   Go to step 4.

4. Shorted wire check (KSB2/KS B2 line)

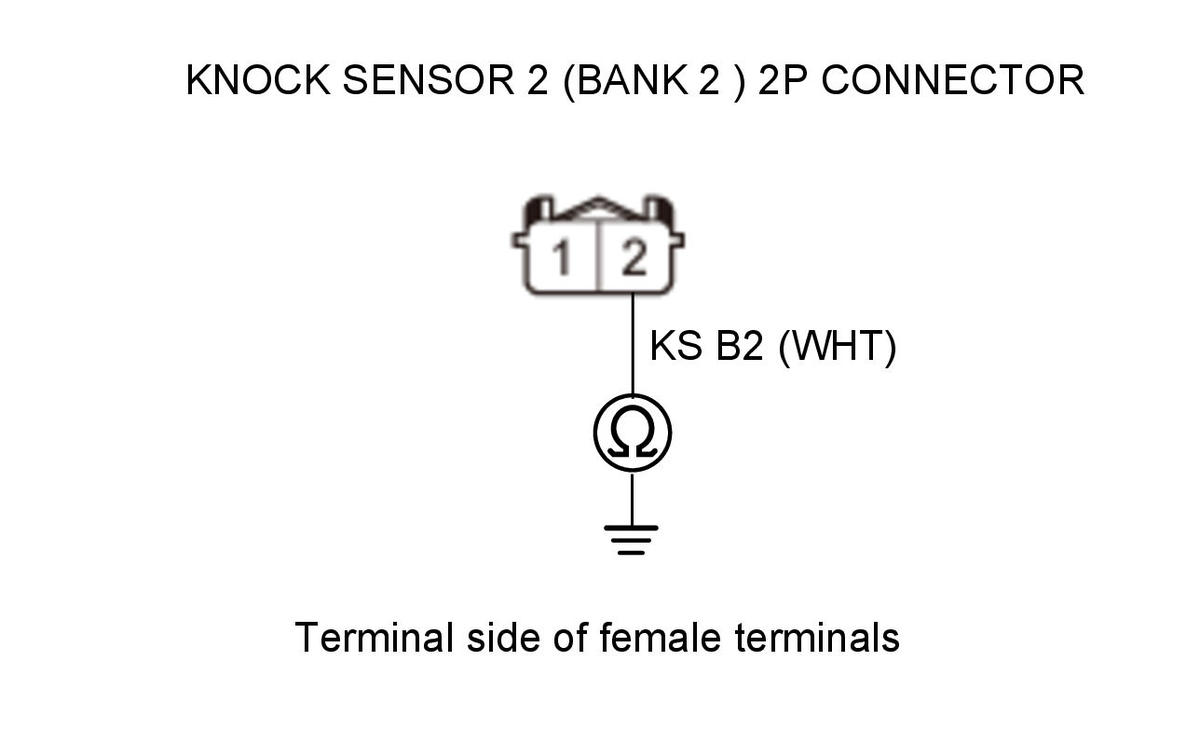

   -1. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	PCM connector C (51P) disconnected
   	Knock sensor 2 (Bank 2) 2P connector: disconnected
   Test circuit	KS B2
   Test point 1	Knock sensor 2 (Bank 2) 2P connector No. 2 (WHT)
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair a short in the KSB2/KS B2 wire between the PCM (C43) and knock sensor 2 (Bank 2), then do the repair verification.

   NO

   The KSB2/KS B2 wire is OK. Update the PCM if it does not have the latest software, or substitute a known-good PCM , then do the repair verification.

5. Repair verification

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Reconnect all connectors.

   -3. Exit the SCS mode with the HDS.

   -4. Turn the vehicle to the ON mode.

   -5. Reset the PCM with the HDS .

   Reset PCM

   -6. Do the PCM idle learn procedure.

   -7. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC	Freeze Frame
   P0332 Knock Sensor 2 (Bank 2) Circuit Low Voltage

   DTC (PGM-FI)

   Is DTC P0332 indicated?

   YES

   Check for poor connections or loose terminals at knock sensor 2 (Bank 2) and the PCM. If the PCM was updated, substitute a known-good PCM , then recheck. If the PCM was substituted, go to step 1.

   NO

   Troubleshooting is complete. If the PCM was substituted, replace the original PCM . If any other Pending or Confirmed DTCs are indicated, go to the indicated DTC's troubleshooting.
