DTC P0202

DTC P0202  : No. 2 Cylinder Injector Circuit Malfunction

DTC (PGM-FI)

1. Problem verification

   -1. Turn the vehicle to the ON mode.

   -2. Clear the DTC with the HDS.

   -3. Start the engine.

   NOTE: If the engine does not start, keep cranking for 10 seconds.

   -4. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC	Freeze Frame
   P0202 No. 2 Cylinder Injector Circuit Malfunction

   Is DTC P0202 indicated?

   YES

   Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the injector relay, the injector control module, the injector, and the PCM.

2. Engine starting check

   -1. Check the result in step 1

   Did the engine start?

   YES

   Go to step 11.

   NO

   Go to step 3.

3. Relay check

   -1. Turn the vehicle to the OFF (LOCK) mode.

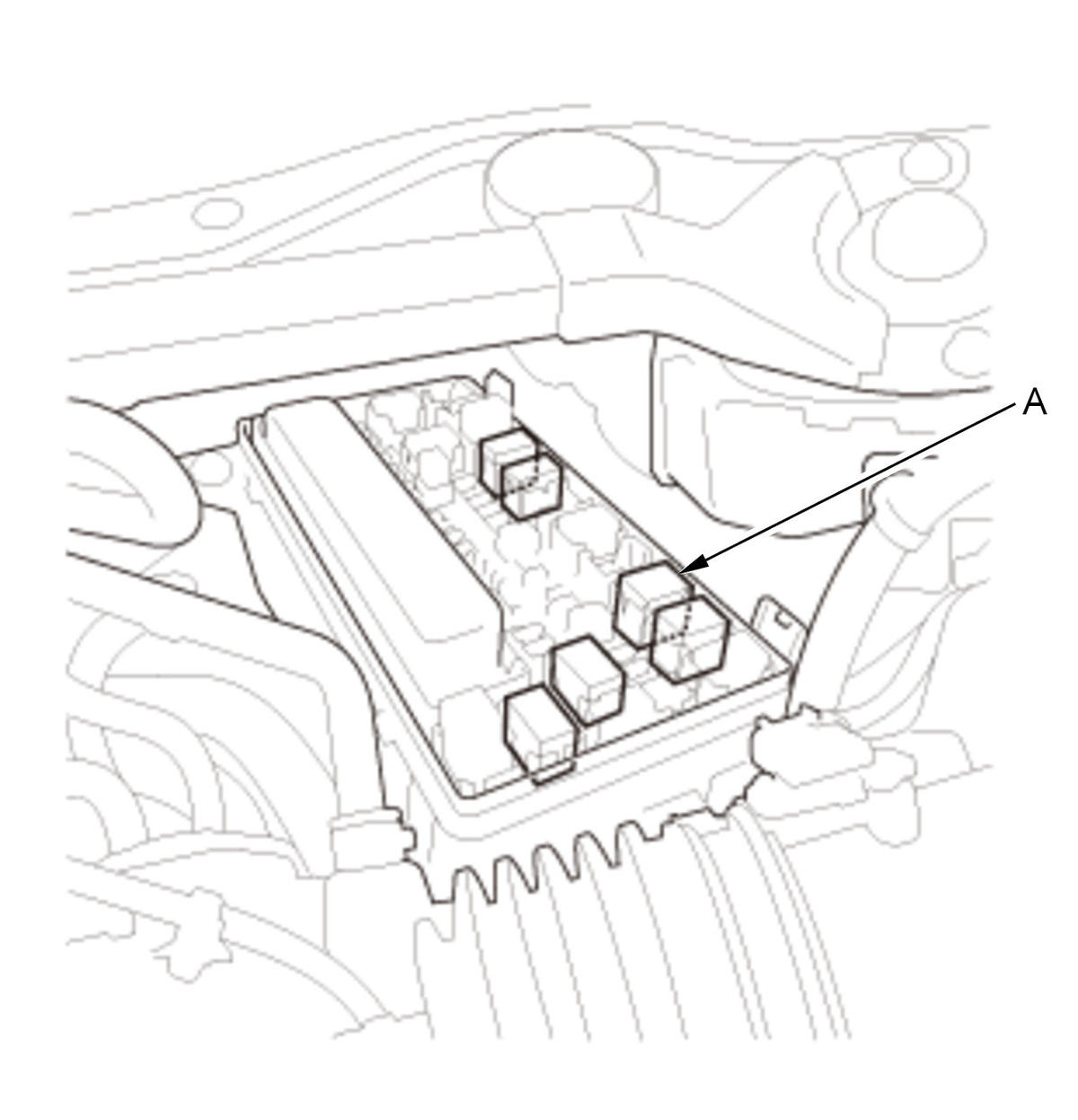

   -2. Remove the injector relay (A) from the under-hood fuse/relay box.

   Courtesy of HONDA, U.S.A., INC.

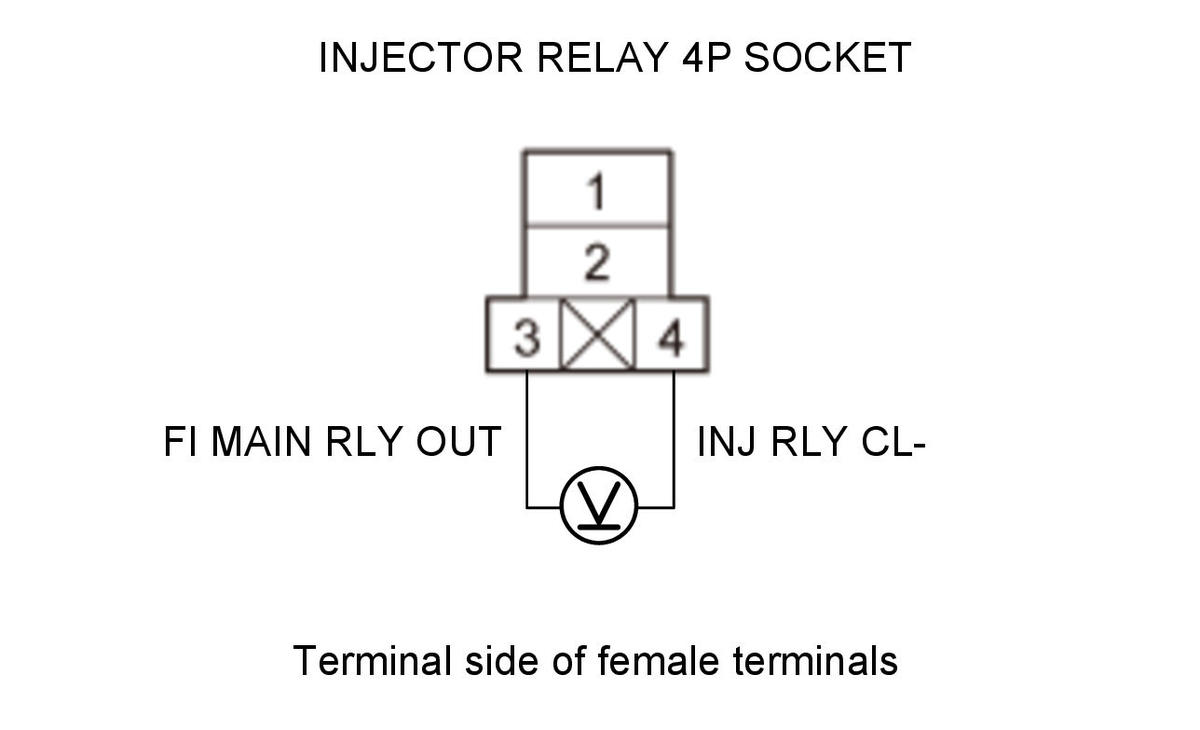

   -3. Test the injector relay .

   Is the relay OK?

   YES

   Go to step 4.

   NO

   Replace the injector relay.

4. Open wire check (FI MAIN RLY OUT line)

   -1. Turn the vehicle to the ON mode.

   -2. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	Injector relay: disconnected

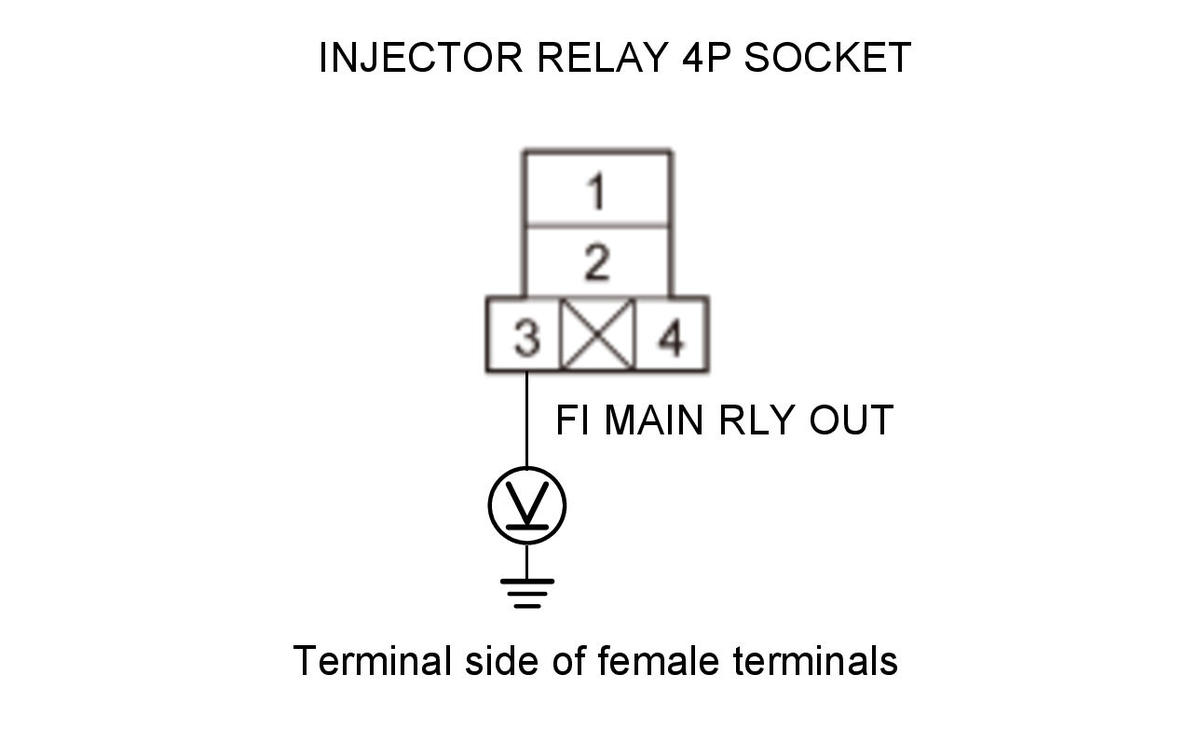

   Test circuit	FI MAIN RLY OUT
   Test point 1	Injector relay 4P socket No. 3
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   Go to step 5.

   NO

   Repair an open in the FI MAIN RLY OUT wire between PGM-FI main relay 1 and the injector relay.

5. Open wire check (+B INJ line)

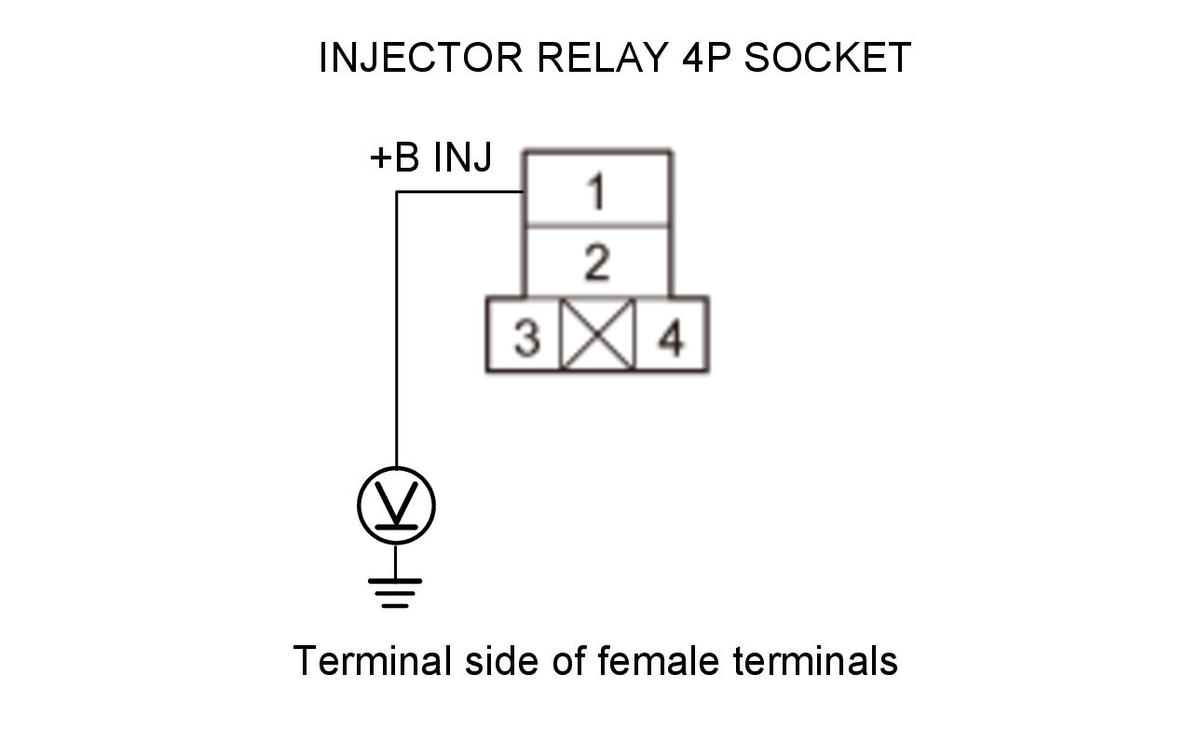

   -1. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	Injector relay: disconnected
   Test circuit	+B INJ
   Test point 1	Injector relay 4P socket No. 1
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   Go to step 7.

   NO

   Go to step 6.

6. Fuse check

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Check the following fuse.

   Fuse	No. B7 (20 A)
   Location	Main under-hood fuse box

   Is the fuse OK?

   YES

   Repair an open in the +B INJ wire between the No. B7 (20 A) fuse and the injector relay.

   NO

   Repair a short in the +B INJ wire between the No. B7 (20 A) fuse and the injector relay. Also replace the No. B7 (20 A) fuse.

7. Determine possible failure area (INJ RLY CL- line, others)

   -1. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	Injector relay: disconnected
   Test circuit	FI MAIN RLY OUT, INJ RLY CL-
   Test point 1	Injector relay 4P socket No. 3
   Test point 2	Injector relay 4P socket No. 4

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   Go to step 9.

   NO

   Go to step 8.

8. Open wire check (INJ RLY CL- line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Jump the SCS line with the HDS.

   -3. Disconnect the following connector.

   PCM connector A (51P)

   -4. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Injector relay: disconnected
   	PCM connector A (51P): disconnected

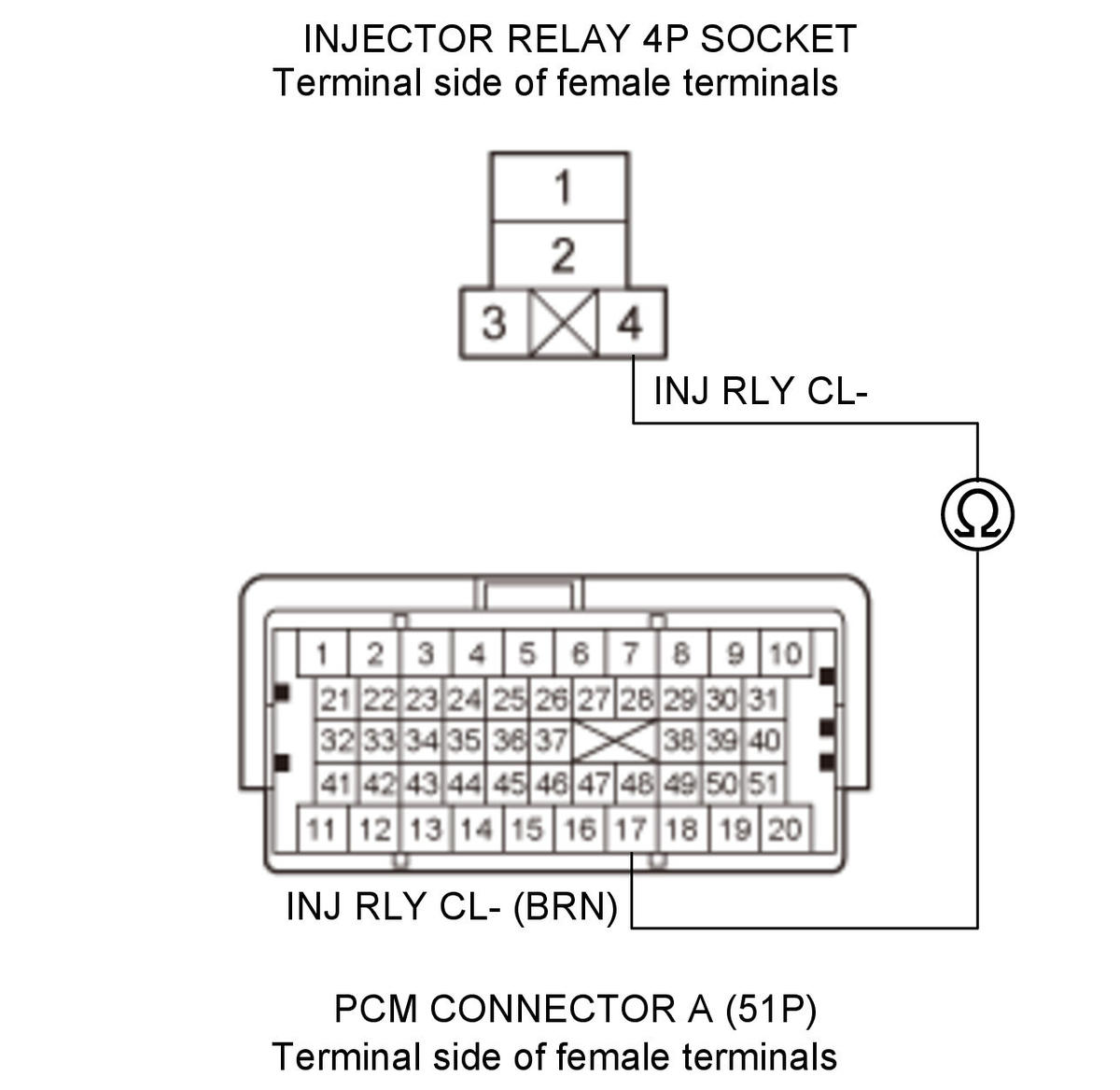

   Test circuit	INJ RLY CL-
   Test point 1	Injector relay 4P socket No. 4
   Test point 2	PCM connector A (51P) No. 17 (BRN)

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The INJ RLY CL- wire is OK. Check for poor connections or loose terminals at the injector relay, the injector control module, the injector, and the PCM. Update the PCM if it does not have the latest software, or substitute a known-good PCM , then recheck. If DTC P0202 goes away and the PCM was updated, troubleshooting is complete. If DTC P0202 goes away and the PCM was substituted, replace the original PCM .

   NO

   Repair an open in the INJ RLY CL- wire between the PCM (A17) and the injector relay.

9. Open wire check (INJ RLY OUT/IG(EDU)1 line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Injector control module connector D (4P)

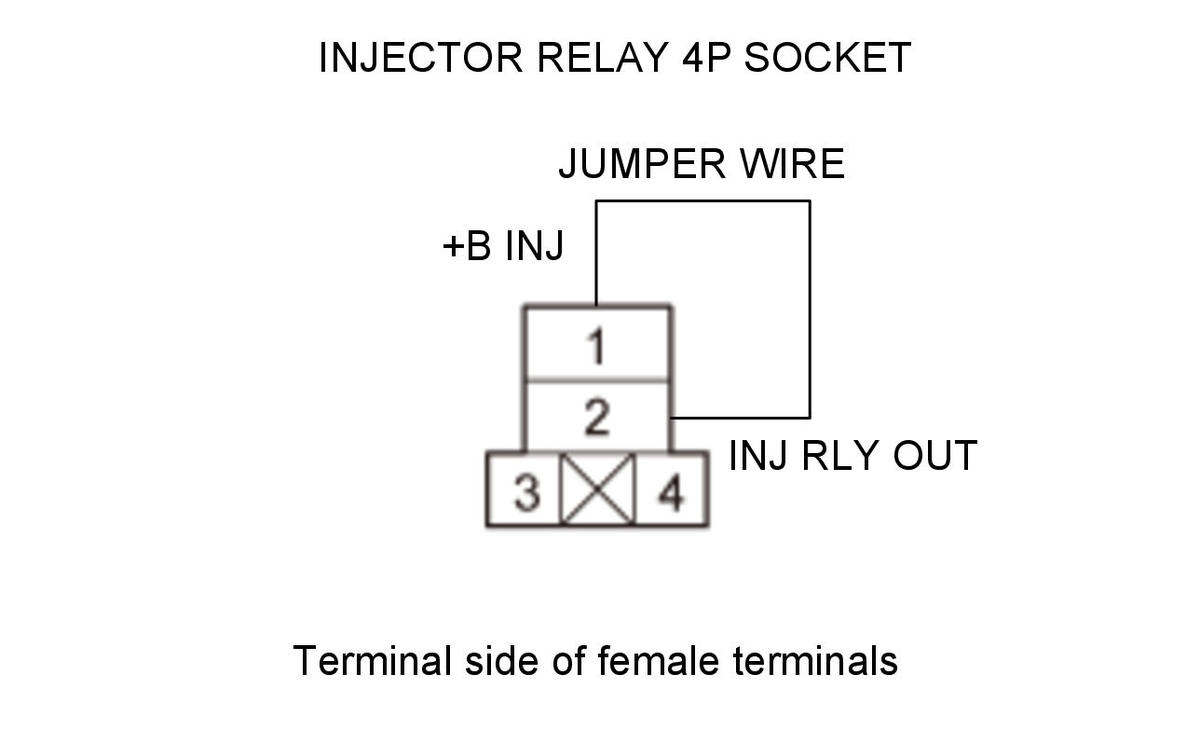

   -3. Connect terminals A and B with a jumper wire.

   Terminal A	Injector relay 4P socket No. 1
   Terminal B	Injector relay 4P socket No. 2

   Courtesy of HONDA, U.S.A., INC.

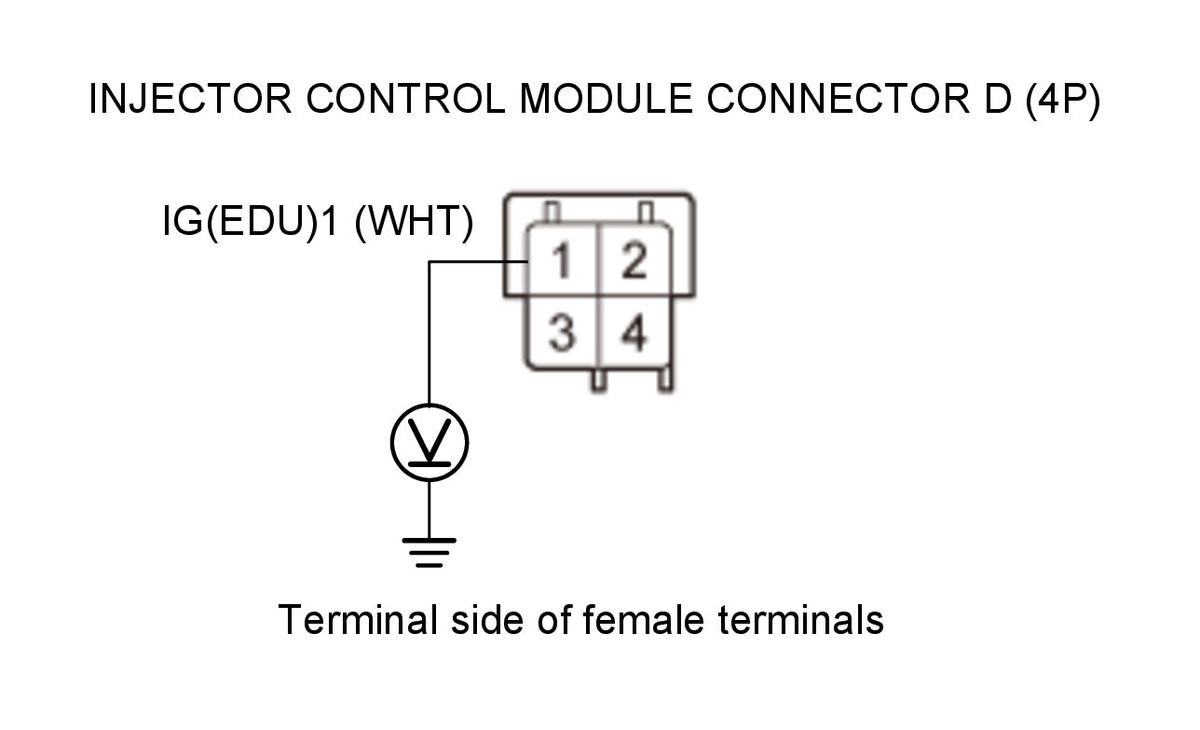

   -4. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Injector relay: disconnected
   	Injector control module connector D (4P): disconnected
   	Injector relay 4P socket No. 1 and No. 2: jumped
   Test circuit	IG(EDU)1
   Test point 1	Injector control module connector D (4P) No. 1 (WHT)
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there any voltage?

   YES

   Go to step 10.

   NO

   Repair an open in the INJ RLY OUT/IG(EDU)1 wire between the injector relay and the injector control module.

10. Open wire check (INJ RLY OUT/IG(EDU)2 line)

    -1. Measure the voltage between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	Injector relay: disconnected
    	Injector control module connector D (4P): disconnected
    	Injector relay 4P socket No. 1 and No. 2: jumped

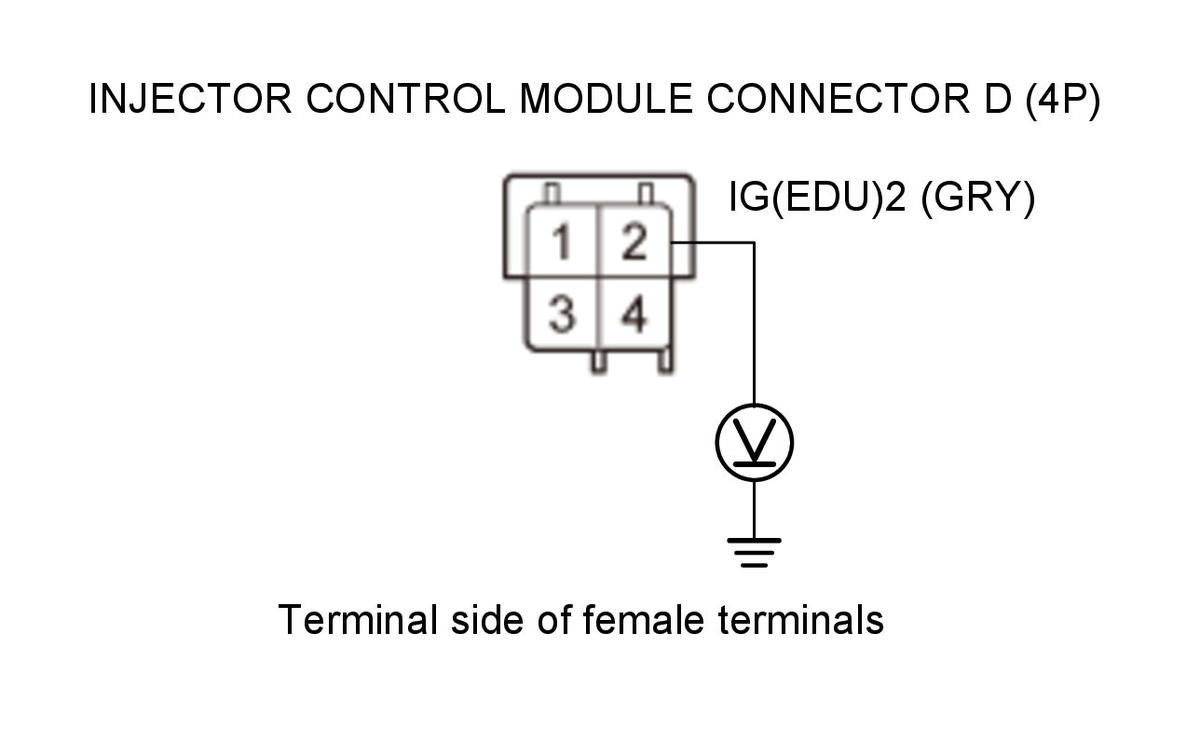

    Test circuit	IG(EDU)2
    Test point 1	Injector control module connector D (4P) No. 2 (GRY)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there any voltage?

    YES

    Go to step 11.

    NO

    Repair an open in the INJ RLY OUT/IG(EDU)2 wire between the injector relay and the injector control module.

11. Open wire check (INJ Ti 2 line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. If needed, remove the jumper wire from the injector relay 4P socket, then reinstall the injector relay.

    -3. If needed, reconnect the following connector.

    Injector control module connector D (4P)

    -4. Jump the SCS line with the HDS.

    -5. Disconnect the following connectors.

    Injector control module connector C (12P)

    PCM connector B (51P)

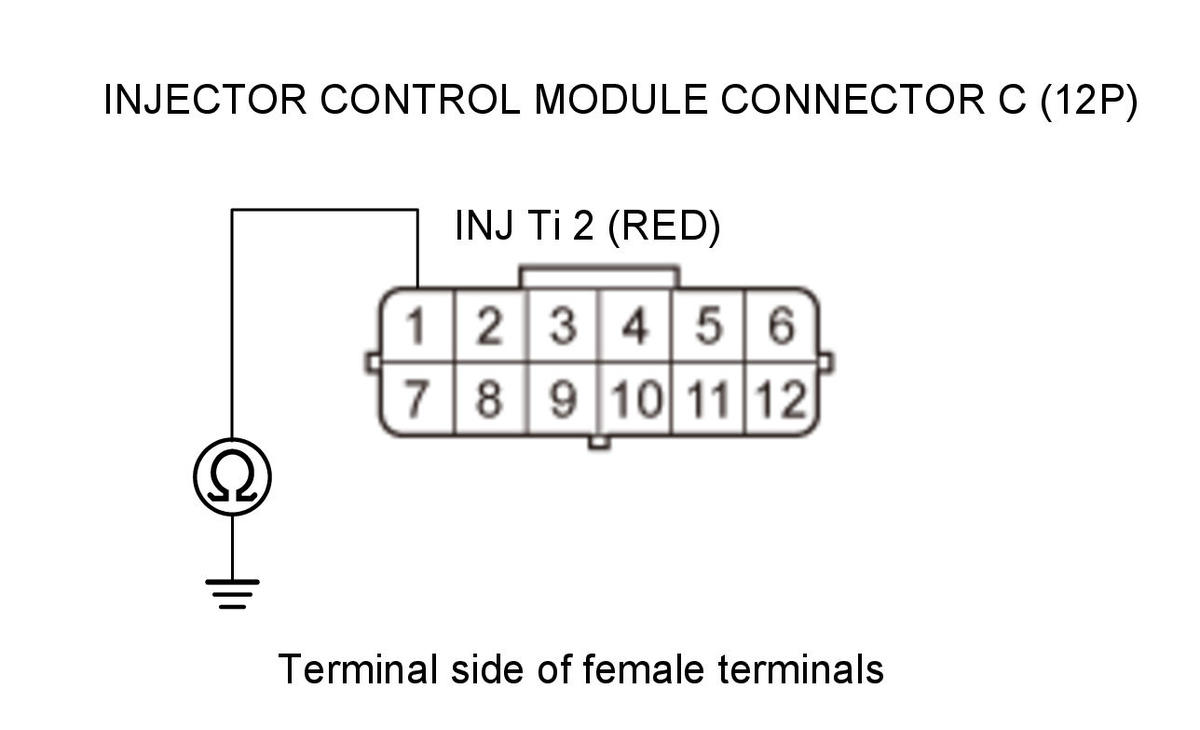

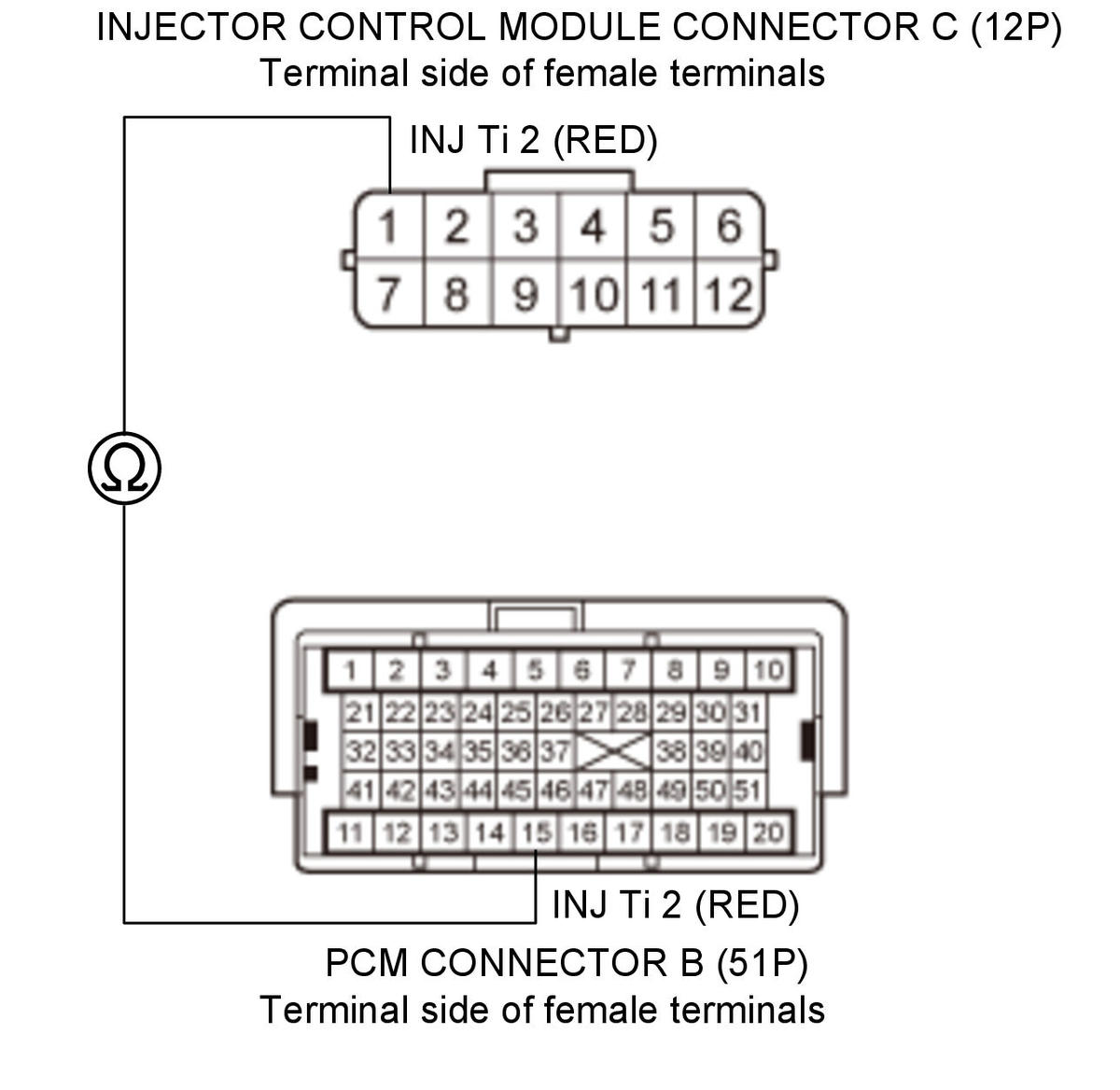

    -6. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	Injector control module connector C (12P): disconnected
    	PCM connector B (51P): disconnected
    Test circuit	INJ Ti 2
    Test point 1	Injector control module connector C (12P) No. 1 (RED)

    Test point 2

    PCM connector B (51P) No. 15 (RED)

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Go to step 12.

    NO

    Repair an open in the INJ Ti 2 wire between the PCM (B15) and the injector control module.

12. Open wire check (IJF3 line)

    -1. Disconnect the following connector.

    PCM connector C (51P)

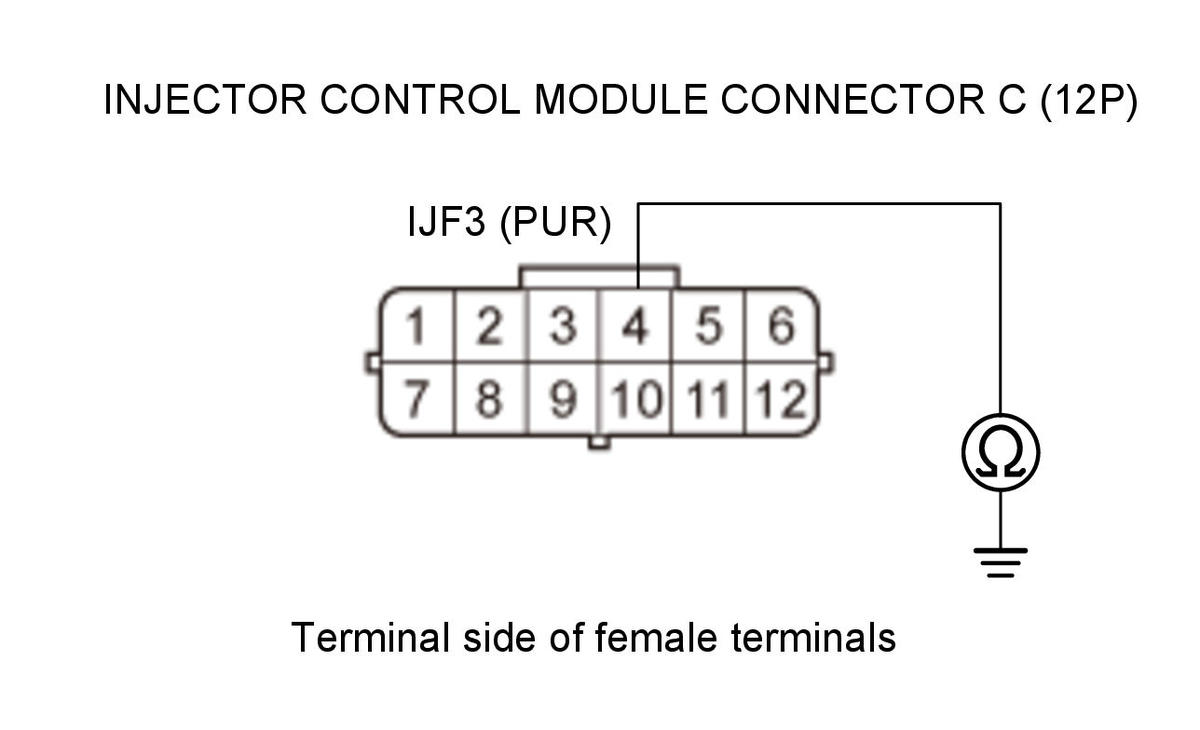

    -2. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	Injector control module connector C (12P): disconnected
    	PCM connector B (51P): disconnected
    	PCM connector C (51P): disconnected

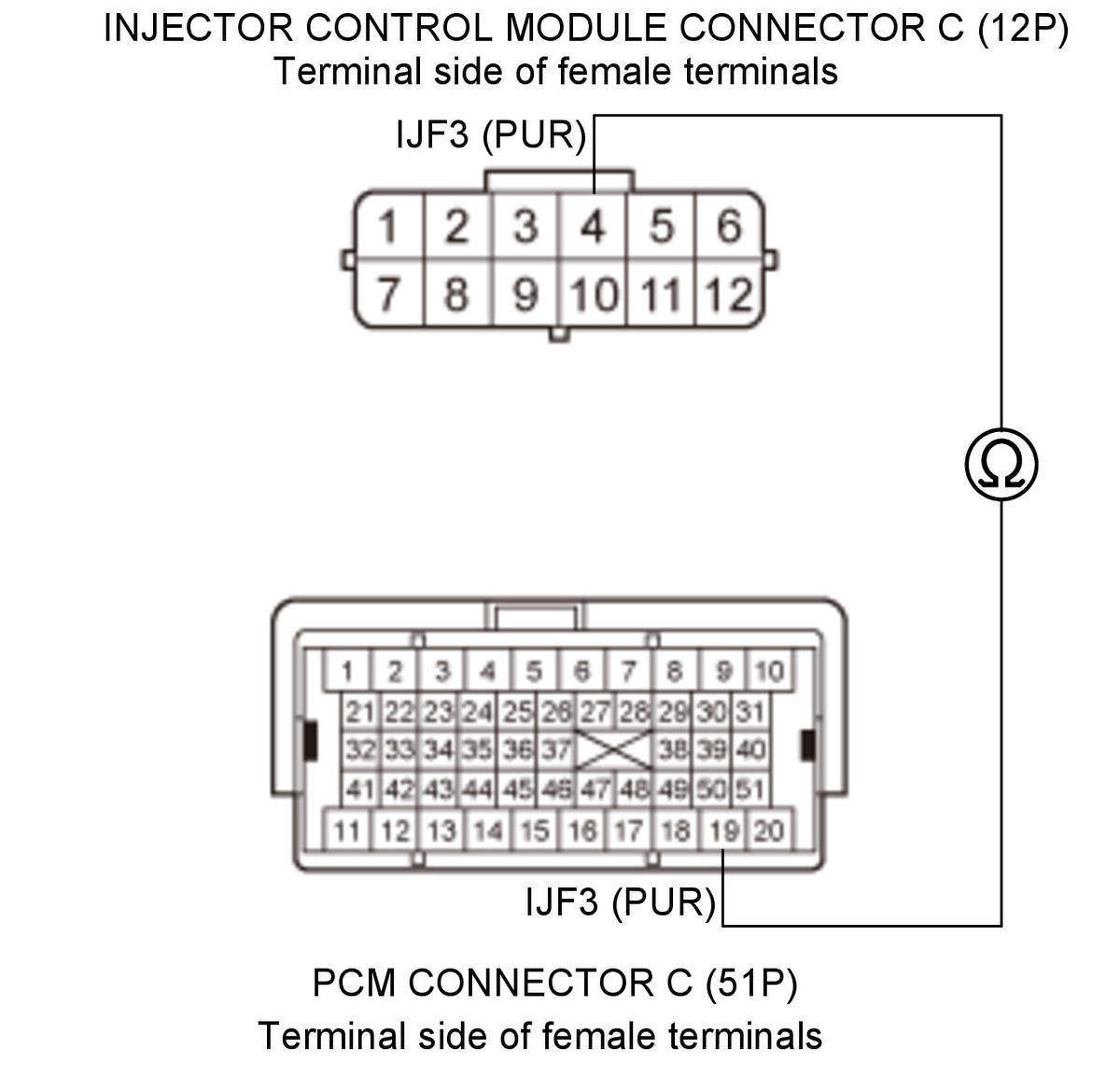

    Test circuit	IJF3
    Test point 1	Injector control module connector C (12P) No. 4 (PUR)
    Test point 2	PCM connector C (51P) No. 19 (PUR)

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Go to step 13.

    NO

    Repair an open in the IJF3 wire between the PCM (C19) and the injector control module.

13. Determine possible failure area (open in INJ HS2 line or INJ LS2 line, others)

    -1. Disconnect the following connector.

    Injector control module connector A (6P)

    -2. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	Injector control module connector C (12P): disconnected
    	PCM connector B (51P): disconnected
    	PCM connector C (51P): disconnected
    	Injector control module connector A (6P): disconnected

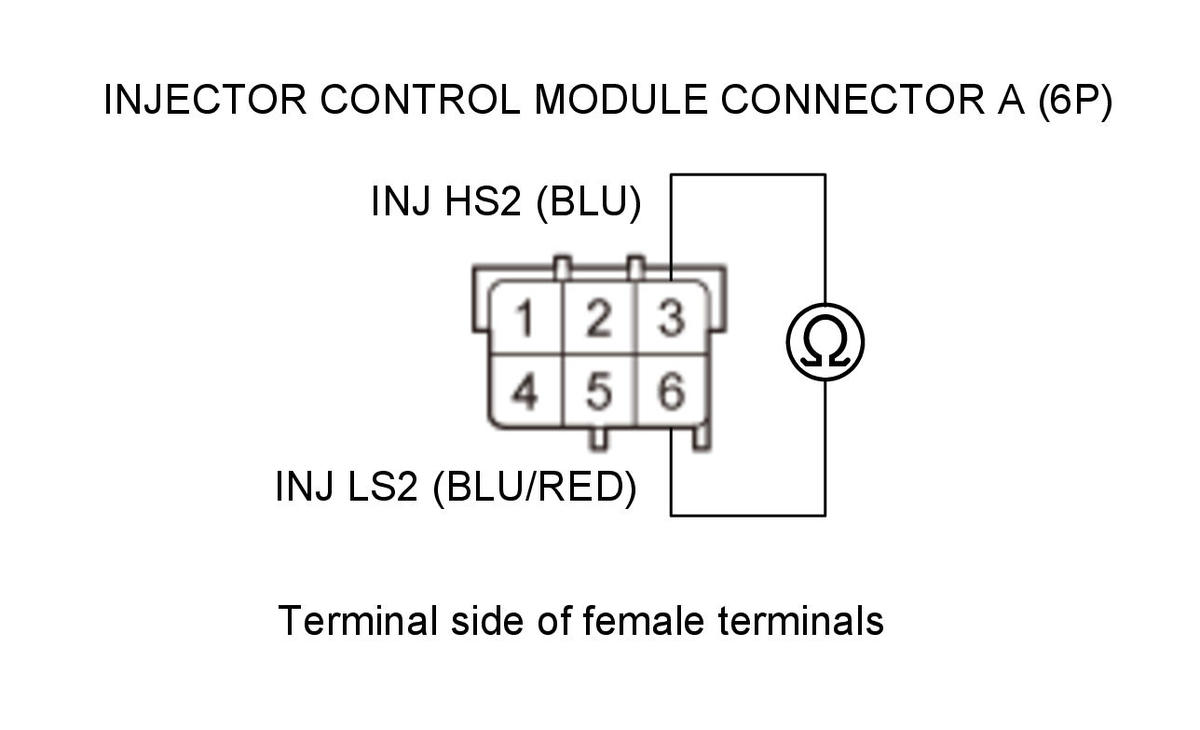

    Test circuit	INJ HS2, INJ LS2
    Test point 1	Injector control module connector A (6P) No. 3 (BLU)
    Test point 2	Injector control module connector A (6P) No. 6 (BLU/RED)

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Go to step 16.

    NO

    Go to step 14.

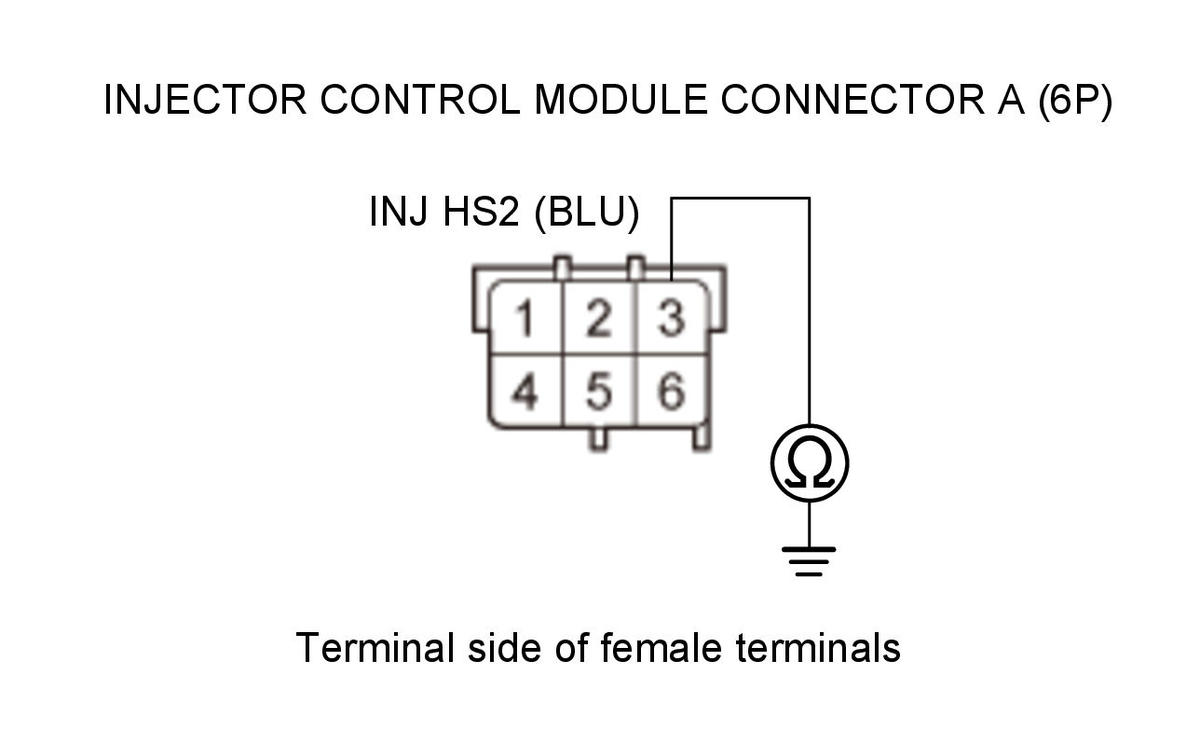

14. Open wire check (INJ HS2 line)

    -1. Disconnect the following connector.

    No. 2 cylinder injector 2P connector

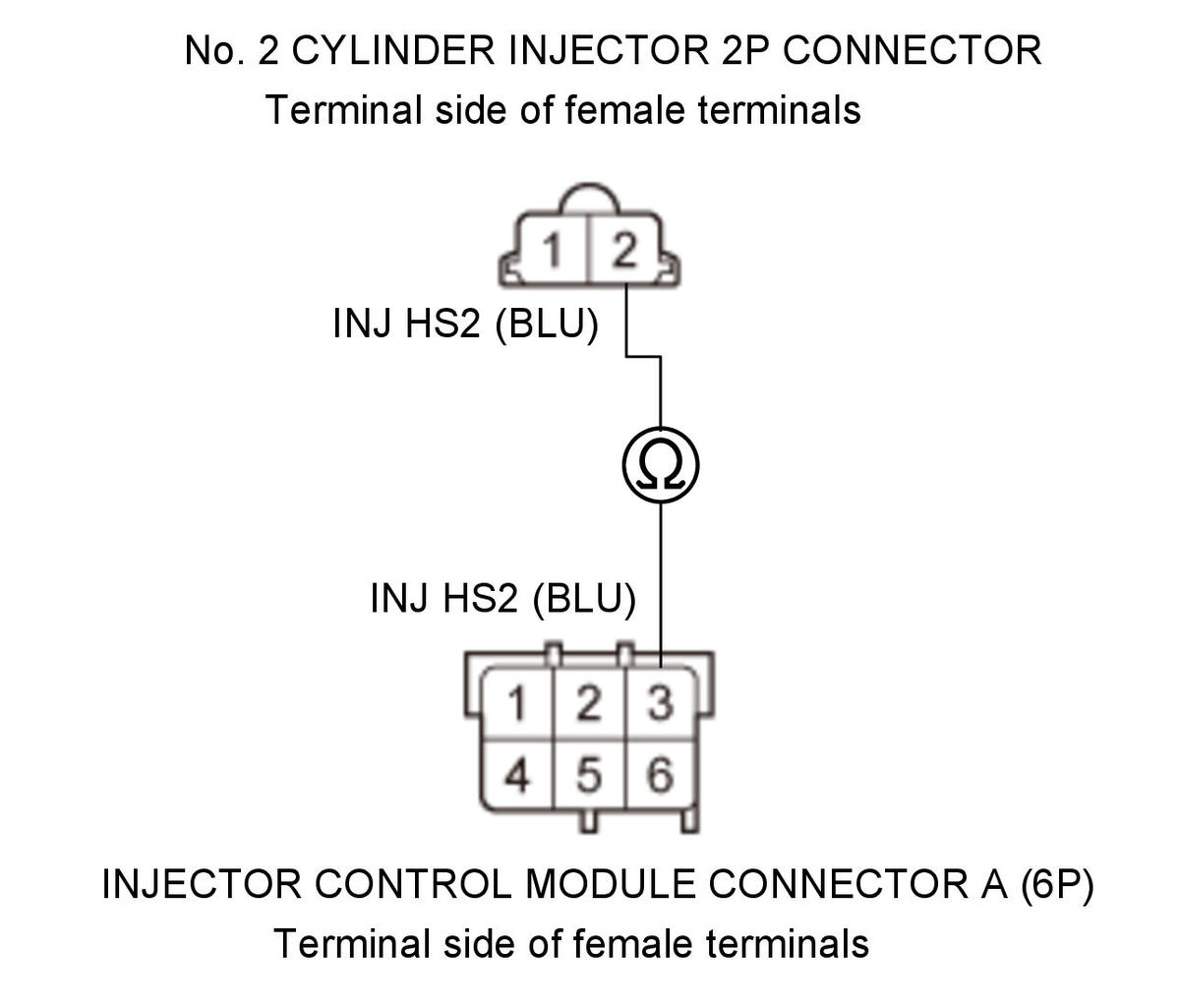

    -2. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	Injector control module connector C (12P): disconnected
    	PCM connector B (51P): disconnected
    	PCM connector C (51P): disconnected
    	Injector control module connector A (6P): disconnected
    	No. 2 cylinder injector 2P connector: disconnected
    Test circuit	INJ HS2
    Test point 1	No. 2 cylinder injector 2P connector No. 2 (BLU)
    Test point 2	Injector control module connector A (6P) No. 3 (BLU)

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The INJ HS2 wire is OK. Go to step 15.

    NO

    Repair an open in the INJ HS2 wire between the No. 2 cylinder injector and the injector control module.

15. Open wire check (INJ LS2 line)

    -1. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	Injector control module connector C (12P): disconnected
    	PCM connector B (51P): disconnected
    	PCM connector C (51P): disconnected
    	Injector control module connector A (6P): disconnected
    	No. 2 cylinder injector 2P connector: disconnected

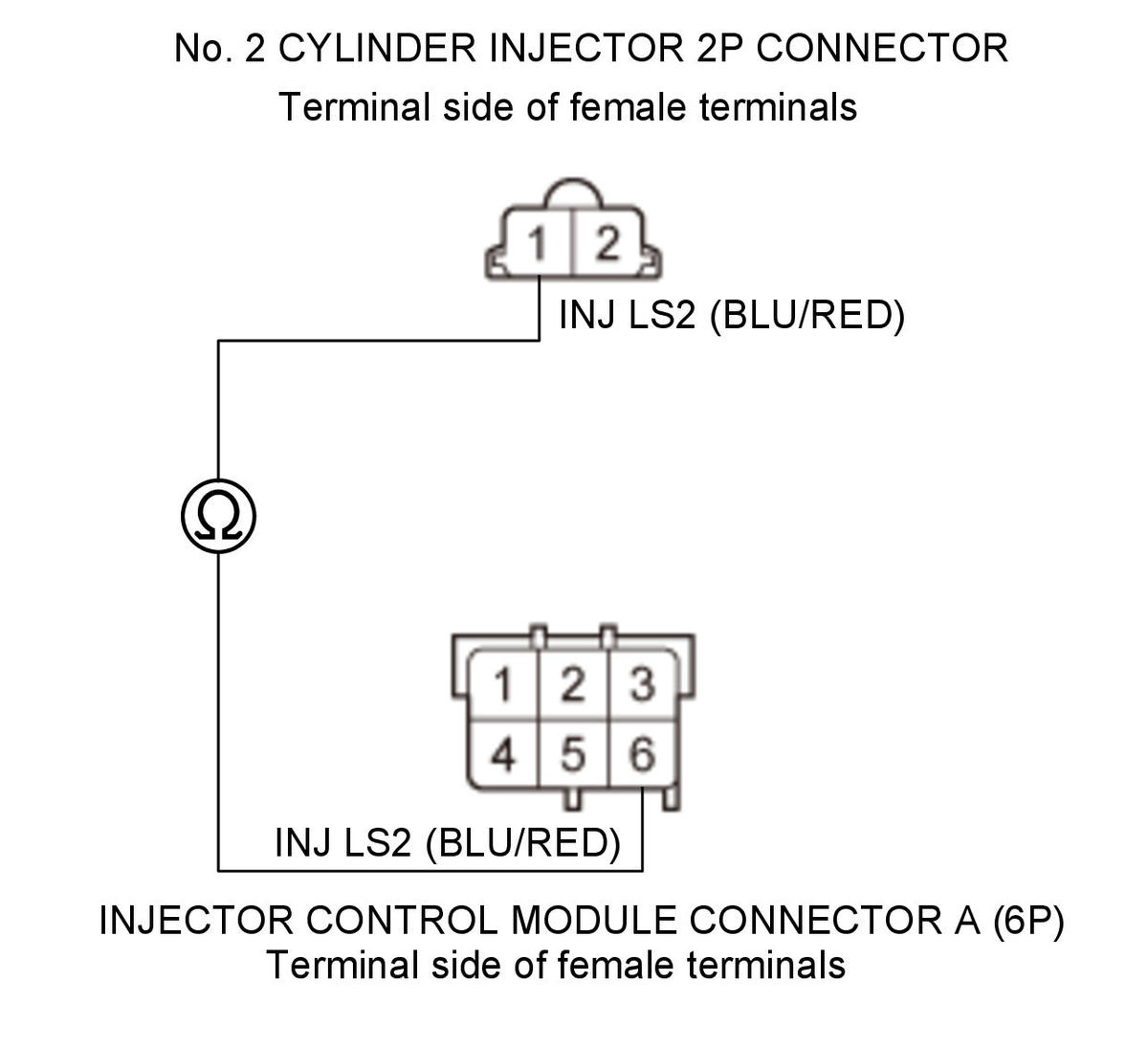

    Test circuit	INJ LS2
    Test point 1	No. 2 cylinder injector 2P connector No. 1 (BLU/RED)
    Test point 2	Injector control module connector A (6P) No. 6 (BLU/RED)

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Replace the No. 2 cylinder injector .

    NO

    Repair an open in the INJ LS2 wire between the No. 2 cylinder injector and the injector control module.

16. Shorted wire check (INJ Ti 2 line to power)

    -1. Turn the vehicle to the ON mode.

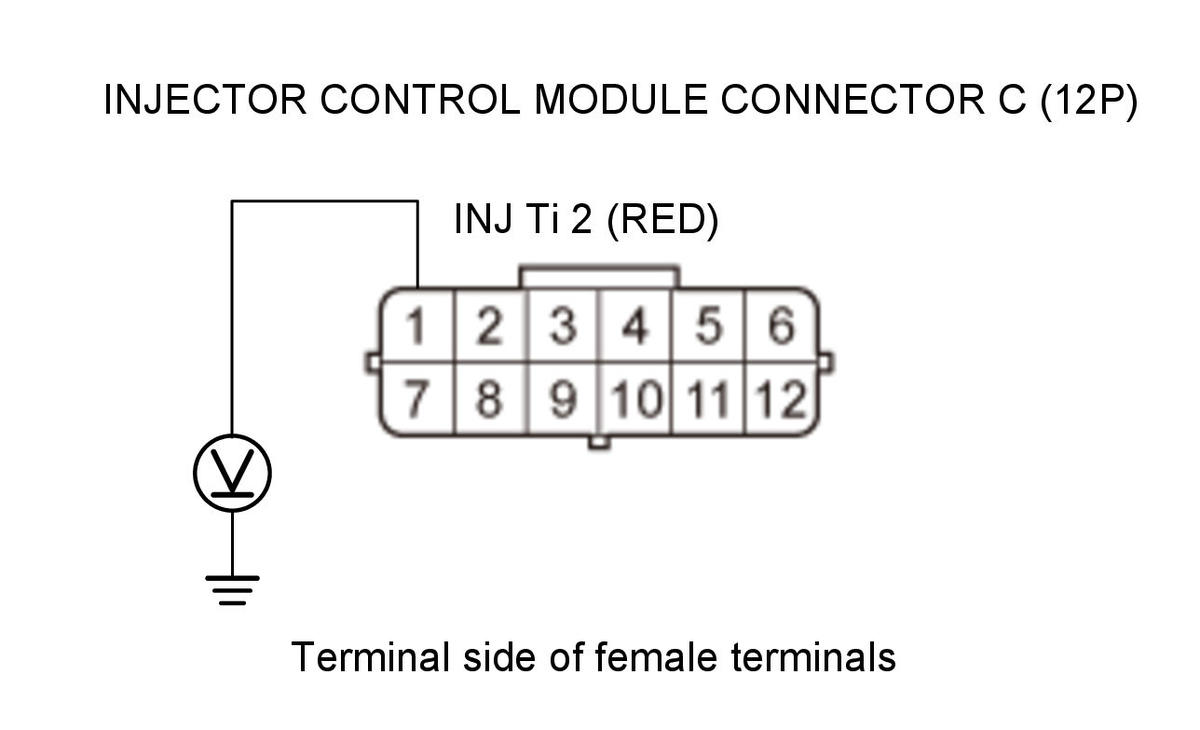

    -2. Measure the voltage between test points 1 and 2.

    Test condition	Vehicle ON mode
    	Injector control module connector C (12P): disconnected
    	PCM connector B (51P): disconnected
    	PCM connector C (51P): disconnected
    	Injector control module connector A (6P): disconnected
    Test circuit	INJ Ti 2
    Test point 1	Injector control module connector C (12P) No. 1 (RED)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there any voltage?

    YES

    Repair a short to power in the INJ Ti 2 wire between the PCM (B15) and the injector control module.

    NO

    Go to step 17

17. Shorted wire check (IJF3 line to power)

    -1. Measure the voltage between test points 1 and 2.

    Test condition	Vehicle ON mode
    	Injector control module connector C (12P): disconnected
    	PCM connector B (51P): disconnected
    	PCM connector C (51P): disconnected
    	Injector control module connector A (6P): disconnected

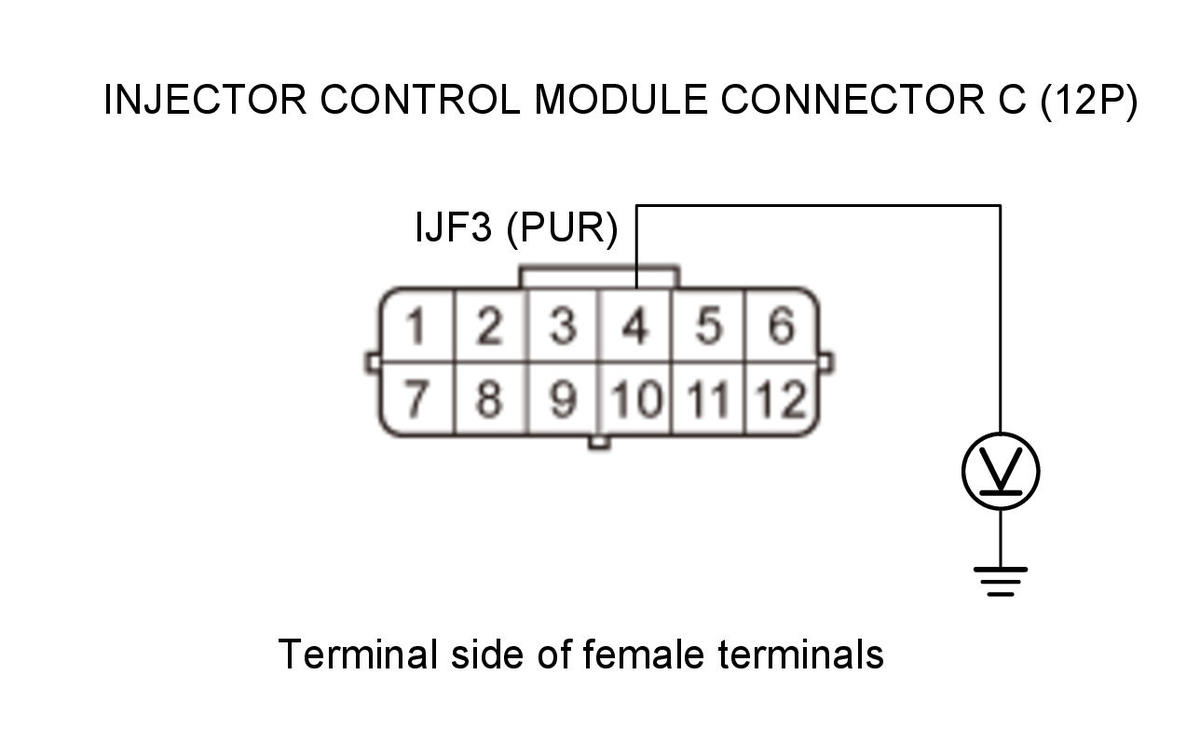

    Test circuit	IJF3
    Test point 1	Injector control module connector C (12P) No. 4 (PUR)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there any voltage?

    YES

    Repair a short to power in the IJF3 wire between the PCM (C19) and the injector control module.

    NO

    Go to step 18.

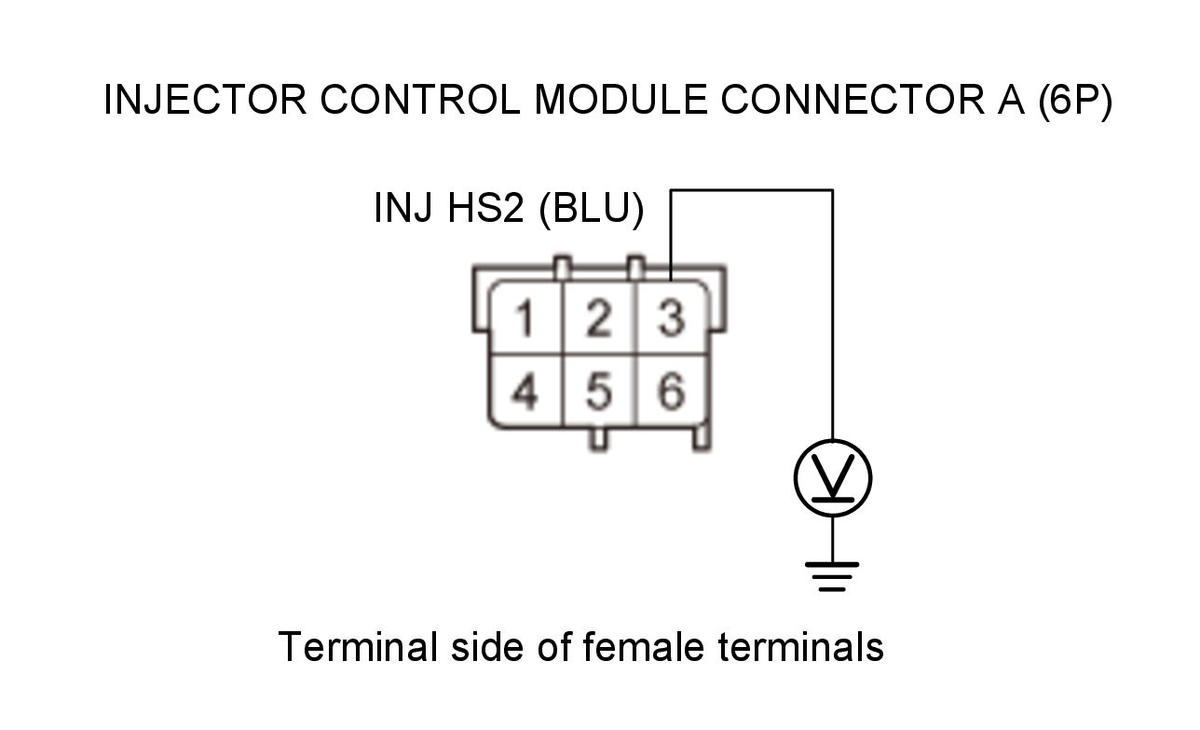

18. Shorted wire check (INJ HS2 line to power)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    No. 2 cylinder injector 2P connector

    -3. Turn the vehicle to the ON mode.

    -4. Measure the voltage between test points 1 and 2.

    Test condition	Vehicle ON mode
    	Injector control module connector C (12P): disconnected
    	PCM connector B (51P): disconnected
    	PCM connector C (51P): disconnected
    	Injector control module connector A (6P): disconnected
    	No. 2 cylinder injector 2P connector: disconnected
    Test circuit	INJ HS2
    Test point 1	Injector control module connector A (6P) No. 3 (BLU)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there any voltage?

    YES

    Repair a short to power in the INJ HS2 wire between the No. 2 cylinder injector and the injector control module.

    NO

    Go to step 19

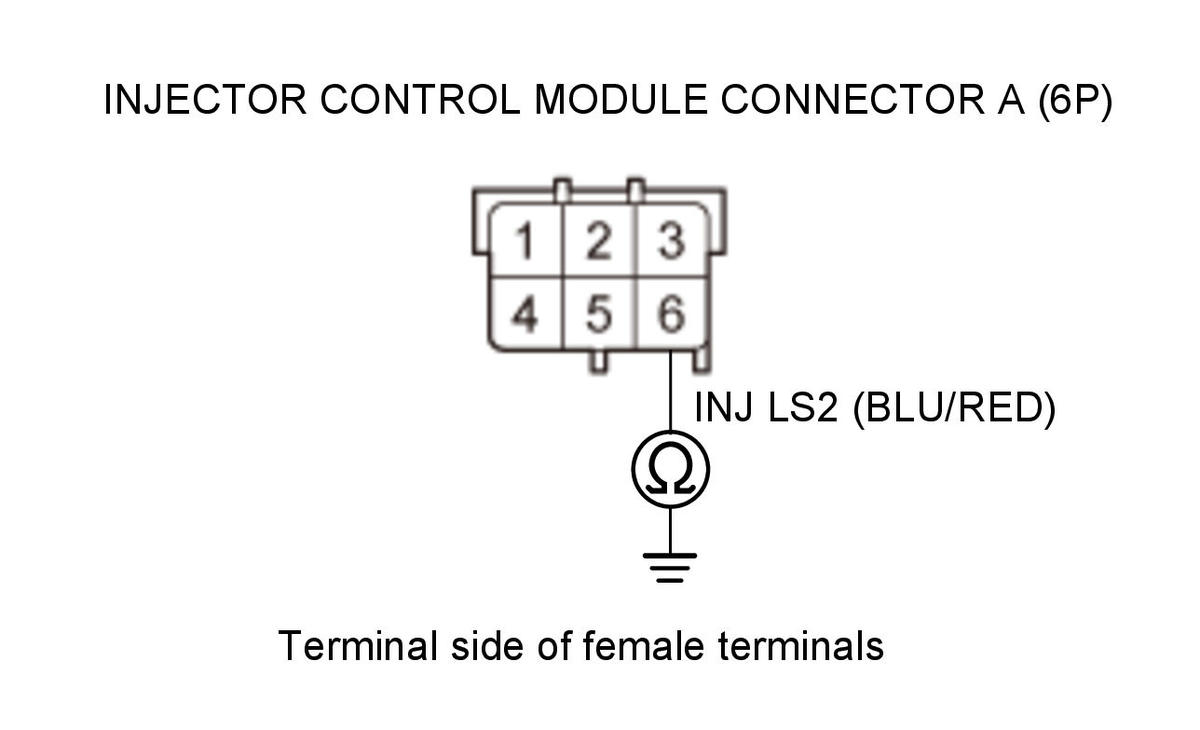

19. Shorted wire check (INJ LS2 line to power)

    -1. Measure the voltage between test points 1 and 2.

    Test condition	Vehicle ON mode
    	Injector control module connector C (12P): disconnected
    	PCM connector B (51P): disconnected
    	PCM connector C (51P): disconnected
    	Injector control module connector A (6P): disconnected
    	No. 2 cylinder injector 2P connector: disconnected

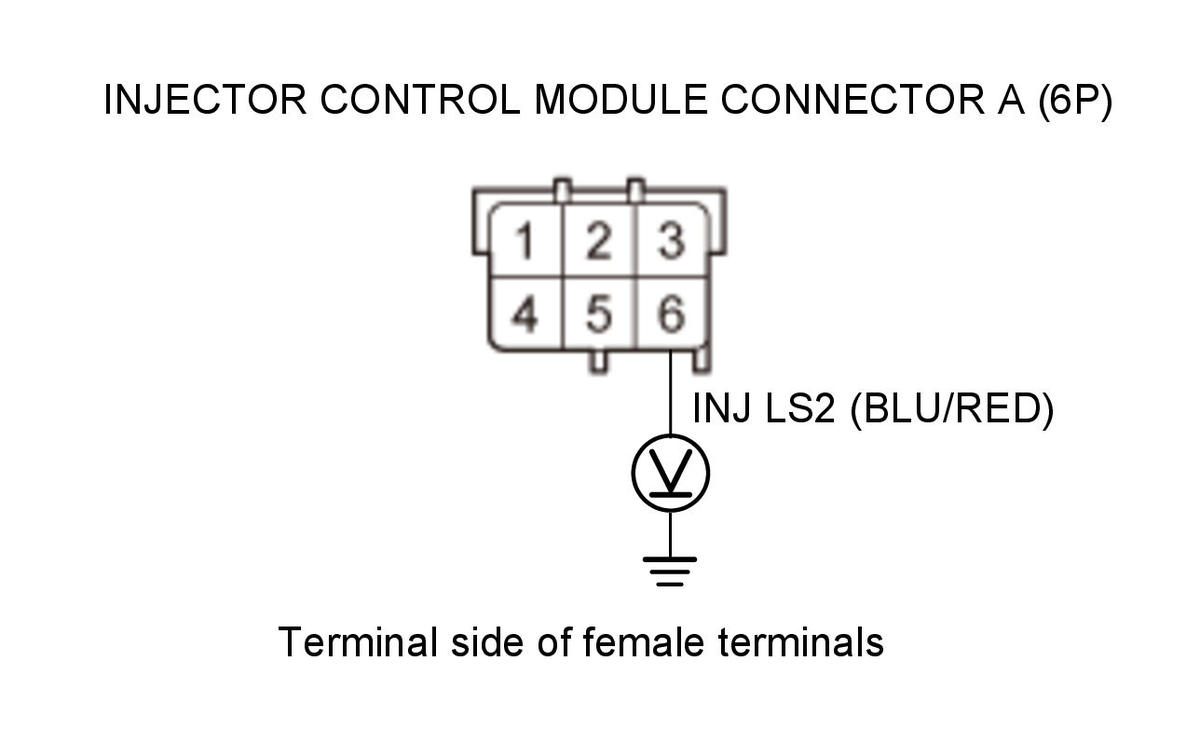

    Test circuit	INJ LS2
    Test point 1	Injector control module connector A (6P) No. 6 (BLU/RED)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there any voltage?

    YES

    Repair a short to power in the INJ LS2 wire between the No. 2 cylinder injector and the injector control module.

    NO

    Go to step 20

20. Shorted wire check (INJ Ti 2 line to ground)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	Injector control module connector C (12P): disconnected
    	PCM connector B (51P): disconnected
    	PCM connector C (51P): disconnected
    	Injector control module connector A (6P): disconnected
    	No. 2 cylinder injector 2P connector: disconnected
    Test circuit	INJ Ti 2
    Test point 1	Injector control module connector C (12P) No. 1 (RED)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair a short to ground in the INJ Ti 2 wire between the PCM (B15) and the injector control module.

    NO

    Go to step 21

21. Shorted wire check (IJF3 line to ground)

    -1. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	Injector control module connector C (12P): disconnected
    	PCM connector B (51P): disconnected
    	PCM connector C (51P): disconnected
    	Injector control module connector A (6P): disconnected
    	No. 2 cylinder injector 2P connector: disconnected
    Test circuit	IJF3
    Test point 1	Injector control module connector C (12P) No. 4 (PUR)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair a short to ground in the IJF3 wire between the PCM (C19) and the injector control module.

    NO

    Go to step 22.

22. Shorted wire check (INJ HS2 line to ground)

    -1. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	Injector control module connector C (12P): disconnected
    	PCM connector B (51P): disconnected
    	PCM connector C (51P): disconnected
    	Injector control module connector A (6P): disconnected
    	No. 2 cylinder injector 2P connector: disconnected
    Test circuit	INJ HS2
    Test point 1	Injector control module connector A (6P) No. 3 (BLU)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair a short to ground in the INJ HS2 wire between the No. 2 cylinder injector and the injector control module.

    NO

    Go to step 23

23. Shorted wire check (INJ LS2 line to ground)

    -1. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	Injector control module connector C (12P): disconnected
    	PCM connector B (51P): disconnected
    	PCM connector C (51P): disconnected
    	Injector control module connector A (6P): disconnected
    	No. 2 cylinder injector 2P connector: disconnected
    Test circuit	INJ LS2
    Test point 1	Injector control module connector A (6P) No. 6 (BLU/RED)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair a short to ground in the INJ LS2 wire between the No. 2 cylinder injector and the injector control module.

    NO

    Go to step 24

24. Shorted wire check (INJ HS6 line to power)

    -1. Disconnect the following connectors.

    No. 6 cylinder injector 2P connector

    Injector control module connector B (6P)

    -2. Turn the vehicle to the ON mode.

    -3. Measure the voltage between test points 1 and 2.

    Test condition	Vehicle ON mode
    	Injector control module connector C (12P): disconnected
    	PCM connector B (51P): disconnected
    	PCM connector C (51P): disconnected
    	Injector control module connector A (6P): disconnected
    	No. 2 cylinder injector 2P connector: disconnected
    	No. 6 cylinder injector 2P connector: disconnected
    	Injector control module connector B (6P): disconnected
    Test circuit	INJ HS6

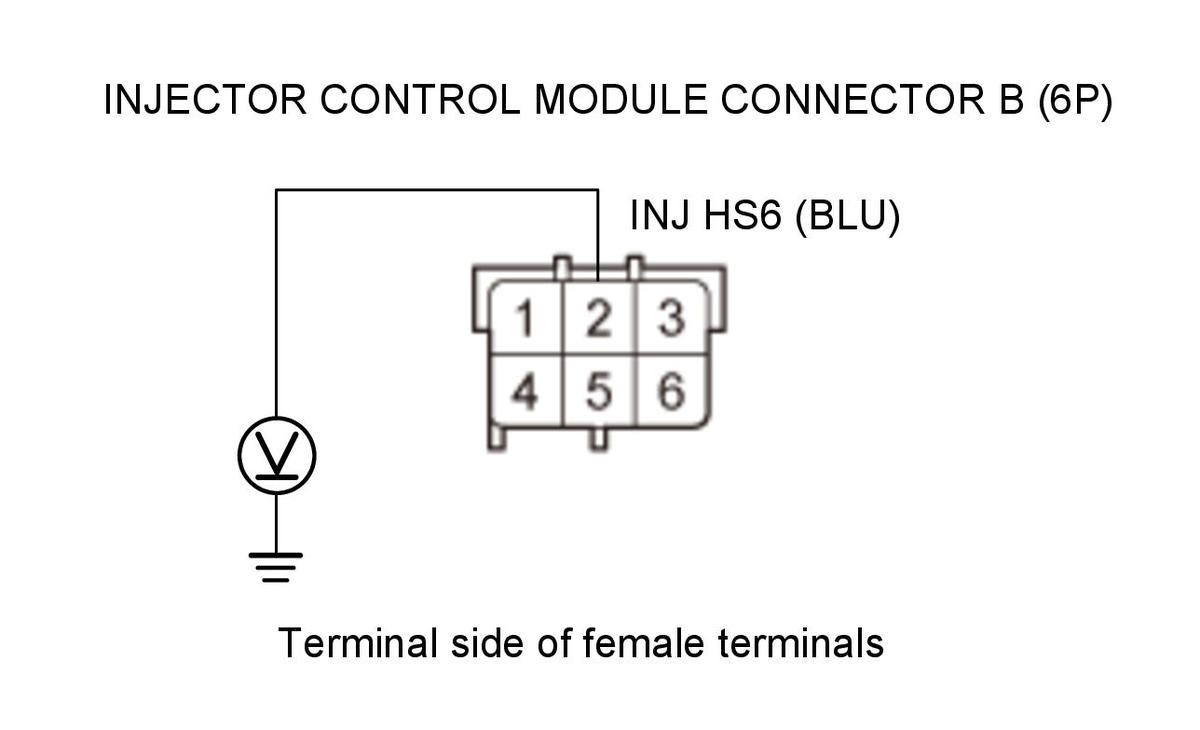

    Test point 1	Injector control module connector B (6P) No. 2 (BLU)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there any voltage?

    YES

    Repair a short to power in the INJ HS6 wire between the No. 6 cylinder injector and the injector control module.

    NO

    Substitute a known-good injector control module , then recheck. If the DTC P0202 goes away and the injector control module was substituted, replace the original injector control module .
