EVAP Canister Removal And Installation: Removal

USA and Canada models

EVAP Canister Assembly - Remove

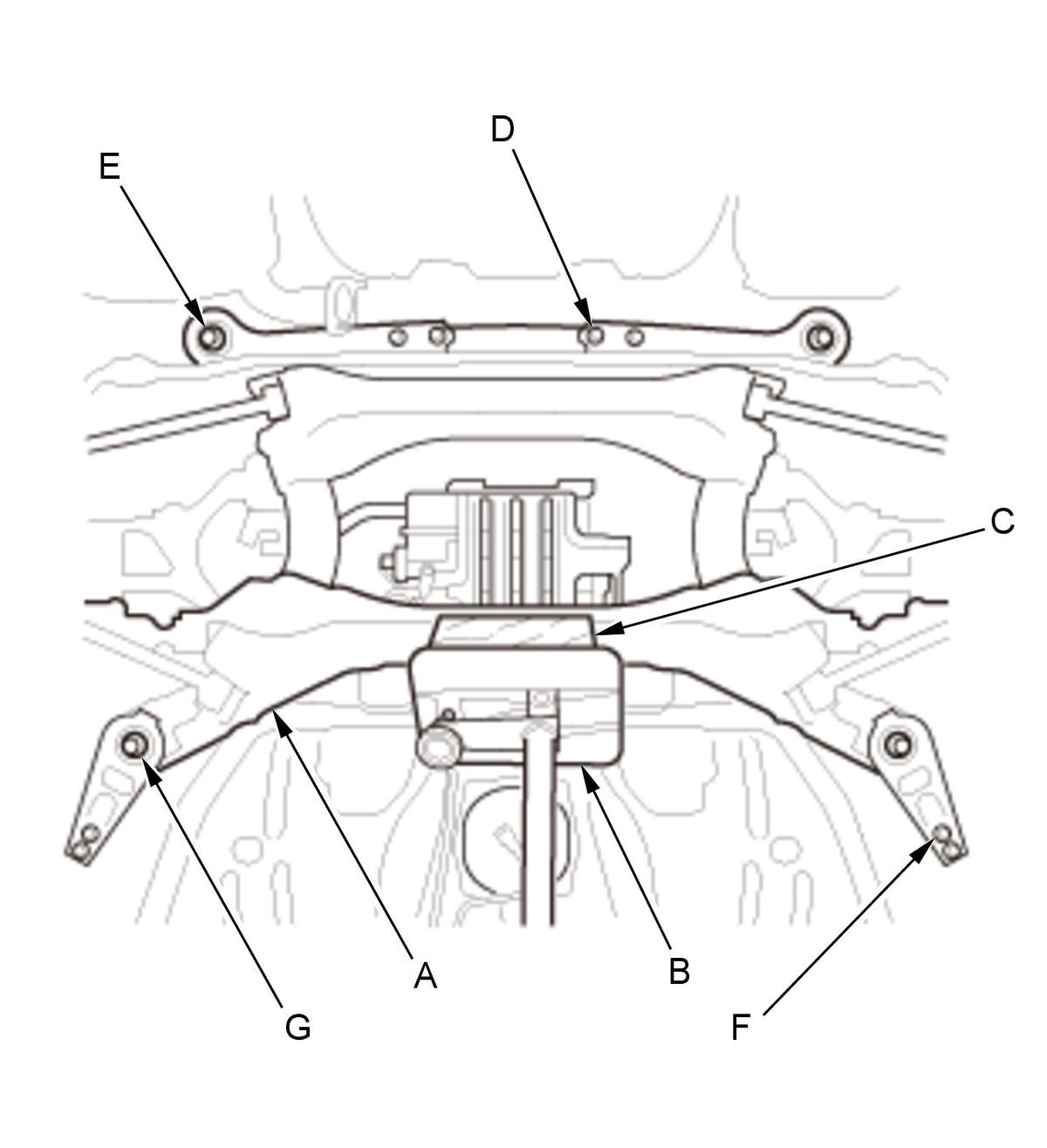

Courtesy of HONDA, U.S.A., INC.

1. Support the rear subframe (A) with a transmission jack (B) and a wooden block (C) as shown.

2. Loosen the rear subframe mounting bolts (D, E, F, and G).

3. Lower the transmission jack and rear subframe about 30 mm.

NOTE: Be careful not to damage the connecting parts.

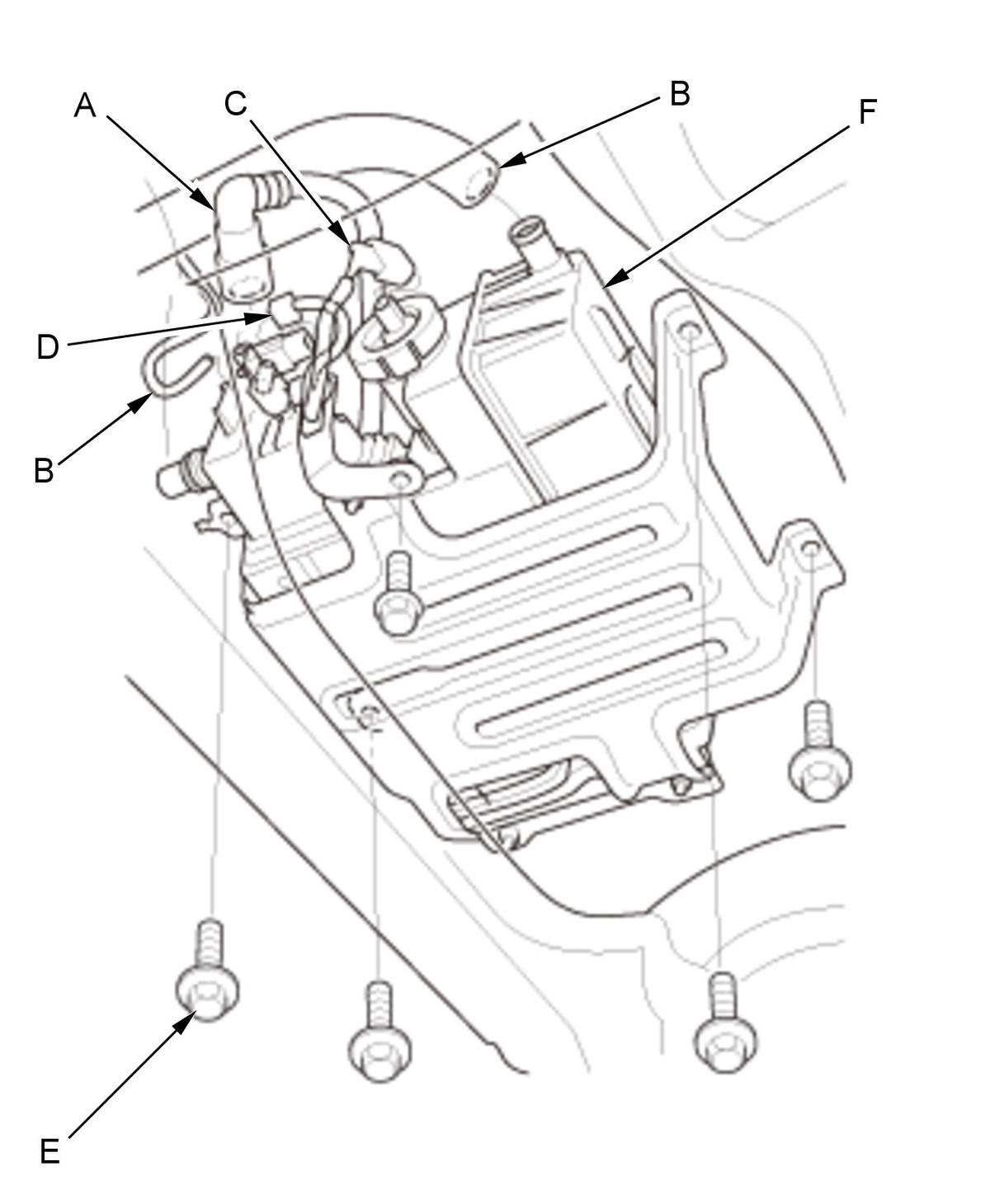

Courtesy of HONDA, U.S.A., INC.

4. Disconnect the quick-connect fitting (A), the hoses (B), and the EVAP canister vent shut valve connector (C) and the FTP sensor connector (D).

5. Remove the canister bracket bolts (E).

6. Remove the EVAP canister assembly (F) from the front side.

EVAP Canister - Disassembly

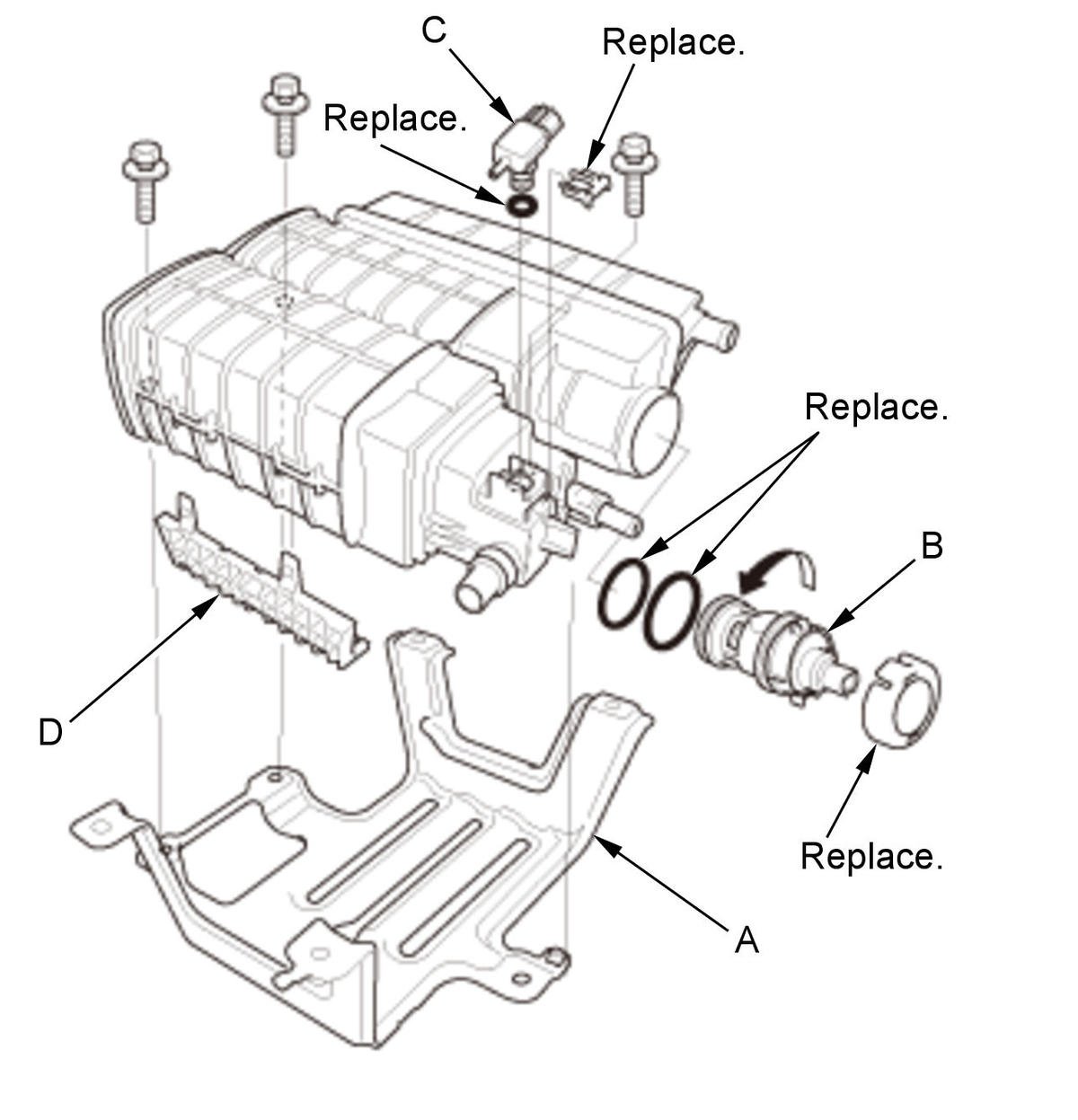

Courtesy of HONDA, U.S.A., INC.

1. Remove the canister bracket (A).

2. Remove the EVAP canister vent shut valve (B).

3. Remove the FTP sensor (C).

4. If needed, remove the canister spacer (D).

Mexico models

EVAP Canister - Remove

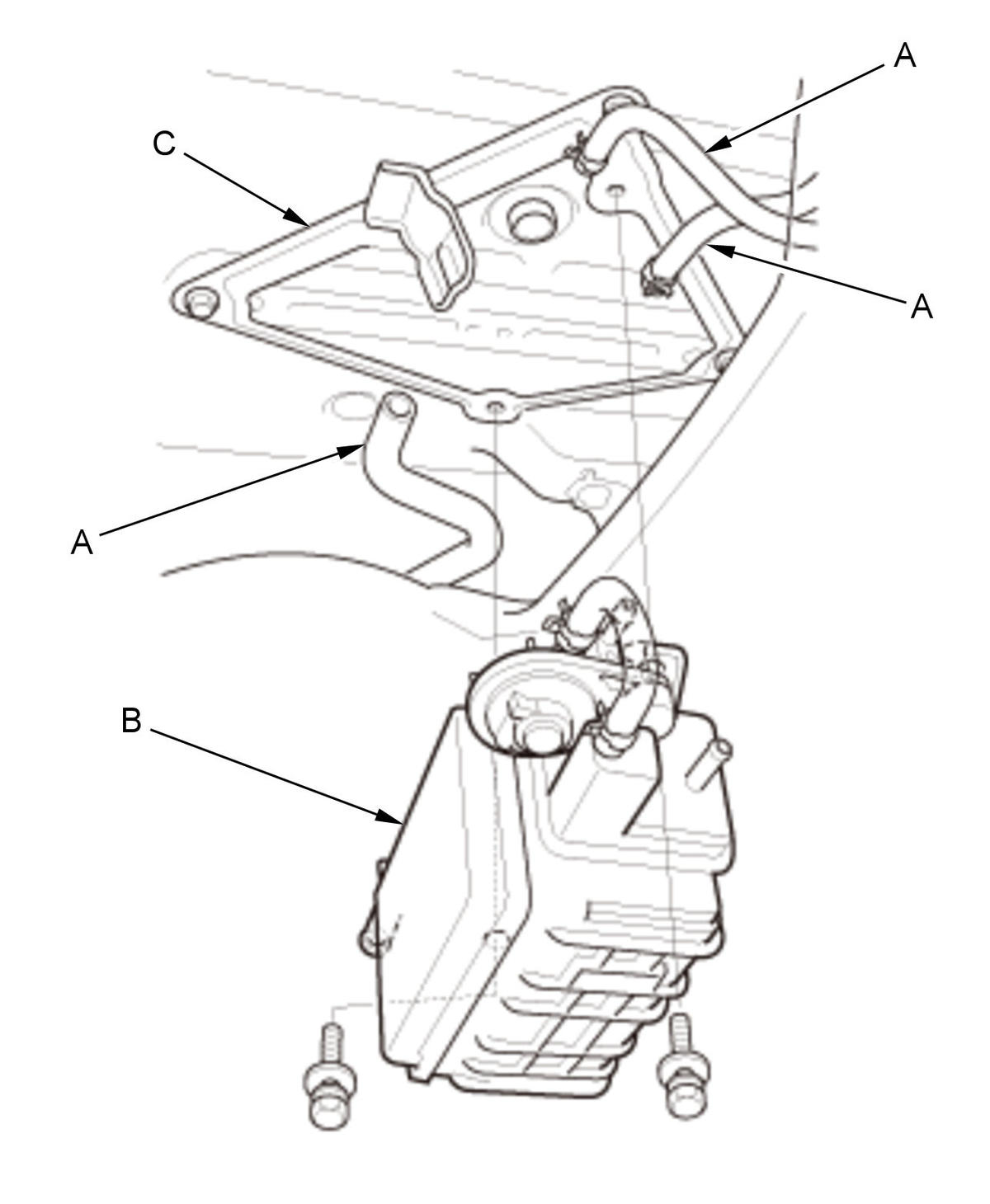

Courtesy of HONDA, U.S.A., INC.

1. Disconnect the hoses (A), and remove the EVAP canister (B).

2. If needed, remove the EVAP canister bracket (C).
