EGR Valve Removal And Installation: Removal

  1. Engine Cover - Remove

    Remove the engine cover .

  2. EGR Valve - Remove

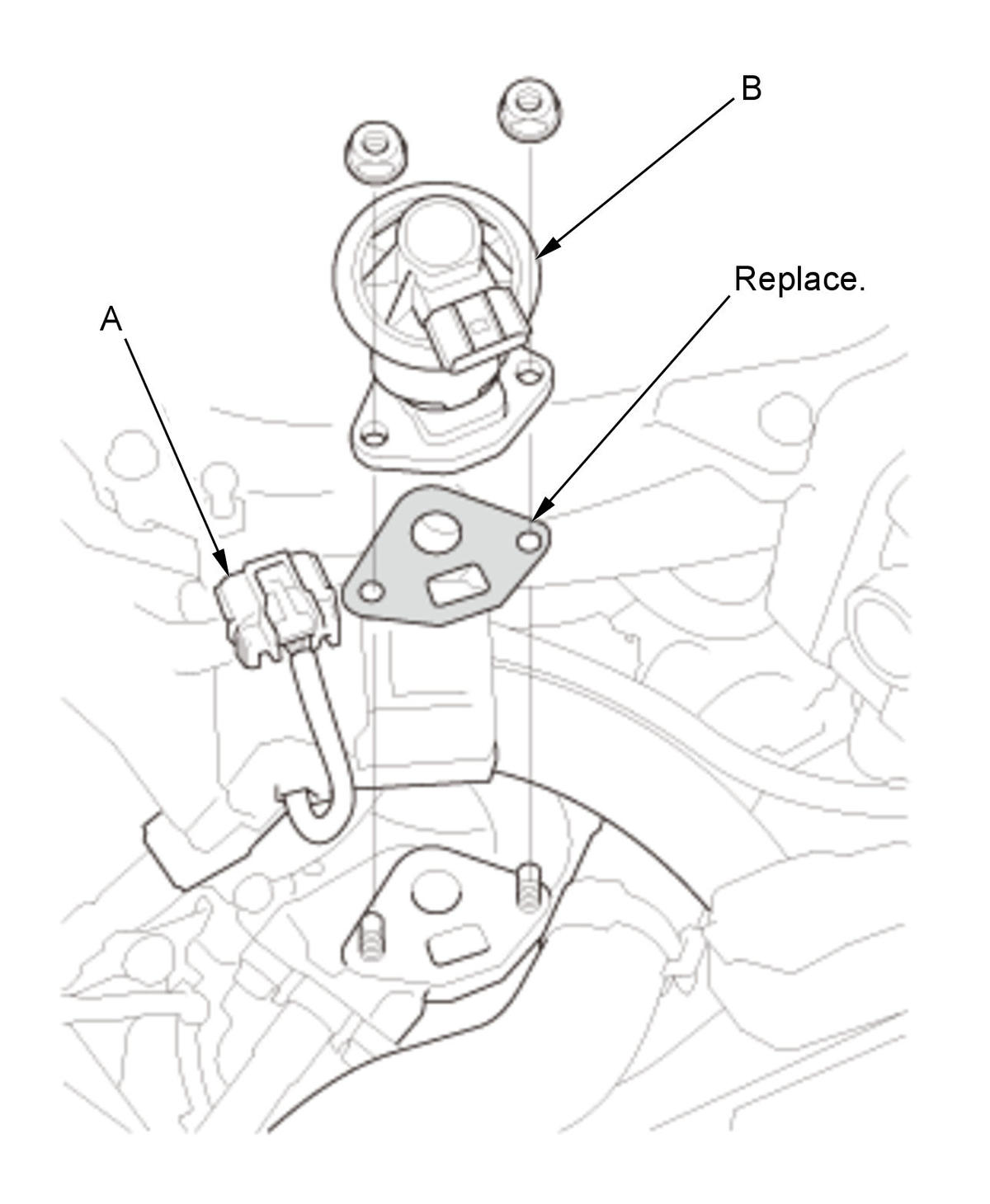

    GHH345866Courtesy of HONDA, U.S.A., INC.
    		 1. Disconnect the EGR valve connector (A).

    2. Remove the EGR valve (B).
