Air Cleaner Removal And Installation: Removal

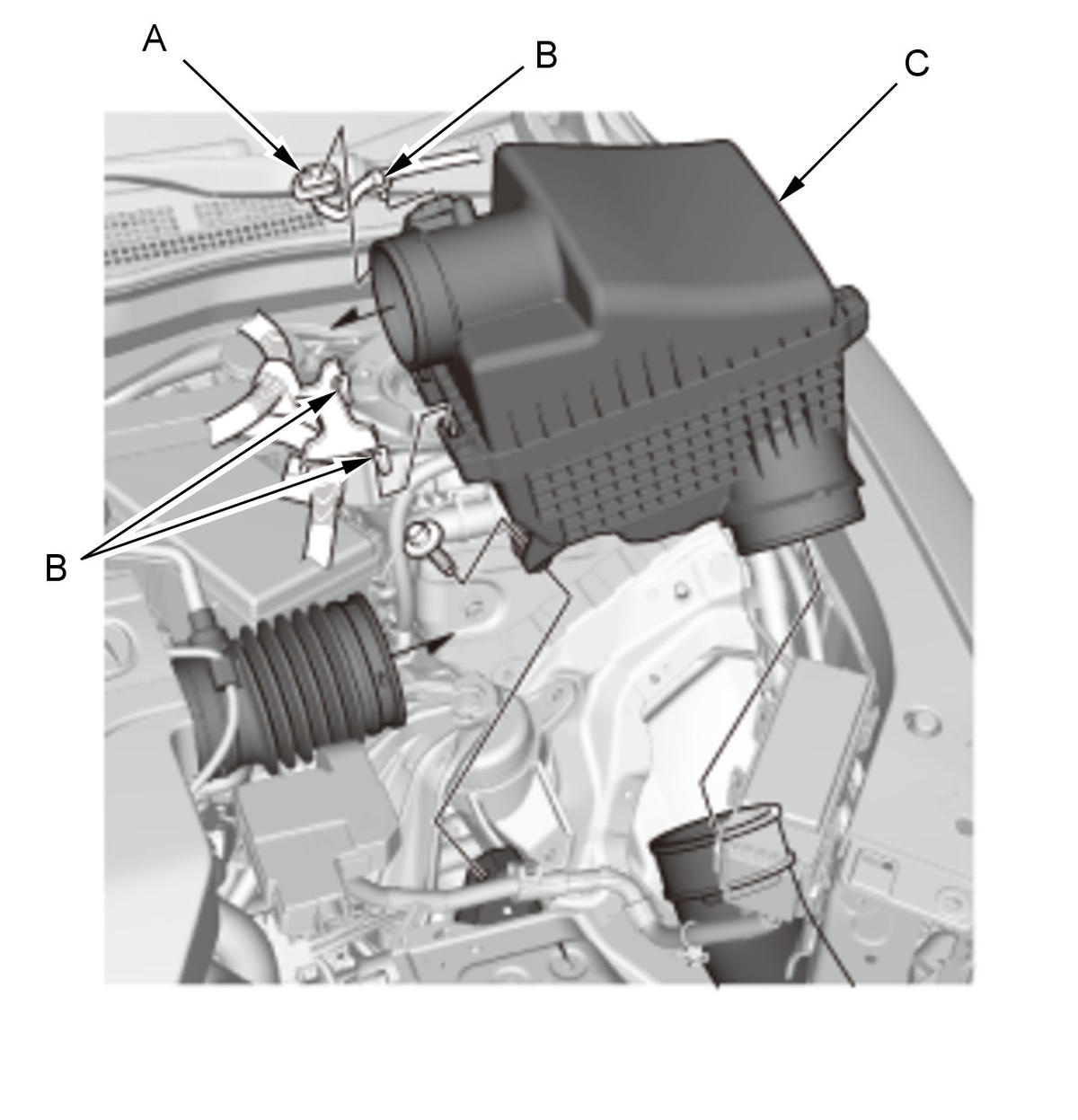

  1. Air Cleaner - Remove
    GHH345815Courtesy of HONDA, U.S.A., INC.
    		 1. Disconnect the MAF sensor/IAT sensor connector (A).

    2. Remove the harness clamps (B).

    3. Remove the air cleaner (C).
