Audio-Navigation Switch Panel Connector for Inputs and Outputs (2013-17)
WARNING: This page is about a different car, the 2016 Acura RDX, 2015 Acura RDX, 2014 Acura RDX, and 2013 Acura RDX. However, it is still accessible from the selected car via links, so may be relevant.
Audio-Navigation Switch Panel Connector for Inputs and Outputs

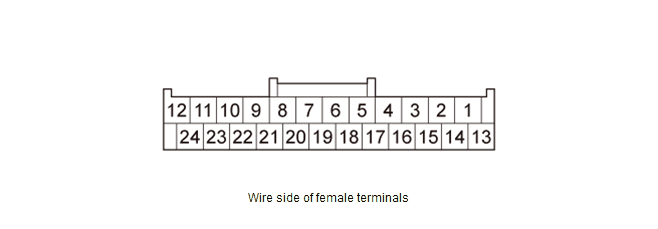

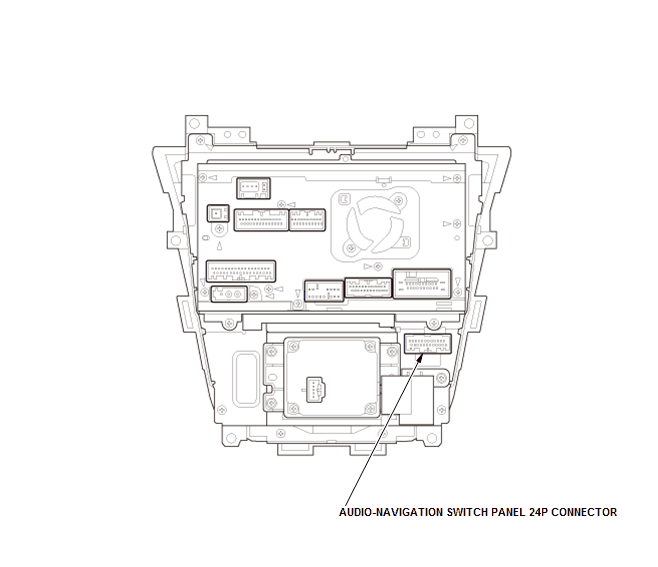

AUDIO-NAVIGATION SWITCH PANEL 24P CONNECTOR
| Cavity | Wire Color | Terminal Name | Description |
|---|---|---|---|
| 1 | RED | ILLUMI- (BULB) | Detects illumination control signal |
| Cavity | Wire Color | Terminal Name | Description |
|---|---|---|---|
| 2 | YEL | ILL- (LED) | Detects illumination control signal |
| 3 | BLK | GND | Ground for audio-navigation switch panel (G503) |
| 4 | Not used | Not used | - - - |
| 5 | Not used | Not used | - - - |
| 6 | WHT | A/C CLK | Communication signal to climate control unit |
| 7 | BRN | OPERA TX | Communication signal for audio-navigation switch panel buttons |
| 8 | GRY | SH OPERA | Shield for terminals No. 7 and No. 19 |
| 9 | GRY | SH DUET | Shield for terminals No. 21 and No. 22 |
| 10 | LT BLU | DUET CONT | DUET control signal |
| 11 | GRY | SH VOL ENC | Shield for terminals No. 12, No. 23, and No. 24 |
| 12 | GRN | VOL ENC- | Outputs volume encoder signal |
| 13 | Not used | Not used | - - - |
| 14 | GRY | ILLUMI+ | Detects parking light on signal |
| 15 | GRN | +B BACK UP | Continuous power source |
| 16 | BRN | IG2 A/C | IG2 power source |
| 17 | Not used | Not used | - - - |
| 18 | RED | A/C SO | Communication signal to climate control unit |
| 19 | YEL | OPERA RX | Communication signal for audio-navigation switch panel buttons |
| 20 | GRN | OPERA CONT | OPERA control signal |
| 21 | GRN | DUET TX | Communication signal for audio-navigation switch panel display |
| 22 | RED | DUET RX | Communication signal for audio-navigation switch panel display |
| 23 | PNK | PWR SW | Outputs POWER switch on/off signal |
| 24 | BLU | VOL ENC+ | Outputs volume encoder signal |
