ANC/Active Sound Control Unit Connector for Inputs and Outputs

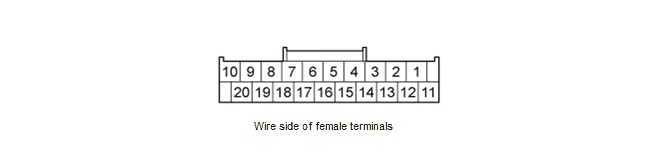

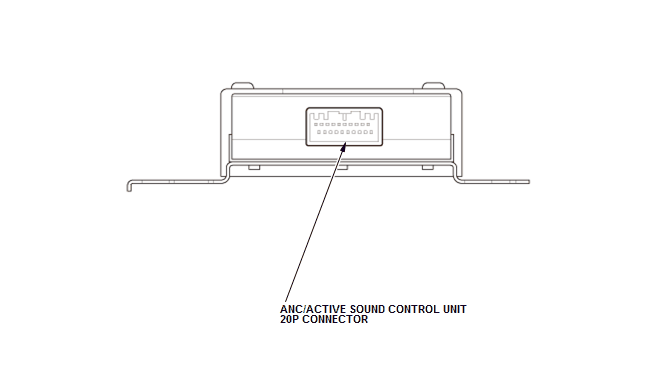

ANC/ACTIVE SOUND CONTROL UNIT 20P CONNECTOR
| Cavity | Wire Color | Terminal Name | Description |
|---|---|---|---|
| 1 | BLK | GND | Ground for ANC/active sound control unit (G502) |
| 2 | Not used | Not used | - - - |
| 3 | YEL | SWD+B | Inputs signal for ANC/active sound control unit switching on/off |
| 4 | WHT | F-CAN_H | Communication signal |
| 5 | RED | F-CAN_L | Communication signal |
| 6 | GRY | SH ANC R MIC | Shield for terminal No. 17 |
| 7 | GRY | SH ANC F MIC | Shield for terminal No. 18 |
| 8 | Not used | Not used | - - - |
| 9 | GRN | ANC R- | Outputs noise cancelling signal to stereo amplifier |
| 10 | WHT | ANC F- | Outputs noise cancelling signal to stereo amplifier |
| 11 | GRN | +B BACK UP | Continuous power source |
| 12 | BRN | IG1 METER | IG1 power source |
| 13 | GRN | ANC CHK2 | Detects ANC test signal |
| 14 | LT BLU | K LINE | Detects scan tool signal (serial data) |
| 15 | Not used | Not used | - - - |
| Cavity | Wire Color | Terminal Name | Description |
|---|---|---|---|
| 16 | Not used | Not used | - - - |
| 17 | WHT | ANC R MIC+8V | Inputs rear ANC/active sound control microphone signal positive |
| 18 | WHT | ANC F MIC+8V | Inputs front ANC/active sound control microphone signal positive |
| 19 | BLK | ANC R+ | Outputs noise cancelling signal to stereo amplifier |
| 20 | RED | ANC F+ | Outputs noise cancelling signal to stereo amplifier |
