Engine Oil Pump Removal And Installation: Removal

Hood - Wide Open

Courtesy of HONDA, U.S.A., INC.

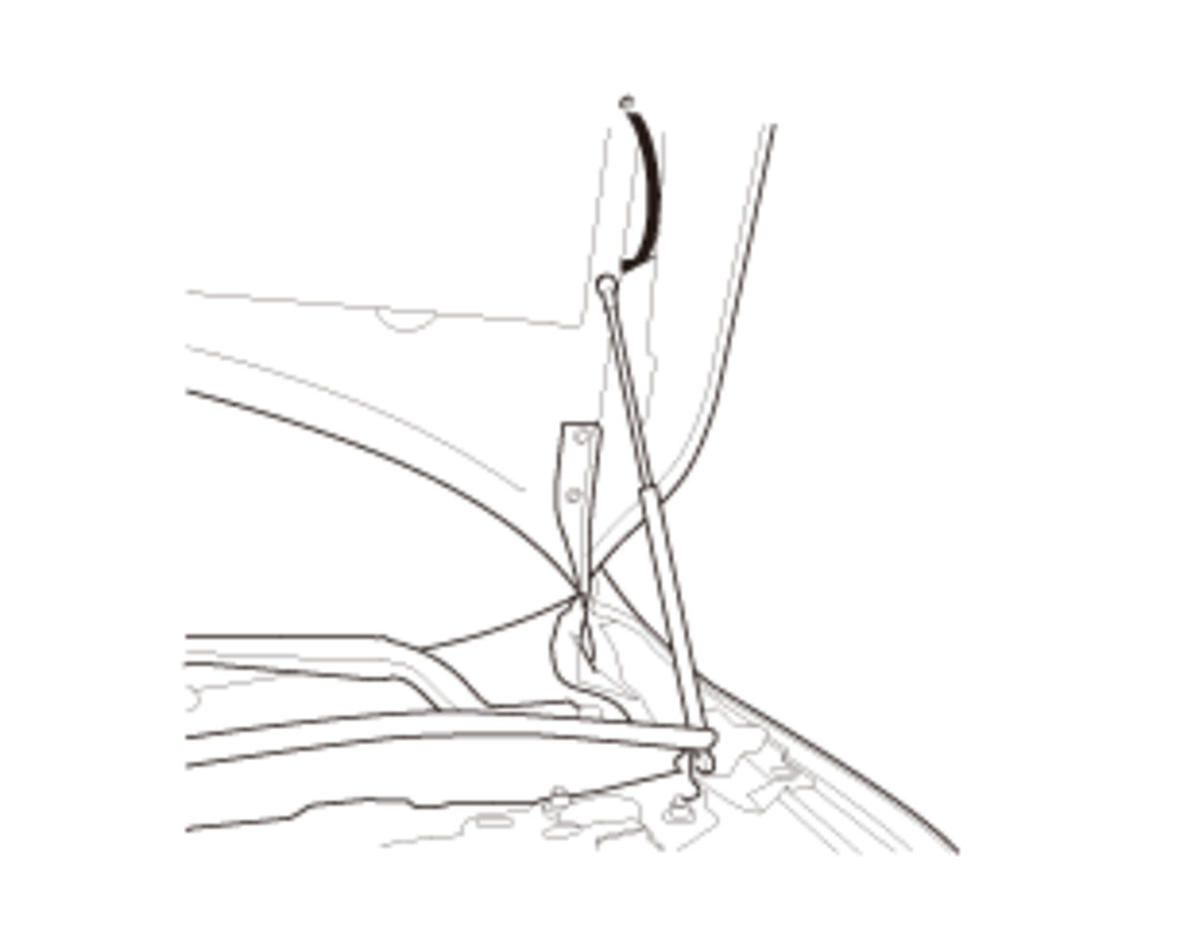

1. Disconnect the support struts from both sides of the pivot ball (bolted to the hood). Secure the hood in a vertical position. Install the left side pivot ball into the lower threaded hole.

NOTE: Do not attempt to close the hood with the support strut in the verticalposition, as it will damage the support strut and hood.

Engine Cover - Remove

Courtesy of HONDA, U.S.A., INC.

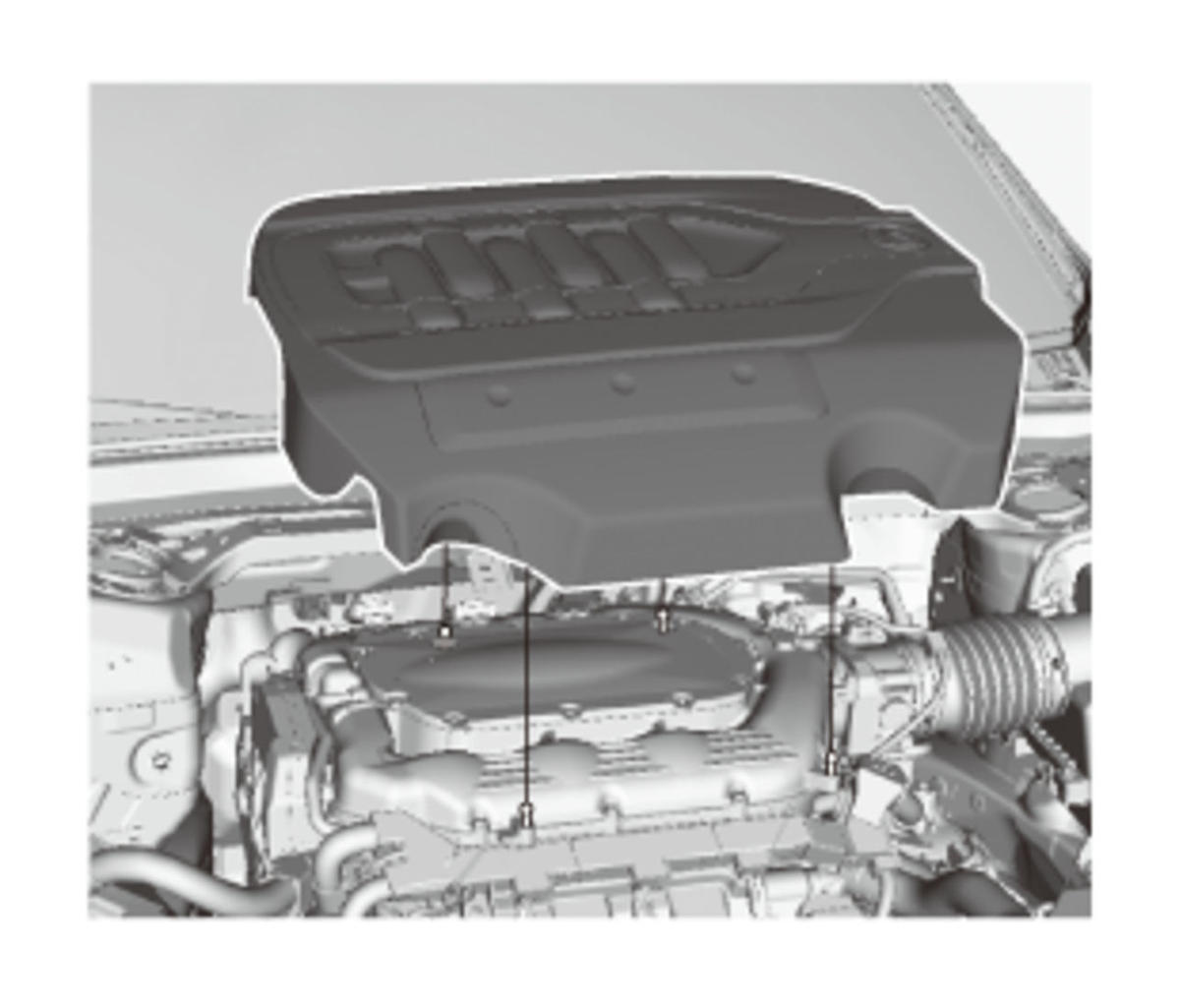

Remove the engine cover.
Front Grille Cover - Remove

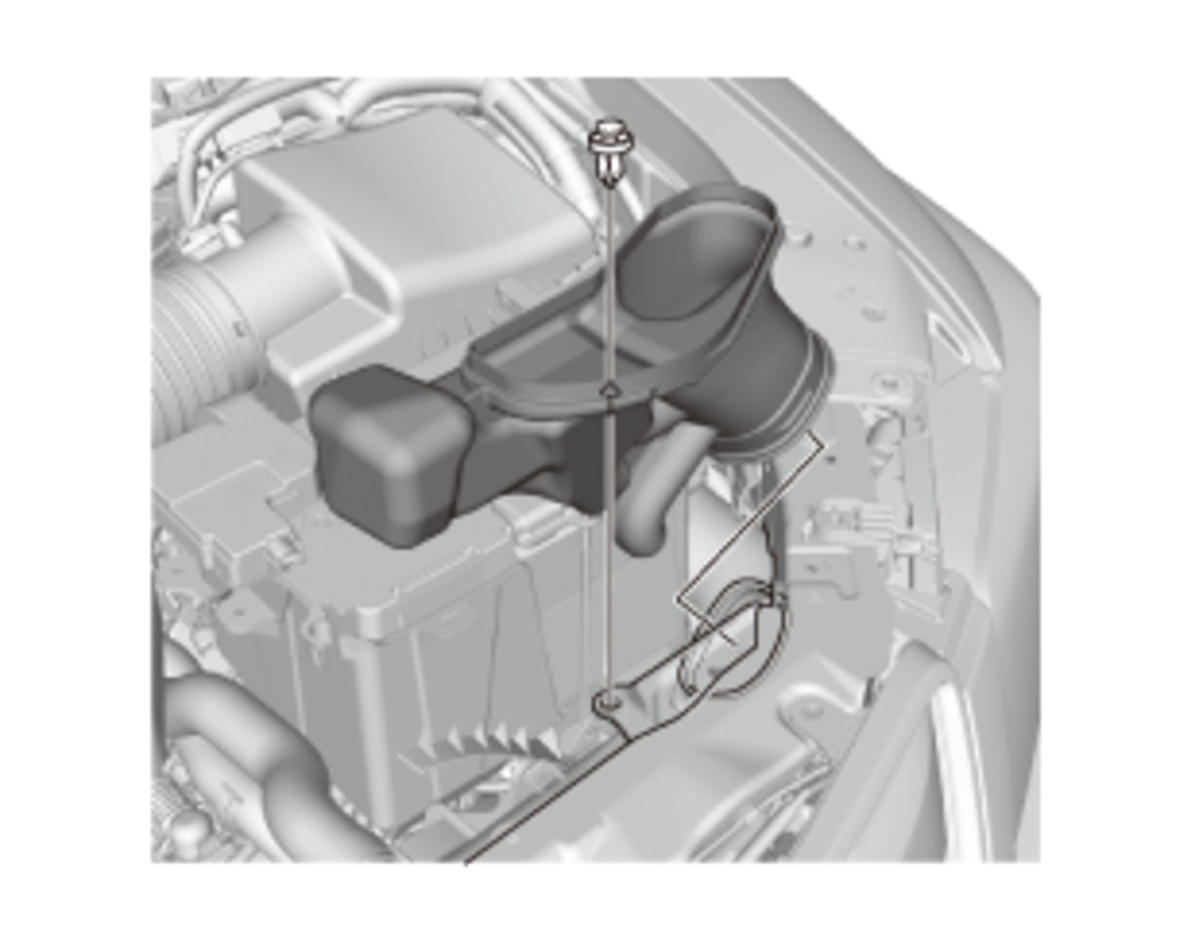

Remove the front grille cover .
Front Strut Brace - Remove
Remove the front strut brace .
Splash Separator - Remove

Courtesy of HONDA, U.S.A., INC.

Remove the splash separator.
Engine Oil - Drain
Drain the engine oil .
Engine Support Hanger - Install

Courtesy of HONDA, U.S.A., INC.

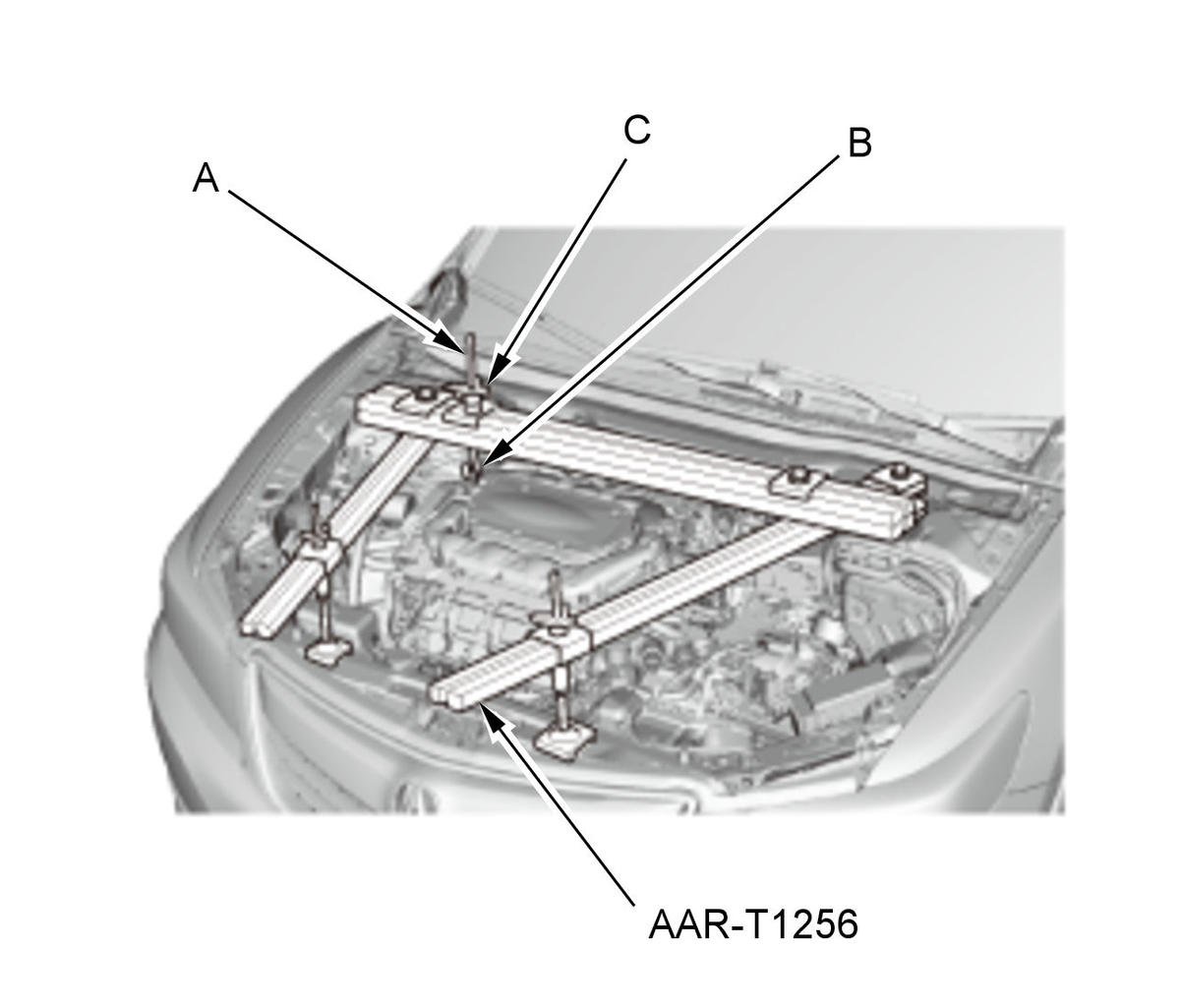

Install the engine support hanger onto the vehicle as shown, and attach the hook (A) to the engine hanger (B). Tighten the wing nut (C) by hand, and lift and support the engine/transmission.

NOTE:
- Be careful when working around the windshield.
- Be careful not to damage the hood opener cable when installing the engine support hanger at the front bulkhead.
- AAR-T1256 two sets required for stacking additional cross section bar.
Timing Belt - Remove
Remove the timing belt .
Timing Belt Drive Pulley - Remove
Remove the timing belt drive pulley .
Oil Filter Base/Oil Cooler/Oil Filter Assembly - Remove
Remove the oil filter base/oil cooler/oil filter assembly .
Oil Pan - Remove
Remove the oil pan .

Oil Pump - Remove

Courtesy of HONDA, U.S.A., INC.

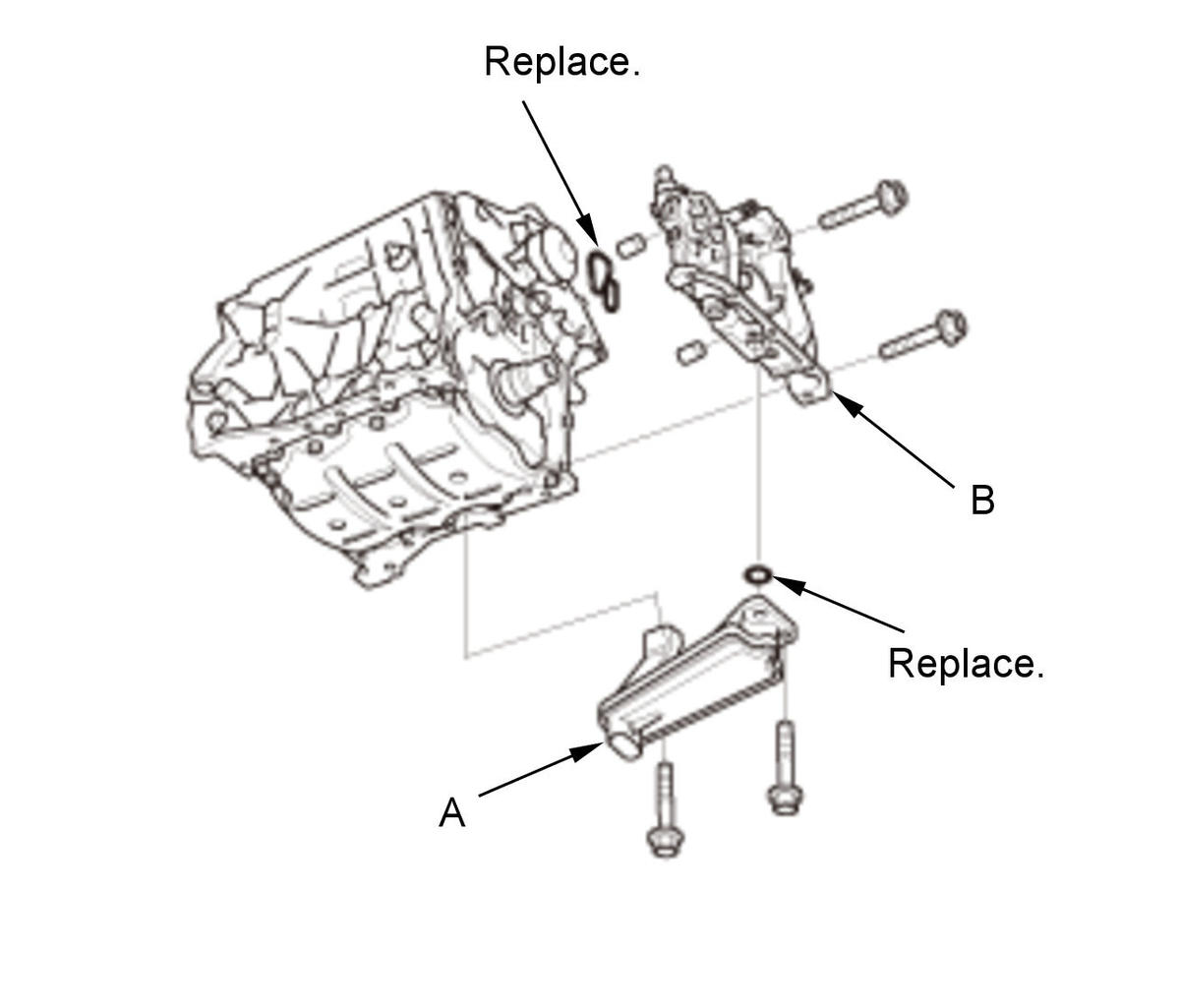

1. Remove the oil strainer (A).

2. Remove the oil pump (B).
