Automatic Transaxle - Testing & Troubleshooting
>>
Input / Output
>>
Shift Lever Disassembly and Reassembly (2013-18)
>>
Exploded View
Exploded View

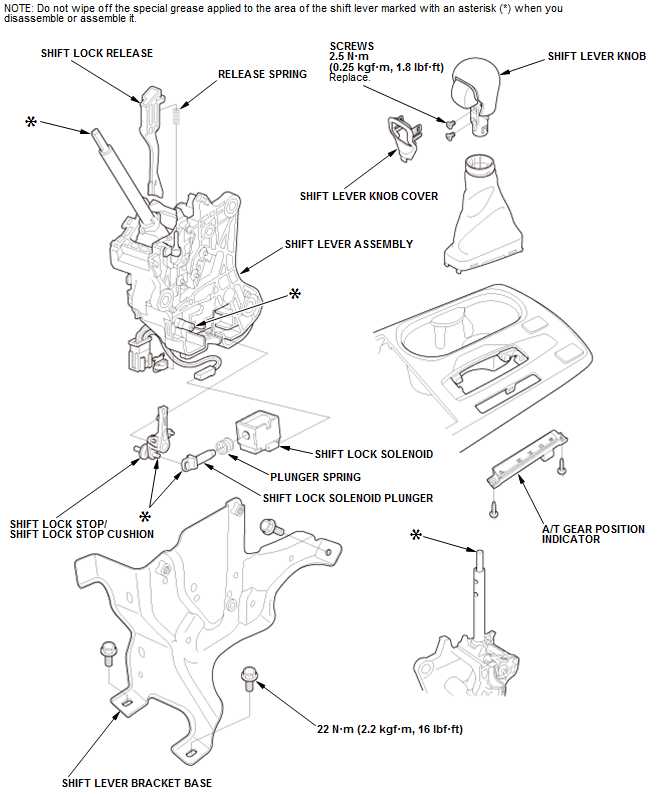

Shift Lever - Exploded View
Exploded View
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
