Automatic Transaxle - Testing & Troubleshooting
>>
Input / Output
>>
Automatic Transmission Disassembly and Reassembly (2013-13)
>>
Exploded View
Exploded View

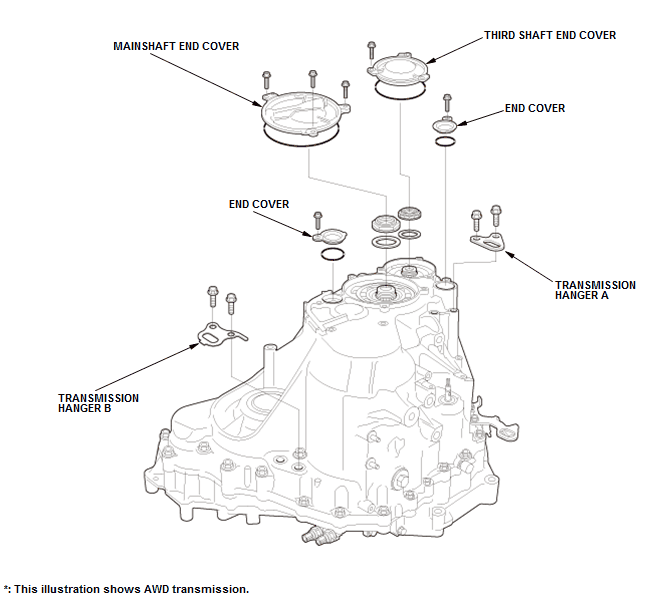

Transmission - Exploded View
Exploded View
Courtesy of HONDA, U.S.A., INC.

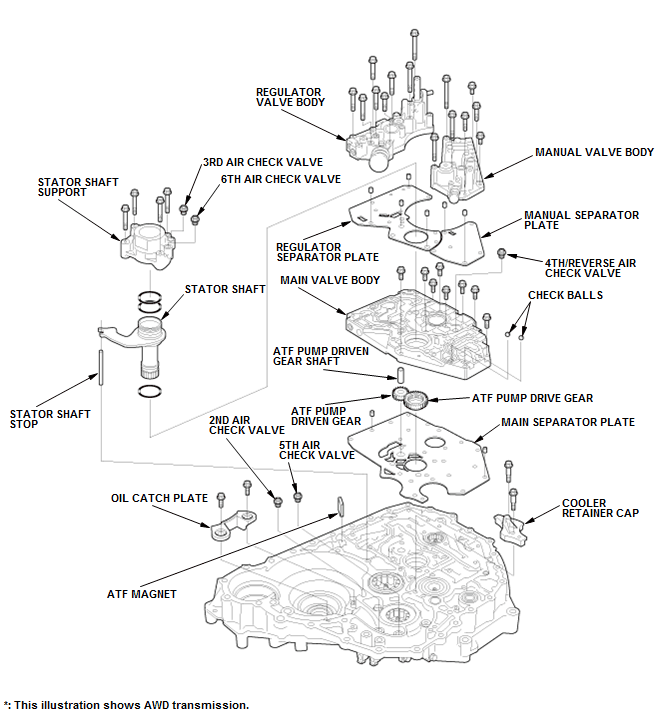

Exploded View
Courtesy of HONDA, U.S.A., INC.

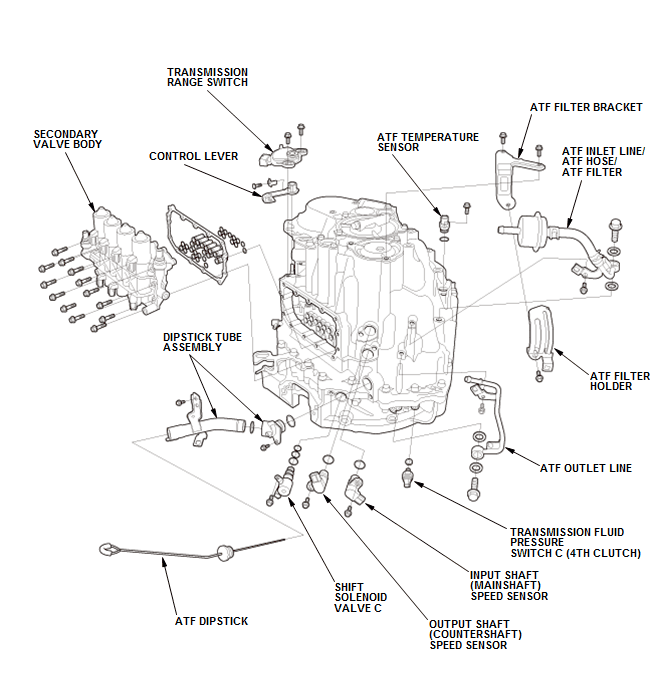

Exploded View
Courtesy of HONDA, U.S.A., INC.

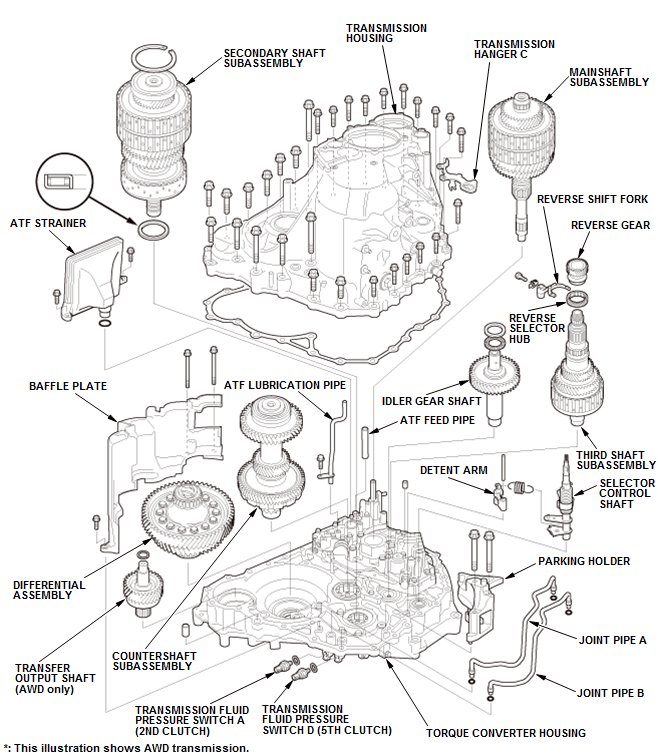

Exploded View
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
