PCM Removal and Installation (2016-18): Installation
NOTE:
- If you are removing the PCM, skip the procedures of using the HDS.
- If you are substituting the PCM, skip the procedures of WRITE DATA.
- PCM - Install

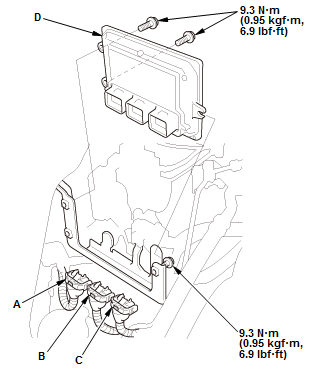

1. Install the PCM (D) 2. Connect PCM connectors A, B, and C.

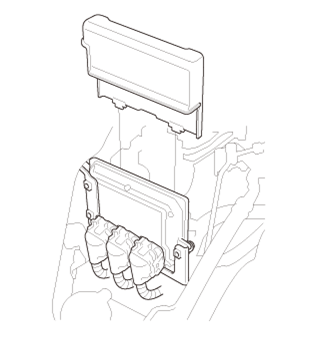

- PCM Cover - Install
- SCS - Open
1. Exit the SCS mode with the HDS. Procedure After Replacing PCM
- VIN - Input
1. Press the engine start/stop button to select the ON mode. NOTE : DTC P0630 VIN Not Programmed or Mismatch may be stored because the VIN has not been programmed into the PCM; ignore it, and continue this procedure 2. Manually input the VIN to the PCM with the HDS.
- WRITE DATA (Engine Oil Life) - Select
NOTE: If the READ DATA (engine oil life) failed in "READ DATA (Engine Oil Life) - Select", skip this procedure. 1. Select the REPLACE PCM MENU, then select WRITE DATA, and follow the screen prompts.
- WRITE DATA (ATF Life) - Select
NOTE: If the READ DATA (ATF life) failed in "READ DATA (ATF Life) - Select", skip this procedure. 1. Select the A/T SYSTEM with the HDS
2. Select the REPLACE TCM/PCM MENU, then select WRITE DATA, and follow the screen prompts.
- Other Procedures for PCM Replacement - Do
1. If the READ DATA (engine oil life) failed in "READ DATA (Engine Oil Life) - Select", replace the engine oil and the engine oil filter .
2. If the READ DATA (ATF life) failed in "READ DATA (ATF Life) - Select", replace the ATF . - Keyless Access System - Registration
- DTC - Clear
1. Clear the Pending or Confirmed DTCs with the HDS. - PCM - Update
- PCM - Idle Learn
- CKP Pattern - Clear/Learn
