Intake Manifold Removal and Installation (2013-15): Installation

NOTE:  Refer to the Exploded View if needed during this procedure.

1. Intake Manifold Assembly - Install

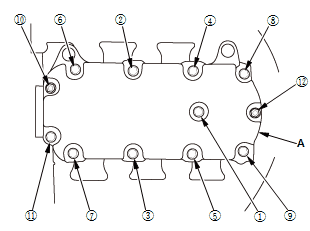

   Fig 1: Intake Manifold Tightening Sequence

   Courtesy of HONDA, U.S.A., INC.

   1. Install the intake manifold. Tighten the bolts and nuts sequentially in three steps. Always use a new intake manifold gasket.

   Specified Torque:

   22 N.m (2.2 kgf.m, 16 lbf.ft)

2. Upper Cover - Install

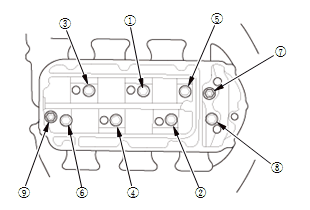

   Fig 2: Upper Cover Tightening Sequence

   Courtesy of HONDA, U.S.A., INC.

   1. Install the upper cover (A) 2. Tighten the bolts and nuts sequentially in three steps. Always use a new gasket.

   Specified Torque:

   12 N.m (1.2 kgf.m, 9 lbf.ft)

3. Connector and Brake Booster Vacuum Hoses - Connect

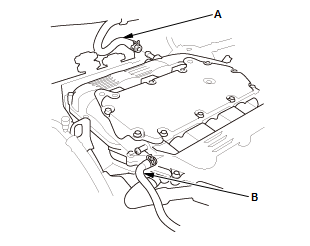

   Courtesy of HONDA, U.S.A., INC.

   1. Connect the brake booster vacuum hose (A) and the PCV hose (B).

4. Connector and Water Bypass Hoses - Connect

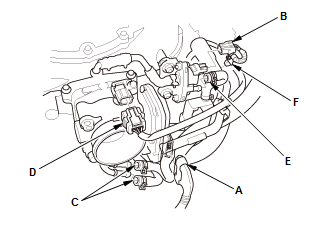

   Courtesy of HONDA, U.S.A., INC.

   1. Connect the throttle actuator connector (A), the EVAP canister purge valve connector (B), the water bypass hoses (C), the MAP sensor connector (D), and the EVAP canister purge hose (E) 2. Install the harness clamp (F).

5. Intake Air Duct - Install

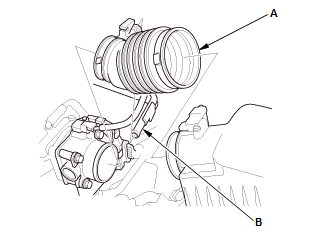

   Courtesy of HONDA, U.S.A., INC.

   1. Install the intake air duct (A). NOTE:  When you tighten the band, refer to the throttle body removal/installation procedure . 2. Connect the breather pipe (B).

6. Tubes, Hoses, and Connector After Installation - Check

   1. Clean up any spilled engine coolant 2. After installation, check that all tubes, hoses, and connectors are installed correctly.

7. Engine Coolant - Refill

   1. Refill the radiator with engine coolant, and bleed the air from the cooling system .
